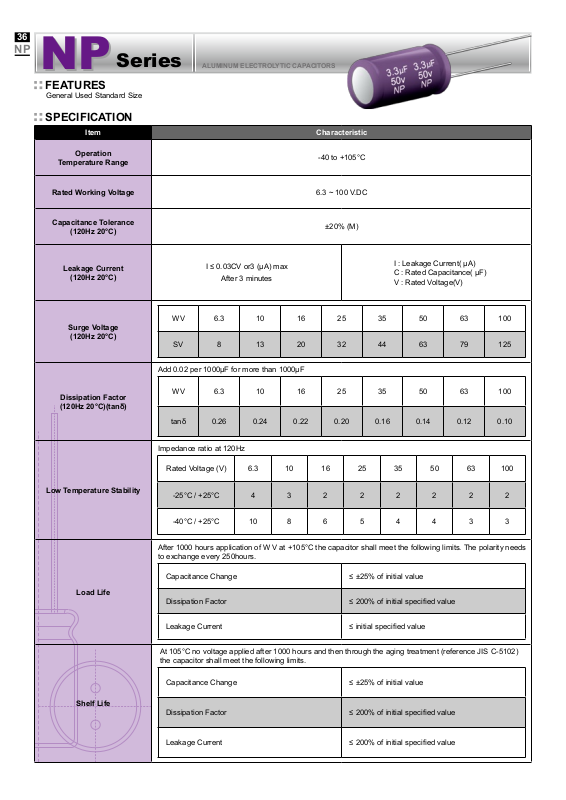

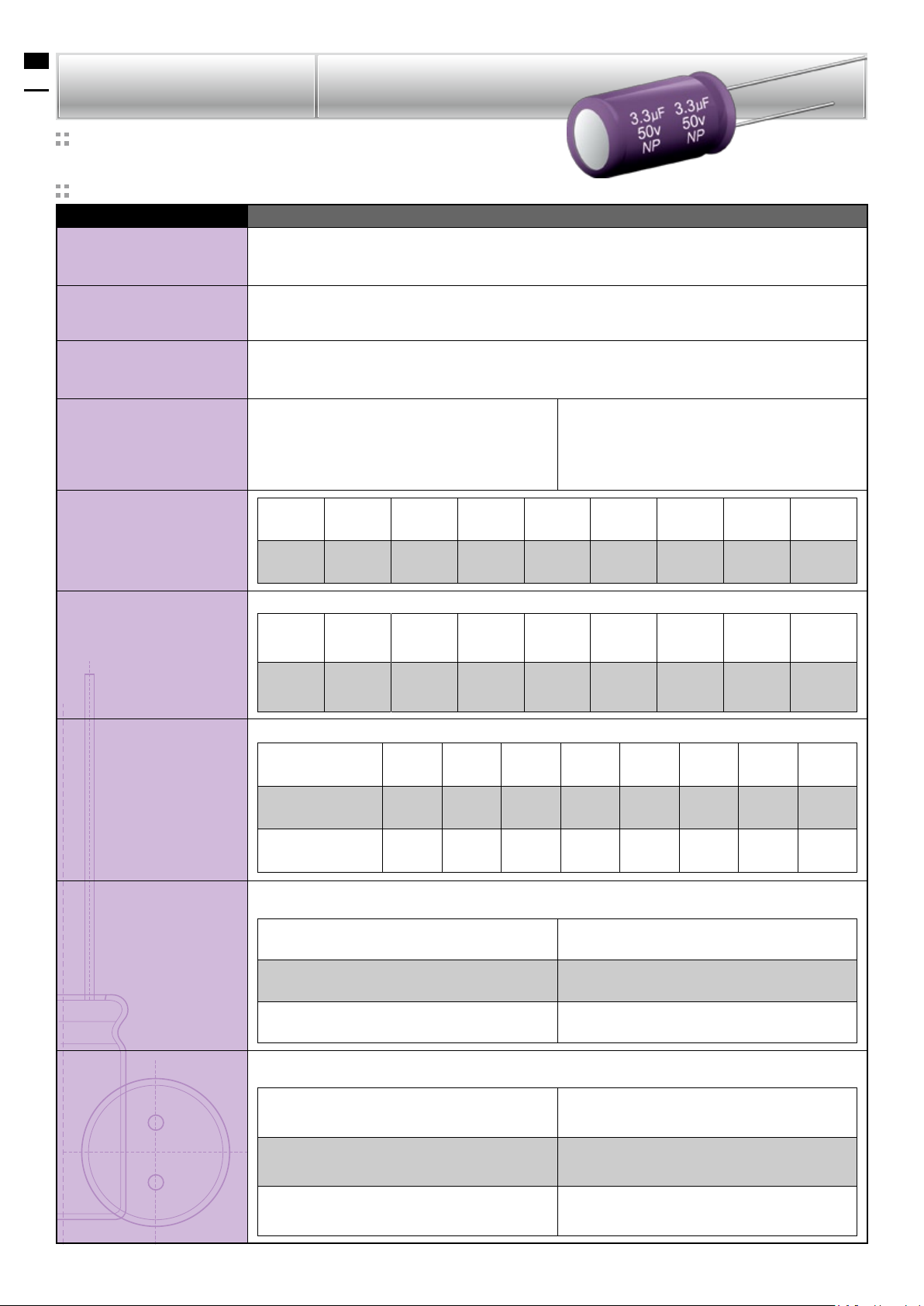

Page 1
36
NP
NP
NP
FEATURES
General Used Standard Size
SPECIFICATION
Item Characteristic
Series
ALUMINUM ELECTROLYTIC CAPACITORS
Operation
Temperature Range
Rated Working Voltage 6.3 ~ 100 V.DC
Capacitance Tolerance
(120Hz 20°C)
Leakage Current
(120Hz 20°C)
Surge Voltage
(120Hz 20°C)
Dissipation Factor
(120Hz 20°C)(tanδ)
WV 6.3 10 16 25 35 50 63 100
SV 8 13 20 32 44 63 79 125
Add 0.02 per 1000µF for more than 1000µF
WV 6.3 10 16 25 35 50 63 100
tanδ 0.26 0.24 0.22 0.20 0.16 0.14 0.12 0.10
I ≤ 0.03CV or3 (µA) max
After 3 minutes
-40 to +105°C
±20% (M)
I : Leakage Current( µA)
C : Rated Capacitance( µF)
V : Rated Voltage(V)
Low Temperature Stability
Load Life
Shelf Life
Impedance ratio at 120Hz
Rated Voltage (V) 6.3 10 16 25 35 50 63 100
-25°C / +25°C 4 3 2 2 2 2 2 2
-40°C / +25°C 10 8 6 5 4 4 3 3
After 1000 hours application of W V at +105°C the capacitor shall meet the following limits. The polarity needs
to exchange every 250hours.
Capacitance Change ≤ ±25% of initial value
Dissipation Factor ≤ 200% of initial specied value
Leakage Current ≤ initial specied value
At 105°C no voltage applied after 1000 hours and then through the aging treatment (reference JIS C-5102)
the capacitor shall meet the following limits.
Capacitance Change ≤ ±25% of initial value
Dissipation Factor ≤ 200% of initial specied value
Leakage Current ≤ 200% of initial specied value
Page 2

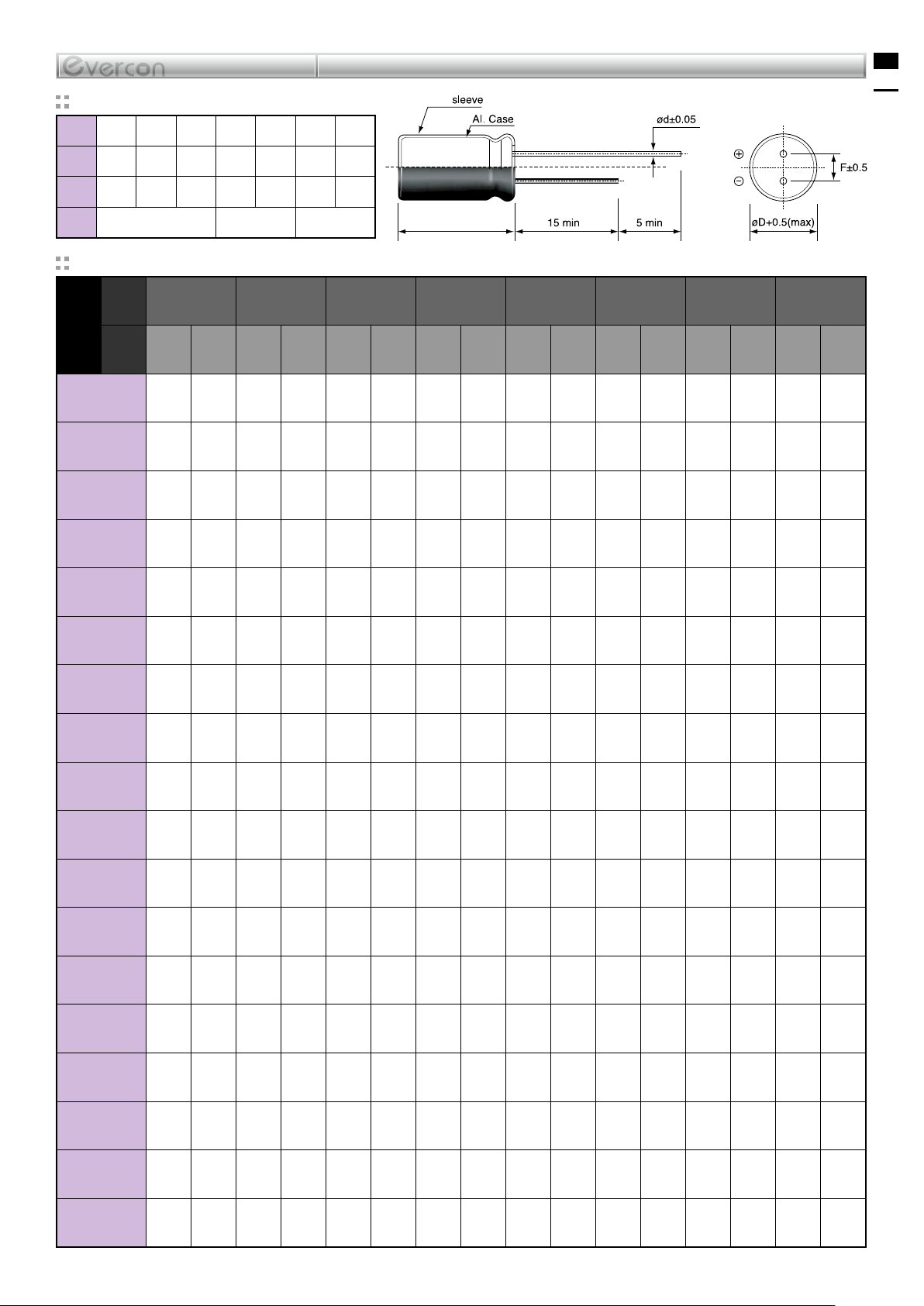

DIMENSIONS (mm)
D 5 6.3 8 10 13 16 18
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
d 0.5 0.5 0.5 0.6 0.6 0.8 0.8
ALUMINUM ELECTROLYTIC CAPACITORS
37
NP
α 1.5 2.0 2.0
L + α(max)
CASE SIZE & MAX RIPPLE CURRENT
WV 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H 63 / 1J 100 / 2A
µF
ITEM Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C.
0.1 ~ 0.47 5x11 11 5x11 14
1 5x11 17 5x11 21
2.2 5x11 25 6.3x11 34
3.3 5x11 27 5x11 28 6.3x11 39
4.7 5x11 34 5x11 34 5x11 34 6.3x11 34 6.3x11 47
10 5x11 42 5x11 42 511 43 6.3x11 52 6.3x11 57 8x11 71
22 5x11 57 5x11 57 6.3x11 65 6.3x11 73 8x11 89 8x11 95 10x16 135
33 5x11 64 5x11 64 5x11 70 6.3x11 80 8x11 100 8x11 105 10 x12 135 13x21 220
47 5x11 76 5x11 76 6.3x11 95 6.3x11 95 8x11 120 10x12 150 10x16 180 13x21 240
100 6.3x11 125 6.3x11 125 8x11 160 8x11 160 10x16 230 10x20 265 13x21 320 16x26 425
220 8x11 215 8x11 215 10x12 275 10x16 305 13x21 410 13x26 480 16x26 575 18x36 720
330 8x11 265 10x12 345 10x16 375 13x21 450 13x21 505 16x26 650 16 x31 655
470 10x12 370 10x16 410 10x20 485 13x21 540 13x25 655 16x32 835 18x36 965
1000 10x20 650 13x21 720 13x25 855 16x32 950 16x32 1140
2200 13x25 1160 16x26 1280 16x32 1510 18x36 1620
3300 16x26 1570 16x32 1690 18x36 1980
4700 16x32 2020 18x36 2160
6800 18x36 2600
