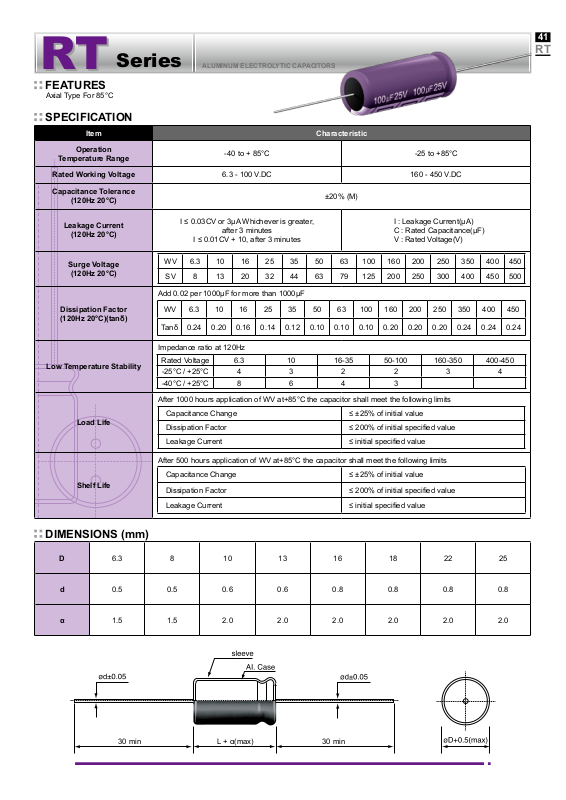

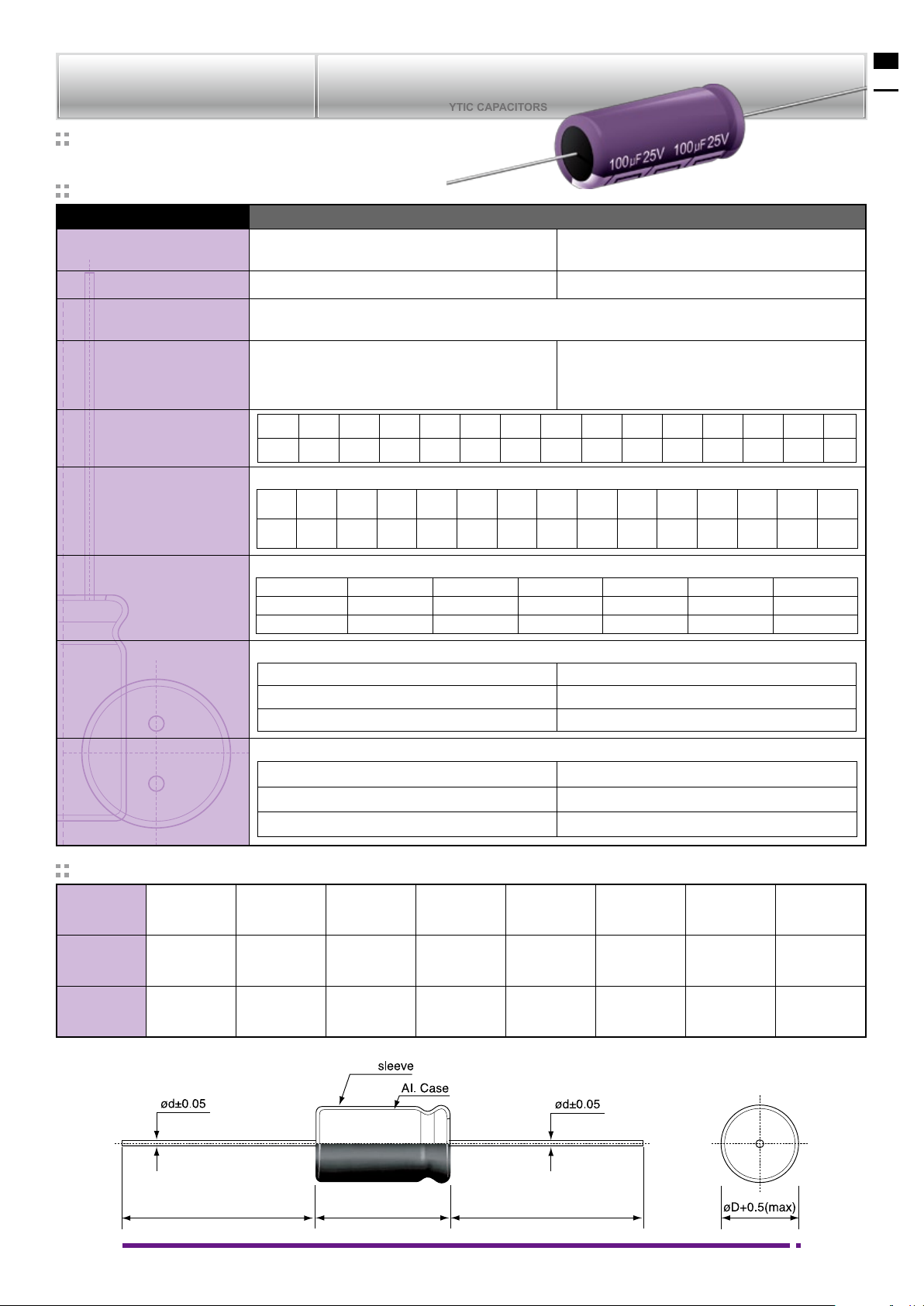

ALUMINUM ELECTROLYTIC CAPACITORS
41
RT
RT
Series
FEATURES
Axial Type For 85°C
SPECIFICATION
Item Characteristic
Operation
Temperature Range
Rated Working Voltage 6.3 - 100 V.DC 160 - 450 V.DC
-40 to + 85°C -25 to +85°C
RT
Capacitance Tolerance
(120Hz 20°C)
Leakage Current
(120Hz 20°C)
Surge Voltage
(120Hz 20°C)
Dissipation Factor
(120Hz 20°C)(tanδ)
Low Temperature Stability
Load Life
Shelf Life
±20% (M)
I ≤ 0.03CV or 3µA Whichever is greater,
after 3 minutes
I ≤ 0.01CV + 10, after 3 minutes
WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
SV 8 13 20 32 44 63 79 125 200 250 300 400 450 500
Add 0.02 per 1000μF for more than 1000μF
WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
Tanδ 0.24 0.20 0.16 0.14 0.12 0.10 0.10 0.10 0.20 0.20 0.20 0.24 0.24 0.24
Impedance ratio at 120Hz
Rated Voltage 6.3 10 16-35 50-100 160-350 400-450
-25°C / +25°C 4 3 2 2 3 4
-40°C / +25°C 8 6 4 3
After 1000 hours application of WV at+85°C the capacitor shall meet the following limits
Capacitance Change ≤ ±25% of initial value
Dissipation Factor ≤ 200% of initial specied value
Leakage Current ≤ initial specied value
After 500 hours application of WV at+85°C the capacitor shall meet the following limits
Capacitance Change ≤ ±25% of initial value
Dissipation Factor ≤ 200% of initial specied value
Leakage Current ≤ initial specied value
I : Leakage Current(µA)
C : Rated Capacitance(µF)
V : Rated Voltage(V)
DIMENSIONS (mm)
D 6.3 8 10 13 16 18 22 25
d 0.5 0.5 0.6 0.6 0.8 0.8 0.8 0.8
α 1.5 1.5 2.0 2.0 2.0 2.0 2.0 2.0
30 min
L + α(max)
30 min
Page 2
42
RT
CASE SIZE & MAX RIPPLE CURRENT
WV 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H 63 / 1J
µF
ITEM D×L R.C D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C.
0.47 5x12 5
1.0 5x12 10
2.2 5x12 23
3.3 5x12 28 5x12 31
4.7 5x12 34 5x12 37
10 5x13 37 5x12 40 5x12 45 5x12 50 5x12 55
22 5x12 60 5x12 65 5x12 70 6.3x12 85 6.3x12 90
33 5x12 65 5x12 70 5x12 80 6.3x12 90 6.3x16 110 6.3x16 120
47 5x12 80 5x12 85 6.3x12 100 6.3x16 120 6.3x16 130 8x16 160
100 5x12 110 6.3x12 130 6.3x16 160 6.3x16 170 8x16 210 8x16 220 8x20 260
220 6.3x16 220 6.3x16 210 8x13 257 8x16 280 8x20 340 10x21 410 10x26 480
330 6.3x16 250 8x16 300 8x16 320 8x20 380 10x21 460 10x26 560 13x26 650
ALUMINUM ELECTROLYTIC CAPACITORS
470 8x15 330 8x16 350 10x17 430 10x21 510 10x26 610 13x36 730 13x32 840
1000 10x21 600 10x21 640 10x26 770 13x26 900 13x32 1060 16x32 1260 16x32 1330
2200 13x26 1020 13x26 1090 16x28 1180 16x32 1480 16x32 1580 18x41 1920 22x40 2160
3300 13x26 1200 13x32 1390 16x32 1620 16x41 1710 16x41 2050 22x40 2340 22x52 2470
4700 16x32 1500 16x32 1730 16x41 1840 18x41 2170 22x40 2470 22x52 2650 25x61 2710
WV 100 / 2A 160 / 2C 200 / 2D 250 / 2E 350 / 2V 400 / 2G 450 / 2W
µF
ITEM D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C.
0.47 5x12 10
1.0 5x12 18 6.3x12 13 6.3x12 13 6.3x16 14 6.3x16 12 8x16 14 8x16 14
2.2 5x12 28 6.3x16 23 6.3x16 23 8x16 27 8x16 24 8x20 28 10x21 31
3.3 5x12 34 8x16 33 8x16 33 8x16 33 8x20 32 10x21 38 10x21 38
4.7 5x12 40 8x16 39 8x16 39 8x20 45 10x21 46 10x21 46 10x26 50
10 6.3x12 60 8x20 60 10x21 70 10x21 70 13x26 85 13x26 85 13x26 85
22 8x16 120 10x26 120 13x26 140 13x26 140 13x32 140 16x32 150 16x32 150
33 8x16 150 13x26 170 13x26 170 13x32 190 16x32 190 16x41 210 18x41 230
47 8x20 190 16x32 230 13x32 230 16x32 260 16x41 260 18x41 290 22x40 310
100 10x26 340 16x41 430 16x41 430 16x41 430 22x40 420 22x52 460 22x52 540
220 13x26 560 22x40 680 22x40 680 22x40 680
330 13x32 750 22x52 940 25x52 1010
470 16x32 970 25x52 1200
1000 22x40 1540
2200 25x61 2430
