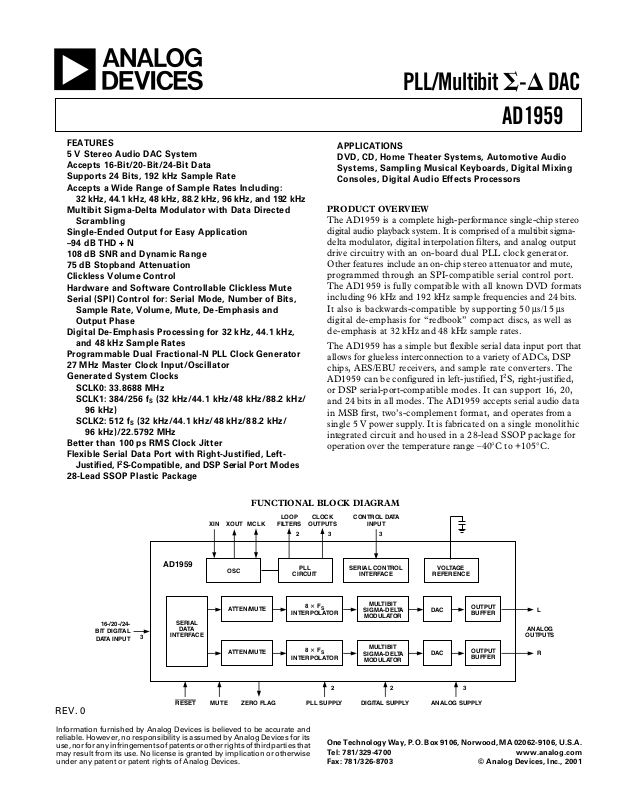

PLL/Multibit - DAC
AD1959
FEATURES
5 V Stereo Audio DAC System
Accepts 16-Bit/20-Bit/24-Bit Data
Supports 24 Bits, 192 kHz Sample Rate
Accepts a Wide Range of Sample Rates Including:
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, and 192 kHz
Multibit Sigma-Delta Modulator with Data Directed
Scrambling
Single-Ended Output for Easy Application
–94 dB THD + N
108 dB SNR and Dynamic Range
75 dB Stopband Attenuation
Clickless Volume Control
Hardware and Software Controllable Clickless Mute
Serial (SPI) Control for: Serial Mode, Number of Bits,
Sample Rate, Volume, Mute, De-Emphasis and
Output Phase
Digital De-Emphasis Processing for 32 kHz, 44.1 kHz,
and 48 kHz Sample Rates
Programmable Dual Fractional-N PLL Clock Generator
27 MHz Master Clock Input/Oscillator
Generated System Clocks
SCLK0: 33.8688 MHz
SCLK1: 384/256 f
(32 kHz/44.1 kHz/48 kHz/88.2 kHz/
S
96 kHz)
SCLK2: 512 f
(32 kHz/44.1 kHz/48 kHz/88.2 kHz/
S
96 kHz)/22.5792 MHz
Better than 100 ps RMS Clock Jitter
Flexible Serial Data Port with Right-Justified, Left-
Justified, I2S-Compatible, and DSP Serial Port Modes
28-Lead SSOP Plastic Package
APPLICATIONS
DVD, CD, Home Theater Systems, Automotive Audio
Systems, Sampling Musical Keyboards, Digital Mixing
Consoles, Digital Audio Effects Processors
PRODUCT OVERVIEW
The AD1959 is a complete high-performance single-chip stereo
digital audio playback system. It is comprised of a multibit sigmadelta modulator, digital interpolation filters, and analog output
drive circuitry with an on-board dual PLL clock generator.
Other features include an on-chip stereo attenuator and mute,
programmed through an SPI-compatible serial control port.
The AD1959 is fully compatible with all known DVD formats
including 96 kHz and 192 kHz sample frequencies and 24 bits.
It also is backwards-compatible by supporting 50 µs/15 µs
digital de-emphasis for “redbook” compact discs, as well as
de-emphasis at 32 kHz and 48 kHz sample rates.
The AD1959 has a simple but flexible serial data input port that
allows for glueless interconnection to a variety of ADCs, DSP
chips, AES/EBU receivers, and sample rate converters. The
AD1959 can be configured in left-justified, I2S, right-justified,
or DSP serial-port-compatible modes. It can support 16, 20,
and 24 bits in all modes. The AD1959 accepts serial audio data
in MSB first, two’s-complement format, and operates from a
single 5 V power supply. It is fabricated on a single monolithic
integrated circuit and housed in a 28-lead SSOP package for
operation over the temperature range –40°C to +105°C.
FUNCTIONAL BLOCK DIAGRAM
MCLK
XOUT
OSC
ATTEN/MUTE
ATTEN/MUTE
PLL
CIRCUIT
INTERPOLATOR
INTERPOLATOR
16-/20-/24BIT DIGITAL
DATA INPUT
XIN
AD1959
SERIAL
DATA
INTERFACE
3
RESET MUTE ZERO FLAG PLL SUPPLY DIGITAL SUPPLY ANALOG SUPPLY
LOOP
FILTERS
REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices.
CLOCK
OUTPUTS
8 F
S
8 F
S
CONTROL DATA
INPUT
323
SERIAL CONTROL
INTERFACE
MULTIBIT
SIGMA-DELTA
MODULATOR
MULTIBIT
SIGMA-DELTA
MODULATOR
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700 www.analog.com
Fax: 781/326-8703 © Analog Devices, Inc., 2001
VO LTAG E
REFERENCE
DAC
DAC
OUTPUT
BUFFER
OUTPUT
BUFFER
322
ANALOG
OUTPUTS
L
R
AD1959–SPECIFICATIONS
TEST CONDITIONS UNLESS OTHERWISE NOTED
Supply Voltages (AVDD, DVDD) 5.0 V
Ambient Temperature 25°C
Input Clock 12.288 MHz
Input Signal 996.11 Hz
–0.5 dB Full Scale
Input Sample Rate 48 kHz
Measurement Bandwidth 20 Hz to 20 kHz
Word Width 20 Bits
Load Capacitance 100 pF
Load Impedance 47 kΩ
Input Voltage HI 3.5 V
Input Voltage LO 0.8 V
ANALOG PERFORMANCE
Min Typ Max Unit
Resolution 24 Bits
Signal-to-Noise Ratio (20 Hz to 20 kHz)
No Filter (Stereo) 105 dB
With A-Weighted Filter (Stereo) 108 dB
Dynamic Range (20 Hz to 20 kHz, –60 dB Input)
No Filter (Stereo) 105 dB
With A-Weighted Filter (Stereo) 101 108 dB
Total Harmonic Distortion + Noise (Stereo) –94 –91 dB
PLL Performance
Master Clock Input Frequency 27 MHz
Generated System Clocks
SCLK0 33.8688 MHz
SCLK1 12.288 MHz
SCLK2 22.5792 MHz
Jitter (SCLK0 and SCLK1) 85 125 ps rms
Analog Outputs
Single-Ended Output Range (±Full Scale) 3.17 V p-p
Output Capacitance at Each Output Pin 2 pF
(FILTR) 2.34 2.39 2.44 V
V
REF
Gain Error –5 ± 2.0 +5 %
Interchannel Gain Mismatch –0.15 ± 0.015 +0.15 dB
Gain Drift 150 250 ppm/°C
DC Offset –25 –5 +15 mV
Out-of-Band Energy (0.5 × f
Interchannel Crosstalk (EIAJ Method) –120 dB
Interchannel Phase Deviation ± 0.1 Degrees
De-Emphasis Gain Error ± 0.1 dB
NOTES
Performance of right and left channels is identical (exclusive of the Interchannel Gain Mismatch and Interchannel Phase Deviation specifications).
Specifications subject to change without notice.
to 100 kHz) –90 dB
S
DIGITAL I/O (–40°C to +105°C )
Min Typ Max Unit
Input Voltage HI (V
Input Voltage HI (V
Input Voltage LO (V
Input Leakage (I
Input Leakage (I
High Level Output Voltage (V
Low Level Output Voltage (V
Low Level Output Voltage (V
) Except XIN 2.2 V
IH
) XIN 2.7 V
IH
) 0.8 V
IL
@ VIH = 2.4 V) 10 µA
IH
@ VIL = 0.8 V) 10 µA
IL
) IOH = 1 mA 2.0 V
OH
) IOL = 1 mA Except XOUT 0.4 V
OL
) IOL = 1 mA XOUT 1.2 V
OL
Input Capacitance 20 pF
Specifications subject to change without notice.
–2–
REV. 0
AD1959
TEMPERATURE RANGE
Min Typ Max Unit
Specifications Guaranteed 25 °C
Functionality Guaranteed –40 +105* °C
Storage –55 +150 °C
NOTES
*105°C ambient guaranteed for a 4-layer board, two 1 oz. planes, two 2 oz. signal layers. Derate to 85 °C for 2-layer board, 2 oz. layers.
Specifications subject to change without notice.
POWER
Min Typ Max Unit
Supplies
Voltage, Analog Digital PLL 4.50 5 5.50 V
Analog Current 36 42 mA
Digital Current 28 34 mA
PLL Current 27 32 mA
Dissipation
Operation – All Supplies 455 540 mW
Operation – Analog Supply 180 mW
Operation – Digital Supply 140 mW
Operation – PLL Supply 135 mW
Specifications subject to change without notice.
DIGITAL FILTER CHARACTERISTICS
Sample Rate (kHz) Pass Band (kHz) Stop Band (kHz) Stopband Attenuation (dB) Pass-Band Ripple (dB)
44.1 DC–20 24.1–328.7 75 ± 0.0002
48 DC–21.8 26.23–358.28 75 ± 0.0002
96 DC–39.95 56.9–327.65 75 ± 0.0005
192 DC–87.2 117–327.65 60 0/–0.04 (DC–21.8 kHz)
0/–0.5 (DC–65.4 kHz)
0/–1.5 (DC–87.2 kHz)
Specifications subject to change without notice.
GROUP DELAY
Chip Mode Group Delay Calculation f
INT8× Mode 24.625/f
INT4× Mode 15.75/f
INT2× Mode 14/f
Specifications subject to change without notice.
S
S
S
S
48 kHz 513 µs
96 kHz 164 µs
192 kHz 72.91 µs
Group Delay Unit
DIGITAL TIMING (Guaranteed over –40°C to +105°C, AVDD = DVDD = 5.0 V ± 10%)
Min Unit
t
DMP
t
DML
t
DMH
t
DBH
t
DBL
t
DBP
t
DLS
t
DLH
t
DDS
t
DDH
t
RSTL
Specifications subject to change without notice.
MCLK Period (FMCLK = 256 × FLRCLK) 54 ns
MCLK LO Pulsewidth (All Modes) 15 ns
MCLK HI Pulsewidth (All Modes) 10 ns
BCLK HI Pulsewidth 7 ns
BCLK LO Pulsewidth 12 ns
BCLK Period 60 ns
LRCLK Setup 20 ns
LRCLK Hold (DSP Serial Port Mode Only) 20 ns
SDATA Setup 15 ns
SDATA Hold 10 ns
RST LO Pulsewidth 15 ns
REV. 0
–3–
AD1959
WARNING!
ESD SENSITIVE DEVICE
ABSOLUTE MAXIMUM RATINGS*
DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +6 V
AVDD to DGND . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +6 V
Digital Inputs . . . . . . . . . . DGND – 0.3 V to DVDD + 0.3 V
Analog Inputs . . . . . . . . . . AGND – 0.3 V to AVDD + 0.3 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . –0.3 V to + 0.3 V
Reference Voltage . . . . . . . . . . . . . . . . . . . . . (AVDD + 0.3)/2
PACKAGE CHARACTERISTICS
θJA (Thermal Resistance) Junction-to-Ambient
109.0°C/W Typ (2-Layer Board)
(Thermal Resistance) Junction-to-Ambient
θ
JA
78.58°C/W Typ (4-Layer Board—2 Signal, 2 Planes)
θ
(Thermal Resistance) Junction-to-Case
JA
39.0°C/W Typ
Soldering (10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those listed in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability. Only one absolute
maximum rating may be applied at any one time.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD1959 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.
ORDERING GUIDE
Model Temperature Package Description Package Option
AD1959YRS –40°C to +105
AD1959YRSRL –40°C to +105
°C 28-Lead Small Outline Package RS-28
°C 28-Lead Small Outline Package RS-28 on 13" Reels
EVAL-AD1959EB Evaluation Board
PIN CONFIGURATION
1
CCLK
CLATCH
RESET
LRCLK
BCLK
SDATA
DVDD
DGND
SCLK0
MCLK
XOUT
XIN
SCLK1
SCLK2
2
3
4
5
6
AD1959
7
TOP VIEW
(Not to Scale)
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
CDATA
MUTE
ZERO
FILTB
AVDD
OUTL
AGND1
FLTR
OUTR
AGND0
LF1
LF0
PGND
PVDD
–4–
REV. 0
AD1959
PIN FUNCTION DESCRIPTIONS
Pin Input/Output Mnemonic Description
1 I CCLK Control Clock Input for Control Data. Control input data must be valid on
the rising edge of CCLK. CCLK may be continuous or gated.
2I CLATCH Latch Input for Control Data.
3I RESET Reset. The AD1959 is placed in a reset mode when this pin is held LO.
The serial control port registers are reset to their default values. Set HI for
normal operation.
4 I LRCLK Left/Right Clock Input for Input Data. Must run continuously.
5 I BCLK Bit Clock Input for Input Data. Need not run continuously; may be gated
or used in a burst fashion.
6 I SDATA Serial input, MSB first, containing two channels of 16/20/24 bits of two’s-
complement data per channel.
7 I DVDD Digital Power Supply Connect to Digital 5 V Supply.
8 I DGND Digital Ground.
9 O SCLK0 33.8688 MHz Clock Output.
10 I/O MCLK 27 MHz Master Clock Output/256 f
11 O XOUT 27 MHz Crystal Oscillator Output.
12 I XIN 27 MHz Crystal Oscillator/External Clock Input.
13 O SCLK1 256/384 f
14 O SCLK2 512 f
Output.
S
/22.5792 MHz Output.
S
15 PVDD PLL Power Supply. Connect to PLL 5 V Supply.
16 PGND PLL Ground.
17 LF0 PLL0 Loop Filter.
18 LF1 PLL1 Loop Filter.
19 AGND0 Analog Ground.
20 O OUTR Right Channel Positive Line Level Analog Output.
21 O FILTR Voltage Reference Filter Capacitor Connection. Bypass and decouple the
voltage reference with parallel 10 µF and 0.1 µF capacitors to AGND.
22 I AGND1 Analog Ground.
23 O OUTL Left Channel Line Level Analog Output.
24 AVDD Analog Power Supply. Connect to Analog 5 V Supply.
25 FILTB Filter Capacitor Connection, Connect 10 µF Capacitor to AGND.
26 O ZERO Zero Flag Output. This pin goes HI when both channels have zero signal
input for more than 1024 L/R Clock Cycles.
27 I MUTE Mute. Assert HI to Mute Both Stereo Analog Outputs. Deassert LO for
normal operation.
28 I CDATA Serial control input, MSB first, containing 16 bits of unsigned data
per channel.
DAC Clock Input.
S
REV. 0
–5–
AD1959
FUNCTIONAL DESCRIPTION DAC
The AD1959 has two DAC channels arranged as a stereo pair
with single-ended analog outputs. Each channel has its own
independently programmable attenuator, adjustable in 16384
linear steps. Digital inputs are supplied through a serial data input
pin, SDATA, a frame clock, LRCLK and a bit clock, BLCK.
Each analog output pin sits at a dc level of V
, and swings
REF
± 1.585 V for a 0 dB digital input signal. A single op amp
third-order external low-pass filter is recommended to remove
high-frequency noise present on the output pins. The output
phase can be changed in an SPI control register to accommodate inverting and noninverting filters. Note that the use of op
amps with low slew rate or low bandwidth may cause high frequency noise and tones to fold down into the audio band; care
should be exercised in selecting these components.
The FILTD and FILTR pins should be bypassed by external
capacitors to ground. The FILTD pin is used to reduce the noise
of the internal DAC bias circuitry, thereby reducing the DAC
output noise. The voltage at the V
pin, FILTR (~2.39 V) can
REF
be used to bias external op amps used to filter the output signals.
The DAC master clock frequency is 256 f
range. For the 96 kHz range this is 128 f
for the 32 kHz–48 kHz
S
. It is supplied inter-
S
nally from the PLL clock system when MCLK mode is set to
Output in the PLL Control Register. When the MCLK mode is
changed to Input, it must be supplied from an external source
connected to MCLK. The output from the 27 MHz PLL clock
is disabled in this case.
PLL Clock System
The PLL clock system operates from a 27 MHz master clock
supplied by the on-board crystal oscillator or an external source
connected to XIN. With the MCLK mode set to Output, the
27 MHz clock is buffered out to the MCLK pin. When set to
Input, the MCLK is the 256 f
master clock input for the DAC.
S
SCLK0 produces a 33.8688 MHz output, SCLK1 is intended
to be used as a master audio clock and will be a multiple of the
sample rate set in the PLL control register. It can be set to
or 384 fS using Bit 5 and to 512 fS or 768 fS, with Bit 4.
256 f
S
SCLK2 can be set to a constant 22.5792 MHz (512 × 44.1 kHz)
or 512 f
by Bit 3 of the PLL Control Register. Please note that
S
SCLK2 is intended to operate a DSP and does not meet the
jitter specifications stated under Analog Performance. All the
generated clocks can be set to 1/2 their nominal rate by setting
REF_Div2, Bit 8 in the PLL Control Register.
Reset
RESET will set the control registers to their default settings. The
chip should be reset on power-up. After reset is deasserted, the
part will come out of reset on the next rising LRCLK.
Serial Control Port
The AD1959 has an SPI-compatible control port to permit
programming the internal control registers for the PLL and DAC.
The DAC output levels may be independently programmed
by means of an internal digital attenuator adjustable in 16384
linear steps.
The SPI control port is a 3-wire serial control port. The format
is similar to the Motorola SPI format except the input data word
is 16 bits wide. Max serial bit clock frequency is 8 MHz and
may be completely asynchronous to the PLL system or the
DAC. Figure 1 shows the format of the SPI signal. Note that the
CCLK can be gated or continuous, CLATCH should be low
during the 16 active clocks.
CLATCH
CCLK
CDATA
D15 D14
D0
Figure 1. Format of SPI Signal
–6–
REV. 0
AD1959
POWER SUPPLY AND VOLTAGE REFERENCE
The AD1959 is designed for five-volt supplies. Separate power
supply pins are provided for the analog, digital, and PLL sections. These pins should be bypassed with 100 nF ceramic chip
capacitors, as close to the pins as possible, to minimize noise. A
bulk aluminum electrolytic capacitor of at least 22 µF should
also be provided on the same PC board. For best performance it
is recommended that the analog supply be separate from the
digital and PLL supply. It is recommended that all supplies be
isolated by ferrite beads in series with each supply. It is expected
that the digital and PLL sections will be run from a common
supply but isolated from one another. It is important that the
analog supply be as clean as possible.
The internal voltage reference is brought out on Pin 21 (FILTR)
and should be bypassed as close as possible to the chip with a
LRCLK
BCLK
SDATA
LRCLK
MSB
LEFT CHANNEL RIGHT CHANNEL
LSB
LEFT-JUSTIFIED MODE – 16 TO 24 BITS PER CHANNEL
LEFT CHANNEL
parallel combination of 10 µF and 100 nF The reference voltage
may be used to bias external op amps to the common-mode
voltage of the analog output signal pins. The current drawn
from the V
pin should be limited to less than 50 µA.
REF
SERIAL DATA PORTS – DATA FORMAT
The DAC serial data input mode defaults to I2S. By changing
Bits 4 and 5 in the DAC control register, the mode can be
changed to RJ, DSP, or LJ. The word width defaults to 24 bits
but can be changed by programming Bits 8 and 9 in the DAC
Control Register.
Figure 2 shows the serial mode formats.
MSB
RIGHT CHANNEL
LSB
BCLK
SDATA
LRCLK
BCLK
SDATA
LRCLK
BCLK
SDATA
MSB MSB
LEFT CHANNEL RIGHT CHANNEL
MSB MSB
RIGHT-JUSTIFIED MODE – SELECT NUMBER OF BITS PER CHANNEL
MSB MSB
NOTES
1. DSP MODE DOES NOT IDENTIFY CHANNEL.
2. LRCLK NORMALLY OPERATES AT f
3. BCLK FREQUENCY IS NORMALLY 64 LRCLK BUT MAY BE OPERATED IN BURST MODE.
EXCEPT FOR DSP MODE WHICH IS 2 fS.
S
LSB LSB
12S MODE – 16 TO 24 BITS PER CHANNEL
LSB LSB
LSB LSB
DSP MODE – 16 TO 24 BITS PER CHANNEL
1/f
S
Figure 2. Stereo Serial Modes
REV. 0
–7–
AD1959
(
)
Table I. DAC Control Register
Bit 11:10 Bit 9:8 Bit 7 Bit 6 Bit 5:4 Bit 3:2 Bit 1:0
Interpolation Serial Data Serial Data De-Emphasis SPI Register
Factor Width Output Phase Soft Mute Format Filter Address
2
00 = 8×* 00 = 24 Bits* 0 = Noninverted* 0 = No Mute* 00 = I
01 = 4× 01 = 20 Bits 1 = Inverted 1 = Muted 00 = Right Justified 01 = 44.1 kHz
10 = 2× 10 = 16 Bits 10 = DSP 10 =32 kHz
11 = Not Allowed 11 = 16 Bits 11 = Left Justified 11 = 48 kH
*Default Setting.
S* 00 = None* 01
z
Table II. DAC Volume Registers
B
it 15:2 Bit 1:0
Volume SPI Register Address
14 Bits, Unsigned 00 = Left Volume
14 Bits, Unsigned 10 = Right Volume
Default is full volume.
Table III. PLL Control Register
Bit 11 Bit 10 Bit 9 Bit 8 Bit 7:6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1:0
PLL2 PLL1 XTAL REF_Div2 SPI
Power- Power- Power- Power- SCLK1 SCLK2 MCLK Register
Down Down Down Down f
S
0 = On* 0 = On* 0 = On* 0 = No Div* 00 = 48 kHz* 0 =256* 0 = f
1 = Power- 1 = Power- 1 = Power- 1 = Div by 2 01 = Not 1 =384 1 = 2 × f
Select Double Select Mode Address
* 0 = 512 × 4.1 kHz* 0 = Output* 11
S
1 = 512 × f
S
S
1 = Input
Down Down Down Allowed
10 = 32 kHz
11 = 44.1 kHz
Default Setting.
*
OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
C00660–2.5–4/01(0)
28-Lead Small Outline Package (SSOP)
0.407 (10.34)
0.397 (10.08)
28 15
PIN 1
1
0.078 (1.98)
0.068 (1.73)
0.008 (0.203)
0.002 (0.050)
0.0256
(0.65)
BSC
0.015 (0.38)
0.010 (0.25)
(RS-28)
0.212 (5.38)
0.205 (5.21)
14
0.07 (1.79)
0.066 (1.67)
SEATING
PLANE
–8–
0.311 (7.9)
0.301 (7.64)
0.009 (0.229)
0.005
0.127
8
0
0.022 (0.558)
0.03 (0.762)
REV. 0
PRINTED IN U.S.A.
PRINTED IN U.S.A.
Loading...
