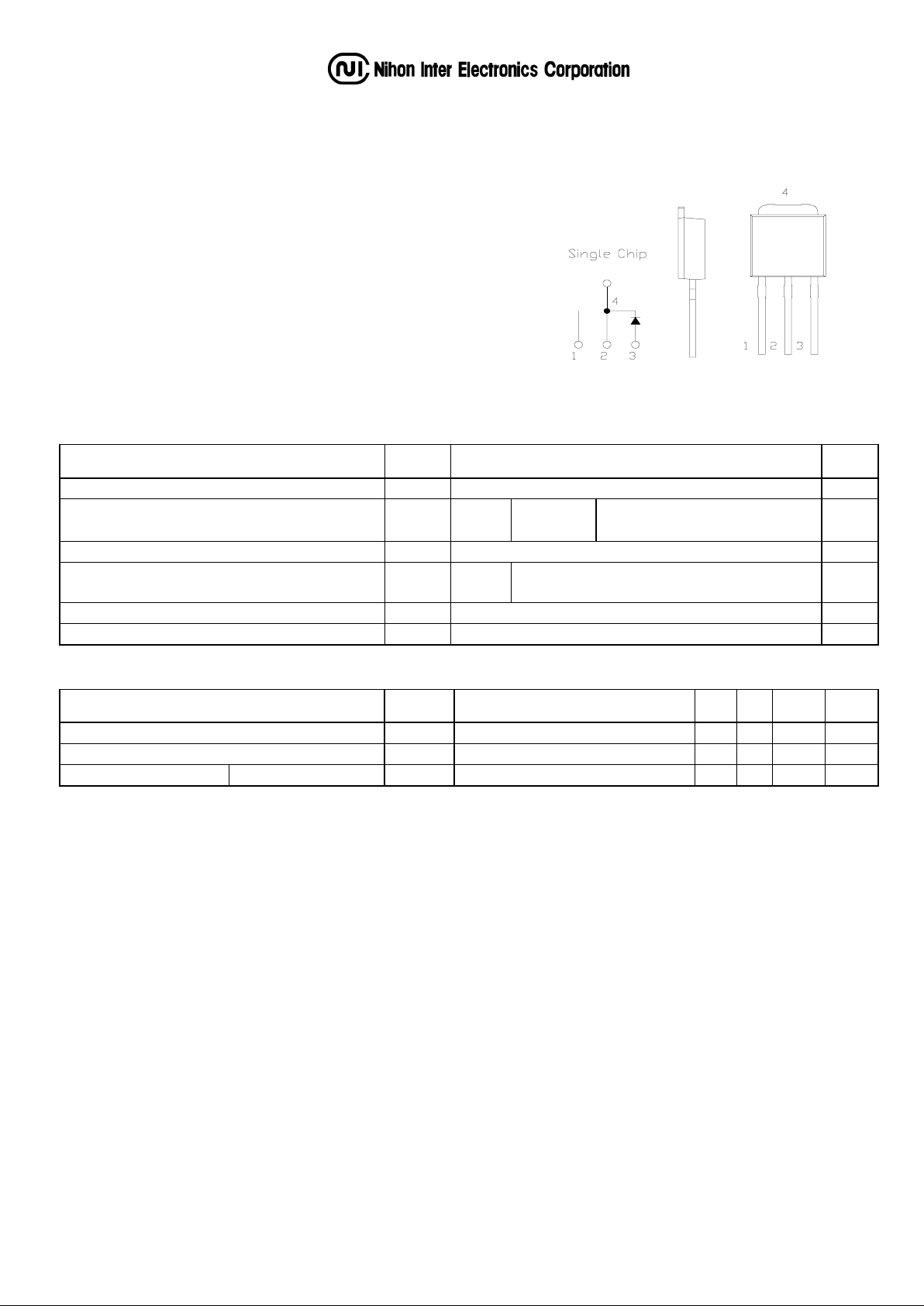

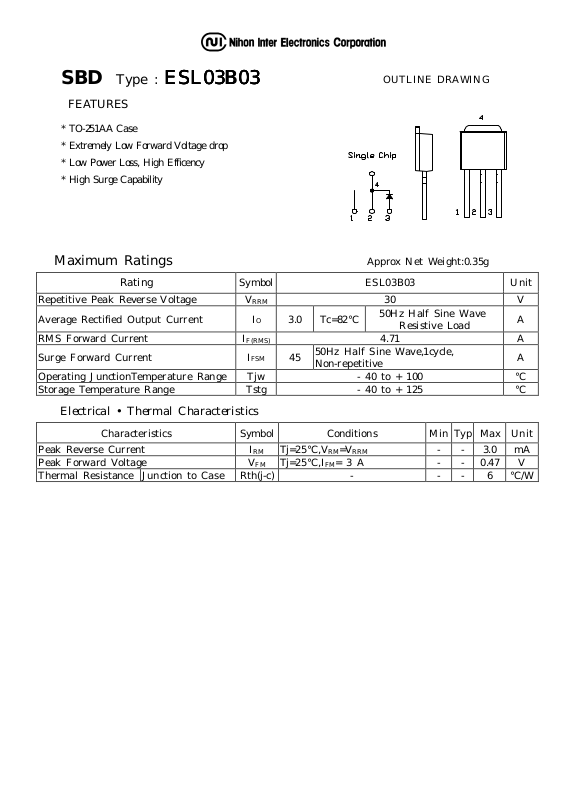

OUTLINE DRAWING
Maximum Ratings Approx Net Weight:0.35g
Rating
Symbol ESL03B03 Unit
Repetitive Peak Reverse Voltage V
RRM
30 V
Average Rectified Output Current IO 3.0
Tc=82°C
50Hz Half Sine Wave
Resistive Load
A
RMS Forward Current I
F(RMS)
4.71 A
Surge Forward Current I
FSM
45
50Hz Half Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range
Tjw - 40 to + 100
°C
Storage Temperature Range
Tstg - 40 to + 125
°C
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min Typ Max Unit
Peak Reverse Current IRM
Tj=25°C,V
RM=VRRM
- - 3.0 mA
Peak Forward Voltage VFM
Tj=25°C,I
FM
= 3 A
- - 0.47 V
Thermal Resistance Junction to Case Rth(j-c) - - - 6
°C/W
SBD Type : EEEESL03B03
SL03B03SL03B03
SL03B03
FEATURES
* TO-251AA Case
* Extremely Low Forward Voltage drop
* Low Power Loss, High Efficency
* High Surge Capability
Page 2

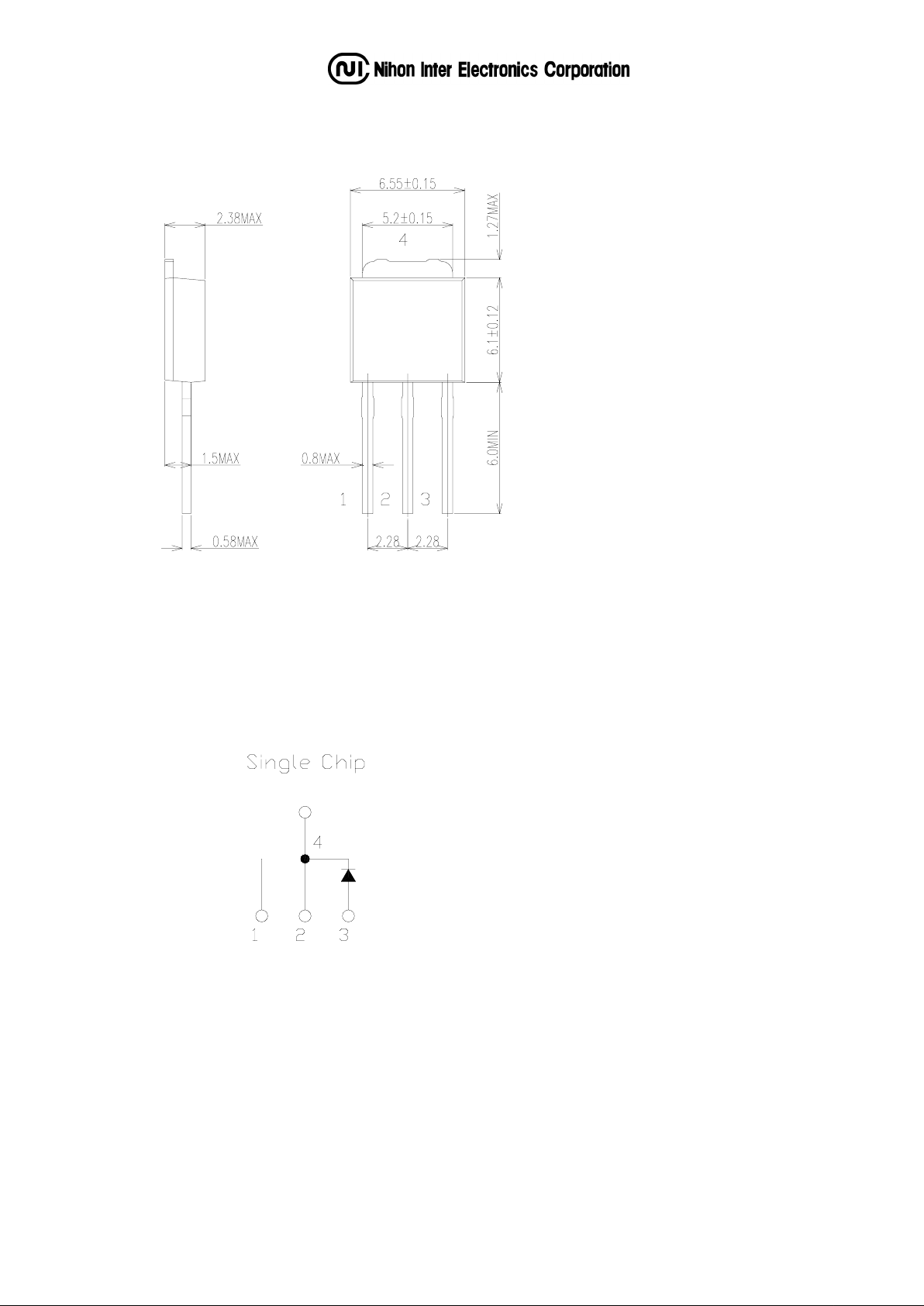

ESL03B03 OUTLINE DRAWING (Dimensions in mm)
