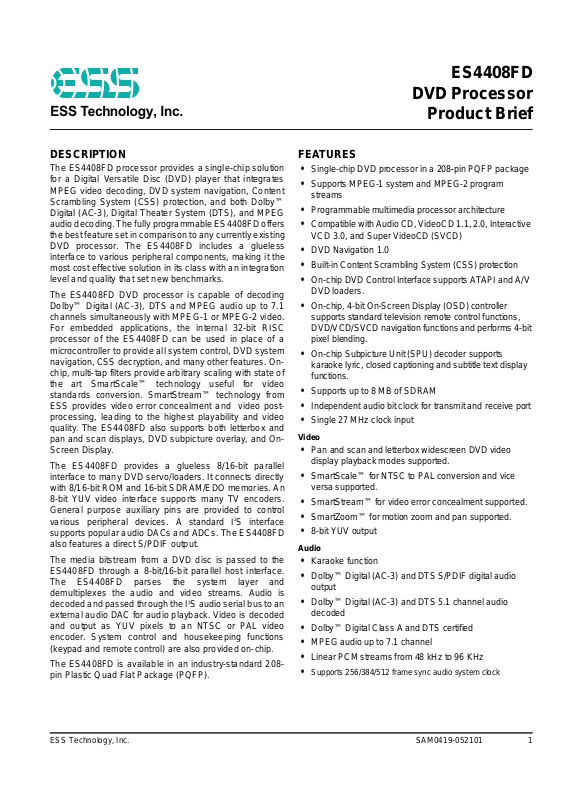

ESS Technology, Inc. SAM0419-052101 1
ES4408FD
DVD Processor
Product Brief
DESCRIPTION
The ES4408FD processor prov ides a single- chip solu tion
for a Digital Versatile Disc (DVD) player that integrates
MPEG video decoding , DVD system naviga tion, Content
Scrambling System (CSS) protection, and both Dolby™
Digital (AC-3), Digital Theater Sy stem (DTS), and MPEG
audio decoding. The fully programmable ES4408FD offers
the best feature set in comparison to any currently existing
DVD processor. The ES4408FD includes a glueless
interface to various per ipheral compo nents, making it the
most cost effective solution in its class with an integration
level and quality that set new benchmarks.
The ES4408FD DVD processor is capable of decoding
Dolby™ Digital (AC-3), DTS an d MPEG audio up to 7.1
channels simulta neou sl y w ith M PE G -1 or M PE G -2 vi deo .
For embedded applications, the internal 32-bit RISC
processor of the ES4408FD can be used in place of a
microcontroller to pr ovide all system contr ol, DVD s ys tem
navigation, CSS decryption, and many other features. Onchip, multi-tap filters provide arbitrary scaling with state of
the art SmartScale™ technology useful for video
standards conversion. SmartStream™ technology from
ESS provides video er ror concealment and video postprocessing, leading to the highest playability and video
quality. The ES4408FD also supports both letterbox and
pan and scan displays, DV D subpictur e overlay, and OnScreen Display.
The ES4408FD provides a glueless 8/16-bit parallel
interface to many DVD se rvo/loaders . It connec ts directly
with 8/16-bit ROM and 16-bit SDRAM/EDO memories. An
8-bit YUV video interface supports many TV encoders.
General purpose auxiliary pins are provided to control
various peripheral devices. A standard I
2
S interface
supports popular audio DACs and ADCs. The ES 440 8FD
also features a direct S/PDIF output.
The media bitstream from a DVD disc is passed to the
ES4408FD through a 8-bit/16-bit parallel host interface.
The ES4408FD parses the system layer and
demultiplexes the audio and video streams. Audio is
decoded and passed through the I
2
S audio serial bus to an
external audio DAC for audio playbac k. Video is decode d
and output as YUV pixels to an NTSC or PAL video
encoder. System control and housekeeping functions
(keypad and remote control) are also provided on-chip.
The ES4408FD is available in an industry-standard 208pin Plastic Quad Flat Package (PQFP).
FEATURES
• Single-chip DVD processor in a 208-pin PQFP package
• Supports MPEG-1 system and MPEG-2 program
streams
• Programmable multime dia pro cessor arch ite cture
• Compatible with Audi o CD, VideoCD 1.1, 2.0, Interact ive
VCD 3.0, and Supe r Vi deo CD (SVC D)
• DVD Navigation 1.0
• Built-in Content Scrambling System (CSS) protection
• On-chip DVD Control I nte rfa ce supp orts ATAPI an d A/V
DVD loaders.
• On-chip, 4-bit On-Screen Display (OSD) controller
supports standard television remote cont rol funct ions,
DVD/VCD/SVCD navigat ion functions and pe rforms 4-bit
pixel blending.
• On-chip Subpicture Unit (SPU) de coder suppo rts
karaoke lyric, closed ca pti oning and su btitle t ext d ispla y
functions.
• Supports up to 8 MB of S DR AM
• Independent audio bi t clock fo r tr a nsmi t and r eceive po r t
• Single 27 MHz clock input
Video
• Pan and scan and letterbox widescreen DV D video
display playback modes su ppo rted .
• SmartScale™ for NTSC to PAL conver sion and vice
versa supported.
• SmartStream™ for video er ror con cealment supporte d.
• SmartZoom™ for m oti on zoo m a nd pa n supp orte d.
• 8-bit YUV output
Audio
• Karaoke function
• Dolby™ Digital (AC- 3) and DTS S/ PDI F di git al aud io
output
• Dolby™ Digital (AC- 3) and DTS 5. 1 cha nnel a udi o
decoded
• Dolby™ Digital Class A and DTS certified
• MPEG audio up to 7. 1 ch an nel
• Linear PCM streams from 4 8 kH z to 96 KH z
• Supports 256/384/512 frame sync audio system clock
Page 2
2 SAM0419-052101 ESS Technology, Inc.
ES4408FD PRODUCT BRIEF
PINOUT

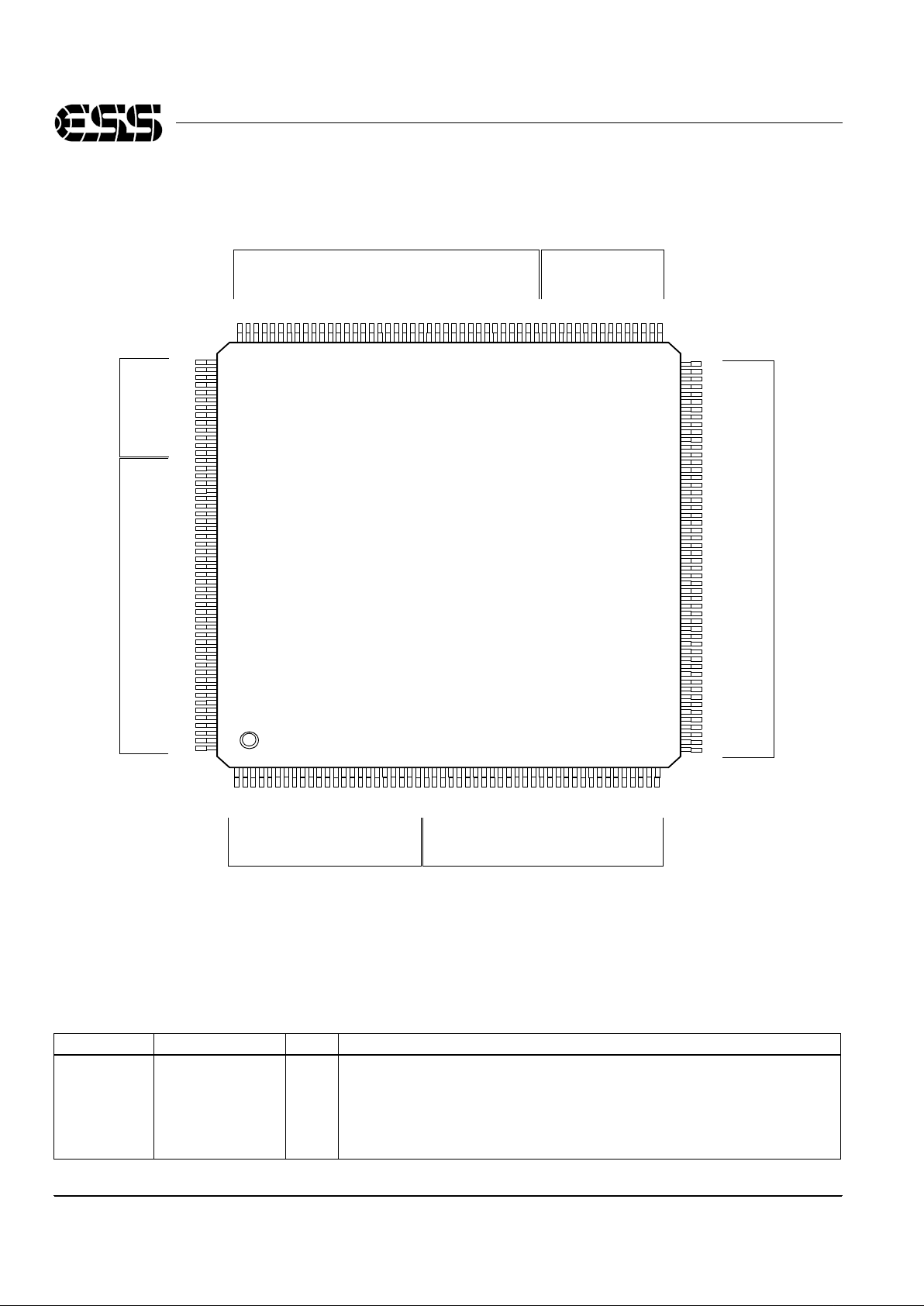

Figure 1 shows the device pinout for the ES4408FD.
Figure 1 ES4408FD Device Pinout
PIN DESCRIPTION
Table 1 lists the pin descriptions for the ES4408FD.
1 2 3 4 5 6 7 8 9101112131415161718192021222324252627282930313233343536373839404142434445464748495051
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
LCS1#
LOE#
LD0
VSS
LCS3#
LCS2#
AUX0
LA21
LA20
RESET#
VCC
TSD3
HIOCS16#
HA1
VSS
HA0
HWR#
HRD#
HD4/DCI4
HD5/DCI5
HD6/DCI6
HD2/DCI2
HD3/DCI3
VCC
VCC
DB8
VCC
DB5
DB9
DCS0#
VCC
VSS
TSD0/SEL_PLL0
TSD1/SEL_PLL2
TDMFS
TDMCLK
TDMDR
TDMTSC#
TWS/SEL_PLL1
VCC
LA4
LA5
LA6
LA7
LA8
LA9
VSS
VCC
LA10
LA11
LA12
LA13
LA14
LA15
LA16
VSS
VCC
LA17
LA18
LA19
TDMDX/RSEL
VSS
TSD2
SPDIF_DOBM/PLL3
NC
VSS
MCLK
TBCK
VCC
VCC
VSS
VSS
DQM
RSD
RWS
RBCK
APLLCAP
XIN
XOUT
VCC
DSCK
VSS
DB15
DB13
DB11
DB1
VSS
DRAS2#
DRAS0#
DOE#/DSCK_EN
VCC
DMA9
DMA7
VSS
DMA5
DMA3
VCC
DCS1#
DB14
DB12
DB10
DB0
VCC
DRAS1#
DWE#
DCAS#
VSS
DMA8
DMA6
VCC
DMA4
DMA2
VSS
DB7
DB6
VSS
DB4
DB3
DB2
DMA11
DMA10
DMA1
DMA0
HCS3FX#
HCS1FX#
VSS
HIORDY
VSS
HD13
HD12
HD11
HD10
HD9
HD8/DCI_FDS#
VSS
HIRQ/DCI_ERR#
HRST#
HRDQ#
HWRQ#DCI_REQ#
HD15
HD14
VCC
HD7/DCI7
HD1/DCI1
HD0/DCI0
VCC
VSS
HSYNC#
PCLK2XSCN
YUV7
YUV6
PCLKQSCN
VSYNC#
YUV5
VSS
VCC
YUV4
YUV3
YUV2
YUV1
YUV0
DCLK
VCC
AUX7
AUX6
VCC
LD1
LD2
LA3
LD12
VCC
HA2
VPP
VCC
LD3
LD5
LD9
LD13
LWRHL#
NC
AUX1
AUX3
LD4
LD6
LD10
LD14
VSS
LA0
AUX2
AUX4
VCC
LD7
LD11
LD15
VCC
LA1
VSS
AUX5
VSS
LD8
VSS
LWRLL#
NC
LA2
VSS
VCC
LCS0#
VSS
208-Pin PQFP Package
ES4408FD
Video Interface
Host / ATAPI / DCI Interface
Auxiliary
Interface
RISC
Interface
RISC
Interface
Audio/TDM
Interface
Memory
Interface
Table 1 ES4408FD Pin Descriptions
Name Number I/O Definition
VCC
1, 9, 18, 27, 35, 44,
51, 59, 68, 75, 83,
92, 99, 104, 111,
121, 130, 139, 14 8,
157, 164, 172, 18 3,
193, 201
I
Supply voltage.
Page 3
ESS Technology, Inc. SAM0419-052101 3
ES4408FD PRODUCT BRIEF
Name Number I/O Definition
LA[21:0]
23:19,16:10,7:2,
207:204
O
Device address output.
VSS
8, 17, 26, 34, 43, 52,
60, 67, 76, 84, 91,
98, 103, 112, 120,
129, 138, 147, 15 6,
163, 171, 177, 18 4,
192, 200, 208
I
Ground.
RESET# 24 I Reset input, active low.
TDMDX 25 O TDM transmit data.
RSEL
IROM Select
TDMDR 28 I TDM receive data.
TDMCLK 29 I TDM clock input.
TDMFS 30 I TDM frame sync.
TDMTSC# 31 O TDM output enable, active low.
TWS 32 O Audio transmit frame sync.
SEL_PLL2 I Select PLL2 input.
TSD[0] 33 O Audio transmit serial data out put 0.
SEL_PLL 0
I Select PLL0 input.
TSD[1] 36 O Audio transmit serial data out put 1.
SEL_PLL1 I Select PLL1 input
TSD[2] 37 O Audio transmit serial data out put 2.
TSD[3] 38 O Audio transmit serial data out put 3.
MCLK 39 I/O Audio master clock for audio DAC.
TBCK 40 I/O Audio transmit bit clock.
SPDIF_DOBM 41 O S/PDIF (IEC958) Format Output.
SEL_PLL3
I Clock Source Select.
RSD 45 I Audio r eceive seri al data.
RWS 46 I Audio receive frame sync.
RBCK 47 I Audio receive bit clock .
APLLCAP 48 I Analog PLL Capacitor.
Table 1 ES4408FD Pin Descriptions (Continued)
RSEL Selection
0 16-bit ROM
1 8-bit ROM
SEL_PLL2 SEL_PLL1 SEL_PLL0 Clock Output
000VCO Off
0 0 1 27.0 MHz
0 1 0 Bypass
0 1 1 54.0 MHz
1 0 0 121.5 MHz
1 0 1 81.0 MHz
1 1 0 94.0 MHz
1 1 1 108.0 MHz
SEL_PLL3 Clock Source
0 Crystal oscillator
1 DCLK input
Page 4
4 SAM0419-052101 ESS Technology, Inc.
ES4408FD PRODUCT BRIEF
Name Number I/O Definition
XIN 49 I Crystal input.
XOUT 50 O Crystal output.
DMA[11:0] 66:61,58:53 O DRAM address bus.
DCAS# 69 O DRAM Column address strobe, active low.
DOE# 70 O DRAM Output enable, active low.
DSCK_EN I DRAM Clock Enable, active low.
DWE# 71 O DRAM write enable, active low.
DRAS[2:0]# 74:72 O DRAM Row address strobe, active low.
DB[15:0] 96:93,90:85,82:77 I/O DRAM data bus.
DCS[1:0]# 97,100 O SDRAM chip select [1:0], active low.
DQM 101 O Data in put/output mask.
DSCK 102 O Clock to SDRAM.
DCLK 105 I Clock Input (27 MHz)
YUV[7:0] 115:113,110:106 O 8-bit YUV output.
PCLK2XSCN 116 I/O Doubled screen 27-MHz pixel clock.
PCLKQSCN 117 I/O Screen Pixel clock.
VSYNC# 118 I/O Vertical sync for video display interface, programmable for rising or falling edge,
active low.
HSYNC# 119 I/O Horizont al s y nc for s c reen vi de o in terface, programmable for ri si ng or falling edge,
active low.
HD[15:0]
141:140,137:131,
128:122
O
Host data bus
HCS1FX# 152 O Host select 1.
HCS3FX# 153 O Host select 3.
HIOCS16# 151 I Device 16-bit data transfer.
HA[2:0] 158, 155:154 I/O Host address bus.
VPP 159 I Peripheral protection voltage.
HWR#/
DCI_ACK#
149 I,O
Host write/DCI Interface Ack now l edg e Signa l, act iv e low.
HRD#/
DCI_CLK
150 O,O
Host read/DCI Interface Clock.
HWRQ# 142 O Host write request.
HRDQ# 143 O Host read request.
HIRQ 144 I/O Host interrupt.
HRST# 145 O Host reset.
HIORDY 146 I Host I/O ready.
AUX[7:0] 169:165,162:160 I/O Auxiliary ports.
LOE# 170 O Device output enable, active low.
LCS[3:0]# 176:173 O Chip select [3:0], active low.
LD[15:0] 197:194, 191:185,
182:178
I/O Device data bus.
LWRLL# 198 O Device write enable, active low.
LWRHL# 199 O Device write enable, active low.
NC 37,38,42,203:202 — No connect pins. Leave open.
Table 1 ES4408FD Pin Descriptions (Continued)
Page 5
ESS Technology, Inc. SAM0419-052101 5
ES4408FD PRODUCT BRIEF

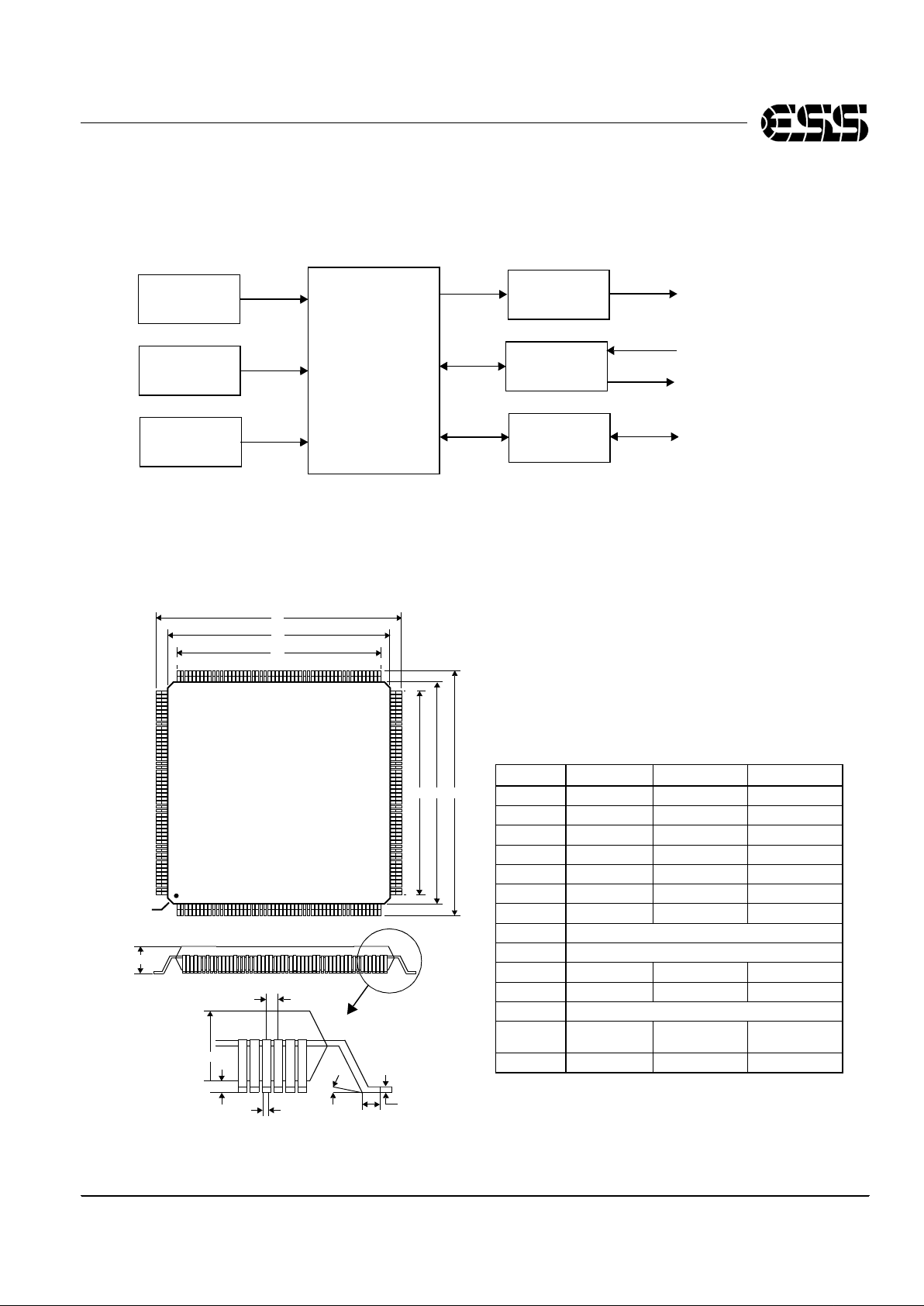

SYSTEM BLOCK DIAGRAM
Figure 2 shows a sample system block diagram using the
ES4408FD.
Figure 2 ES4408FD System Block Diagram
MECHANICAL DIMENSIONS
Figure 3 shows the mechanical dimensions of the ES4408FD.
Figure 3 ES4408FD Mechanical Dimensions
ES4408FD
8MB EDO
or SDRAM
DVD drive
EPROM
Panel
Interface
NTSC/PAL
Encoder
Audio
CODEC
TV
MIC
Speakers
Remote Control/
Keypad
Video
Audio
see detail
A
EE1E3
152
157
208
Index
53
104
D
D1
D3
105
Pin 1
Note:
1. All dimensions are in inches (millimeters).
2. Actual package used has millimeter native dimensions – take care with
rounding from metric to imperial.
Symbol Min Nom Max
A ––0.165
A1 0.010 (0.25) – –
A2 0.130 (3.30) 0.134 (3.40) 0.138 (3.50)
B 0.007 (0.18) 0.009 (0.23) 0.011 (0.28)
C 0.005 (0.12) 0.006 (0.16) 0.008 (0.20)
D 1.195 (30.35) 1.205 (30.60) 1.215 (30.85)
D1 1.098 (27.90) 1.102 (28.00) 1.106 (28.10)
D3 1.004 (25.50) REF
e 0.0197 (0.50) BASIC
E 1.195 (30.35) 1.205 (30.60) 1.215 (30.85)
E1 1.098 (27.90) 1.102 (28.00) 1.106 (28.10)
E3 1.004 (25.50) REF
L0.016
(0.40)
0.020
(0.50)
0.024
(0.60)
f 0 i 2.5 i 5.0 i
e
A1
A2
L
C
B
156
φ
Page 6
6 © 2001 ESS Technology, Inc. All rights reserved. SAM0419-052101
ES4408FD PRODUCT BRIEF
No part of this publication may be reproduced, stored in a
retrieval system, transmitted, or translated in any form or
by any means, electronic, mechanical, ma nual, optical , or
otherwise, without the prior written permission of ESS
Technology, Inc.
ESS Technology, Inc. makes no representations or
warranties regarding the content of this document.
All specifications are subject to change without prior
notice.
ESS Technology, Inc. assumes no responsibility for any
errors contained herein.
(P) U.S. Patent 4,214,125 and others, other patents
pending.
VideoDrive® is a registered trademark of ESS Technology,
Inc.
All other trademarks are owned by their respective
holders and are used for identification purposes only.
ORDERING INFORMATION
Part Number Description Package
ES4408FD DVD Processor 208-pin PQFP
Loading...
