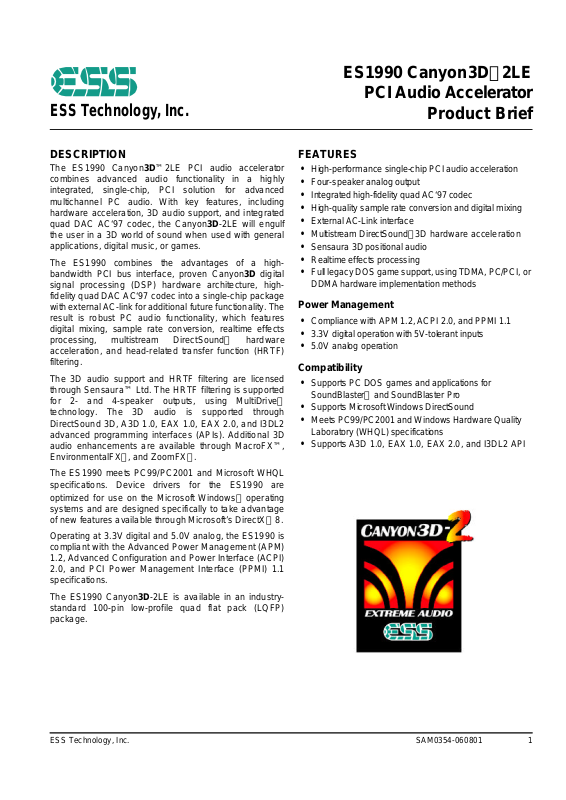

ES1990 Canyon3D2LE

PCI Audio Accelerator

Product Brief

DESCRIPTION

The ES1990 Canyon3D™2LE PCI audio accelerator
combines advanced audio functionality in a highly
integrated, single-chip, PCI solution for advanced
multichannel PC audio. With key features, including
hardware acceleration, 3D audio support, and integrated
quad DAC AC‘97 codec, the Canyon3D-2LE will engulf
the user in a 3D world of sound when used with general
applications, digital music, or games.

The ES1990 combines the advantages of a high­bandwidth PCI bus interface, proven Canyon3D digital
signal processing (DSP) hardware architecture, high­fidelity quad DAC AC‘97 codec into a single-chip package
with external AC-link for additional future functionality. The
result is robust PC audio functionality, which features
digital mixing, sample rate conversion, realtime effects
processing, multistream DirectSound hardware
acceleration, and head-related transfer function (HRTF)
filtering.

The 3D audio support and HRTF filtering are licensed
through Sensaura™ Ltd. The HRTF filtering is supported
for 2- and 4-speaker outputs, using MultiDrive
technology. The 3D audio is supported through
DirectSound 3D, A3D 1.0, EAX 1.0, EAX 2.0, and I3DL2
advanced programming interfaces (APIs). Additional 3D
audio enhancements are available through MacroFX™,
EnvironmentalFX, and ZoomFX.

The ES1990 meets PC99/PC2001 and Microsoft WHQL
specifications. Device drivers for the ES1990 are

optimized for use on the Microsoft

Windows operating
systems and are designed specifically to take advantage
of new features available through Microsoft’s DirectX 8.

Operating at 3.3V digital and 5.0V analog, the ES1990 is
compliant with the Advanced Power Management (APM)

1.2, Advanced Configuration and Power Interface (ACPI)

2.0, and PCI Power Management Interface (PPMI) 1.1
specifications.

The ES1990 Canyon3D-2LE is available in an industry­standard 100-pin low-profile quad flat pack (LQFP)
package.

FEATURES

• High-performance single-chip PCI audio acceleration

• Four-speaker analog output

• Integrated high-fidelity quad AC‘97 codec

• High-quality sample rate conversion and digital mixing

• External AC-Link interface

• Multistream DirectSound3D hardware acceleration

• Sensaura 3D positional audio

• Realtime effects processing

• Full legacy DOS game support, using TDMA, PC/PCI, or

DDMA hardware implementation methods

Power Management

•

Compliance with APM 1.2, ACPI 2.0, and PPMI 1.1

• 3.3V digital operation with 5V-tolerant inputs

• 5.0V analog operation

Compatibility

•

Supports PC DOS games and applications for
SoundBlaster and SoundBlaster Pro

• Supports Microsoft Windows DirectSound

• Meets PC99/PC2001 and Windows Hardware Quality

Laboratory (WHQL) specifications

• Supports A3D 1.0, EAX 1.0, EAX 2.0, and I3DL2 API

2 SAM0354-060801 ESS Technology, Inc.

ES1990 PRODUCT BRIEF

BLOCK DIAGRAMS

BLOCK DIAGRAMS

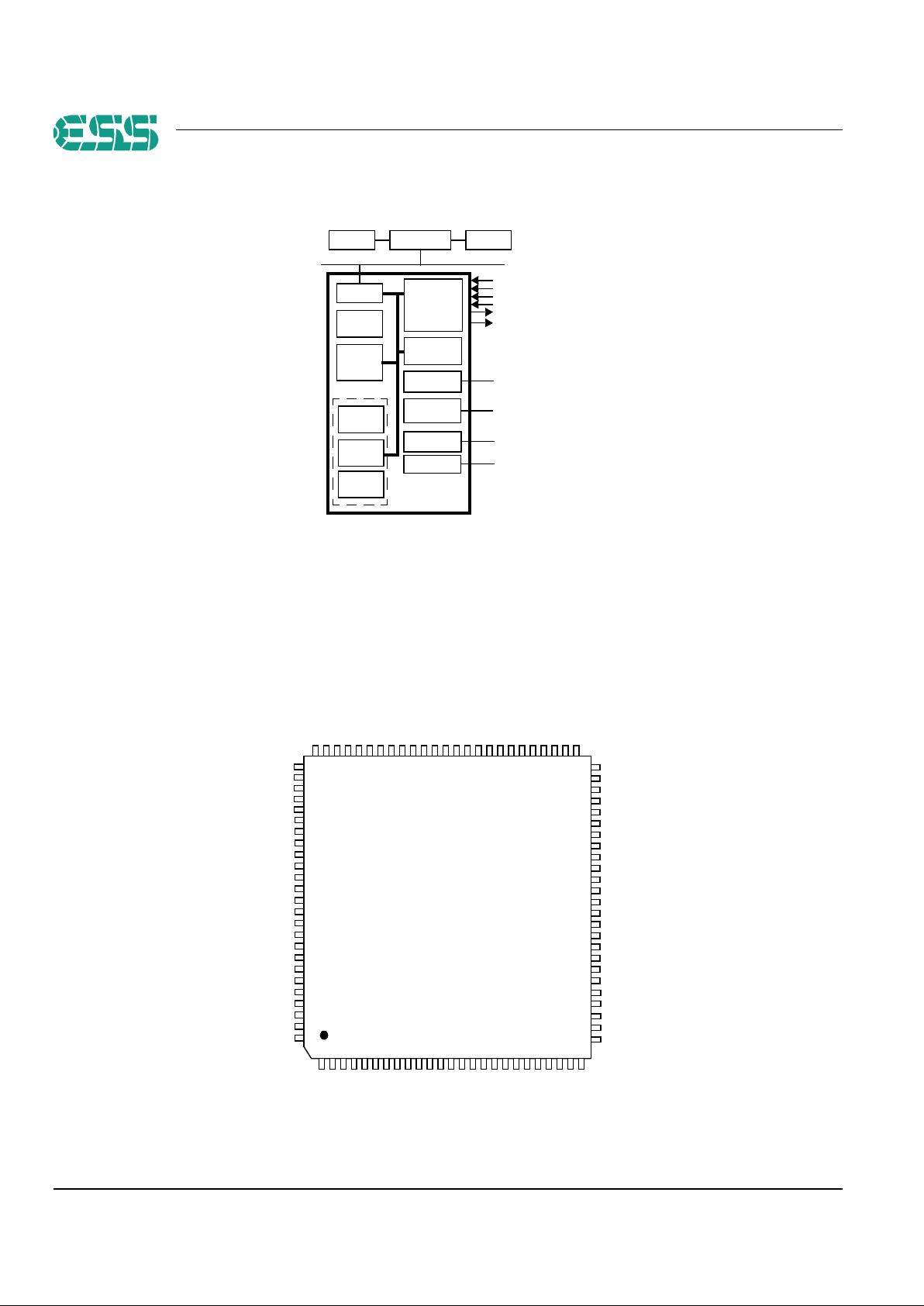

Figure 1 shows the ES1990 Canyon3D-2LE device block diagram.

Figure 1 ES1990 Canyon3D-2LE Device Block Diagram

PINOUT

Figure 2 shows the ES1990 Canyon3D-2LE pinout
diagram.

Figure 2 ES1990 Canyon3D-2LE Device Pinout

Integrated

System

DRAM

Chipset CPU

3.3V PCI
master

SB Pro
legacy

audio

TDMA

HRTF 3D
positional

audio

Sample Rate

Converter
and Mixer

Game port

ACPI 1.0
PPMI 1.0

PCI BUS

RING BUS

Mic in
CD audio
Line out (front)

APM 1.2

Secondary

EEPROM

SID/SVID customization

Audio CODEC

interface

PC/PCI

DDMA

Effects

Processing

ASSP

AC-Link

MPU-401

MIDI device

Joystick

Line out (surround)

Phone

Line in

Secondary codec support

1

EAPD
GD7/GPIO15

GD6/GPIO14
GD5/GPIO13
GD4

GD3/ECLK
GD2/EDIN
GD1/EDOUT
GD0

ECS

GND

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7

LINE_OUT_R

RXD

TXD

RST#

INT#

GND

PCICLK

VCC

GNT#

REQ#

AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24

OS CO

PC GN T#/GPIO12

LI NE _OUT_R-L

LI NE _OUT_R-R

PC _B EEP

PHONE

CD _L

CD _GND

CD _R

MI C

LI NE_IN_L

LI NE_IN_R

AVDD1

AVSS1

VREF

AF ILT1

AFILT2

CAP1
CAP2

LINE_OUT_L

PCREQ#/GPIO7NCVC C

SD I2/GPIO8

OS CI

SR ESET2#

SD FS2/GPIO9

SC LK 2/GPIO10

SD O2 /GPIO11

ES1990S

25

PAR

STOP#

DE VSEL#

TRDY#

IR DY#

FRAME#

C/ BE2#

VCC

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

GN D

IDSEL

C/ BE3#

C/BE0#
AD8

AD9
AD10
AD11

AD12

AD13

AD14

AD15

C/B E1#

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

75 5174 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52

100

76

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

80

79

78

77

26

50

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

100-Pin LQFP

GND

MONO_OUT

VCC

AVSS2

AVDD2

Canyon3D-2LE

ESS Technology, Inc. SAM0354-060801 3

ES1990 PRODUCT BRIEF

PIN DESCRIPTION

PIN DESCRIPTION

The ES1990 Canyon3D-2LE pinouts are listed and
described in Table 1.

Table 1 ES1990 Canyon3D-2LE Pin Descriptions

Names Pin Numbers I/O Descriptions

C/BE[3:0]#

1, 13, 20, 30

I/O PCI command/byte enable. During address phase of a transaction, these pins define the bus command. Dur-

ing data phase, these pins define the byte enable.
IDSEL 2 I ID Select.
GND 3, 21, 40, 89 I Digital ground.
AD[31:0] 4:11, 22:29,

31:38, 93:100

I/O Address and data lines from the PCI bus.

VCC 12, 41, 53, 90 I Digital supply voltage, 3.3V.
FRAME# 14 I/O Cycle frame.
IRDY# 15 I/O Initiator ready.
TRDY# 16 I/O Target ready.
DEVSEL# 17 I/O Device select.
STOP# 18 I/O Stop transaction.
PAR 19 I/O Parity.
ECS 39 O EEPROM chip select. Connects to EEPROM chip select input pin. ECS is active after power-on reset and

goes inactive automatically after EEPROM cycle is complete.
GD[0] 42 I/O Game port data input/output.
GD[1]

43

I/O Game port data input/output.

EDOUT O EEPROM data output. Connects to EEPROM data input. EDOUT goes active after power-on reset and goes

inactive automatically after EEPROM cycle is complete.
GD[2]

44

I/O Game port data input/output.

EDIN I EEPROM data input. Connects to EEPROM data output. EDIN goes active after power-on reset and goes

inactive automatically after EEPROM cycle is complete.
GD[3]

45

I/O Game port data input/output.

ECLK O EEPROM clock. Connects to EEPROM clock input. ECLK goes active after power-on reset and goes inac-

tive automatically after EEPROM cycle is complete.
GD[4] 46 I Game port data input.
GD[5:7]

47:49

I Game port data input.
GPIO[15:13] I/O General-purpose input/output.
EAPD 50 O External amplifier power down (active high).
PCREQ#

51

O PC/PCI request output. Enable PCREQ# by setting PCI 50h [10:8].
GPIO7 I/O General-purpose input/output.
NC 52 — No connect.
SDI2

54

I External AC-link serial data input. Select external codec by enabling Canyon3D_Base+38h [5].
GPIO8 I/O General-purpose input/output.
OSCI 55 I 49.152-MHz crystal input.
OSCO 56 O 49.152-MHz crystal output.
SRESET2# 57 I Resets output for AC-link interface. Select external codec by enabling Canyon3D_Base+38h [5].
SDFS2

58

O Serial data frame sync output for AC-link interface. Select external codec by enabling Canyon3D_Base+38h

[5].
GPIO9 I/O General-purpose input/output.
SCLK2

59

O Serial clock for AC-link interface. Select external codec by enabling Canyon3D_Base+38h [5].

GPIO10 I/O General-purpose input/output.

4 © 2001 ESS Technology, Inc. SAM0354-060801

ES1990 PRODUCT BRIEF

ORDERING INFORMATION

No part of this publication may be reproduced, stored in a
retrieval system, transmitted, or translated in any form or
by any means, electronic, mechanical, manual, optical, or
otherwise, without the prior written permission of ESS
Technology, Inc.

ESS Technology, Inc. makes no representations or
warranties regarding the content of this document.

All specifications are subject to change without prior
notice.

ESS Technology, Inc. assumes no responsibility for any
errors contained herein.

U.S. patents pending.
Canyon3D is a registered trademark of ESS Technology,

Inc.
All other trademarks are owned by their respective

holders and are used for identification purposes only.

ESS Technology, Inc.
48401 Fremont Blvd.
Fremont, CA 94538
Tel: [phone]
Fax: [phone]

ORDERING INFORMATION

SDO2

60

O External AC-link serial data output. Select external codec by enabling Canyon3D_Base+38h [5].
GPIO11 I/O General-purpose input/output.
PCGNT

61

I PC/PCI grant input. Enable PC/PCI by setting PCI 50h [10:8].
GPIO12 I/O General-purpose input/output.
LINE_OUT_R-L 62 O Line output: surround, left channel.
LINE_OUT_R-R 63 O Line output: surround, right channel.
PC_BEEP 64 I PC speaker input.
PHONE 65 I Mono input.
CD_L 66 I CD-audio input: left channel.
CD_GND 67 I CD-audio input: ground.
CD_R 68 I CD-audio input: right channel.
MIC 69 I Microphone input.
LINE_IN_L 70 I Line input: left channel.
LINE_IN_R 71 I Line input: right channel.
AVDD[2:1] 72:83 I Analog supply voltage, 5V.
AVSS[2:1] 73:82 I Analog ground.
VREF 74 O Reference voltage.
AFILT[2:1] 75:76 O Antialiasing filter cap for the ADC channel.
CAP[2:1] 77:78 O ADC and DAC reference caps.
LINE_OUT_L 79 O Line output: front, left channel.
LINE_OUT_R 80 O Line output: front, right channel.
MONO_OUT 81 O Mono output.
RXD 84 I MIDI receive data input. Enable MIDI I/O (MPU-401 I/O) by setting PCI 40h [3].
TXD 85 O MIDI transmit data output. Enable MIDI I/O (MPU-401 I/O) by setting PCI 40h [3].
RST# 86 I PCI reset input.
INT# 87 O Interrupt request output.
PCICLK 88 I PCI bus clock input.
GNT# 91 I Bus master grant input.
REQ# 92 O Bus master request output.

Table 1 ES1990 Canyon3D-2LE Pin Descriptions (Continued)

Names Pin Numbers I/O Descriptions

Part Number Description Package

ES1990S PCI Audio Accelerator 100-pin LQFP
