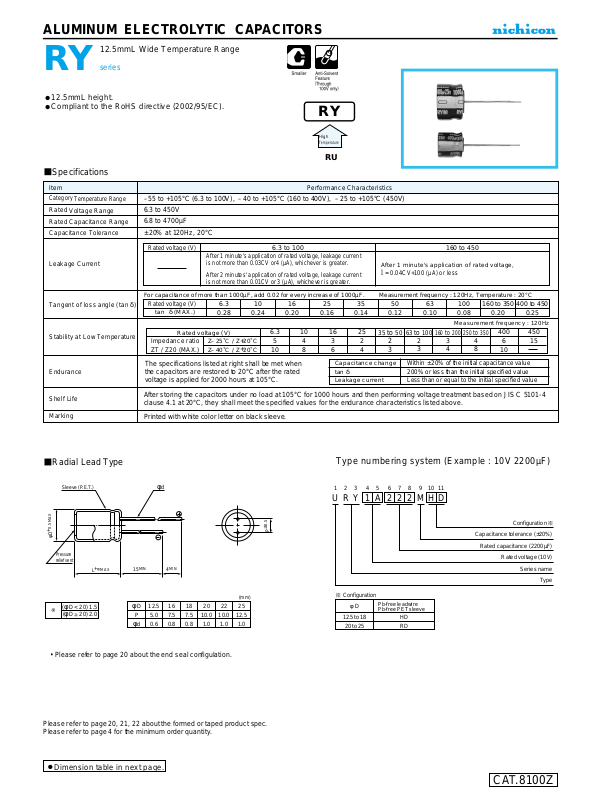

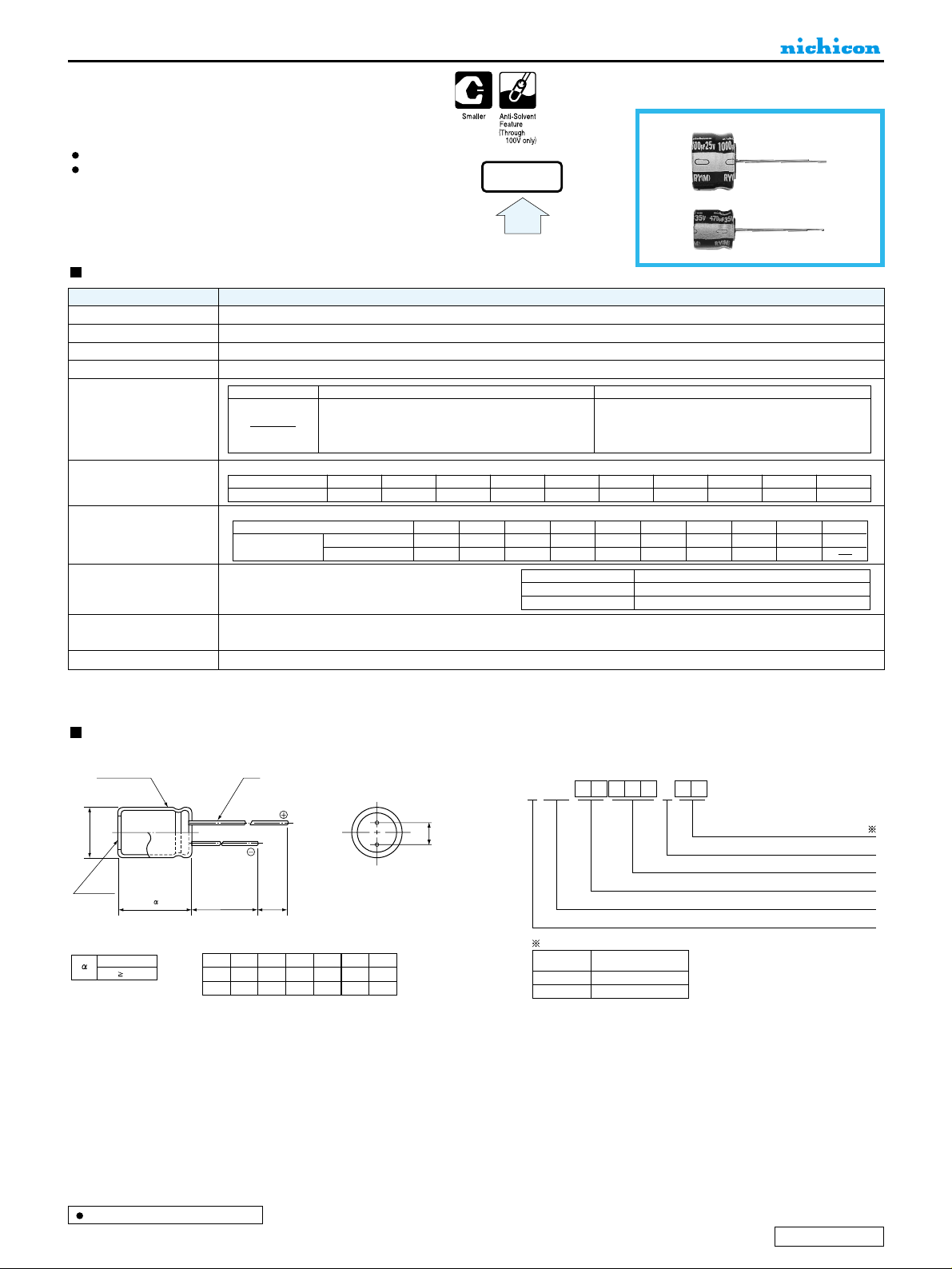

ALUMINUM ELECTROLYTIC CAPACITORS
RYseries
12.5mmL Wide Temperature Range
Radial Lead Type
Specifications
Type numbering system (Example : 10V 2200µF)
Category
Temperature Range
Rated
Voltage Range
Rated
Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan δ)
Stability at Low Temperature
Endurance
Shelf Life
Marking
Performance CharacteristicsItem
–55 to +105°C (6.3 to 100V), –40 to +105°C (160 to 400V), –25 to +105°C (450V)
6.3 to 450V
6.8 to 4700µF
±20% at 120Hz, 20°C
Printed with white color letter on black sleeve.
After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Rated voltage (V)
6.3 to 100 160 to 450
After 1 minute's application of rated voltage, leakage current
is not more than 0.03CV or4 (µA), whichever is greater.
After 2 minutes' application of rated voltage, leakage current
is not more than 0.01CV or 3 (µA), whichever is greater.
After 1 minute's application of rated voltage,
I
= 0.04CV+100 (µA) or less
Measurement frequency : 120Hz
The specifications listed at right shall be met when
the capacitors are restored to 20°Cafter the rated
voltage is applied for 2000 hours at 105
°C.
Rated voltage (V)
tan δ (MAX.)
6.3
0.28
10
0.24
16
0.20
25
0.16
35
0.14
50
0.12
63
0.10
100
0.08
160 to 350
0.20
400 to 450
0.25
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz, Temperature : 20
°C
Leakage current
tan δ
Capacitance change
Less than or equal to the initial specified value
200% or less than the initial specified value
Within ±20% of the initial capacitance value
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
12.5mmL height.
Compliant to the RoHS directive (2002/95/EC).
High
Temperature
Dimension table in next page.
Z–25˚C / Z+20˚C
Z–40˚C / Z
+
20˚C
Rated voltage
(
V)
Impedance ratio
ZT / Z20 (MAX.)
450
15
6.3
5
10
10
4
8
16
3
6
25
2
4
35
to
50
2
3
63
to
100
2
3
250to350
4
8
400
6
10
160to200
3
4
•
Please refer to page 20 about the end seal configulation.
CAT.8100Z
φ
Sleeve (P.E.T.)
0.5 MAX
+
φD
Pressure
relief vent
(φD < 20) 1.5
(
φ
D 20) 2.0
+
MAX
L
d
MIN
12.5
5.0
0.6
MIN
4
16
18
7.5
0.8
20
7.5
10.0
0.8
1.0
22
10.0
1.0
(mm)
25
12.5
1.0
15
φ
D
P
φ
d
11
U1R2Y314A5262728M9H10D
±0.5
P
Configuration
12.5 to 18
20 to 25 RD
φ D
Pb-free leadwire
Pb-free PET sleeve
HD
Capacitance tolerance (±20%)
Rated capacitance (2200µF)
Configuration
Rated voltage (10V)
Series name
Type
Page 2
330
470
680
1000
2200
3300
4700
331
471
681
102
222
332
472
0J
6.3
1H
50
12.5 × 12.5
18 × 12.5
25 × 12.5
580
730
1200
1V
35
12.5 × 12.5
18 × 12.5
22 × 12.5
420
610
810
450
540
700
Rated
ripple
1E
25
12.5 × 12.5
18 × 12.5
25 × 12.5
500
770
1170
1C
16
12.5 × 12.5
25 × 12.5
520
1000
1A
10
18 × 12.5
22 × 12.5
820
1030
12.5 × 12.5
20 × 12.5
25 × 12.5
Case size
φD× L (mm)
6.8
10
22
33
6R8
100
220
330
2V
350
16 × 12.5
18 × 12.5
25 × 12.5
75
90
140
2W
450
12.5 × 12.5
16 × 12.5
25 × 12.5
38
47
85
2G
400
16 × 12.5
20 × 12.5
25 × 12.5
65
150
200
10
22
33
47
68
100
220
330
470
100
220
330
470
680
101
221
331
471
1J
63
2F
315
12.5 × 12.5
18 × 12.5
22 × 12.5
400
550
610
2E
250
16 × 12.5
18 × 12.5
22 × 12.5
130
170
190
70
85
120
160
2D
200
12.5 × 12.5
16 × 12.5
18 × 12.5
25 × 12.5
110
170
230
310
2C
160
12.5 × 12.5
16 × 12.5
20 × 12.5
25 × 12.5
130
210
280
360
2A
100
12.5 × 12.5
22 × 12.5
230
400
12.5 × 12.5
16 × 12.5
20 × 12.5
25 × 12.5
Rated ripple current (mArms) at 105°C 120Hz
RYseries
ALUMINUM ELECTROLYTIC CAPACITORS
Dimensions
V
Code
Code
Code
Cap.(µF)
V
Cap.(µF)
V
Cap.(µF)
Cap.(µF)
100 to 680
1000 to 4700
6.8 to 100
6.3 to 100
V
160 to 450
50Hz 120Hz 300Hz 1 kHz 10kHz or more
0.80 1.00 1.23 1.34 1.50
0.85 1.00 1.10 1.13 1.15
0.80 1.00 1.25 1.40 1.60
Frequency
Frequency coefficient of rated ripple current
CAT.8100Z
