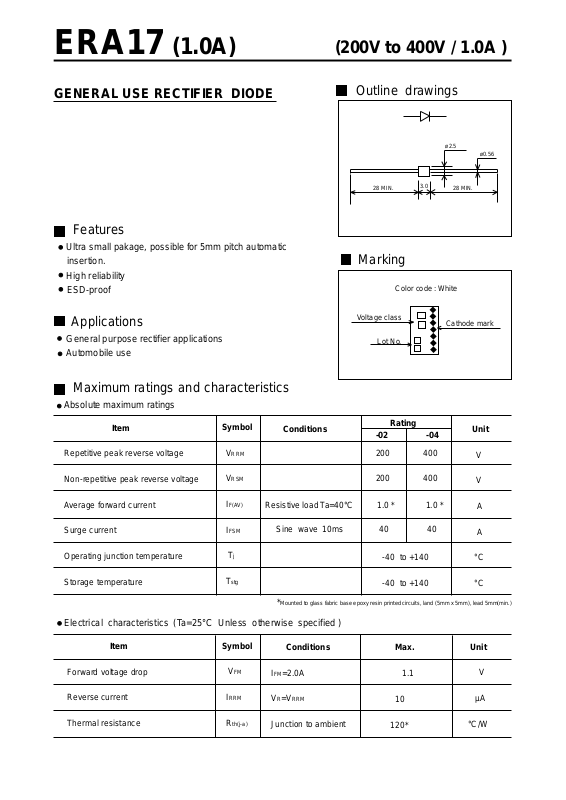

ERA17 (1.0A)
(200V to 400V / 1.0A )
GENERAL USE RECTIFIER DIODE
Features
Ultra small pakage, possible for 5mm pitch automatic
insertion.
High reliability
ESD-proof
Applications
General purpose rectifier applications
Automobile use
Outline drawings
ø2.5
28 MIN. 28 MIN.
3.0
Marking
Color code : White
Voltage class
Lot No.
Cathode mark
ø0.56
Maximum ratings and characteristics
Absolute maximum ratings
Item
Repetitive peak reverse voltage
Non-repetitive peak reverse voltage
Average forward current
Surge current
Operating junction temperature
Storage temperature
Electrical characteristics (Ta=25°C Unless otherwise specified )
Item
Symbol
V
RRM
VRSM
IF(AV)
IFSM
Tj
Tstg
Symbol
Conditions
Resistive load Ta=40°C
Sine wave 10ms
*Mounted to glass fabric base epoxy resin printed circuits, land (5mm x 5mm), lead 5mm(min.)
Conditions
Rating
-02 -04
200 400
200 400
1.0 * 1.0 *
40 40
-40 to +140
-40 to +140
Max.
Unit
V
V
A
A
°C
°C
Unit
Forward voltage drop
Reverse current
Thermal resistance
VFM
IRRM
Rth(j-a)
IFM=2.0A
VR=VRRM
Junction to ambient
1.1
10
120*
V
µA
°C/W
Page 2
( 200V to 400V / 1.0A )
Characteristics
ERA17(1.0A)
IF
[A]
Forward characteristics
5
3
1.0
0.5
0.1
0.05
0 0.2 0.4 0.6 0.8 1.0 1.2
V
F [V]
Current derating (I
1.2
F(AV)-Ta)
Reverse characteristics
1.0
0.5
R
I
0.1
[µA]
0.05
0.01
100 200 300 400 500 600
VR [V]
Surge capability
100
IF(AV)
[A]
1.0
0.8
0.6
0.4
0.2
0 20 40 60 80 100 120 140
a [°C]
T
50
FSM
I
30
[A]
10
5
1 3 5 10 30
[time] (at 50Hz)
