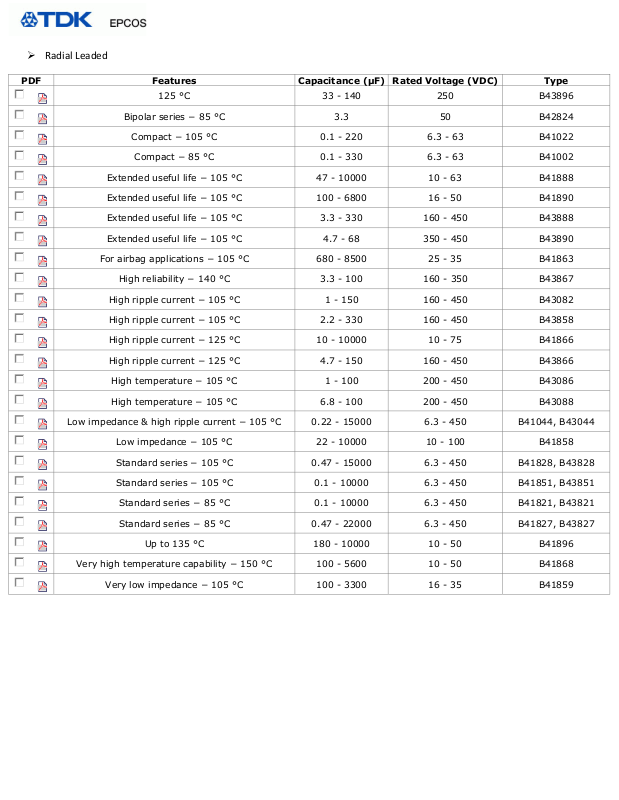

Radial Leaded
PDF
Features
Capacitance (µF)
Rated Voltage (VDC)
Type
125 °C
33 - 140
250
B43896
Bipolar series − 85 °C
3.3
50
B42824
Compact − 105 °C
0.1 - 220
6.3 - 63
B41022
Compact − 85 °C
0.1 - 330
6.3 - 63
B41002
Extended useful life − 105 °C
47 - 10000
10 - 63
B41888
Extended useful life − 105 °C
100 - 6800
16 - 50
B41890
Extended useful life − 105 °C
3.3 - 330
160 - 450
B43888
Extended useful life − 105 °C
4.7 - 68
350 - 450
B43890
For airbag applications − 105 °C
680 - 8500
25 - 35
B41863
High reliability − 140 °C
3.3 - 100
160 - 350
B43867
High ripple current − 105 °C
1 - 150
160 - 450
B43082
High ripple current − 105 °C
2.2 - 330
160 - 450
B43858
High ripple current − 125 °C
10 - 10000
10 - 75
B41866
High ripple current − 125 °C
4.7 - 150
160 - 450
B43866
High temperature − 105 °C
1 - 100
200 - 450
B43086
High temperature − 105 °C
6.8 - 100
200 - 450
B43088
Low impedance & high ripple current − 105 °C
0.22 - 15000
6.3 - 450
B41044, B43044
Low impedance − 105 °C
22 - 10000
10 - 100
B41858
Standard series − 105 °C
0.47 - 15000
6.3 - 450
B41828, B43828
Standard series − 105 °C
0.1 - 10000
6.3 - 450
B41851, B43851
Standard series − 85 °C
0.1 - 10000
6.3 - 450
B41821, B43821
Standard series − 85 °C
0.47 - 22000
6.3 - 450
B41827, B43827
Up to 135 °C
180 - 10000
10 - 50
B41896
Very high temperature capability − 150 °C
100 - 5600
10 - 50
B41868
Very low impedance − 105 °C
100 - 3300
16 - 35
B41859
Page 2
PDF
Features
Capacitance (µF)
Rated Voltage (VDC)
Type
Compact − 105 °C
47 - 2200
200 - 450
B43504
Compact − 85 °C
390 - 2700
385 - 500
B43510
Excellent performance − 105 °C
47 - 33000
10 - 450
B41505, B43505
Extended temperature range − 105 °C
390 - 2700
350 - 450
B43515
Long useful life and ultra-compact − 85 °C
82 - 2700
200 - 450
B43601
Long useful life − 85 °C
47 - 2200
160 - 500
B43501
Outstanding ripple current − 85 °C
390 - 2200
350 - 450
B43511
Outstanding ripple current − 85 °C
68 - 2200
200 - 450
B43540
Outstanding ripple current, ultra compact − 105 °C
100 - 2700
200 - 450
B43543
Standard series − 105 °C
820 - 56000
10 - 100
B41252
Standard series − 85 °C
1200 - 68000
10 - 100
B41231
Ultra compact − 105 °C
82 - 2700
200 - 450
B43508
Ultra compact − 85 °C
68 - 3300
200 - 450
B43305
PDF
Features
Capacitance (µF)
Rated Voltage (VDC)
Type
Alu-X Line, General Purpose – 105°C
0.1 - 1000
4 - 50
B41121
General Purpose – 85°C
0.1 - 1500
4 - 100
B41112
General Purpose Wide Temp. – 85°C
0.1 - 1500
6.3 - 50
B41115
General Purpose – 105°C
0.1 - 1500
6.3 - 50
B41123
Alu-X Line, General Purpose Wide Temp.– 105°C
0.1 - 1500
4 - 50
B41124
General Purpose Wide Temp.– 105°C
0.1 - 1500
4 - 50
B41125
General Purpose Wide Temp, Low Impedance – 85°C
1 - 1500
6.3 - 50
B41141
General Purpose Wide Temp, Low Impedance – 105°C
1 - 1500
6.3 - 50
B41145
General Purpose – 125°C
33 - 330
10 - 50
B41161
Alu-X Line, Very Low Impedance, Long Life – 105°C
47 - 1500
6.3 - 35
B41142
Snap-in
SMD
© EPCOS AG 2012
