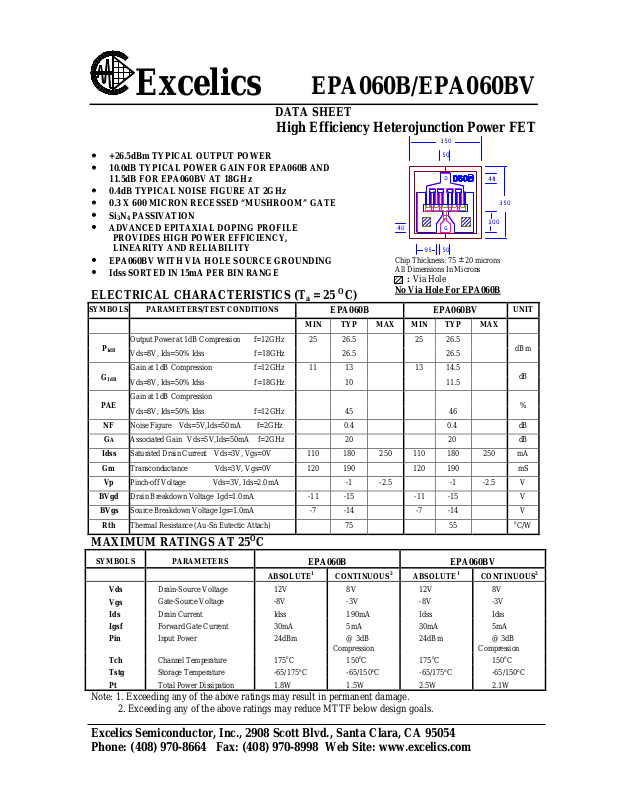

Excelics
EPA060B/EPA060BV
DATA SHEET
High Efficiency Heterojunction Power FET
• +26.5dBm TYPICAL OUTPUT POWER
• 10.0dB TYPICAL POWER GAIN FO R EPA060B AND
11.5dB FOR EPA060BV AT 18GHz
• 0.4dB TYPICAL NOI S E FIGURE AT 2G Hz
• 0.3 X 600 MICRON RECESSED “MUSHROOM” GATE
• Si
PASSIVATION
3N4
• ADVANCED EPITAXIAL DOPING PROF ILE
PROVIDES HIGH POWER EFFICIENCY,
LINEARITY AND RELIABILITY
• EPA060BV WITH VIA HOLE SOURCE GRO UNDI NG
• Idss SORTED IN 15mA PER BIN RANGE
ELECTRICAL CHARACTERISTICS (Ta = 25 OC)
SYMBOLS PARAMETERS/TEST CONDITIONS
Output Power at 1dB Compression f=12GHz 26.5 26.5
P
1dB
Vds=8V, Ids=50% Idss f=18GHz
Gain at 1dB Compression f=12GHz 11 13 13 14.5
G
1dB
Vds=8V, Ids=50% Idss f=18GHz 10
Gain at 1dB Compression
PAE
Vds=8V, Ids=50% Idss f=12GHz
Noise Figure Vds=5V,Ids=50mA f=2GHz
NF
Associated Gain Vds=5V,Ids=50mA f=2GHz
GA
Saturat ed Drain Current Vds=3V, Vgs=0V 110 180 250 110 180 250 mA
Idss
Transconductance Vds=3V, Vgs=0V 120 190
Gm
Pinch-off Voltage Vds=3V, Ids=2.0mA
Vp
BVgd
Drain Breakdown Voltage Igd=1.0mA -11 -15
Source Bre akdown Voltage Igs=1.0mA -7 -14
BVgs
Thermal Resistance (Au-Sn Eutectic Attach)
Rth
EPA060B EPA060BV
MIN TYP MAX MIN TYP MAX
25
26.5
45
0.4
20
-1 -2.5
75
Chip Thickn ess: 75 ± 20 microns
All Dimensions In Microns
:
Via Hole
No Via Hole For EPA060B
25
11.5
120 190
-11 -15
-7 -14
'
*
26.5
46
0.4
20
-1 -2.5 V
55
UNIT
dBm
dB
%
dB
dB
mS
V
V
o
C/W
MAXIMUM RATINGS AT 25OC
SYMBOLS
ABSOLUTE1 CONTINUOUS2 ABSOLUTE1 CONTINUOUS2
Vds
Vgs
Ids
Igsf
Pin
Tch
Tstg
Pt
PARAMETERS
Drain-Source Voltage 12V 8V 12V 8V
Gate-Source Voltage -8V -3V -8V -3V
Drain Current Idss 190mA Idss Idss
Forward Gate Current 30mA 5mA 30mA 5mA
Input Power 24dBm @ 3dB
Channel Temperature 175
Storage Temperature -65/175
Total Power Dissipation 1.8W 1.5W 2.5W 2.1W
Note: 1. Exceeding any of the above ratings may result in permanent damage.
2. E xceeding any of the above ratings may reduce MTTF below design goals.
EPA060B
o
C 150oC 175oC 150oC
o
C -65/150oC -65/175oC -65/150oC
Compression
EPA060BV
24dBm @ 3dB
Compression
Excelics Semiconductor, Inc., 2908 Scott Blvd., Santa Clara, CA 95054
Phone: (408) 970-8664 Fax: (408) 970-8998 Web Site: www.excelics.com
Page 2
EPA060B/EPA060BV
DATA SHEET
High Efficiency Heterojunction Power FET
EPA060B
S-PARAMETERS
EPA060B 8V, 1/2 Idss
FREQ ---S11--- ---S21--- ---S12--- ---S22--- FREQ ---S11--- ---S21--- ---S12--- ---S22--(GHz) MAG ANG MAG ANG MAG ANG MAG ANG (GHz) MAG ANG MAG ANG MAG ANG MAG ANG
1.0 0.912 -55.0 13.184 146.1 0.025 58.3 0.496 -22.8 21.0 0.851 136.3 1.376 -26.4 0.062 -7.0 0.447 140.5
2.0 0.875 -91.9 10.384 124.2 0.038 43.8 0.408 -38.2 22.0 0.817 129.7 1.248 -34.0 0.063 -9.8 0.503 136.6
4.0 0.831 -134.1 6.817 94.7 0.047 24.8 0.291 -61.2 24.0 0.736 117.1 1.007 -47.5 0.064 -11.7 0.579 130.5
6.0 0.769 -161.8 4.779 73.1 0.047 15.2 0.247 -80.4 26.0 0.691 109.5 0.826 -56.5 0.065 -10.0 0.630 124.9
8.0 0.729 -179.0 3.510 57.1 0.045 10.0 0.238 -94.5 28.0 0.684 105.6 0.712 -62.8 0.070 -8.9 0.654 118.0
10.0 0.721 171.2 2.712 45.6 0.040 8.6 0.231 -104.0 30.0 0.711 105.9 0.662 -69.6 0.076 -11.0 0.676 106.7
12.0 0.747 165.5 2.232 35.7 0.040 10.8 0.227 -117.4 32.0 0.784 106.5 0.652 -79.4 0.077 -14.4 0.680 90.3
14.0 0.793 162.5 1.952 26.3 0.041 11.1 0.217 -136.4 34.0 0.881 105.0 0.631 -92.6 0.078 -26.4 0.733 69.7
16.0 0.842 158.5 1.790 14.4 0.046 9.0 0.234 -164.1 36.0 0.945 96.2 0.603 -110.7 0.079 -51.0 0.833 55.0
18.0 0.879 150.7 1.670 -0.5 0.053 3.2 0.291 171.1 38.0 0.867 79.5 0.513 -132.5 0.067 -92.7 0.940 42.8
20.0 0.871 138.7 1.509 -18.9 0.061 -4.6 0.375 149.3 40.0 0.723 63.1 0.398 -148.7 0.054 -132.5 0.965 38.8
S-PARAMETERS EPA060BV 8V, 1/2 Idss
FREQ --- S11 --- --- S21 --- --- S12 --- --- S22 --(GHz) MAG ANG MAG ANG MAG ANG MAG ANG
1.0 0.940 -46.3 11.322 150.5 0.023 61.4 0.573 -19.4
2.0 0.906 -82.2 9.363 129.0 0.037 45.1 0.505 -33.8
4.0 0.874 -126.4 6.297 100.2 0.049 23.1 0.405 -50.3
6.0 0.874 -150.7 4.561 80.9 0.051 11.2 0.363 -62.0
8.0 0.872 -166.4 3.551 65.9 0.052 2.5 0.353 -73.2
10.0 0.871 -179.0 2.893 52.3 0.051 -5.8 0.357 -84.9
12.0 0.874 169.9 2.437 39.3 0.049 -11.2 0.365 -98.2
14.0 0.881 158.8 2.092 26.0 0.049 -18.8 0.375 -113.0
16.0 0.890 148.2 1.810 12.6 0.049 -24.5 0.395 -128.0
18.0 0.897 138.4 1.557 -1.0 0.050 -31.8 0.418 -144.2
20.0 0.907 129.8 1.350 -14.2 0.048 -37.9 0.450 -159.5
FREQ --- S11 --- --- S21 --- --- S12 --- --- S22 --(GHz) MAG ANG MAG ANG MAG ANG MAG ANG
21.0 0.917 129.3 1.213 -18.8 0.047 -38.3 0.501 -167.0
22.0 0.925 127.9 1.124 -24.5 0.045 -40.2 0.521 -174.2
24.0 0.932 125.0 0.980 -35.1 0.044 -41.5 0.578 174.4
26.0 0.925 121.9 0.871 -45.0 0.042 -41.4 0.627 166.0
28.0 0.921 117.0 0.791 -54.9 0.042 -41.1 0.670 158.7
30.0 0.911 109.3 0.727 -65.9 0.042 -49.1 0.703 150.9
32.0 0.904 100.1 0.646 -78.1 0.039 -64.5 0.738 142.7
34.0 0.916 91.6 0.551 -89.8 0.038 -72.2 0.770 133.4
36.0 0.951 85.1 0.475 -100.8 0.041 -85.6 0.824 123.2
38.0 0.994 80.6 0.410 -111.5 0.055 -104.3 0.870 112.4
40.0 0.995 79.1 0.362 -122.6 0.069 -121.9 0.894 104.0
Note: The data included 0.7 mils diameter Au bonding wires; 1gate wires, 15 mils each; 1 drain wires, 20 mils each;
4 source wires, 7 mils each; no source wires for EPA060BV.
Page 3
EPA060B/EPA060BV
DATA SHEET
High Efficiency Heterojunction Power FET
S-Parameters
EPA060B, 5V,50mA
FREQ --- S11 --- --- S21 --- --- S12 --- --- S22 --- FREQ --- S11 --- --- S21 --- --- S12 --- --- S22 --(GHz) MAG ANG MAG ANG MAG ANG MAG ANG (GHz) MAG ANG MAG ANG MAG ANG MAG ANG
1.0 0.953 -52.8 12.712 147.4 0.025 62.4 0.520 -23.3 21.0 0.860 128.5 1.258 -13.6 0.060 -2.4 0.393 -173.4
2.0 0.897 -92.2 9.967 124.4 0.039 44.7 0.427 -38.2 22.0 0.868 125.1 1.158 -19.1 0.059 -3.5 0.409 177.8
3.0 0.863 -118.3 7.789 108.0 0.046 32.5 0.347 -49.2 23.0 0.874 122.9 1.067 -24.1 0.061 -3.3 0.446 170.6
4.0 0.855 -136.6 6.274 95.7 0.049 24.9 0.301 -57.5 24.0 0.884 121.7 0.980 -28.3 0.060 -2.1 0.488 166.0
5.0 0.843 -149.0 5.236 86.4 0.051 20.4 0.290 -63.3 25.0 0.896 120.9 0.930 -32.0 0.062 0.1 0.509 163.3
6.0 0.831 -158.6 4.464 78.3 0.051 17.2 0.268 -69.4 26.0 0.880 121.3 0.849 -35.2 0.063 0.1 0.552 159.2
7.0 0.827 -167.1 3.891 70.5 0.051 15.5 0.261 -78.0 27.0 0.872 120.0 0.812 -37.7 0.065 1.9 0.574 160.4
8.0 0.832 -174.2 3.433 63.7 0.051 12.7 0.260 -84.5 28.0 0.856 117.8 0.789 -41.1 0.070 1.8 0.597 157.8
9.0 0.833 179.9 3.080 57.3 0.050 10.2 0.261 -90.1 29.0 0.860 113.9 0.771 -46.2 0.073 -0.1 0.607 154.4
10.0 0.832 174.3 2.781 51.1 0.050 8.5 0.255 -97.0 30.0 0.860 108.2 0.742 -51.5 0.075 -3.0 0.627 151.6
11.0 0.835 168.5 2.529 44.6 0.050 8.7 0.261 -105.6 31.0 0.848 101.5 0.725 -58.0 0.077 -6.4 0.622 147.5
12.0 0.845 164.3 2.291 38.9 0.050 7.4 0.265 -113.5 32.0 0.823 93.6 0.680 -65.2 0.075 -10.4 0.646 142.1
13.0 0.852 161.8 2.105 33.8 0.050 7.0 0.288 -121.4 33.0 0.841 85.8 0.638 -71.4 0.077 -14.7 0.654 136.6
14.0 0.849 158.9 1.968 28.8 0.050 7.1 0.311 -123.0 34.0 0.859 82.8 0.585 -76.1 0.074 -16.5 0.672 130.6
15.0 0.849 154.0 1.860 23.0 0.051 5.9 0.304 -125.2 35.0 0.900 81.7 0.554 -80.3 0.075 -22.0 0.703 124.3
16.0 0.851 147.2 1.743 15.8 0.052 3.5 0.297 -136.0 36.0 0.889 79.3 0.531 -85.4 0.075 -30.0 0.716 120.8
17.0 0.859 142.0 1.605 9.5 0.053 1.1 0.323 -145.6 37.0 0.888 74.3 0.510 -94.2 0.077 -41.9 0.717 105.9
18.0 0.863 138.8 1.491 4.4 0.053 0.8 0.340 -150.6 38.0 0.908 72.4 0.449 -101.4 0.071 -55.9 0.789 92.3
19.0 0.870 135.6 1.410 -1.7 0.056 0.4 0.350 -159.2 39.0 0.925 77.0 0.407 -101.4 0.064 -57.5 0.828 94.7
20.0 0.865 131.0 1.321 -8.2 0.058 -1.7 0.385 -167.2 40.0 0.939 83.8 0.396 -100.7 0.069 -61.8 0.789 100.3
EPA060B
Noise Parameters
Vds=5V, Ids=50mA
Freq Gamma Opt Nfmin
(GHz) (MAG) (ANG) (dB) Rn/50
2 0.4 44 0.45 0.09
4 0.46 89 0.55 0.07
6 0.52 108 0.75 0.06
8 0.52 137 0.92 0.05
10 0.53 162 1.37 0.04
12 0.54 174 1.47 0.04
14 0.58 -176 1.92 0.05
16 0.62 -162 2.47 0.06
18 0.68 -153 3.03 0.09
20 0.69 -147 3.24 0.14
22 0.7 -141 3.43 0.24
24 0.72 -132 3.65 0.38
26 0.74 -128 3.86 0.6
