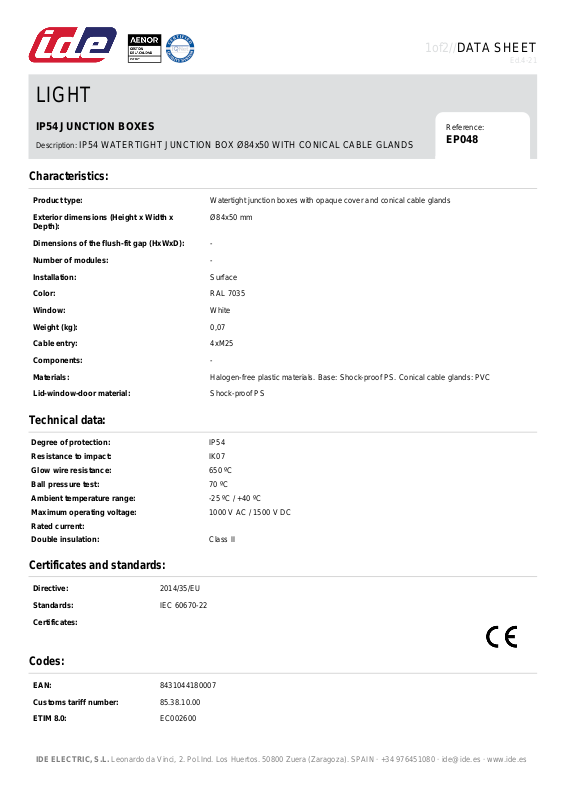

Page 1
LIGHT
1of2//DATA SHEET
Ed.4-21
IP54 JUNCTION BOXES
Description: IP54 WATERTIGHT JUNCTION BOX Ø84x50 WITH CONICAL CABLE GLANDS
Reference:
EP048
Characteristics:
Product type: Watertight junction boxes with opaque cover and conical cable glands
Exterior dimensions (Height x Width x
Depth):
Dimensions of the flush-fit gap (HxWxD): Number of modules: Installation: Surface
Color: RAL 7035
Window: White
Weight (kg): 0,07
Cable entry: 4xM25
Components: Materials: Halogen-free plastic materials. Base: Shock-proof PS. Conical cable glands: PVC
Lid-window-door material: Shock-proof PS
Ø84x50 mm
Technical data:
Degree of protection: IP54
Resistance to impact: IK07
Glow wire resistance: 650 ºC
Ball pressure test: 70 ºC
Ambient temperature range: -25 ºC / +40 ºC
Maximum operating voltage: 1000 V AC / 1500 V DC
Rated current:
Double insulation: Class II
Certificates and standards:
Directive: 2014/35/EU
Standards: IEC 60670-22
Certificates:
Codes:
EAN: 8431044180007
Customs tariff number: 85.38.10.00
ETIM 8.0: EC002600
IDE ELECTRIC, S.L. Leonardo da Vinci, 2. Pol.Ind. Los Huertos. 50800 Zuera (Zaragoza). SPAIN · +34 976451080 · [email protected] · www.ide.es
Page 2
LIGHT
IP54 JUNCTION BOXES
Description: IP54 WATERTIGHT JUNCTION BOX Ø84x50 WITH CONICAL CABLE GLANDS
Reference: EP048
2of2//DATA SHEET
Detailed drawing:
http://www.ide.es/downloads/planos/stp/EP048.stp
Exterior dimensions (Height x Width x Depth): Dimensions of the flush-fit gap (Height x Width x Depth):
Ø84x50 mm -
Sustainability: Product end of life:
RoHS - REACH It does not require specific recycling operations.
Supply: Recommended applications:
The boxes are supplied individually, shrink-wrapped and in multiple
cardboard packaging, according to minimum packaging units. Boxes
with conical cable glands are supplied with the cone assembled.
Packaging units: 134
Industrial and outdoor environments. Industrial sites, docks,
swimming pools, garages, anywhere that requires a high degree of
protection against dust, splashes and impacts.
