Page 1

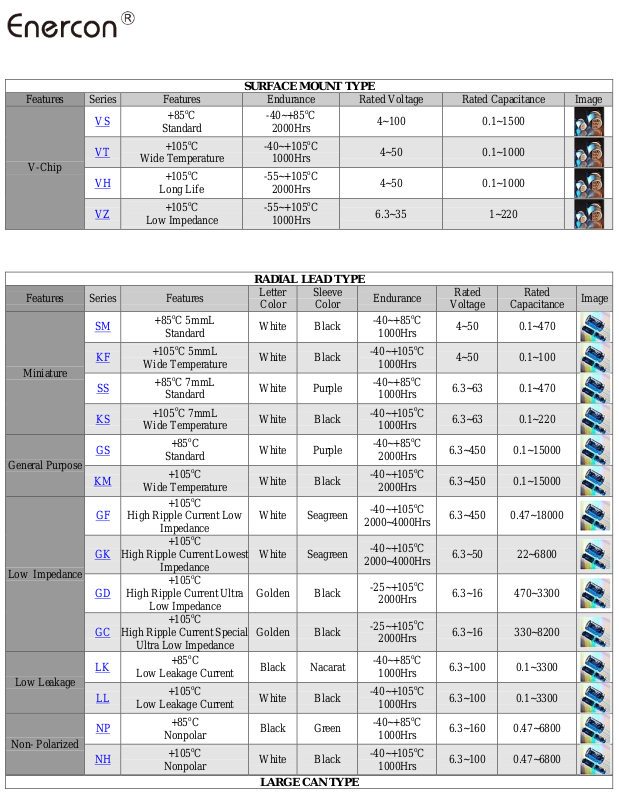

SURFACE MOUNT TYPE
Features
Series
Features
Endurance
Rated Voltage
Rated Capacitance
V-Chip
VS
+85oC
Standard
-40~+85oC
2000Hrs
4~100
0.1~1500
VT
+105oC
Wide Temperature
-40~+105oC
1000Hrs
4~50
0.1~1000
VH
+105oC
Long Life
-55~+105oC
2000Hrs
4~50
0.1~1000
VZ
+105oC
Low Impedance
-55~+105oC
1000Hrs
6.3~35
1~220
RADIAL LEAD TYPE
Features
Series
Features
Letter
Color
Sleeve
Color
Endurance
Rated
Voltage
Rated
Capacitance
Miniature
SM
+85oC 5mmL
Standard
White
Black
-40~+85oC
1000Hrs
4~50
0.1~470
KF
+105oC 5mmL
Wide Temperature
White
Black
-40~+105oC
1000Hrs
4~50
0.1~100
SS
+85oC 7mmL
Standard
White
Purple
-40~+85oC
1000Hrs
6.3~63
0.1~470
KS
+105oC 7mmL
Wide Temperature
White
Black
-40~+105oC
1000Hrs
6.3~63
0.1~220
General Purpose
GS
+85oC
Standard
White
Purple
-40~+85oC
2000Hrs
6.3~450
0.1~15000
KM
+105oC
Wide Temperature
White
Black
-40~+105oC
2000Hrs
6.3~450
0.1~15000
Low Impedance
GF
+105oC
High Ripple Current Low
Impedance
White
Seagreen
-40~+105oC
2000~4000Hrs
6.3~450
0.47~18000
GK
+105oC
High Ripple Current Lowest
Impedance
White
Seagreen
-40~+105oC
2000~4000Hrs
6.3~50
22~6800
GD
+105oC
High Ripple Current Ultra
Low Impedance
Golden
Black
-25~+105oC
2000Hrs
6.3~16
470~3300
GC
+105oC
High Ripple Current Special
Ultra Low Impedance
Golden
Black
-25~+105oC
2000Hrs
6.3~16
330~8200
Low Leakage
LK
+85oC
Low Leakage Current
Black
Nacarat
-40~+85oC
1000Hrs
6.3~100
0.1~3300
LL
+105oC
Low Leakage Current
White
Black
-40~+105oC
1000Hrs
6.3~100
0.1~3300
Non- Polarized
NP
+85oC
Nonpolar
Black
Green
-40~+85oC
1000Hrs
6.3~160
0.47~6800
NH
+105oC
Nonpolar
White
Black
-40~+105oC
1000Hrs
6.3~100
0.47~6800
LARGE CAN TYPE
Page 2
Features
Series
Features
Letter
Color
Sleeve
Color
Endurance
Rated
Voltage
Rated
Capacitance
General & Long
Life
LP
+85oC
Lug/Snap-in
Terminal Type
Standard
White
Black
-40~+85oC
2000Hrs
10~450
47~82000
HP
+105oC
Lug/Snap-in
Terminal Type
Wide Temperature
White
Black
-40~+85oC
2000Hrs
10~450
47~56000
KP
+105oC
Lug/Snap-in
Terminal Type
Long Life
White
Black
-40~+85oC
3000Hrs
10~450
56~56000
AXIAL
Features
Series
Features
Letter
Color
Sleeve
Color
Endurance
Rated
Voltage
Rated
Capacitance
General
AS
+85oC Standard
White
Purple
-40~+85oC
1000Hrs
6.3~160
0.47~10000
ISO 9001:2000 idt GB/T 19001-2000 ISO 14001:1996 idt GB/T 24001-1996
Copyright © 2007 Enercon Capacitor Co. Ltd.
