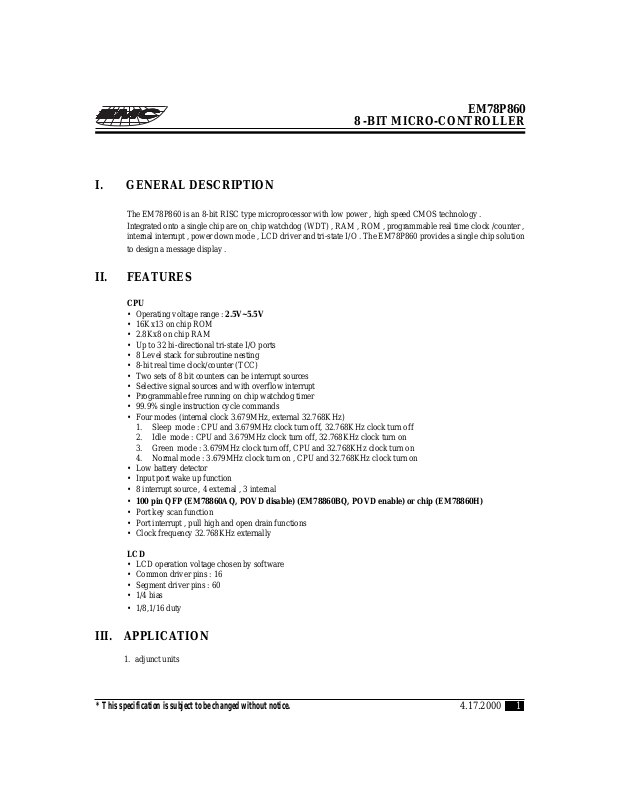

I. GENERAL DESCRIPTION

The EM78P860 is an 8-bit RISC type microprocessor with low power , high speed CMOS technology . Integrated onto a single chip are on_chip watchdog (WDT) , RAM , ROM , programmable real time clock /counter ,

internal interrupt , power down mode , LCD driver and tri-state I/O . The EM78P860 provides a single chip solution to design a message display .

II. FEATURES

CPU

• Operating voltage range : 2.5V~5.5V

• 16Kx13 on chip ROM

• 2.8Kx8 on chip RAM

• Up to 32 bi-directional tri-state I/O ports

• 8 Level stack for subroutine nesting

• 8-bit real time clock/counter (TCC)

• Two sets of 8 bit counters can be interrupt sources

• Selective signal sources and with overflow interrupt

• Programmable free running on chip watchdog timer

• 99.9% single instruction cycle commands

• Four modes (internal clock 3.679MHz, external 32.768KHz)

1. Sleep mode : CPU and 3.679MHz clock turn off, 32.768KHz clock turn off

2. Idle mode : CPU and 3.679MHz clock turn off, 32.768KHz clock turn on

3. Green mode : 3.679MHz clock turn off, CPU and 32.768KHz clock turn on

4. Normal mode : 3.679MHz clock turn on , CPU and 32.768KHz clock turn on

• Low battery detector

• Input port wake up function

• 8 interrupt source , 4 external , 3 internal

• 100 pin QFP (EM78860AQ, POVD disable) (EM78860BQ, POVD enable) or chip (EM78860H)

• Port key scan function

• Port interrupt , pull high and open drain functions

• Clock frequency 32.768KHz externally

EM78P860

8 -BIT MICRO-CONTROLLER

LCD

• LCD operation voltage chosen by software

• Common driver pins : 16

• Segment driver pins : 60

• 1/4 bias

• 1/8,1/16 duty

III. APPLICATION

1. adjunct units

* This specification is subject to be changed without notice. 4.17.2000

Page 2

IV. PIN ASSIGNMENTS

SEG41

SEG40

SEG39

8079787776757473727170696867666564636261605958575655545352

SEG42

SEF43

TEST

VDD1

84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

100

123456789

GND

PLLC

SEG44/P8.0 SEG45/P8.1 SEG46/P8.2 SEG47/P8.3 SEG48/P8.4 SEG49/P8.5 SEG50/P8.6 SEG51/P8.7 SEG52/P9.0 SEG53/P9.1 SEG54/P9.2 SEG55/P9.3 SEG56/P9.4 SEG57/P9.5 SEG58/P9.6 SEG59/P9.7

SEG38

SEG37

SEG36

RESET

NCNCNCNCNC

8 -BIT MICRO-CONTROLLER

P7.7

P7.6

P7.5

P7.4

P7.3/INT3

P7.2/INT2

P7.1/INT1

P7.0/INT0

COM15/P6.7

COM14/P6.6

COM13/P6.5

COM12/P6.4

COM11/P6.3

COM10/P6.2

COM9/P6.1

COM8/P6.0

COM7

COM6

EM78P860

101112131415161718192021222324252627282930

XIN

VDD

SEG0

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

XOUT

Fig. 1 Pin assignments

SEG9

SEG10

SEG11

SEG12

SEG13

COM5

SEG14

COM4

SEG15

COM3

SEG16

GND

VDD2

COM2

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

SEG17

COM1 COM0 SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18

EM78P860

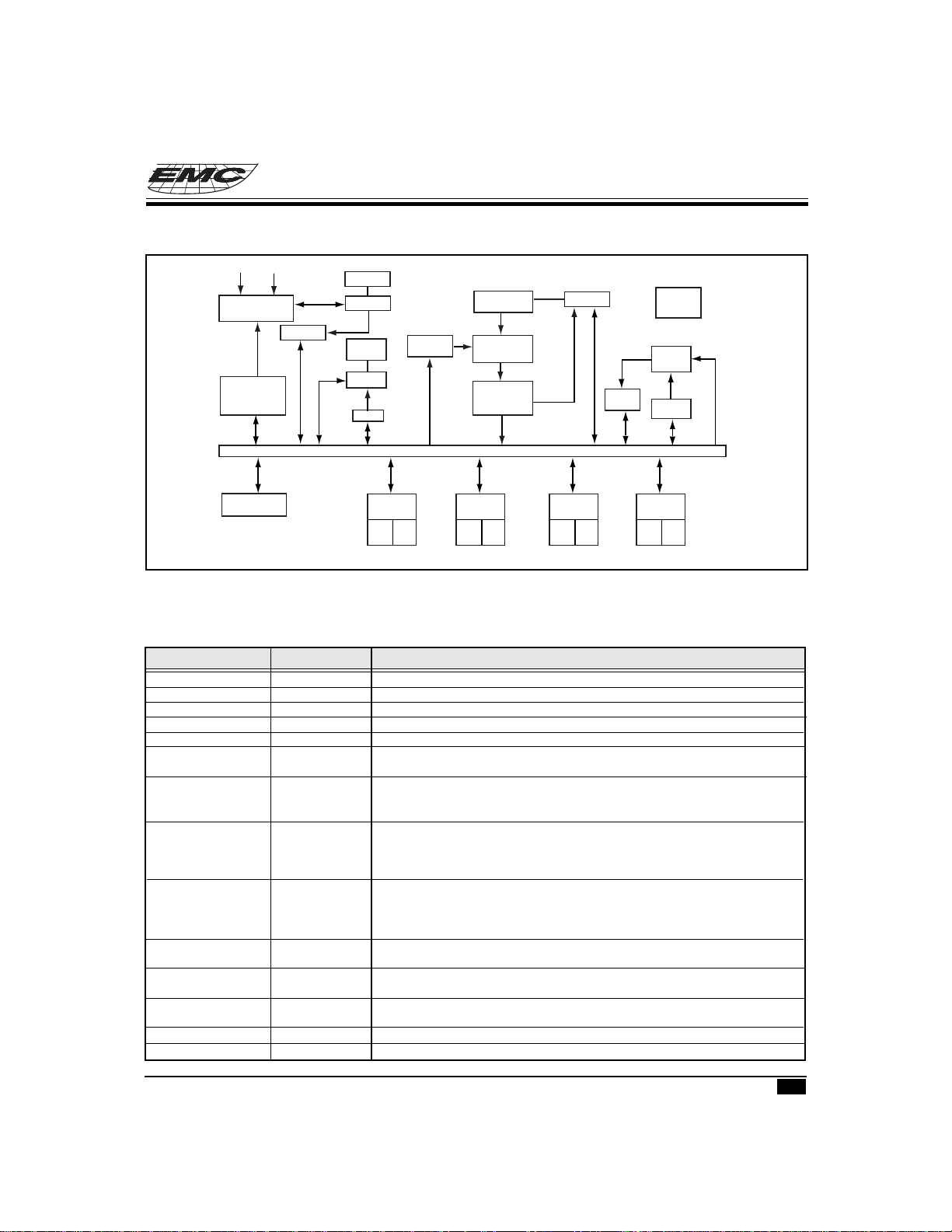

V. FUNCTIONAL BLOCK DIAGRAM

ROM

CPU

CLK

TIMING CONTROL

TIMER

Fig. 2 Functional block diagram1

* This specification is subject to be changed without notice. 4.17.2000

RAM

I/O PORT

INPUT PORT

LCD LATCH & DRIVER

I/O PORT

INPUT PORT

LCD OUTPUT

Page 3

EM78P860

8 -BIT MICRO-CONTROLLER

XIN XOUT

Oscillator/Timing

Control

Control of sleep and

wake-up

on I/O ports

2.5K RAM

R1(TCC)

WDT Timer

Prescaler

GENERAL

RAM

IOC6

Interrupt

Controller

DATA & CONTROL BUS

PORT6

P60~P67

PORT7

IOC7

P70~P77

ROM

Instruction

Decoder

PORT8

IOC8

P80~P87

R3 R5

PORT9

IOC9

P90~P97

Stack

ALU

ACC

Fig. 2 Functional block diagram2

VI. PIN DESCRIPTIONS

Symbol Type Function

VDD POWER Power GND POWER Gound XTin I Input pin for 32.768 kHz oscillator XTout O Output pin for 32.768 kHz oscillator PLLC I Phase loop lock capacitor, connect a capacitor 0.01µ to 0.047µ with GND COM0..COM7 O Common driver pins of LCD drivers COM8..COM15 O (PORT6) SEG0..SEG43 Segment driver pins of LCD drivers SEG44..SEG51 O (PORT8) SEG52..SEG59 O (PORT9) PORT9 AS FUNCTION KEY CAN WAKE UP WATCHDOG. INT0 PORT7(0) PORT7(0)~PORT7(3) signal can be interrupt signals. INT1 PORT7(1) INT2 PORT7(2) INT3 PORT7(3) P7.0~P7.7 PORT7 PORT 7 can be INPUT or OUTPUT port each bit.

P6.0~P6.7 PORT6 PORT 6 can be INPUT or OUTPUT port each bit.

P8.0~P8.7 PORT8 PORT 8 can be INPUT or OUTPUT port each bit.

P9.0~P9.7 PORT9 PORT 9 can be INPUT or OUTPUT port each bit.

TEST I Test pin into test mode , normal low RESET I

Internal Pull high function. Key scan function. Bit6,7 open drain function.

And shared with Common signal.

* This specification is subject to be changed without notice. 4.17.2000

Page 4

8 -BIT MICRO-CONTROLLER

VII. FUNCTION DESCRIPTION

VII.1Operational Registers

1. R0 (Indirect Addressing Register)

R0 is not a physically implemented register. It is useful as indirect addressing pointer. Any instruction using R0 as register actually accesses data pointed by the RAM Select Register (R4).

2. R1 (TCC)

• Increased by an internal signal edge applied to TCC , or by the instruction cycle clock.

• Written and read by the program as any other register.

3. R2 (Program Counter)

• The structure is depicted in Fig. 4.

• Generates 16Kx13 on-chip ROM addresses to the relative programming instruction codes.

• ”JMP” instruction allows the direct loading of the low 10 program counter bits.

• “CALL” instruction loads the low 10 bits of the PC, PC+1, and then push into the stack..

• “RET’’ (“RETL k”, “RETI”) instruction loads the program counter with the contents at the top of stack.

• ”MOV R2,A” allows the loading of an address from the A register to the PC, and the ninth and tenth bits are cleared to “0'’.

• “ADD R2,A” allows a relative address be added to the current PC, and contents of the ninth and tenth bits are cleared to “0'’.

• “TBL” allows a relative address be added to the current PC, and contents of the ninth and tenth bits don’t change.

• The most significant bit (A10~A13) will be loaded with the content ofbit PS0~PS3 in the status register (R5) upon the execution of a “JMP’’, “CALL’’, “ADD R2,A’’, or “MOV R2,A’’ instruction.

EM78P860

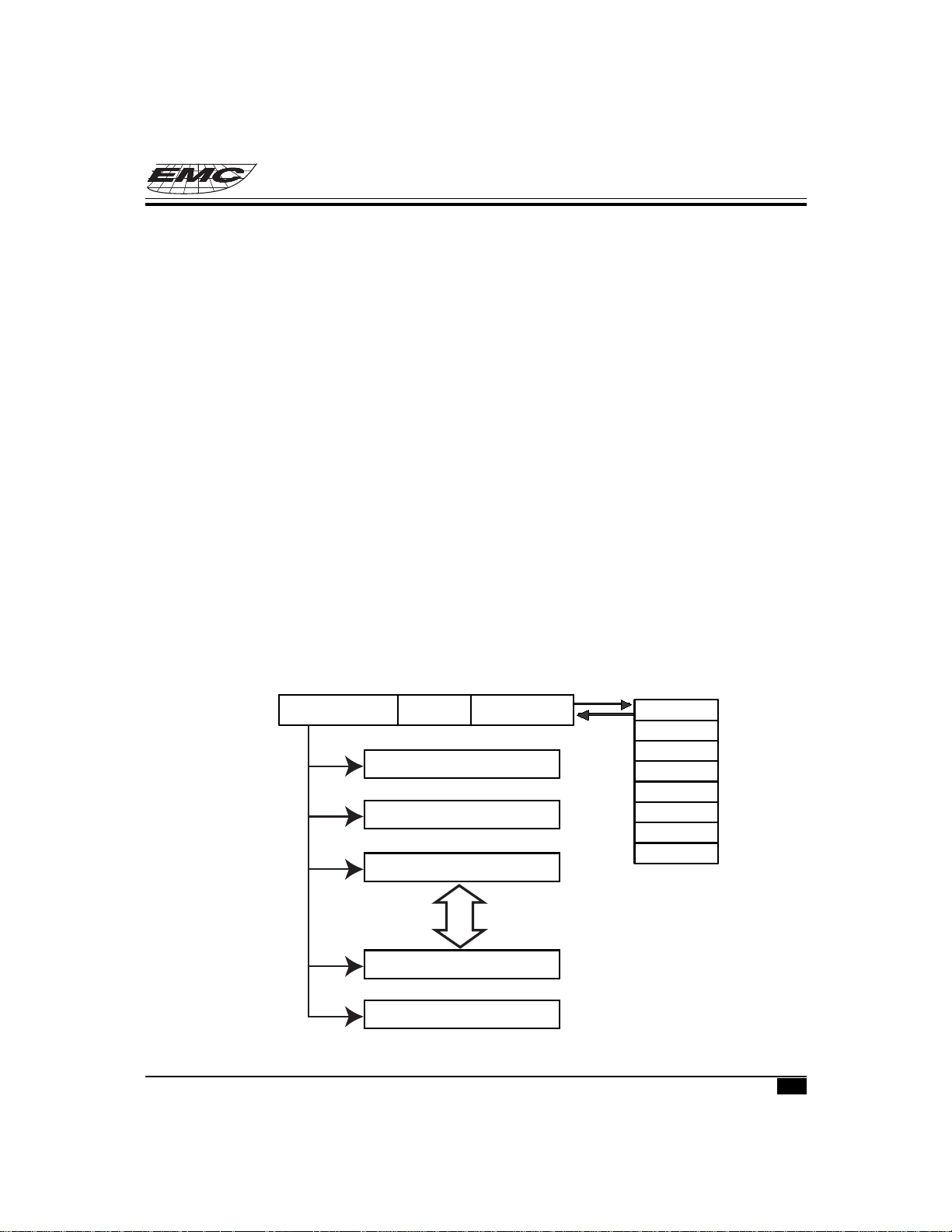

CALL

A13 A12 A11 A10 A9 A8

0000 PAGE0 0000~03FF

A7~A0 Stack 1

RET RETTL RETI

Stack 2 Stack 3 Stack 4 Stack 5

0000 PAGE1 0400~07FF

Stack 6 Stack 7 Stack 8

0000 PAGE2 0800~0BFF

1110 PAGE14 3800~3BFF

1111 PAGE15 3C00~3FFF

Fig. 4 Program counter organization

* This specification is subject to be changed without notice. 4.17.2000

Page 5

ADDRESS REGISTER

R1(TCC)

R2(PC)

R3(STATUS)

R4(RSR)

R5(ROM PAGE)

05 06

R6(PORT6)

R7(PORT7)

R8(PORT8)

R9(PORT9)

RA(CLK)

RB()

RC(2.5K RAM ADRESS)

RD(2.5K RAM DATA)

RF(INT FLAG)

16x8

Common

BANK0~BANK3

: 3F

32X8 ~ 32X8

CONTROL REGISTER (PAGE0)

page0

IOC6 IOC7 IOC8 IOC9 IOCA IOCB(LCD ADDRESS) IOCC(LCD DATA) IOCD(PULL HIGH) IOCE(IO, LCD) IOCF(INT CONTROL)

RC(ADDRESS) RD(DATA)

255

BAND1

256X8

BAND1

256X8

. . . . . . . . . . . .

EM78P860

8 -BIT MICRO-CONTROLLER

CONTROL REGISTER (PAGE1)

page1

IOCB(COUNTER1) IOCC(COUNTER2)

BAND10

256X8

Fig. 5 Data memory configuration

4. R3 ( Status Register )

7654321 0

- PAGE - T P Z DC C

• Bit 0 (C) : Carry flag

• Bit 1 (DC) : Auxiliary carry flag

• Bit 2 (Z) : Zero flag

• Bit 3 (P) : Power down bit. Set to 1 during power on or by a “WDTC” command and reset to 0 by a “SLEP” command.

• Bit 4 (T) : Time-out bit. Set to 1 by the “SLEP” and “WDTC” command, or during power up and reset to 0 by WDT time out.

EVENT T P REMARK WDT TIME OUT 0 0 sleep mode WDT time out (not sleep mode 0 1 /RESET wake up from sleep 1 0 power up 1 1 Low pulse on /RESET x x x . . don't care

• Bit 5 : unused

• Bit 6 PAGE : changed IOCB~IOCE to another page, 0/1→page0/page1

• Bit 7 unused

* This specification is subject to be changed without notice. 4.17.2000

Page 6

5. R4 ( RAM Select Register )

• Bit 0 ~ 5 are used to select up to 64 register in the indirect addressing mode.

• Bit 6 ~ 7 determine which bank is actived among the 4 banks.

• See the configuration of the data memory in Fig. 4.

6. R5 ( Program Page Select Register)

7654321 0

- - - - PS3 PS2 PS1 PS0

• Bit 0 (pS0) ~ 3 (PS3) Page selec bits.

Page select bits

PS3 PS2 PS1 PS0 program memory page (Address)

0000 Page 0 0001 Page 1 0010 Page 2 0011 Page 3 0100 Page 4 0101 page 5 0110 Page 6 0111 Page 7 1000 Page 8 1001 Page 9 1010 Page 10 1011 Page 11 1100 Page 12 1101 Page 13 1110 Page 14 1111 Page 15

EM78P860

8 -BIT MICRO-CONTROLLER

• User can use PAGE instruction to change page. To maintain program page by user. Otherwise, user can use

far jump (FJMP) or far call (FCALL) instructions to program user's code. And the program page is maintained by EMC's complier. It will change user's program by inserting instruction within program.

• Bit4~7 : unused

7. R6 ~R9 ( Port 6 ~ Port 9)

• Five 8-bit I/O registers.

8. RA

7654321 0

IDLE /358E /LPD /LOW-BAT 0 0 0 0

• Bit0 ~ Bit3 unused, please set to "0"

* This specification is subject to be changed without notice. 4.17.2000

Page 7

EM78P860

8 -BIT MICRO-CONTROLLER

• Bit4(Read Only)(Low battery signal) 0/1 = Battery voltage is low/Normal .

If the battery voltage is under 3.6V then sends a ‘0’ signal to RA register bit4 or a ‘1’ signal to this Bit if VDD is over 3.8V.

• Bit5(read/Write)(Low battery detect enable)

0/1 = low battery detect DISABLE/ENABLE. The relation between /LPD,/POVD and /LOW_BAT can see Fig 6.

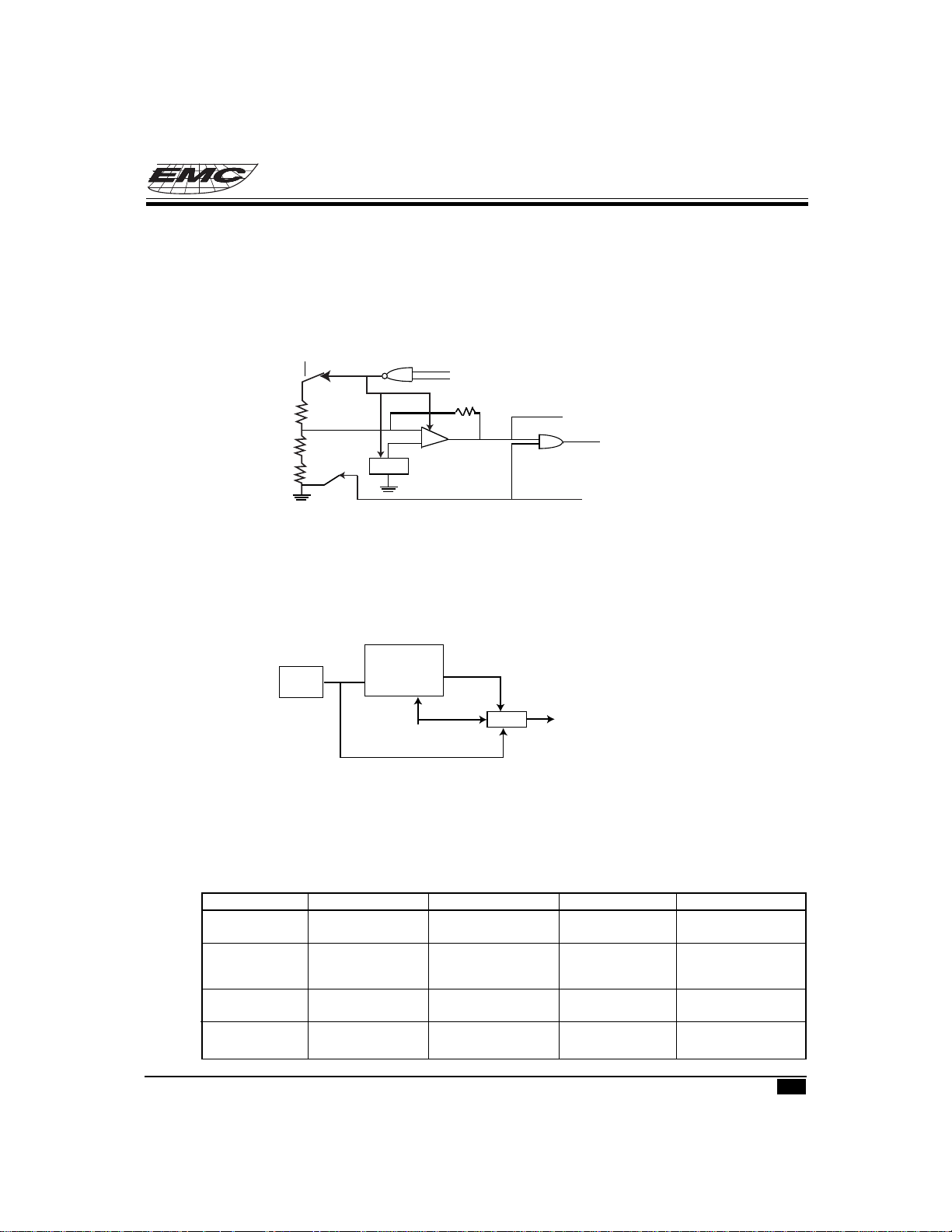

Vdd

s2 1 on 0 off

1 on

Vref

s2 1 on 0 off

Fig. 6 The relation between /LPD,/POVD

• Bit6(read/write)(PLL enable signal)

0/1=DISABLE/ENABLE The relation between 32.768K and 3.679M can see Fig. 7.

/POVD /LPD

1 on

to Low bat

To rese

/LPD

PLL

32.768K

3.679M

/358E

switch

To system clock

Fig. 7 The relation between 32.768K and 3.679K .

• Bit7 IDLE: sleep mode selection bit

0/1=sleep mode/IDLE mode. This bit will decide SLEP instruction which mode to go. These IDLE mode can be waken up by TCC clock or Watch Dog or PORT9 and run from “SLEP” next instruction. These SLEEP mode can be waken up by Watch Dog or PORT9 and run from address “00”.

SLEEP mode IDLE mode GREEN mode NORMAL mode

RA(7,6)=(0,0) RA(7,6)=(1,0) RA(7,6)=(x,0) RA(7,6)=(x,1) + SLEP + SLEP no SLEP no SLEP

TCC time out X Wake-up Interrupt Interrupt

+ Interrupt + Next instruction

WDT time out RESET Wake-up RESET RESET

+ Next instruction RESET RESET

Port9 wake-up RESET Wake-up

+ Next instruction

* This specification is subject to be changed without notice. 4.17.2000

Page 8

8 -BIT MICRO-CONTROLLER

9. RB

Empty register, please don't use.

10. RC(2.5k RAM address)(read/write)

7654321 0

CIDA7 CIDA6 CIDA5 CIDA4 CIDA3 CIDA2 CIDA1 CIDA0

• Bit 0 ~ Bit 7 select CALLER ID RAM address up to 256.

11. RD(2.5k RAM address)(read/write)

• Bit 0 ~ Bit 8 are CALLER ID RAM data transfer register.

User can see IOCA register how to select CID RAM banks.

12.RE(LCD Driver,WDT Control)(read/write)

7654321 0

- /WDTE /WUP9H /WUP9L /WURING LCD_C2 LCD_1 LCD_M

• Bit0 (LCD_M):LCD_M decides the methods, including duty, bias, and frame frequency.

• Bit1~Bit2 (LCD_C#):LCD_C# decides the LCD display enable or blanking. change the display duty must

set the “LCD_C2,LCD_C1” to “00”.

EM78P860

LCD_C2,LCD_C1 LCD Display Control LCD_M duty bias 0 0 Change duty 0 1/16 1/4

Disable(turn off LCD) 1 1/8 1/4 0 1 Blanking : : 1 1 LCD display enable : :

• Bit3 unused. Please set to "0"

• Bit4(/WUP9L, PORT9 low nibble Wake Up Enable) : used to enable the wake-up function of low nibble in PORT9, (1/0=enable/disable)

• Bit5 (/WUP9H, PORT9 high nibble WAKE Up Enable) : used to enable the wake-up function of high nibble in PORT9, (1/0=enable/disable)

• Bit6 (/WDTE, Watch Dog Timer Enable) Control bit used to enable Watchdog timer. (1/0=enable/disable)

• Bit7 unused

13. RF (Interrupt Status Register)

7654321 0

INT3 - C8_2 C8_1 INT2 INT1 INT0 TCIF

• “1” means interrupt request, “0” means non-interrupt

• Bit 0 (TCIF) TCC timer overflow interrupt flag. Set when TCC timer overflows .

• Bit 1 (INT0) external INT0 pin interrupt flag .

• Bit 2 (INT1) external INT1 pin interrupt flag .

• Bit 3 (INT2) external INT2 pin interrupt flag .

• Bit 4 (C8_1) internal 8 bit counter interrupt flag .

• Bit 5 (C8_2) internal 8 bit counter interrupt flag .

* This specification is subject to be changed without notice. 4.17.2000

Page 9

• Bit 6 :unused. Please set to ‘0’.

• Bit 7 (INT3) external INT3 pin interrupt flag.

• High to low edge trigger , Refer to the Interrupt subsection.

• IOCF is the interrupt mask register. User can read and clear.

14.R10~R3F (General Purpose Register)

• R10~R3F (Banks 0~3) all are general purpose registers.

VII.2 Special Purpose Registers

1. A (Accumulator)

• Internal data transfer, or instruction operand holding

• It’s not an addressable register.

2. CONT (Control Register)

7654321 0

- INT TS - PAB PSR2 PSR1 PSR0

• Bit 0 (PSR0) ~ Bit 2 (PSR2) TCC/WDT prescaler bits.

PSR2 PSR1 PSR0 TCC Rate WDT Rate

0 0 0 1:2 1:1 0 0 1 1:4 1:2 0 1 0 1:8 1:4 0 1 1 1:16 1:8 1 0 0 1:32 1:16 1 0 1 1:64 1:32 1 1 0 1:128 1:64 1 1 1 1:256 1:128

EM78P860

8 -BIT MICRO-CONTROLLER

• Bit 3 ( PAB ) : Prescaler assignment bit

0/1: TCC/WDT

• Bit 4 : unused

• Bit 5 ( TS ) : TCC signal source

0 : internal instruction cycle clock 1 : 16.38KHz

• Bit 6 (INT) : INT enable flag

0 : interrupt masked by DISI or hardware interrupt 1 : interrupt enabled by ENI/RETI instructions

• Bit 7 : unused

• CONT register is readable and writable.

* This specification is subject to be changed without notice. 4.17.2000

Page 10

8 -BIT MICRO-CONTROLLER

3. IOC6 ~ IOC9 ( I/O Port Control Register )

• Five I/O direction control registers.

• “1” put the relative I/O pin into high impedance, while “0” put the relative I/O pin as output.

• User can see IOCB register how to switch to normal I/O port.

4. IOCA (RAM,IO ,PAGE Control Register)(read/write,initial “00000000”)

7654321 0

P8SH P8SL 0 CALL_4 CALL_3 CALL_2 CALL_1 0

• Bit0 unused

• Bit4~Bit1: ”000" to “1001” are ten blocks of RAM area. User can use 2.5K RAM with RC ram address.

• Bit 5 unused

• Bit6: port8 low nibble switch, 0/1= normal I/O port/SEGMENT output .

• Bit7: port8 high nibble switch , 0/1= normal I/O port/SEGMENT output

5. IOCB (LCD ADDRESS)

PAGE0 : Bit6 ~ Bit0 = LCDA6 ~ LCDA0

The LCD display data is stored in the data RAM . The relation of data area and COM/SEG pin is as below:

COM15 ~ COM8 COM7 ~ COM0 40H (Bit15 ~ Bit8) 00H (Bit7 ~ Bit0) SEG0 41H 01H SEG1 ::: ::: 7BH 3BH SEG59 7CH 3CH Empty 7DH 3DH Empty 7EH 3EH Empty 7FH 3FH Empty

EM78P860

PAGE1 : 8 bit up-counter (COUNTER1) preset and read out register . ( write = preset ) . After an interruption,

it will count from “00”.

6. IOCC (LCD DATA)

PAGE0 : Bit7 ~ Bit0 = LCD RAM data register

PAGE1 : 8 bit up-counter (COUNTER2) preset and read out register. (write=preset) After a interruption, it will

count from "00".

7. IOCD (Pull-high Control Register)

7654321 0

PH7 PH6 PH5 PH4 PH3 PH2 PH1 PH0

• Bit 0 ~ 7 (/PH#) Control bit used to enable the pull-high of PORT7(#) pin.

1: Enable internal pull-high 0: Disable internal pull-high

* This specification is subject to be changed without notice. 4.17.2000

Page 11

8 -BIT MICRO-CONTROLLER

8. IOCE (Bais, PLL Control Register)

PAGE0:

7654321 0

P9SH P9SL P6S Bias3 Bias2 Bias1 0 SC

• Bit 0 :SC (SCAN KEY signal ) 0/1 = disable/enable. Once you enable this bit , all of the LCD signal will have a low pulse during a common period. This pulse has 30us width. Please use the procedure to implement the

key scan function.

a. set port7 as input port b. set IOCD page0 port7 pull high c. enable scan key signal d. Once push a key . Set RA(6)=1 and switch to normal mode. e. Blank LCD. Disable scan key signal. f. Set P6S =0. Port6 sent probe signal to port7 and read port7. Get the key. g. Note!! A probe signal should be delay a instruction at least to another probe signal. h. Set P6S =1. Port6 as LCD signal. Enable LCD.

P63

P62

P61

P60

KEY5

KEY1

KEY2

KEY3

KEY4

EM78P860

P73 P72 P71 P70

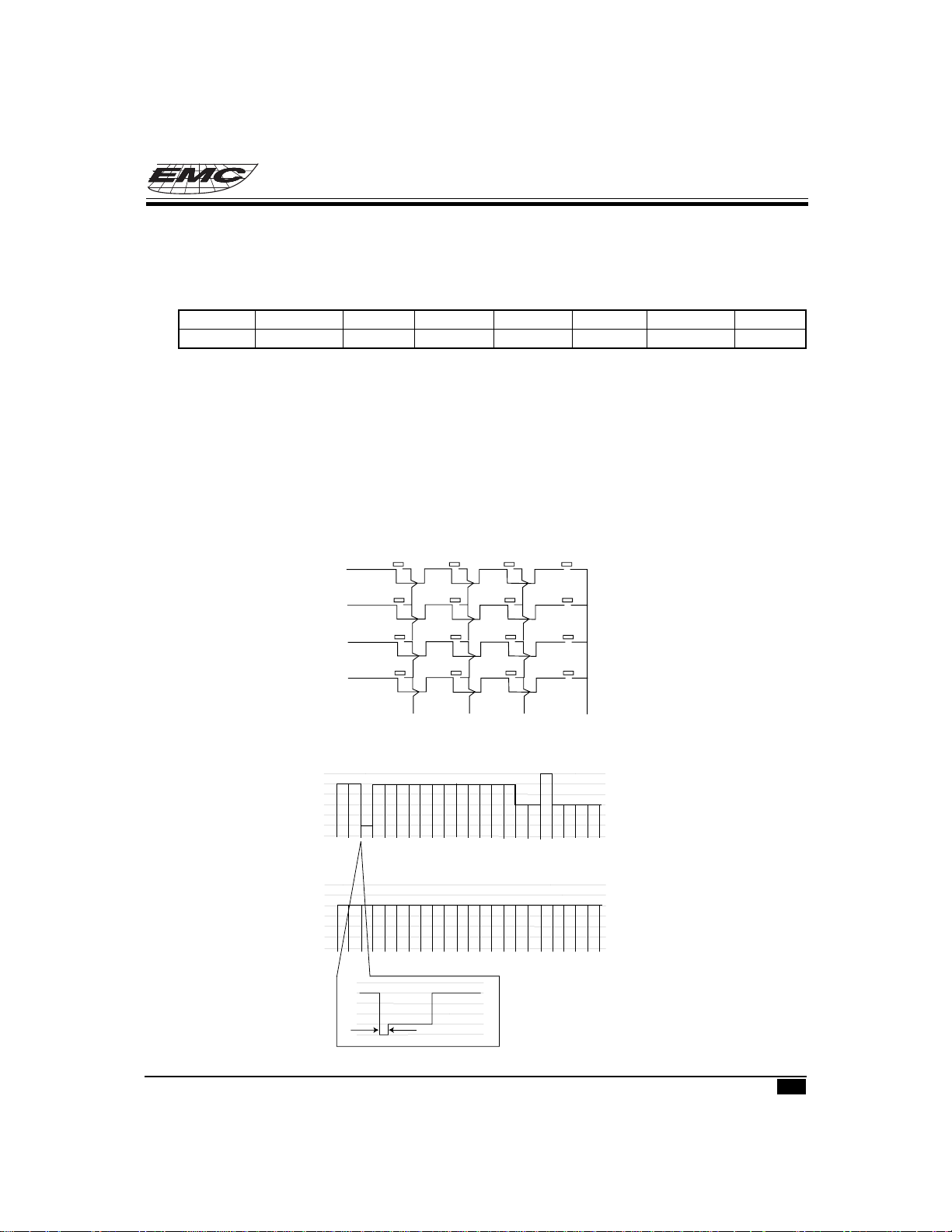

Fig. 8 Key scan circuit

VDD V1

com2

seg

30µs

V2 V3 V4 VLCD GND

VDD V1 V2 V3 V4 VLCD GND

Fig. 9 Key scan signal

* This specification is subject to be changed without notice. 4.17.2000

Page 12

EM78P860

8 -BIT MICRO-CONTROLLER

• Bit 1 : zero

• Bit 2~4 (Bias1~Bias3) Control bits used to choose LCD operation voltage .

LCD operate voltage Vop (VDD 5V) VDD=5V

000 0.60VDD 3.0V 001 0.66VDD 3.3V 010 0.74VDD 3.7V 011 0.82VDD 4.0V 100 0.87VDD 4.4V 101 0.93VDD 4.7V 110 0.96VDD 4.8V 111 1.00VDD 5.0V

• Bit5:port6 switch , 0/1= normal I/O port/COMMON output

• Bit6:port9 low nibble switch , 0/1= normal I/O port/SEGMENT output . Bit7:port9 high nibble switch

PAGE1 :

7654321 0

OP77 OP76 C2S C1S PSC1 PSC0 - -

• Bit0: unused, please set to ‘0’

• Bit1: unused, please set to ‘0‘

• Bit3~Bit2: counter1 prescaler , reset=(0,0)

(PSC1,PSC0) = (0,0)=>1:1 , (0,1)=>1:2 , (1,0)=>1:4 , (1,1)=>1:8

• Bit4:counter1 source , (0/1)=(32768Hz/3.679MHz if enable)

• Bit5:counter2 source , (0/1)=(32768Hz/3.679MHz if enable) scale=1:1

• Bit6:P76 opendrain control (0/1)=(disable/enable)

• Bit7:P77 opendrain control (0/1)=(disable/enable)

9. IOCF (Interrupt Mask Register)

7654321 0

INT3 - C8_2 C8_1 INT2 INT1 INT0 TCIF

• Bit 0 ~ 7 interrupt enable bit.

0: disable interrupt 1: enable interrupt

• IOCF Register is readable and writable.

It is very important to save ACC,R3 and R5 when processing a interruption.

Address Instruction Note 0x08 DISI ;Disable interrupt 0x09 MOV A_BUFFER,A ;Save ACC 0x0A SWAP A_BUFFER 0x0B SWAPA 0x03 ;Save R3 status 0x0C MOV R3_BUFFER,A 0x0D MOV A,0x05 ;Save ROM page register 0x0E MOV R5_BUFFER,A :: :: : MOV A,R5_BUFFER ;Return R5 : MOV 0X05,A : SWAPA R3_BUFFER ;Return R3 : MOV 0X03,A : SWAPA A_BUFFER ;Return ACC : RETI

* This specification is subject to be changed without notice. 4.17.2000

Page 13

8 -BIT MICRO-CONTROLLER

VII.3 TCC/WDT Prescaler

There is an 8-bit counter available as prescaler for the TCC or WDT. The prescaler is available for the TCC only or WDT only at the same time.

• An 8 bit counter is available for TCC or WDT determined by the status of the bit 3 (PAB) of the CONT register.

• See the prescaler ratio in CONT register.

• Fig. 10 depicts the circuit diagram of TCC/WDT.

• Both TCC and prescaler will be cleared by instructions which write to TCC each time.

• The prescaler will be cleared by the WDTC and SLEP instructions, when assigned to WDT mode.

• The prescaler will not be cleared by SLEP instructions, when assigned to TCC mode.

EM78P860

TCC

(32K CLK)

CLK(=Fosc/2)

WDT

WDTE

U X

PAB

U X

PAB

U X

WDT timeout

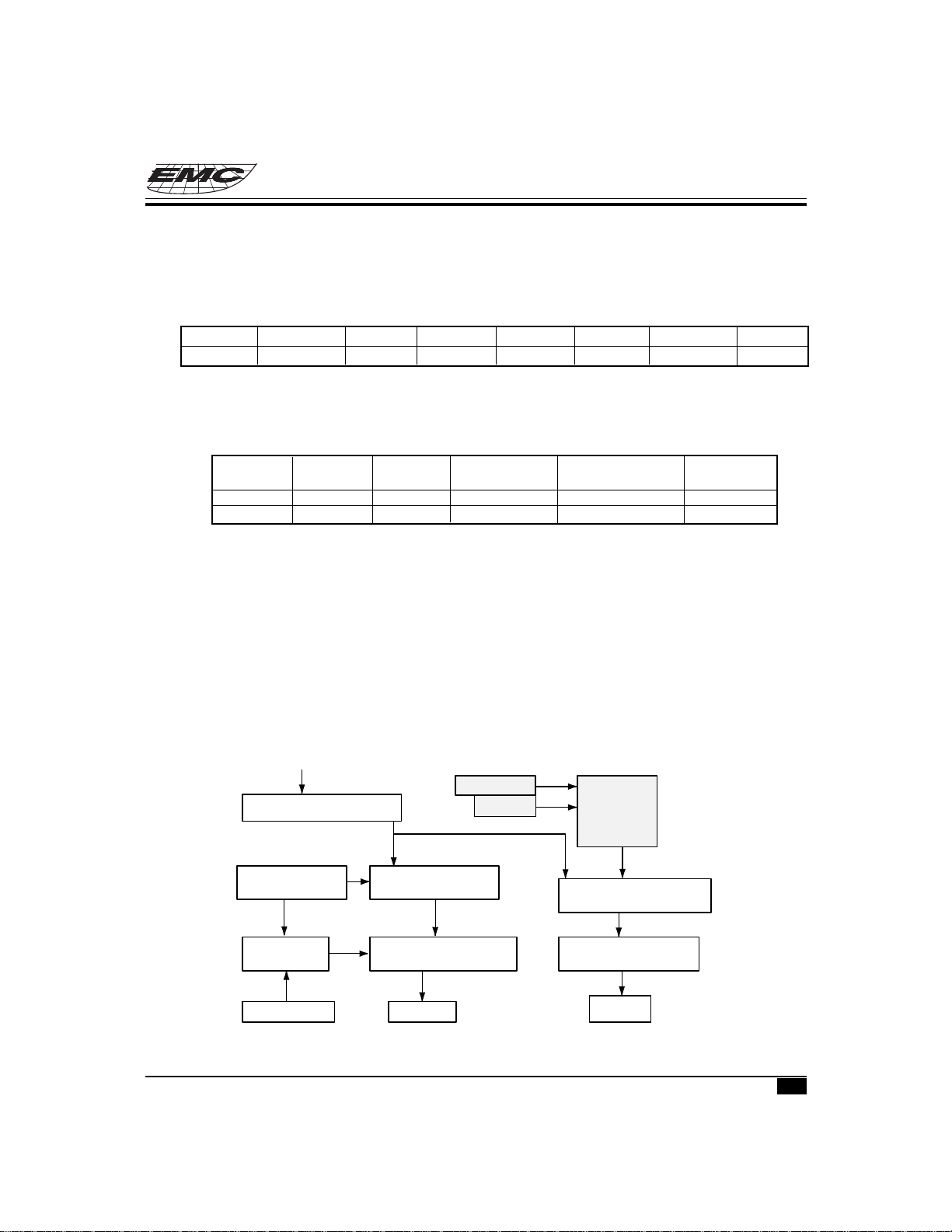

Fig. 10 Block diagram of TCC WDT

8-bit Counter

8-to-1 MUX

MUX

SYNC

2 cycle

Data Bus

TCC(R1)

TCC overflow interrupt

PSR0~PSR2

PAB

VII.4I/O Ports

The I/O registers, Port 6 ~ Port 9, are bi-directional tri-state I/O ports. Port 7 can be pulled-high internally by software control. The I/O ports can be defined as “input” or “output” pins by the I/O control registers (IOC6 ~ IOC9 ) under program control. The I/O registers and I/O control registers are both readable and writable. The I/O interface circuit is shown in Fig. 11.

* This specification is subject to be changed without notice. 4.17.2000

Page 14

PORT

VII.5 RESET and Wake-up

8 -BIT MICRO-CONTROLLER

PCRD

CLK

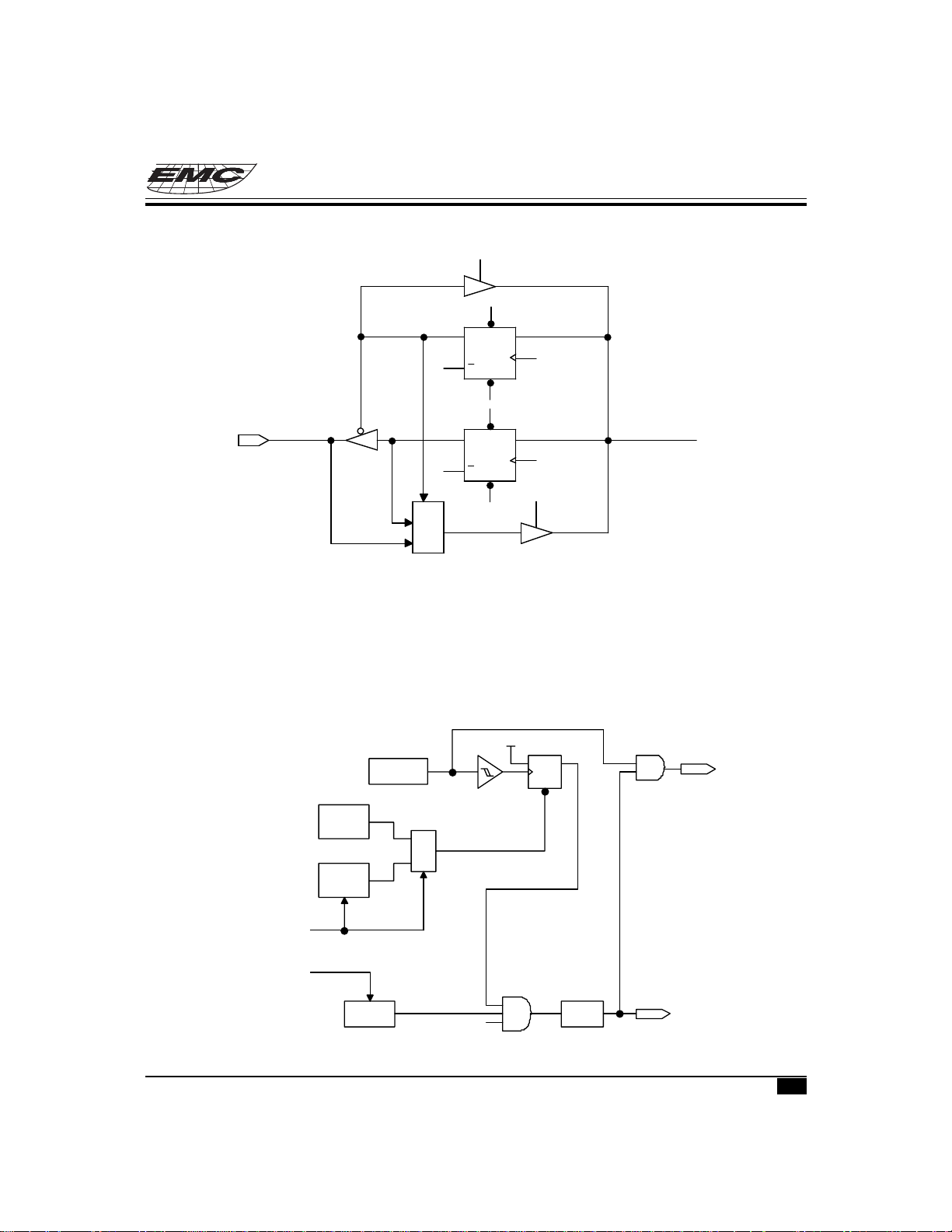

Fig. 11 The circuit of I/O port and I/O control register

PCWR

PDWR

PDRD

EM78P860

IOD

The RESET can be caused by (1) Power on reset, or Voltage detector (2) WDT timeout. (if enabled and in GREEN or NORMAL mode) Note that only Power on reset, or only Voltage detector in Case(1) is enabled in the system by CODE Option bit. If Voltage detector is disabled, Power on reset is selected in Case (1). Refer to Fig. 12.

Code

Option

WDTE

Power-on

Reset

Voltage

Detector

/Enable

WDT

Oscillator

U X

WDT timeout

CLK

CLR

18 ms

RESET

CLK

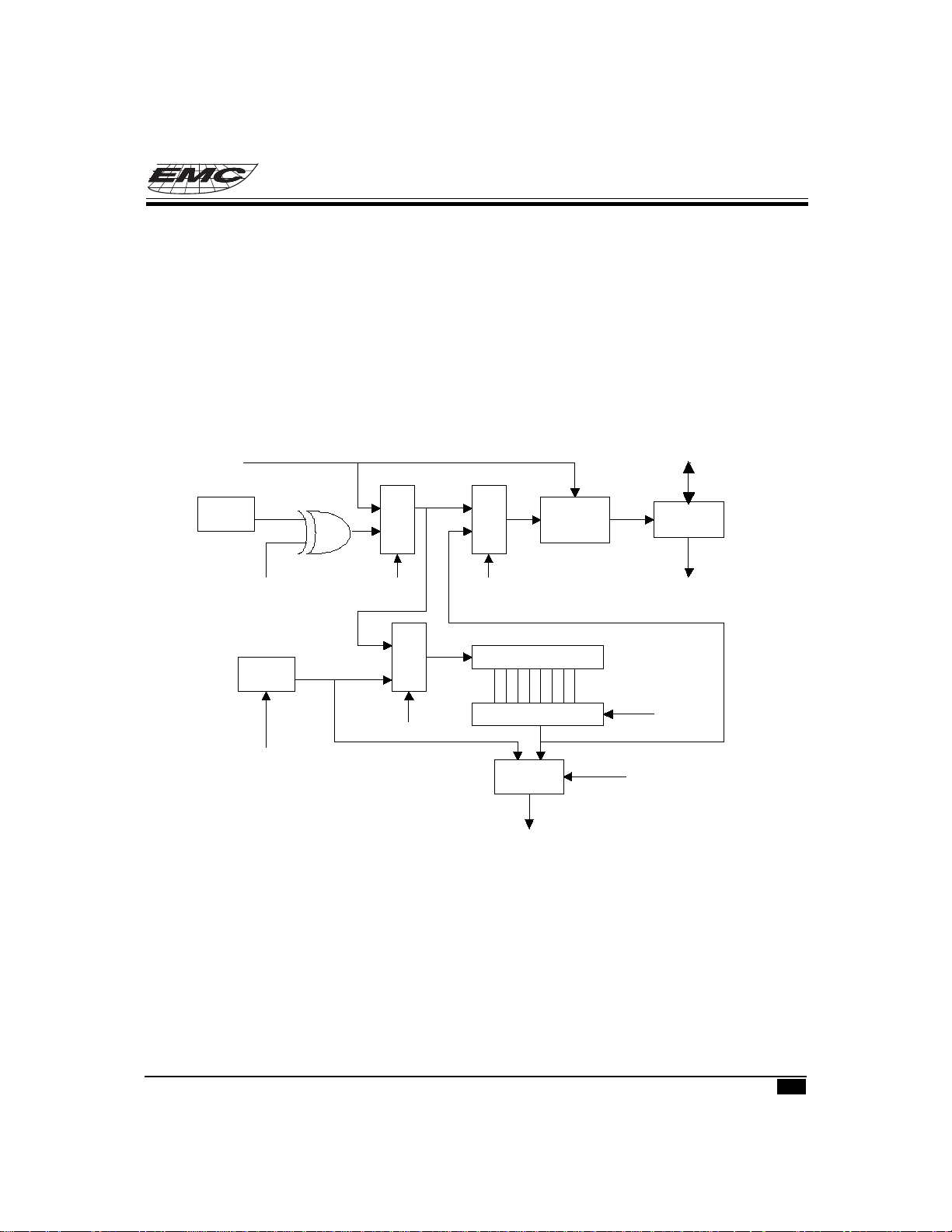

Fig. 12 Block diagram of Reset of controller

* This specification is subject to be changed without notice. 4.17.2000

Page 15

EM78P860

8 -BIT MICRO-CONTROLLER

Once the RESET occurs, the following functions are performed.

• The oscillator is running, or will be started.

• The Program Counter (R2) is set to all “0”.

• When power on, the upper 3 bits of R3 and the upper 2 bits of R4 are cleared.

• The Watchdog timer and prescaler are cleared.

• The Watchdog timer is disabled.

• The CONT register is set to all “1”

• The other register (bit7..bit0)

R5 = “00000000” R6 = PORT IOC6 = “11111111” R7 = PORT IOC7 = “11111111” R8 = PORT IOC8 = “11111111” R9 = PORT IOC9 = “11111111” RA = “010x0xxx IOCA = “00000000” RB = “11111111” Page0 IOCB = “00000000” Page1 IOCB = “00000000” RC = “00000000” Page0 IOCC = “0xxxxxxx” Page1 IOCC = “00000000” RD = “xxxxxxxx” Page0 IOCD = “00000000” RE = “00000000” Page0 IOCE = “00000000” Page1 IOCE = “00000000” RF = “00000000” IOCF = “00000000”

The controller can be awakened from SLEEP mode or IDLE mode (execution of “SLEP” instruction, named as SLEEP MODE or IDLE mode) by (1)TCC time out (IDLE mode only) (2) WDT time-out (if enabled) or, (3) external input at PORT9 . The three cases will cause the controller wake up and run from next instruction in IDLE mode , reset in SLEEP mode . After wake-up , user should control WATCH DOG in case of reset in GREEN mode or NORMAL mode. The last two should be open RE register before into SLEEP mode or IDLE mode. The first one case will set a flag in RF bit0 . And it will go to address 0x08 when TCC generate a interrupt .

VII.6 Interrupt

The chip has internal interrupts which are falling edge triggered, as followed : TCC timer overflow interrupt (internal) , two 8-bit counters overflow interrupt . If these interrupt sources change signal from high to low , then RF register will generate ‘1’ flag to corresponding register if you enable IOCF register. RF is the interrupt status register which records the interrupt request in flag bit. IOCF is the interrupt mask register. Global interrupt is enabled by ENI instruction and is disabled by DISI instruction. When one of the interrupts (when enabled) generated, will cause the next instruction to be fetched from address 008H. Once in the interrupt service routine the source of the interrupt can be determined by polling the flag bits in the RF register. The interrupt flag bit must be cleared in software before leaving the interrupt service routine and enabling interrupts to avoid recursive interrupts. There are four external interrupt pins including INT0 , INT1 , INT2 , INT3 . And four internal counter interrupt available. External interrupt INT0 , INT1 , INT2 , INT3 signals are from PORT7 bit0 to bit3 . If IOCF is enable then these signal will cause interrupt , or these signals will be treated as general input data . After reset, the next instruction will be fetched from address 000H and the instruction inturrept is 001H and the hardware inturrept is 008H.

TCC will go to address 0x08 in GREEN mode or NORMAL mode after time out. And it will run next instruction from “SLEP” instruction and then go to address 0x08 in IDLE mode . These three cases will set a RF flag.

* This specification is subject to be changed without notice. 4.17.2000

Page 16

EM78P860

8 -BIT MICRO-CONTROLLER

It is very important to save ACC,R3 and R5 when processing a interruption.

VII.7 Instruction Set

Instruction set has the following features: (1) Every bit of any register can be set, cleared, or tested directly. (2) The I/O register can be regarded as general register. That is, the same instruction can operates on I/O register.

The symbol “R” represents a register designator which specifies which one of the 64 registers (including operational registers and general purpose registers) is to be utilized by the instruction. Bits 6 and 7 in R4 determine the selected register bank. “b’’ represents a bit field designator which selects the number of the bit, located in the register “R’’, affected by the operation. “k’’ represents an 8 or 10-bit constant or literal value.

INSTRUCTION STATUS

BINARY HEX MNEMONIC OPERATION AFFECTED

0 0000 0000 0000 0000 NOP No Operation None 0 0000 0000 0001 0001 DAA Decimal Adjust A C 0 0000 0000 0010 0002 CONTW A→CONT None 0 0000 0000 0011 0003 SLEP 0→WDT, Stop oscillator T,P 0 0000 0000 0100 0004 WDTC 0→WDT T,P 0 0000 0000 rrrr 000r IOW R A→IOCR None

<Note1> 0 0000 0001 0000 0010 ENI Enable Interrupt None 0 0000 0001 0001 0011 DISI Disable Interrupt None 0 0000 0001 0010 0012 RET [Top of Stack] PC None 0 0000 0001 0011 0013 RETI [Top of Stack] PC None

Enable Interrupt

0 0000 0001 0100 0014 CONTR CONT→A None 0 0000 0001 rrrr 001r IOR R IOCR→A None

<Note1> 0 0000 0010 0000 0020 TBL R2+A Bits 8~9 of R2 unchange Z,C,DC 0 0000 01rr rrrr 00rr MOV R,A A→R None 0 0000 1000 0000 0080 CLRA 0→AZ 0 0000 11rr rrrr 00rr CLR R 0→RZ

* This specification is subject to be changed without notice. 4.17.2000

Page 17

EM78P860

8 -BIT MICRO-CONTROLLER

INSTRUCTION STATUS

BINARY HEX MNEMONIC OPERATION AFFECTED

0 0001 00rr rrrr 01rr SUB A,R R-A→A Z,C,DC 0 0001 01rr rrrr 01rr SUB R,A R-A→R Z,C,DC 0 0001 10rr rrrr 01rr DECA R R-1→AZ 0 0001 11rr rrrr 01rr DEC R R-1→RZ 0 0010 00rr rrrr 02rr OR A,R AvVR→AZ 0 0010 01rr rrrr 02rr OR R,A AvVR→RZ 0 0010 10rr rrrr 02rr AND A,R A & R→AZ 0 0010 11rr rrrr 02rr AND R,A A & R→RZ 0 0011 00rr rrrr 03rr XOR A,R A ⊕ R→AZ 0 0011 01rr rrrr 03rr XOR R,A A ⊕ R→RZ 0 0011 10rr rrrr 03rr ADD A,R A + R→A Z,C,DC 0 0011 11rr rrrr 03rr ADD R,A A + R→R Z,C,DC 0 0100 00rr rrrr 04rr MOV A,R R→AZ 0 0100 01rr rrrr 04rr MOV R,R R→RZ 0 0100 10rr rrrr 04rr COMA R /R→AZ 0 0100 11rr rrrr 04rr COM R /R→RZ 0 0101 00rr rrrr 05rr INCA R R+1→AZ 0 0101 01rr rrrr 05rr INC R R+1→RZ 0 0101 10rr rrrr 05rr DJZA R R-1→A, skip if zero None 0 0101 11rr rrrr 05rr DJZ R R-1→R, skip if zero None 0 0110 00rr rrrr 06rr RRCA R R(n)→A(n-1)

R(0)→C, C→A(7) C

0 0110 01rr rrrr 06rr RRC R R(n)→R(n-1)

R(0)→C, C→R(7) C

0 0110 10rr rrrr 06rr RLCA R R(n)→A(n+1)

R(7)→C, C→A(0) C

0 0110 11rr rrrr 06rr RLC R R(n)→R(n+1)

R(7)→C, C→R(0) C

0 0111 00rr rrrr 07rr SWAPA R R(0-3)→A(4-7)

R(4-7)→A(0-3) None 0 0111 01rr rrrr 07rr SWAP R R(0-3)↔R(4-7) None 0 0111 10rr rrrr 07rr JZA R R+1→A, skip if zero None 0 0111 11rr rrrr 07rr JZ R R+1→R, skip if zero None 0 100b bbrr rrrr 0xxx BC R,b 0→R(b) None

<Note2>

0 101b bbrr rrrr 0xxx BS R,b 1→R(b) None

<Note3> 0 110b bbrr rrrr 0xxx JBC R,b if R(b)=0, skip None 0 111b bbrr rrrr 0xxx JBS R,b if R(b)=1, skip None 1 00kk kkkk kkkk 1kkk CALL k PC+1→[SP] (Page, k) →PC None 1 01kk kkkk kkkk 1kkk JMP k (Page, k)→PC None 1 1000 kkkk kkkk 18kk MOV A,k k →A None 1 1001 kkkk kkkk 19kk OR A,k Av k→AZ 1 1010 kkkk kkkk 1Akk AND A,k A & k→AZ 1 1011 kkkk kkkk 1Bkk XOR A,k A ⊕k→AZ 1 1100 kkkk kkkk 1Ckk RETL k k→A, [Top of Stack]→PC None 1 1101 kkkk kkkk 1Dkk SUB A,k k-A→A Z,C,DC 1 1110 0000 0001 1E01 INT PC+1→[SP], 001H→PC None 1 1110 1000 kkkk 1E8k PAGE k K→R5 None

1 1111 kkkk kkkk 1Fkk ADD A,k k+A→A Z,C,DC

* This specification is subject to be changed without notice. 4.17.2000

Page 18

8 -BIT MICRO-CONTROLLER

VII.8CODE Option Register

The chip has one CODE option register which is not part of the normal program memory. The option bits cannot be accessed during normal program execution.

7654321 0

- - - - - - /POVD -

• Bit 0 : unsed

• Bit 1 ( /POVD ) : Power on voltage detector. 0 : enable 1 : disable

/POVD 1.8V reset power on 3.6V detect no 3.6V detect control sleep mode

reset reset by RA(5) current

1 no yes yes yes 1µA 0 yes yes yes yes 15µA

• Bit 2~7 : unused, must be "0"s.

VII.9LCD Driver

The chip can drive LCD directly and has 60 segments and 16 commons that can drive 60*16 dots totally. LCD block is made up of LCD driver , display RAM, segment output pins , common output pins and LCD operating power supply pins. Duty , bias , the number of segment , the number of common and frame frequency are determined by LCD mode register . LCD control register. The basic structure contains a timing control which uses the basic frequency 32.768KHz to generate the proper timing for different duty and display access. RE register is a command register for LCD driver, the LCD display ( disable, enable, blanking) is controlled by LCD_C and the driving duty and bias is decided by LCD_M and the display data is stored in data RAM which address and data access controlled by registers IOCB and IOCC.

32.768KHz

EM78P860

IOCB

LCD timing control

RE(LCD_C,LCD_M)

Bias control

Vdd-Vlcd

LCD duty control

LCD commom control

COM

Fig. 13 LCD DRIVER CONTROL

IOCC

RAM

Display data control

LCD SEGMENT control

SEG

* This specification is subject to be changed without notice. 4.17.2000

Page 19

EM78P860

8 -BIT MICRO-CONTROLLER

1. LCD Driver Control

RE(LCD Driver Control)(initial state “00000000”)

7654321 0

- - - - - LCD_C2 LCD_C1 LCD_M

• Bit0 (LCD_M):LCD_M decides the methods, including duty, bias, and frame frequency.

• Bit1~Bit2 (LCD_C#):LCD_C# decides the LCD display enable or blanking. change the display duty must set the LCD_C to “00”.

LCD_C2,LCD_C1 LCD Display Control LCD_M duty bias 0 0 change duty 0 1/16 1/4

Disable(turn off LCD) 1 1/8 1/4 0 1 Blanking : : 1 1 LCD display enable : :

2. LCD display area

The LCD display data is stored in the data RAM . The relation of data area and COM/SEG pin is as below:

COM15 ~ COM8 COM7 ~ COM0 40H (Bit15 ~ Bit8) 00H (Bit7 ~ Bit0) SEG0 41H 01H SEG1 :: : :: : 7BH 3BH SEG59 7CH 3CH empty 7DH 3DH empty 7EH 3EH empty 7FH 3FH empty

• IOCB(LCD Display RAM address)

7654321 0

- LCDA6 LCDA5 LCDA4 LCDA3 LCDA2 LCDA1 LCDA0

Bit 0 ~ Bit 6 select LCD Display RAM address up to 120. LCD RAM can be write whether in enable or disable mode and read only in disable mode.

• IOCC(LCD Display data) : Bit 0 ~ Bit 8 are LCD data.

3. LCD COM and SEG signal

• COM signal : The number of COM pins varies according to the duty cycle used, as following: in 1/8 duty mode COM8 ~ COM15 must be open. in 1/16 duty mode COM0 ~ COM15 pins must be used.

* This specification is subject to be changed without notice. 4.17.2000

Page 20

EM78P860

8 -BIT MICRO-CONTROLLER

COM0 COM1 COM2 COM3 COM4 COM5 COM6 COM7 COM8 .. COM15 1/8o o oooooox ..x 1/16 o o o o o o o o o .. o

x:open,o:select

• SEG signal: The 60 segment signal pins are connected to the corresponding display RAM address 00h to 3Bh. The high byte and the low byte bit7 down to bit0 are correlated to COM15 to COM0 respectively. When a bit of display RAM is 1, a select signal is sent to the corresponding segment pin, and when the bit is 0 , a non-select signal is sent to the corresponding segment pin.

• COM, SEG and Select/Non-select signal is shown as following:

frame

com0

com1

com2

seg

com0 ... com7

VDD V1 V2 V3 VLCD

dark

VDD V1 V2 V3 VLCD

light

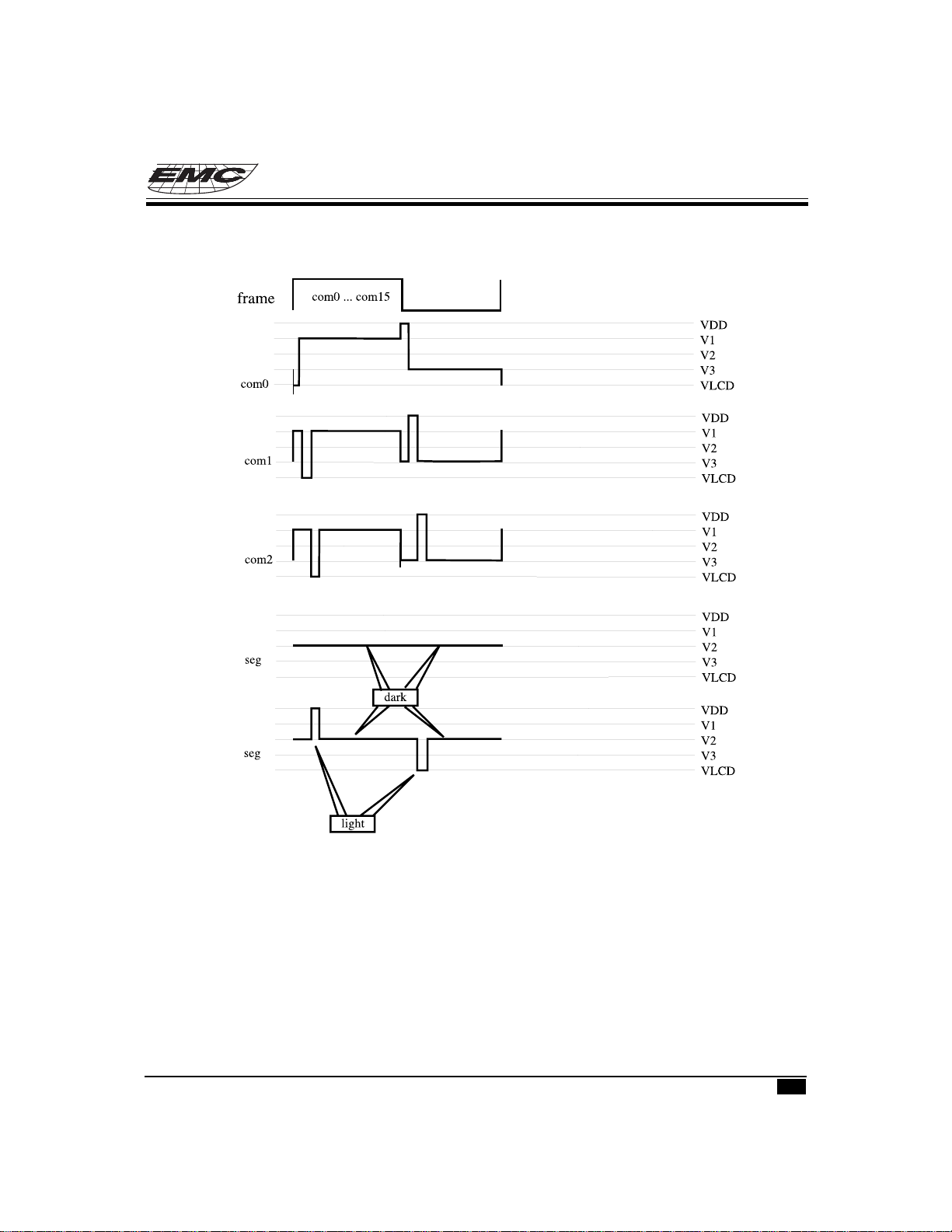

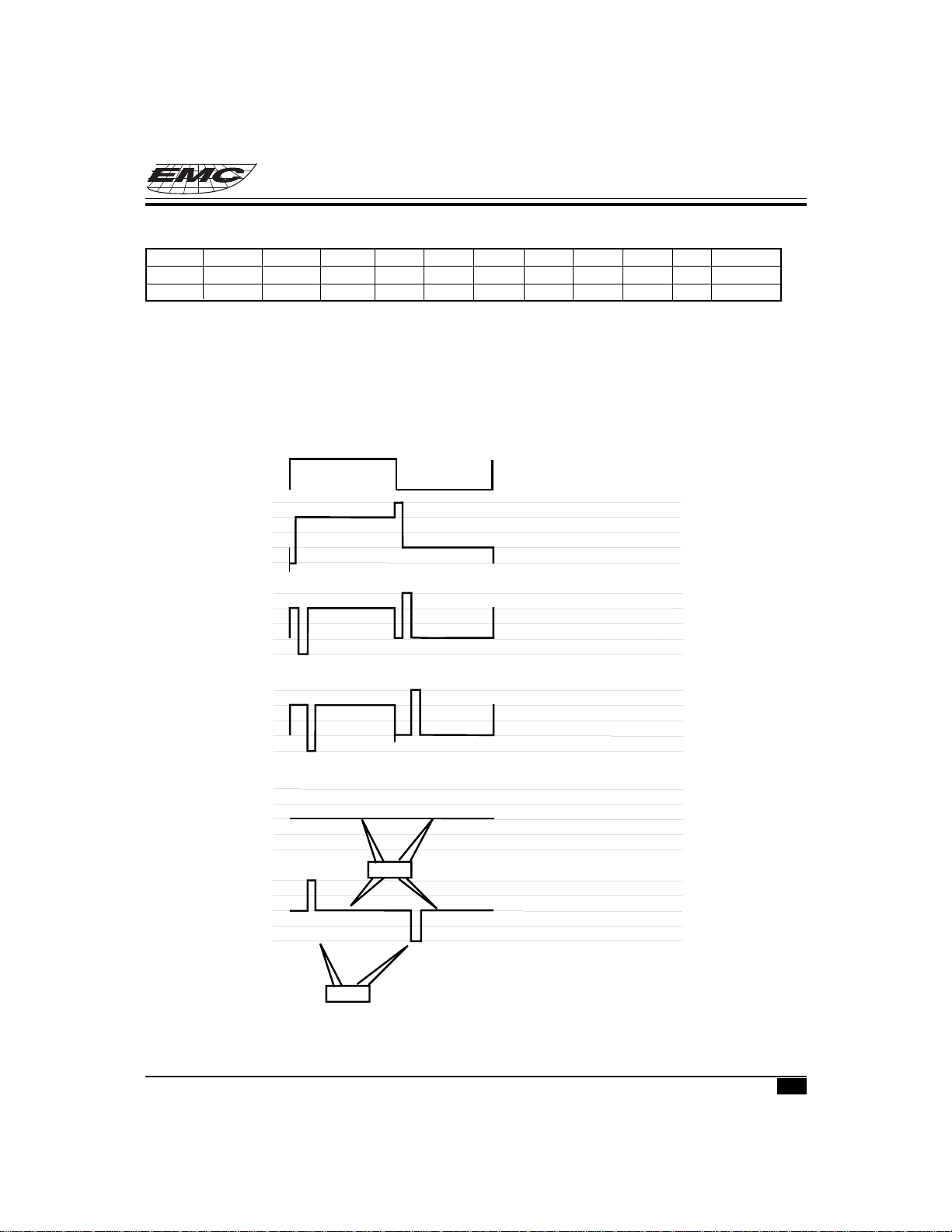

Fig. 14 Lcd wave 1/4 bias, 1/8 duty

* This specification is subject to be changed without notice. 4.17.2000

Page 21

EM78P860

8 -BIT MICRO-CONTROLLER

Fig. 15 Lcd wave 1/4 bias, 1/16 duty

* This specification is subject to be changed without notice. 4.17.2000

Page 22

4. LCD Bias control

IOCE (Bias Control Register)

7654321 0

Bias3 Bias2 Bias1

Bit 2~4 (Bias1~Bias3) Control bits used to choose LCD operation voltage .

LCD operate voltage Vop (VDD 5V) VDD=5V

000 0.60 V 001 0.66 V 010 0.74 V 011 0.82 V 100 0.87 V 101 0.93 V 110 0.96 V 111 1.00 V

DD DD DD DD DD DD DD DD

• Bit 5~7 unused

EM78P860

8 -BIT MICRO-CONTROLLER

3.0 V

3.3 V

3.7 V

4.0 V

4.4 V

4.7 V

4.8 V

5.0 V

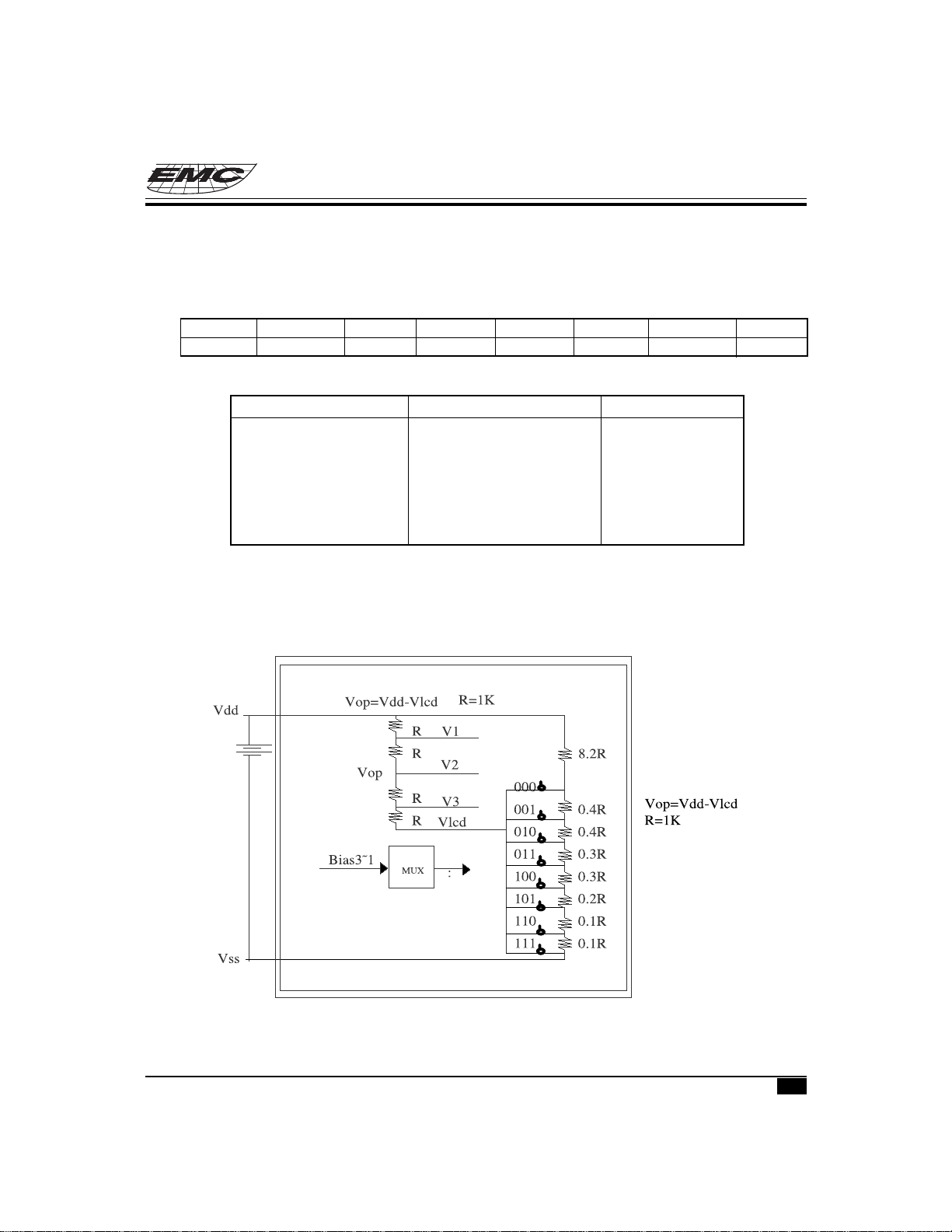

Fig. 16 LCD bias circuit

* This specification is subject to be changed without notice. 4.17.2000

Page 23

EM78P860

8 -BIT MICRO-CONTROLLER

VIII. ABSOLUTE MAXIMUM RATINGS

Rating Sym. Value Unit

DC supply voltage V Input voltage V Operating temperature range T

DD IN

-0.3 to 6 V

-0.5 to VDD+0.5 V 0 to 70 °C

IX. DC ELECTRICAL CHARACTERISTICS

(TA= 0°C~70°C, V

Parameter Sym. Condition Min. Typ. Max. Unit

Input Leakage Current I for input pins

Input Leakage Current I for bi-directional pins Input High Voltage V Input Low voltage V Input High Threshold V Voltage Input Low Threshold V Voltage Clock Input High Voltage V Clock Input Low Voltage V Key scan Input High Voltage VHscan Port6 for key scan 3.5 V Key scan Input Low Voltage VLscan Port6 for key scan 1.5 V Output High Voltage V (port5,6,7,8) (port9) I Output Low Voltage V (port5,6,7,8) (port9) I Com Voltage drop V Segment Voltage drop V LCD Drive Reference V Voltage Pull-high Current I Power Down Current I

IDLE mode current I

Low Clock Current I

Operating Supply Current I

= 5V±5%; VSS = 0V)

IL1

IL2

IHT

ILT

IHX

ILX

OH1

OL1

COM

SEG

LCD

SB1

SB-1

SB2

= VDD, V

VIN = VDD, V

±1 µA

± 1 µA

2.5 V

0.8 V

/RESET, TCC, RDET1 2.0 V

/RESET, TCC, RDET1 0.8 V

OSCI 3.5 V OSCI 1.5 V

= ±1.6 mA 2.4 V

= ±6 mA 2.4 V

IOL = ±1.6 mA 0.4 V

= ±6 mA 0.4 V

I O = ±50 µA - - 2.9 V I O = ±50 µA - - 3.8 V Contrast adjustment

Pull-high active input pin at V

-50 -100 -240 µA

All input and I/O pin at VDD,1µA output pin floating, WDT disabled All input and I/O pin at VDD, output pin 15 µA floating, WDT disabled,LCD enable CLK=32.768 KHz, All input and I/O pin 50 µA at V

, output pin floating, WDT disabled,

LCD enable /RESET=HIGH, CLK=3.679MHz, output pin 1.2 mA floating

* This specification is subject to be changed without notice. 4.17.2000

Page 24

EM78P860

8 -BIT MICRO-CONTROLLER

X. AC ELECTRICAL CHARACTERISTIC ( T

Parameter Sym. Condition Min. Typ. Max. Unit

Input CLK duty cycle Dclk 45 50 55 % Instruction cycle time Tins 32.768K 60 µs

3.679M 550 µs

Device delay hold time Tdrh 18 ms TCC input period Ttcc Note 1 (Tin+20)/N ns Watchdog timer period Twdt T

Note 1: N = selected prescaler ratio.

= 25°C18ms

= 0 ~ 70°C, V

= 5V,VSS = 0V )

* This specification is subject to be changed without notice. 4.17.2000

Page 25

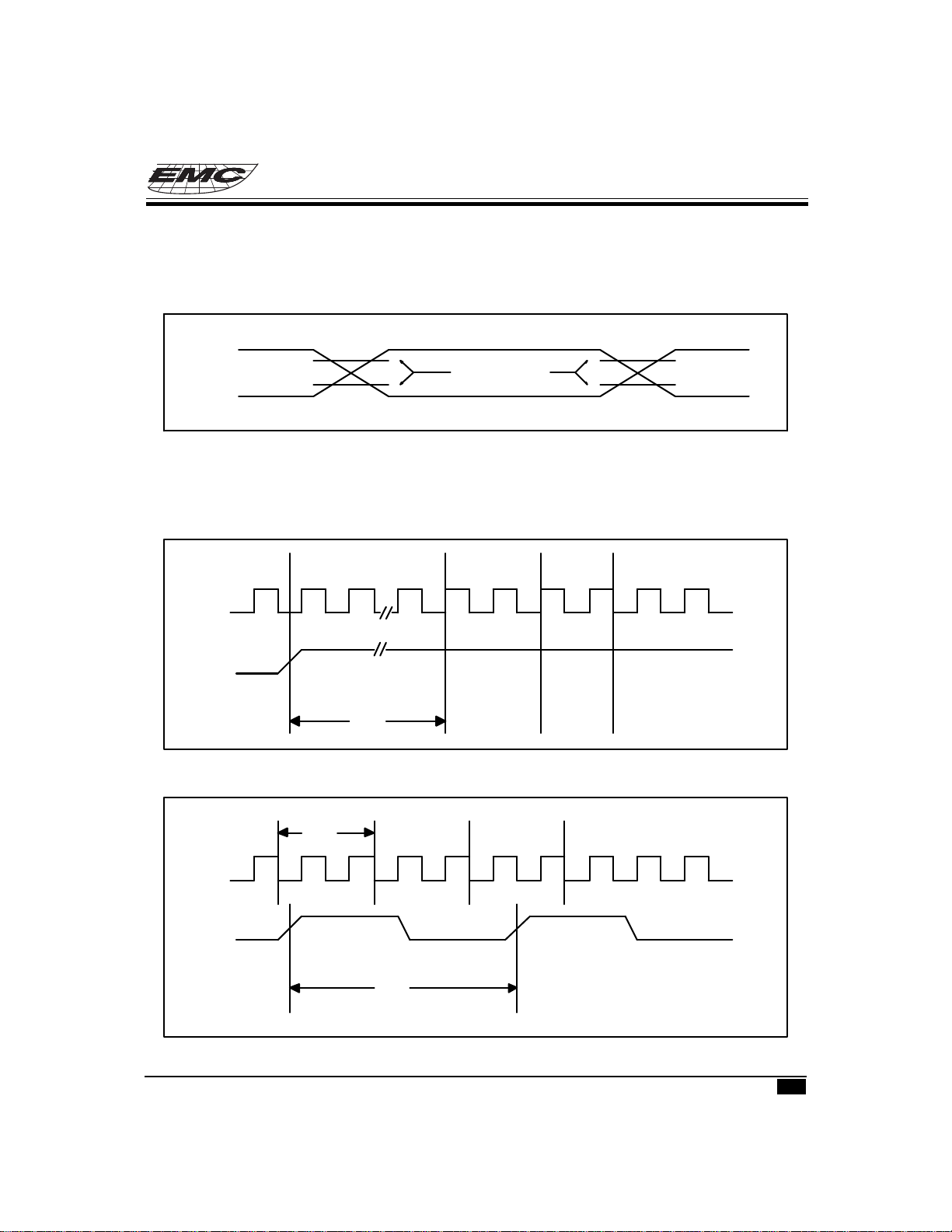

XI. TIMING DIAGRAMS

AC Test Input/Output Waveform

EM78P860

8 -BIT MICRO-CONTROLLER

2.4

0.45

2.0

0.8

TEST PONITS

2.0

0.8

AC Testing : Input is driven at 2.4V for logic "1", and 0.45V for logic "0". Timing measurements are made at 2.0V for logic "1", and 0.8V for logic "0".

RESET Timing (CLK="0")

NOP

CLK

/RESET

Tdrh

Instruction 1 Executed

TCC Input Timing (CLK="0")

Tins

CLK

TCC

Ttcc

Fig. 17 AC timing

* This specification is subject to be changed without notice. 4.17.2000

Page 26

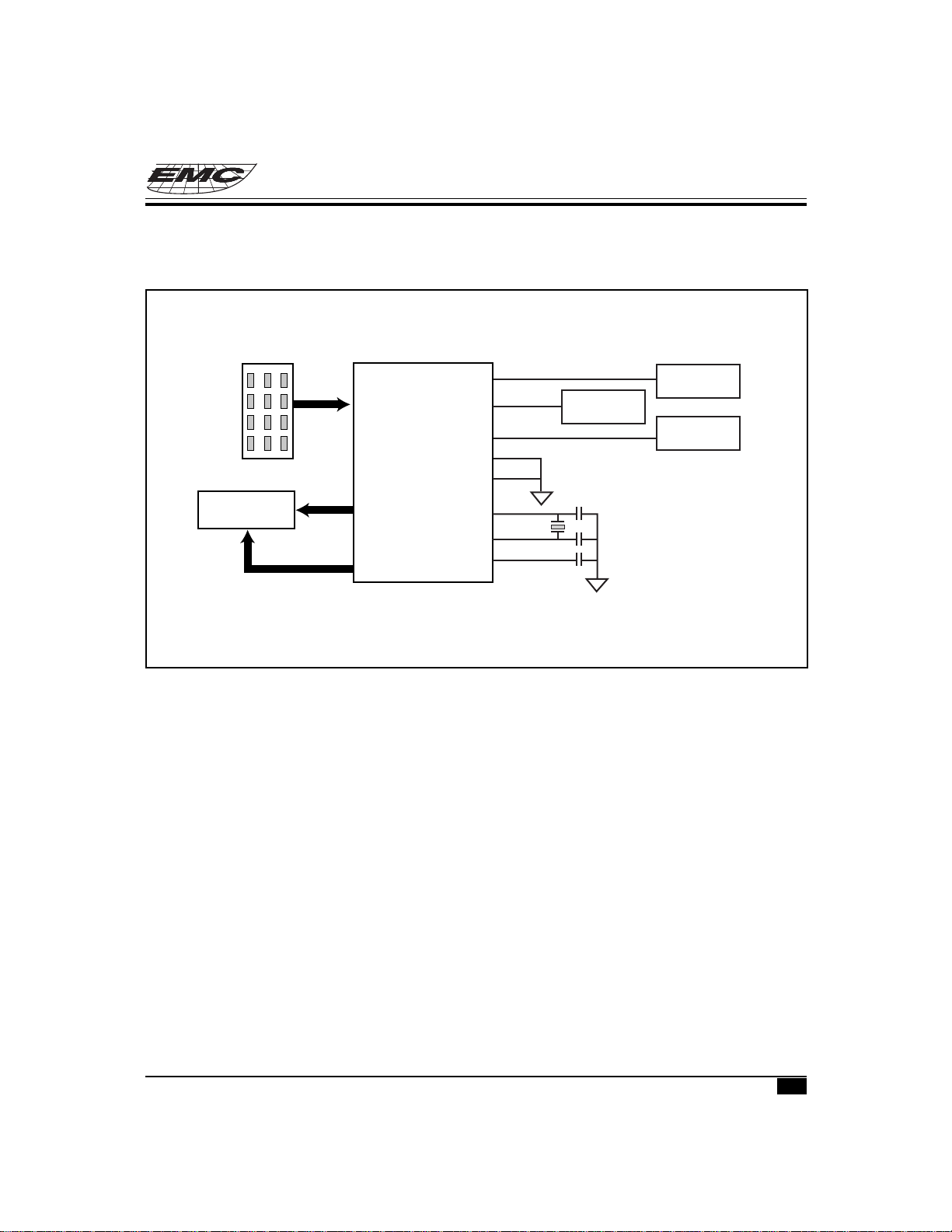

XII. APPLICATION CIRCUIT

kEYPAD

I/O

EM78P860

EMC78860 LCD

COMMON

SEGMENT

VDD

LOBAT

/RESET

TEST

GND

XIN

XOUT

PLLC

EM78P860

8 -BIT MICRO-CONTROLLER

CD POWER

SUPPLY

POWER ON

RESET

32768

BATTERY

DETECTOR

30p

0.01µ

Fig. 18 Application circuit for data bank

* This specification is subject to be changed without notice. 4.17.2000
