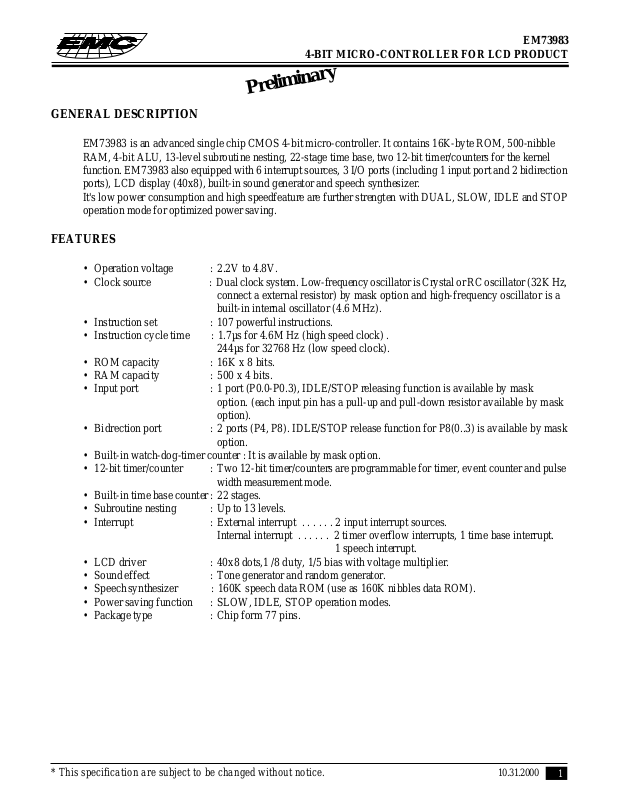

GENERAL DESCRIPTION

EM73983 is an advanced single chip CMOS 4-bit micro-controller. It contains 16K-byte ROM, 500-nibble
RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel
function. EM73983 also equipped with 6 interrupt sources, 3 I/O ports (including 1 input port and 2 bidirection
ports), LCD display (40x8), built-in sound generator and speech synthesizer.
It's low power consumption and high speedfeature are further strengten with DUAL, SLOW, IDLE and STOP
operation mode for optimized power saving.

FEATURES

• Operation voltage : 2.2V to 4.8V.

• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz,

• Instruction set : 107 powerful instructions.

• Instruction cycle time : 1.7µs for 4.6M Hz (high speed clock) .

• ROM capacity : 16K x 8 bits.

• RAM capacity : 500 x 4 bits.

• Input port : 1 port (P0.0-P0.3), IDLE/STOP releasing function is available by mask

• Bidrection port : 2 ports (P4, P8). IDLE/STOP release function for P8(0..3) is available by mask

• Built-in watch-dog-timer counter : It is available by mask option.

• 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse

• Built-in time base counter : 22 stages.

• Subroutine nesting : Up to 13 levels.

• Interrupt : External interrupt . . . . . . 2 input interrupt sources.

• LCD driver : 40x8 dots,1 /8 duty, 1/5 bias with voltage multiplier.

• Sound effect : Tone generator and random generator.

• Speech synthesizer : 160K speech data ROM (use as 160K nibbles data ROM).

• Power saving function : SLOW, IDLE, STOP operation modes.

• Package type : Chip form 77 pins.

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

connect a external resistor) by mask option and high-frequency oscillator is a
built-in internal oscillator (4.6 MHz).

244µs for 32768 Hz (low speed clock).

option. (each input pin has a pull-up and pull-down resistor available by mask
option).

option.

width measurement mode.

Internal interrupt . . . . . . 2 timer overflow interrupts, 1 time base interrupt.

1 speech interrupt.

* This specification are subject to be changed without notice.

10.31.2000

1

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

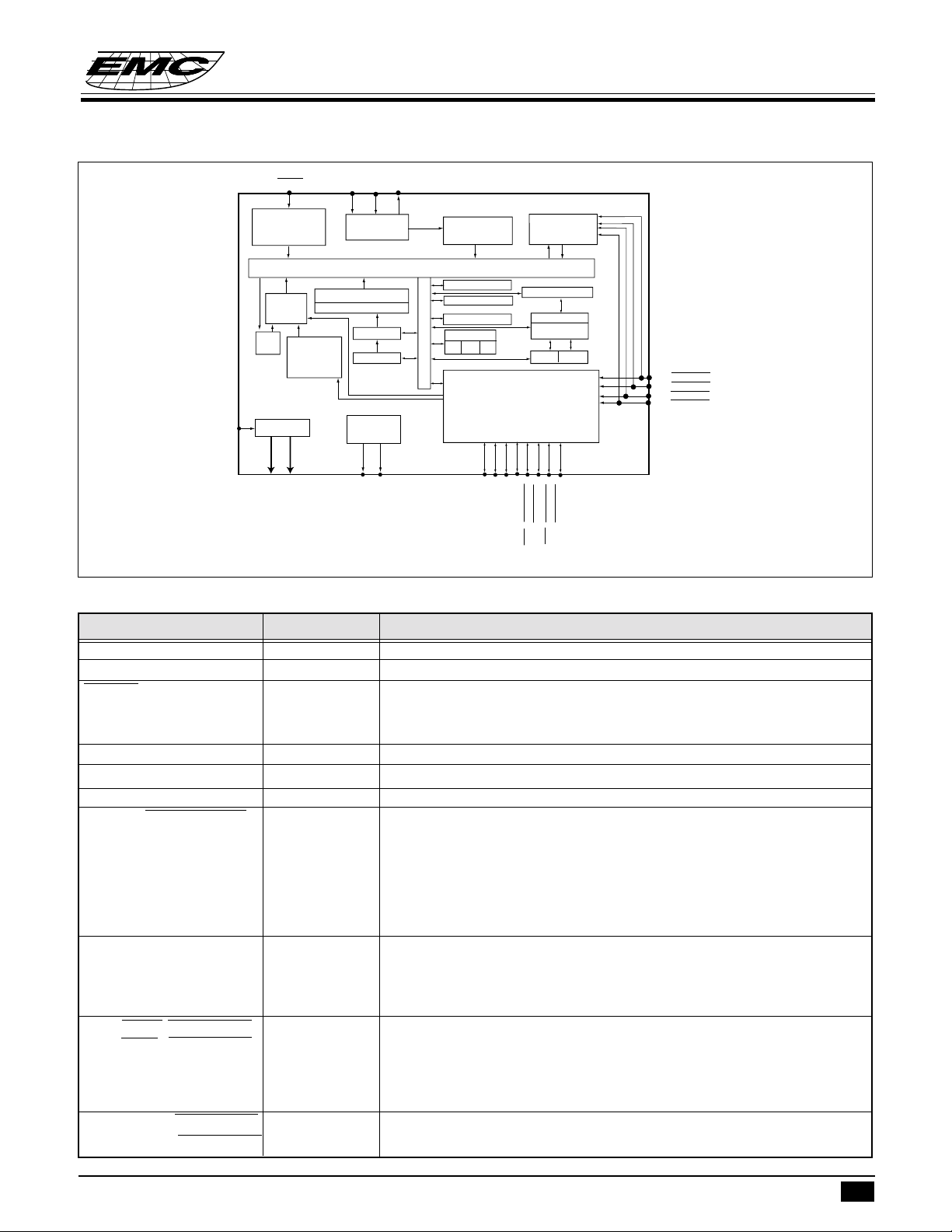

FUNCTION BLOCK DIAGRAM

RESET

Reset

Control

Timer/Counter

(TA,TB)

SEG0~SEG39

Instruction Decoder
Instruction Register

V1~V5
VA,VB

Interrupt

Control

Time
Base

LCD Driver

COM0~COM7

Preliminary

LXIN

CLK

LXOUT

Clock

Generator

System Control

Data Bus

ROM

PC

Speech

synthesizer

BZ2

BZ1

Timing

Generator

Data pointer

ACC

ALU

Flag

ZCS

P4.0

I/O Control

P4.1

P4.2

P4.3

P8.0(INT1)/WAKEUPA

Clock Mode

Control

Stack pointer

Stack

RAM

HR

LR

P8.2(INT0)/WAKEUPC

P8.1(TRGB)/WAKEUPB

P8.3(TRGA)/WAKEUPD

P0.0/WAKEUP0
P0.1/WAKEUP1
P0.2/WAKEUP2
P0.3/WAKEUP3

PIN DESCRIPTIONS

Symbol Pin-type Function

VDD,VDD2 Power supply (+)
Vss Power supply (-)
RESET RESET-A System reset input signal, low active

mask option : none

pull-up
CLK OSC-G Capacitor connecting pin for internal high frequency oscillator.
LXIN OSC-B Crystal connecting pin for low speed clock source.
LXOUT OSC-B Crystal connecting pin for low speed clock source.
P0(0..3)/WAKEUP0..3 INPUT-B 4-bit input port with IDLE/STOP releasing function

mask option : wakeup enable, pull-up

wakeup enable, none

wakeup disable, pull-up

wakeup disable, pull-down

wakeup disable, none
P4(0..3) I/O-N 4-bit bidirection I/O port with high current source.

mask option : open-drain

push-pull, high current PMOS

push-pull, low current PMOS
P8.0(INT1)/WAKEUPA I/O-L 2-bit bidirection I/O port with external interrupt sources input and IDLE
P8.2(INT0)/WAKEUPC /STOP releasing function

mask option : wakeup enable, push-pull

wakeup disable, push-pull

wakeup disable, open-drain
P8.1(TRGB)/WAKEUPB I/O-L 2-bit bidirection I/O port with time/counter A,B external input and IDLE
P8.3(TRGA)/WAKEUPD /STOP releasing function

* This specification are subject to be changed without notice.

10.31.2000

2

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

.
.
.

SCALL, subroutine call entry address

Data table for
[LDAX],[LDAXI]
instruction

Subroutine call entry address
designated by [LCALL a]
instruction

Bank 1

Bank 2

Bank 3

Reset start address
INT0 ; interrupt service routine entry address

TRGA
TRGB
TBI
INT1

0000h
0002h
0004h
0006h
0008h
000Ah
000Ch
000Eh
0086h

07FFh
0800h

0FFFh
1000h

1FFFh

SPI

Preliminary

Symbol Pin-type Function

mask option : wakeup enable, push-pull

wakeup disable, push-pull

wakeup disable, open-drain
BZ1, BZ2 Speech output pins
V1, V2, V3, V4, V5, LCD bias pins
VA, VB
COM0~COM7 LCD commo n ou tpu t pi ns
SEG0~SEG39 LCD segment output pins
TEST Test pin must be connected to Vss

FUNCTION DESCRIPTIONS

PROGRAM ROM ( 16K X 8 bits )

16 K x 8 bits program ROM contains user's program and some fixed data .
The basic structure of the program ROM may be categorized into 5 partitions.

1. Address 0000h: Reset start address.

2. Address 0002h - 000Ch : 6 kinds of interrupt service routine entry addresses .

3. Address 000Eh-0086h : SCALL subroutine entry address, only available at 000Eh,0016h,001Eh,0026h, 002Eh,
0036h, 003Eh, 0046h, 004Eh, 0056h, 005Eh, 0066h, 006Eh, 0076h, 007Eh,0086h .

4. Address 0000h - 07FFh : LCALL subroutine entry address.

5. Address 0000h - 1FFFh : Except used as above function, the other region can be used as user's program and
data region.
address Bank 0 :

EM73983

* This specification are subject to be changed without notice.

10.31.2000

3

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

User's program and fixed data are stored in the program ROM. User's program is executed using the PC value
to fetch an instruction code.
The 16Kx8 bits program ROM can be divided into 4 banks. There are 4Kx8 bits per bank.
The program ROM bank is selected by P3(1..0). The program counter is a 13-bit binary counter. The PC
and P3 are initialized to "0" during reset.
When P3(1..0)=00B, the bank0 and bank1 of program ROM will be selected. P3(1..0)=01B, the bank0 and
bank2 will be selected.

Address P3=xx00B P3=xx01B P3=xx10B

0000h

:
: Bank0 Bank0 Bank0

0FFFh

1000h

:
: Bank1 Bank2 Bank3

1FFFh

PROGRAM EXAMPLE:

BANK 0

START: :

:
:
LDIA #00H ; set program ROM to bank1
OUTA P3
B XA1
:

XA : :

:
LDIA #01H ; set program ROM to bank2
OUTA P3
B XB1
:

XB : :

:
LDIA #02H ; set program ROM to bank3
OUTA P3
B XC1
:

XC : :

:
BXD

XD : :

:
:

; - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

BANK 1

XA1 : :

:
BXA
:

XA2 : :

* This specification are subject to be changed without notice.

10.31.2000

4

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

B XA2
:

; - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

BANK 2

XB1 : :

:
BXB
:

XB2 : :

B XB2
:

; - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

BANK 3

XC1 : :

:
BXC
:

XC2 : :

B XC2

Fixed data can be read out by table-look-up instruction. Table-look-up instruction is requires the Data point
(DP) to indicate the ROM address in obtaining the ROM code data (Except bank 0) :

LDAX Acc
LDAXI Acc

←←

← ROM[DP]

←←
←←

← ROM[DP]H,DP+1

←←

L

DP is a 12-bit data register that stores the program ROM address as pointer for the ROM code data.
User has to initially load ROM address into DP with instructions "LDADPL", and "LDADPM, LDADPH",
then then to obtain the lower nibble of ROM code data by instruction "LDAX" and higher nibble by instruction
"LDAXI"

PROGRAM EXAMPLE: Read out the ROM code of address 1777h by table-look-up instruction.

LDIA #07h;
STADPL ; [DP]L ← 07h
STADPM ; [DP]M ← 07h
STADPH ; [DP]H ← 07h, Load DP=777h
:
LDL #00h;
LDH #03h;
LDAX ; ACC ← 6h
STAMI ; RAM[30] ← 6h
LDAXI ; ACC ← 5h
STAM ; RAM[31] ← 5h
;
ORG 1777h
DATA 56h;

DATA RAM ( 500-nibble )

A total 500 - nibble data RAM is available from address 000 to 1FFh
Data RAM includes the zero page region, stacks and data areas.

* This specification are subject to be changed without notice.

10.31.2000

5

Bank 0

Preliminary

Increment

Address
000h - 00Fh
010h - 01Fh

020h - 02Fh

:
:
:

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Zero-page

Increment

Bank 1

0C0h - 0CFh

0D0h - 0DFh

0E0h - 0EFh

0F0h - 0F3h

100h - 10Fh
110h - 11Fh

1E0h - 1EFh

1F0h - 1FFh

Level 0
Level 4
Level 8

Level 12

:
:
:

Level 1
Level 5
Level 9

Level 2
Level 6

Level 10

Level 3
Level 7

Level 11

ZERO- PAGE:

From 000h to 00Fh is the zero-page location. It is used as the zero -page address mode pointer for the
instruction of "STD #k,y; ADD #k,y; CLR y,b; CMP y,b".

PROGRAM EXAMPLE: To write immediate data "07h" to RAM [03] and to clear bit 2 of RAM [0Eh].

STD #07h, 03h ; RAM[03] ← 07h
CLR 0Eh,2 ; RAM[0Eh]2 ← 0

STACK:

There are 13 - level ( maximum ) stack levels that user can use for subroutine ( including interrupt and CALL).
User can assign any level be the starting stack by providing the level number to stack pointer( SP) .
When an instruction (CALL or interrupt) is invoked, before enter the subroutine, the previous PC address
is saved into the stack until returned from those subroutines ,the PC value is restored by the data saved
in stack.

DATA AREA:

Except the area used by user's application, the whole RAM can be used as data area for storing and loading
general data.

ADDRESSING MODE

The 500 nibble data memory consists of two banks (bank 0 and bank 1). There are 244x4 bits (address
000h~0F3h) in bank 0 and 256x4 bits (address 100h~1FFh) in bank 1.

* This specification are subject to be changed without notice.

10.31.2000

6

EM73983

R

R

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

The bank is selected by P9.3. When P9.3 is cleared to "0", the bank 0 is selected. When P9.3 is set to "1", the bank

Preliminary

1 is selected.

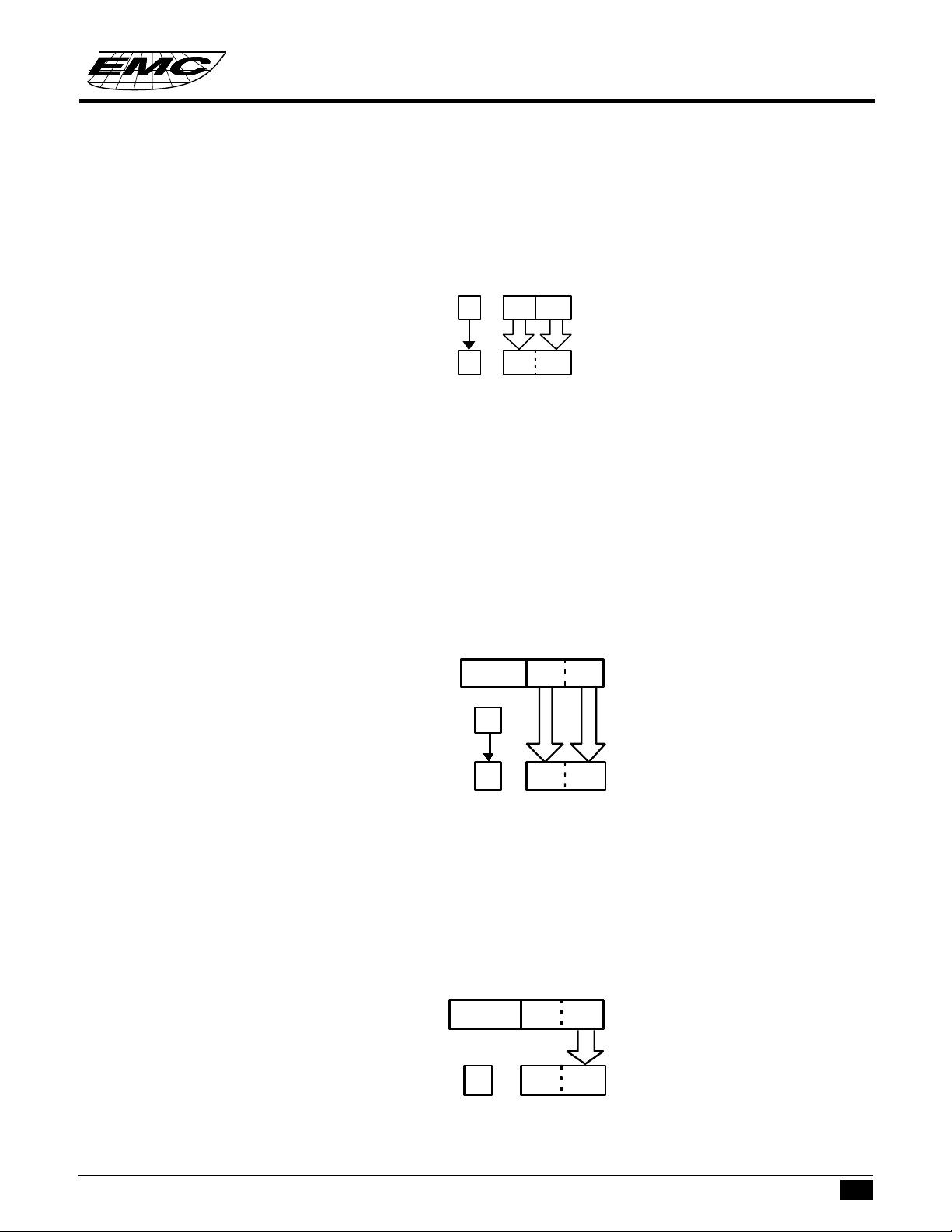

The Data Memory consists of three Address mode, namely -

(1) Indirect addressing mode:

The address in the bank is specified by the HL registers.

P9.3 HR LR

AM address

PROGRAM EXAMPLE: Load the data of RAM address "143h" to RAM address "032h".

SEP P9,3 ; P9.3← 1
LDL #3h ; LR← 3
LDH #4h ; HR← 4
LDAM ; Acc← RAM[134h]
CLP P9,3 ; P9.3← 0
LDL #2h ; LR← 2
LDH #3h ; HR← 3
STAM ; RAM[023h]← Acc

(2) Direct addressing mode:

The address in the bank is directly specified by 8 bits code of the second byte in the instruction field.

instruction field

xxxxxxxx

P9.3

RAM address

PROGRAM EXAMPLE: Load the data of RAM address "143h" to RAM address "023h".

SEP P9,3 ; P9.3← 1
LDA 43h ; Acc← RAM[143h]
CLP P9,3 ; P9.3← 0
STA 23h ; RAM[023h]← Acc

(3) Zero-page addressing mode:

The zero-page is in the bank 0 (address 000h~00Fh). The address is the lower 4 bits code of the second byte
in the instruction field.

xxxxxxxx

instruction field

yyyy

AM address

0

0000

yyyy

PROGRAM EXAMPLE: Write immediate "0Fh" to RAM address "005h".

STD #0Fh, 05h ; RAM[05h]← 0Fh

* This specification are subject to be changed without notice.

10.31.2000

7

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PROGRAM COUNTER (16K ROM)

Preliminary

Program counter ( PC ) is composed by a 13-bit counter, which indicates the next executed address for the
instruction of program ROM instruction.
For BRANCH and CALL instructions, PC is changed by instruction indicating. PC only can indicate the address
from 0000h-1FFFh. The bank number is decided by P3.

(1) Branch instruction:

SBR a

Object code: 00aa aaaa
Condition: SF=1; PC ← PC

PC Hold original PC value+1 aaaaaa

SF=0; PC← PC +1( branch condition not satisified)

PC Original PC value + 1

LBR a

Object code: 1100 aaaa aaaa aaaa
Condition: SF=1; PC ← PC

( branch condition satisified )

12-6.a

( branch condition satisified )

12.a

Hold

PC

a a a a a aaaaaaa

+2

SF=0; PC← PC +2( branch condition not satisified)

PC Original PC value + 2

SLBR a

Object code: 0101 0101 1100 aaaa aaaa aaaa (a:1000h~1FFFh)

0101 0111 1100 aaaa aaaa aaaa (a:0000h~0FFFh)

Condition: SF=1; PC ← a ( branch condition satisified)

PCaaaaaaaaaaaa a

SF=0 ; PC ← PC + 3 ( branch condition not satisified )

PC Original PC value + 3

(2) Subroutine instruction:

SCALL a

Object code: 1110 nnnn
Condition : PC ← a ; a=8n+6 ; n=1..Fh ; a=86h, n=0

PC00000aaaaa aaa

LCALL a

Object code: 0100 0aaa aaaa aaaa
Condition: PC ← a

* This specification are subject to be changed without notice.

10.31.2000

8

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

PC00aaaaaaaaaa a

RET

Object code: 0100 1111
Condition: PC ← STACK[SP]; SP + 1

PC The return address stored in stack

RT I

Object code: 0100 1101
Condition : FLAG. PC ← STACK[SP]; EI ← 1; SP + 1

PC The return address stored in stack

(3) Interrupt acceptance operation:

When an interrupt is accepted, the original PC is pushed into stack and interrupt vector will be loaded into
PC,The interrupt vectors are as follows :

INT0 (External interrupt from P8.2)

PC00000000000 1 0

SPI (speech end interrupt)

PC000000000010 0

TRGA (Timer A overflow interrupt)

PC0000000000 1 1 0

TRGB (Time B overflow interrupt)

PC00000000 0 1 0 0 0

TBI (Time base interrupt)

PC00000000 0 1 0 1 0

INT1 (External interrupt from P8.0)

PC00000000 0 1 1 0 0

(4) Reset operation:

PC00000000000 0 0

* This specification are subject to be changed without notice.

10.31.2000

9

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

(5) Other operations:

For 1-byte instruction execution: PC + 1
For 2-byte instruction execution: PC + 2
For 3-byte instruction execution: PC + 3

ACCUMULATOR

Accumulator(ACC) is a 4-bit data register for temporary data storage. For the arithematic, logic and
comparative opertion.., ACC plays a role which holds the source data and result .

FLAGS

There are three kinds of flag, CF ( Carry flag ), ZF ( Zero flag ) and SF ( Status flag ), these three 1-bit flags

are included by the arithematic, logic and comparative .... operation .

All flags will be put into stack when an interrupt subroutine is served, and the flags will be restored after
RTI instruction is executed .

(1) Carry Flag ( CF )

The carry flag is affected by the following operations:
a. Addition : CF as a carry out indicator, under addition operation, when a carry-out occures, the CF is "1",

likewise, if the operation has no carry-out, CF is "0".

b. Subtraction : CF as a borrow-in indicator, under subtraction operation, when a borrow occures, the CF

is "0", likewise, if there is no borrow-in, the CF is "1".

c. Comparision: CF as a borrow-in indicator for Comparision operation as in the subtraction operation.

d. Rotation: CF shifts into the empty bit of accumulator for the rotation and holds the shift out data after

rotation.

e. CF test instruction : Under TFCFC instruction, the CF content is sent into SF then clear itself as "0".

Under TTSFC instruction, the CF content is sent into SF then set itself as "1".

(2) Zero Flag ( ZF )

ZF is affected by the result of ALU, if the ALU operation generates a "0" result, the ZF is "1",
likewise, the ZF is "0".

(3) Status Flag ( SF )

The SF is affected by instruction operation and system status .

a. SF is initiated to "1" for reset condition .

b. Branch instruction is decided by SF, when SF=1, branch condition is satisified, likewise,

when SF = 0, branch condition is unsatisified .

* This specification are subject to be changed without notice.

10.31.2000

10

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

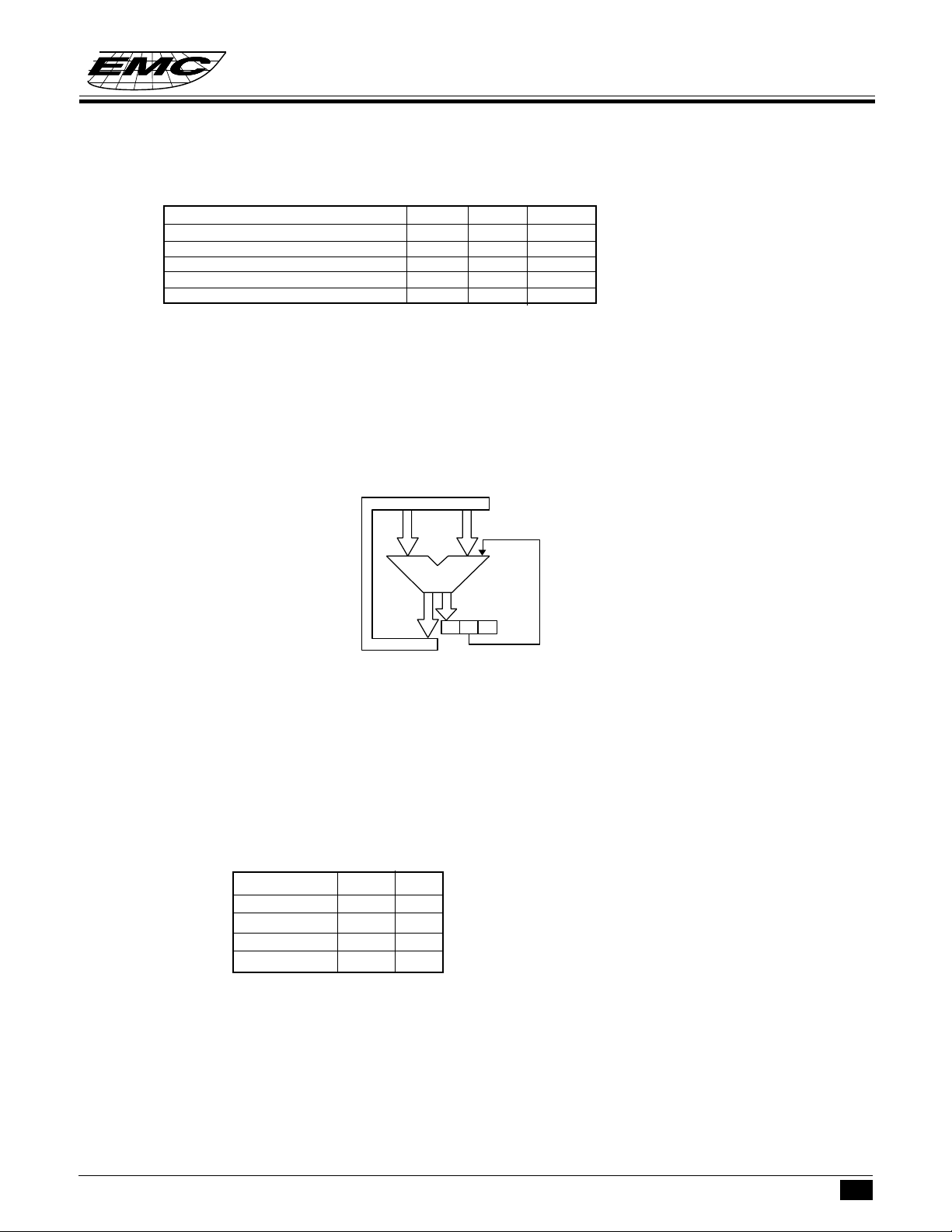

PROGRAM EXAMPLE:

Check following arithematic operation for CF, ZF, SF

CF ZF SF

LDIA #00h; - 1 1
LDIA #03h; - 0 1
ADDA #05h; - 0 1
ADDA #0Dh; - 0 0
ADDA #0Eh; - 0 0

ALU

The arithematic operation of 4 - bit data is performed in ALU unit . There are 2 flags that can be affected by
the result of ALU operation, ZF and SF . The operation of ALU is affected by CF only .

ALU STRUCTURE

ALU supported user arithematic operation functions, including Addition, Subtraction and Rotaion.

DATA BUS

ALU

ZF CF SF

ALU FUNCTION

(1) Addition:

ALU supports addition function with instructions ADDAM, ADCAM, ADDM #k, ADD #k,y .... .

The addition operation affects CF and ZF. Under addition operation, if the result is "0", ZF will be "1",
otherwise, ZF will be "0", When the addition operation has a carry-out. CF will be "1", otherwise, CF will
be "0".

EXAMPLE:

Operation Carry Zero
3+4=7 0 0
7+F=6 1 0
0+0=0 0 1
8+8=0 1 1

(2) Subtraction:

ALU supports subtraction function with instructions SUBM #k, SUBA #k, SBCAM, DECM... . The

subtraction operation affects CF and ZF, Under subtraction operation, if the result is negative, CF will
be "0", and a borrow out, otherwise, if the result is positive, CF will be "1". For ZF, if the result of subtraction
operation is "0", the ZF is "1", likewise, ZF is "1".

* This specification are subject to be changed without notice.

10.31.2000

11

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

EXAMPLE:

Operation Carry Zero
8-4=4 1 0
7-F= -8(1000) 0 0
9-9=0 1 1

Preliminary

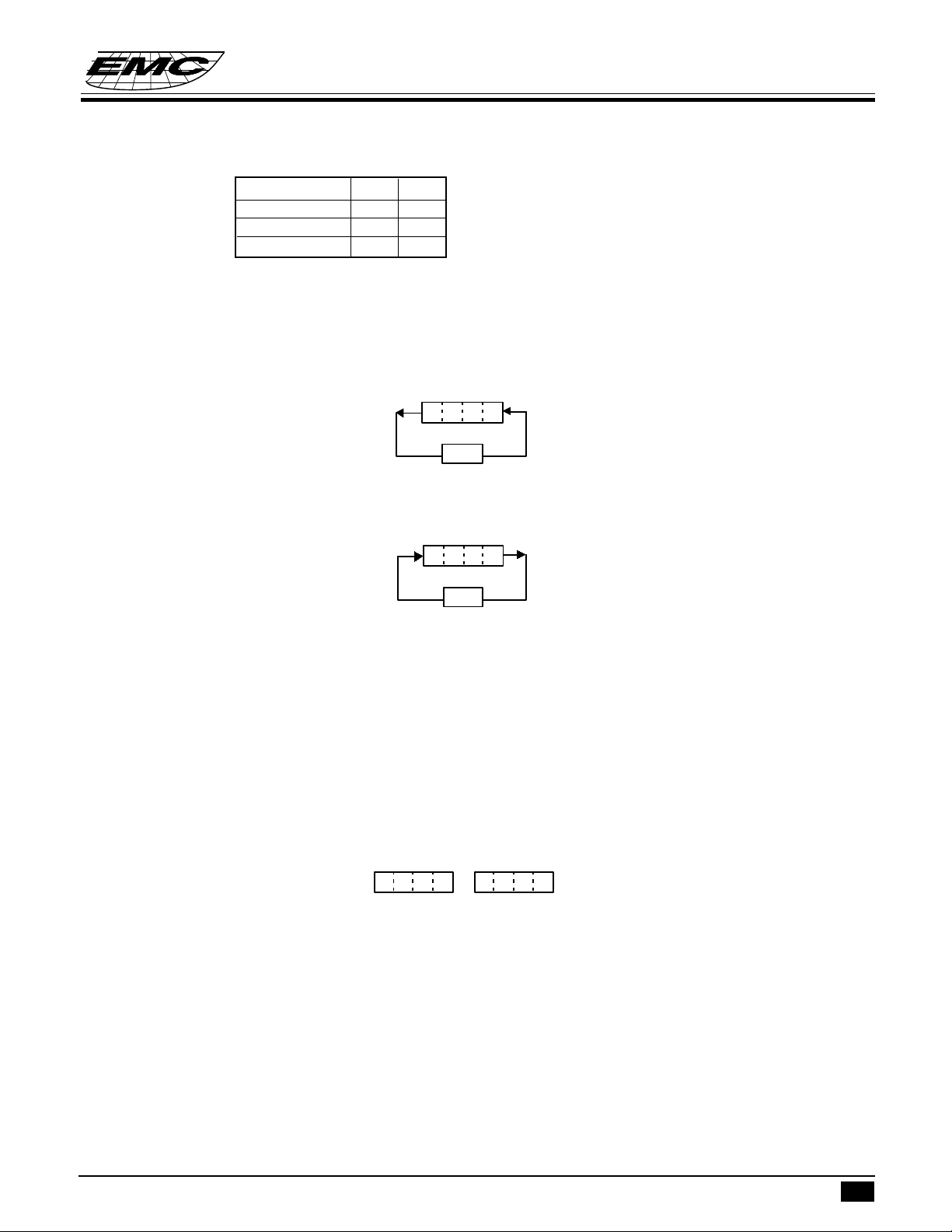

(3) Rotation:

Two types of rotation operation are available, one is rotation left, the other is rotation right.
RLCA instruction rotates Acc value counter-clockwise, shift the CF value into the LSB bit of Acc and hold
the shift out data in CF.

MSB LSB

ACC

CF

RRCA instruction operation rotates Acc value clockwise, shift the CF value into the MSB bit of Acc and
hold the shift out data in CF.

MSB LSB

ACC

CF

PROGRAM EXAMPLE: To rotate Acc clockwise (right) and shift a "1" into the MSB bit of Acc .

TTCFS; CF ← 1
RRCA; rotate Acc right and shift CF=1 into MSB.

HL REGISTER

HL register are two 4-bit registers, they are used as a pair of pointer for the RAM memoryaddress. They are
used as also 2 independent temporary 4-bit data registers. For certain instructions, L register can be a pointer
to indicate the pin number ( Port4 only ) .

HL REGISTER STRUCTURE

3 2 1 0

H REGISTER

3 2 1 0

L REGISTER

HL REGISTER FUNCTION

(1)HL register is used as a temporary register for instructions : LDL #k, LDH #k, THA, THL, INCL, DECL,

EXAL, EXAH, .

PROGRAM EXAMPLE:

LDL #05h;
LDH #0Dh;

Load immediate data "5h" into L register, "0Dh" into H register.

(2) HL register is used as a pointer for the address of RAM memory for instructions : LDAM, STAM, STAMI ..,

PROGRAM EXAMPLE: Store immediate data "#0Ah" into RAM of address 35h.

* This specification are subject to be changed without notice.

10.31.2000

12

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

LDL #5h;

Preliminary

LDH #3h;
STDMI #0Ah ; RAM[35] ← Ah

(3) L register is used as a pointer to indicate the bit of I/O port for instructions : SELP, CLPL, TFPL,

(When LR = 0 indicate P4.0)

PROGRAM EXAMPLE: To set bit 0 of Port4 to "1"

LDL #00h;
SEPL ; P4.0 ← 1

STACK POINTER (SP)

Stack pointer is a 4-bit register that stores the present stack level number.
Before using stack, user must set the SP value first, CPU will not initiate the SP value after reset condition
. When a new subroutine is received, the SP is decreased by one automatically, likewise, if returning from
a subroutine, the SP is increased by one .
The data transfer between ACC and SP is done with instructions "LDASP" and "STASP".

DATA POINTER (DP)

Data pointer is a 12-bit register that stores the ROM address can indicating the ROM code data
specified by user (refer to data ROM).

CLOCK AND TIMING GENERATOR

The clock generator is supported by a dual clock system. The high-frequency oscillator is internal
oscillator, the working frequency is 4.6 MHz. The low-frequency oscillator may be sourced from crystal or
RC oscillator as defined by mask option, the working frequency is 32 KHz.

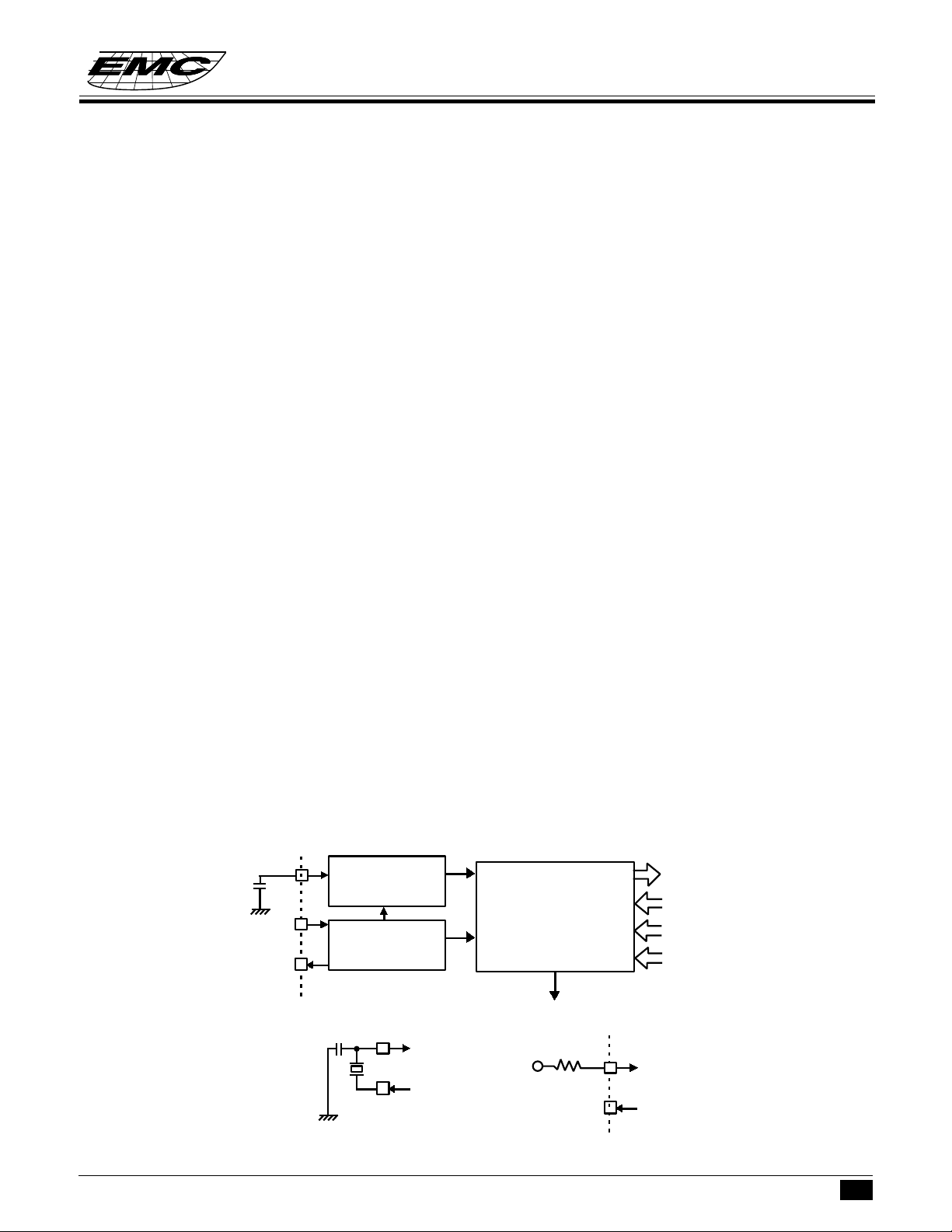

CLOCK GENERATOR STRUCTURE

There are two clock generator for system clock control unit, P14 is the status register that hold the CPU
status. P16, P19 and P22 are the command register for system clock mode control.

CLK

LXIN

LXOUT

High-frequency

generator

Low-frequency

generator

Crystal connection

LXIN

LXOUT

fc

System clock

fs

mode control

System control

VDD

R

RC oscillator connection

open

R=1.2MΩ

P14

P16

P19

P22

LXIN

LXOUT

* This specification are subject to be changed without notice.

10.31.2000

13

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

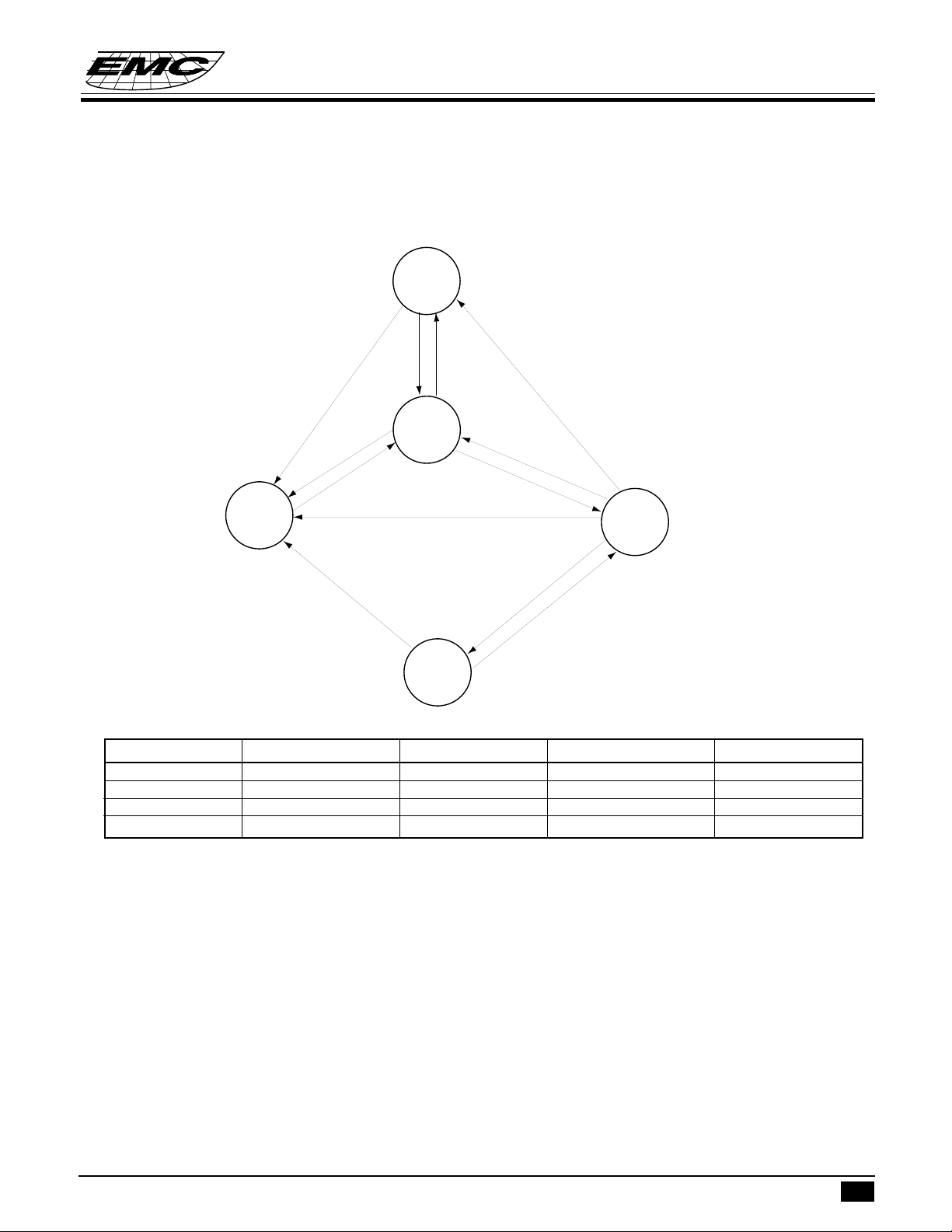

SYSTEM CLOCK MODE CONTROL

The system clock mode controller can start or stop the high-frequency and low-frequency clock oscillator
and switch between the basic clocks. EM73983 has four operation modes (DUAL, SLOW,IDLE and
STOP operation modes).

RESET

operation

Reset

Reset

I/O wakeup

Reset

Reset release

STOP

operation

mode

NORMAL

operation

mode

Reset

IDLE
(CPU
stops)

High osc : stopped
Low osc : stopped

Command

(P16)

High osc : oscillating
Low osc : oscillating

Command

(P22)

Command

(P22)

Command

Command

(P16)

(P19)

I/O or internal timer wakeup

SLOW

operation

mode

High osc : stopped
Low osc : oscillating

High osc : stopped
Low osc : oscillating

Operation Mode Oscillator System Clock Available function One instruction cycle

NORMAL High, Low frequency High frequency clock LCD, speech, sound gen. 8 / fc

SLOW Low frequency Low frequency clock LCD 8 / fs

IDLE Low frequency CPU stops LCD -

STOP None CPU stops All disable -

DUAL OPERATION MODE

The 4-bit µc is in the DUAL operation mode when the CPU is reseted. This mode is dual clock system
(high-frequency and low-frequency clocks oscillating). It can be changed to SLOW or STOP operation
mode with the command register (P22 or P16).
LCD display, speech synthesizer and sound generator are available for the DUAL operation mode.

SLOW OPERATION MODE

The SLOW operation mode is single clock system (low-frequency clock oscillating). It can be changed to
the DUAL operation mode with the command register (P22), STOP operation mode with P16 and IDEL
operation mode with P19.

LCD display is available for the SLOW operation mode. Speech synthesizer and sound generator are
disabled in this mode.

* This specification are subject to be changed without notice.

10.31.2000

14

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

P22 3210 Initial value : 0000

* SOM

SOM Select operation mode
0 0 0 DUAL operation mode
1 * * SLOW operation mode

P14 32 10 Initial value : *000

* WKS LFS CPUS

LFS Low-frequency status CPUS CPU status

0 LXIN source is not stable 0 DUAL operation mode
1 LXIN source is stable 1 SLOW operation mode

WKS Wakeup status

0 Wakeup not by internal timer
1 Wakeup by internal timer

EM73983

Port14 is the status register for CPU. P14.0 (CPU status) and P14.1 (Low-frequency status) are read-only
bits. P14.2 (wakeup status) will be set as '1' when CPU is waked by internal timer. P14.2 will be cleared as
'0' when user out data to P14.

IDLE OPERATION MODE

The IDLE operation mode suspends all CPU functions except the low-frequency clock oscillation and the
LCD driver. It keeps the internal status with low power consumption without stopping the slow clock
oscillator and LCD display.

LCD display is available for the IDLE operation mode. Sound generator is disabled in this mode. The IDLE
operation mode will be wakeup and return to the SLOW operation mode by the internal timing generator or
I/O pins (P0(0..3)/WAKEUP 0..3 and P8(0..3)/WAKEUPA..D).

P19 32 10 Initial value : 0000

* IDME SIDR

IDME Enable IDLE mode SIDR Select IDLE releasing condition

1 Enable IDLE mode 0 0 P0(0..3), P8(0..3) pin input
0 no function 0 1 P0(0..3), P8(0..3) pin input and 1 sec signal

1 0 P0(0..3), P8(0..3) pin input and 0.5 sec signal
1 1 P0(0..3), P8(0..3) pin input and 15.625 ms signal

STOP OPERATION MODE

The STOP operation mode suspends system operation and holds the internal status immediately before the
suspension with low power consumption. This mode will be released by reset or I/O pins (P0(0..3)/
WAKEUP 0..3 and P8(0..3)/WAKEUP A..D).

LCD display and sound generator are disabled in the STOP operation mode.

* This specification are subject to be changed without notice.

10.31.2000

15

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

P16 3210 Initial value : 0000

* SPME SWWT

EM73983

SPME Enable STOP mode SWWT Set wake-up warm-up time

14

1 Enable STOP mode 0 0 2

/LXIN

0 no function 0 1 210/LXIN

10 2

12

/LXIN

1 1 no function

TIME BASE INTERRUPT (TBI )

The time base can be used to generate a single fixed frequency interrupt . Eight types of frequencies can be
selected with the "P25" setting.

P25 3 2 1 0

initial value : 0000

P25 DUAL operation mode SLOW operation mode

0 0 x x Interrupt disable Interrupt disable
0 1 0 0 Interrupt frequency LXIN / 2

3

Hz Reserved
0 1 0 1 Interrupt frequency LXIN / 24 Hz Reserved
0 1 1 0 Interrupt frequency LXIN / 25 Hz Reserved
0 1 1 1 Interrupt frequency LXIN / 2

14

Hz Interrupt frequency LXIN / 2

14

Hz
1 1 0 0 Interrupt frequency LXIN / 21 Hz Reserved
1 1 0 1 Interrupt frequency LXIN / 26 Hz Interrupt frequency LXIN / 26 Hz
1 1 1 0 Interrupt frequency LXIN / 28 Hz Interrupt frequency LXIN / 28 Hz
1 1 1 1 Interrupt frequency LXIN / 2

10

Hz Interrupt frequency LXIN / 2

10

Hz
1 0 x x Reserved Reserved

TIMER / COUNTER ( TIMERA, TIMERB)

Timer/counters support three special functions:

1. Even counter

2. Timer.

3. Pulse-width measurement.

These three functions can be executed by 2 timer/counter independently.
With timerA, the counter data is saved in timer register TAH, TAM, TAL. User can set counter initial
value and read the counter value by instruction "LDATAH(M,L)" and "STATAH(M,L)". With timer B
register is TBH, TBM, TBL and the W/R instruction are "LDATBH (M,L)" and "STATBH (M,L)".

The basic structure of timer/counter is composed by two identical counter module , these two modules can
be set initial timer or counter value to the timer registers, P28 and P29 are the command registers for timerA
and timer B, user can choose different operation modes and internal clock rates by setting these two
registers. When timer/counter overflows, it will generate a TRGA(B) interrupt request to interrupt control
unit.

* This specification are subject to be changed without notice.

10.31.2000

16

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

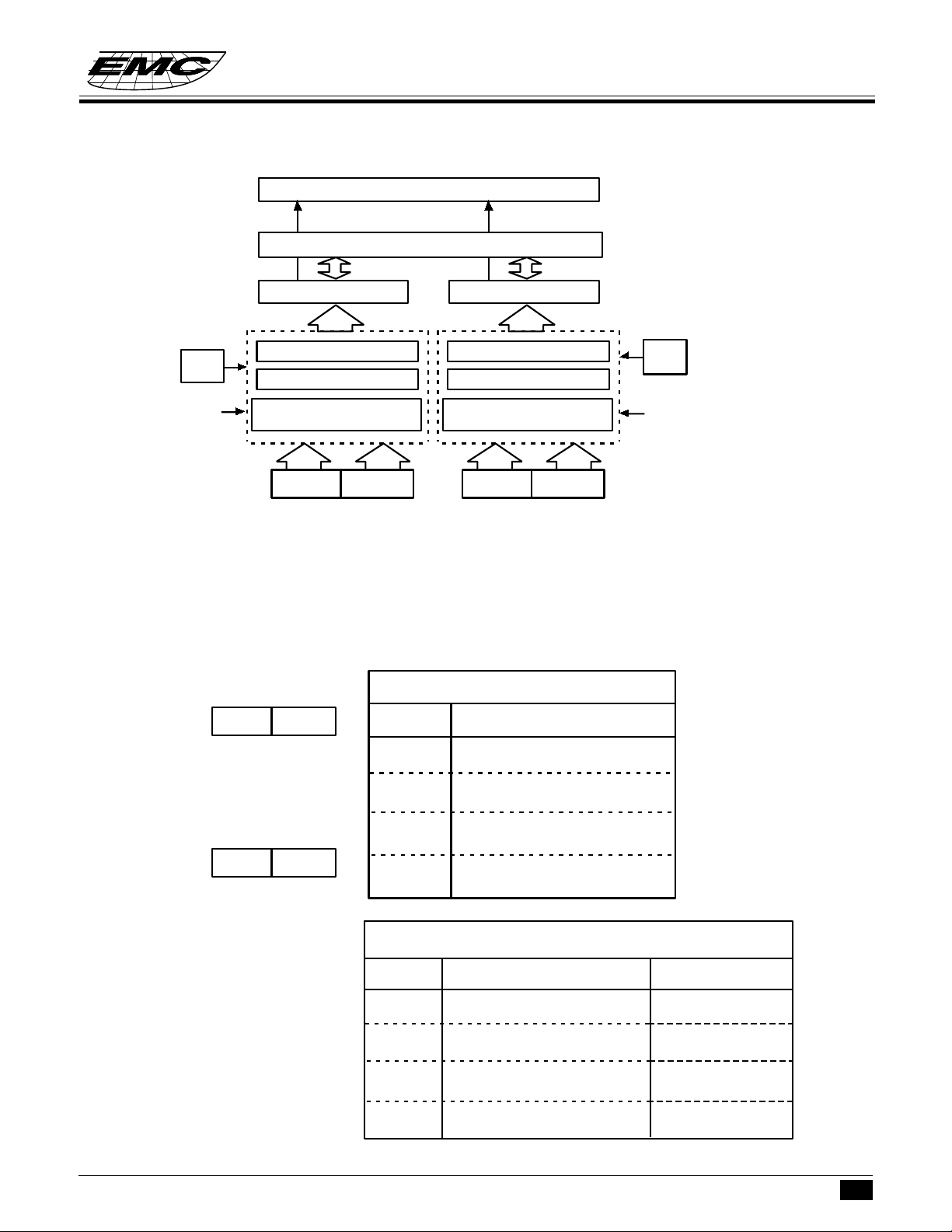

INTERRUPT CONTROL

EM73983

TRGA request

TRGB request

DATA BUS

P8.3/
TRGA

internal clock

12 BIT COUNTER

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

P28

CONTROL

TMSA IPSA

12 BIT COUNTER

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

P29

CONTROL

TMSB IPSB

P8.1/
TRGB

internal clock

TIMER/COUNTER CONTROL

P8.1/TRGB, P8.3/TRGA are the external timer inputs for timerB and timerA, they are used in event
counter and pulse-width measurement mode.

Timer/counter command port: P28 is the command port for timer/counterA and P29 is for the timer/
counterB.

Port 28

Port 29

3 2 1 0

TMSA IPSA

Initial state: 0000

3 2 1 0

TMSB IPSB

Initial state: 0000

TIMER/COUNTER MODE SELECTION

TMSA (B) Function description

0 0 Stop
0 1 Event counter mode
1 0 Timer mode
1 1 Pulse width measurement mode

INTERNAL PULSE-RATE SELECTION

IPSA(B) DUAL mode

0 0 LXIN/2 Hz

0 1 LXIN/2 Hz

1 0 LXIN/2 Hz

1 1 LXIN/2 Hz

3

7

11

15

SLOW mode

Reserved

LXIN/2 Hz

LXIN/2 Hz

LXIN/2 Hz

7

11

15

* This specification are subject to be changed without notice.

10.31.2000

17

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

TIMER/COUNTER FUNCTION

Timer/counterA,B are programmable for timer, event counter and pulse width measurement mode. Each
timer/counter can execute any of these functions independently.

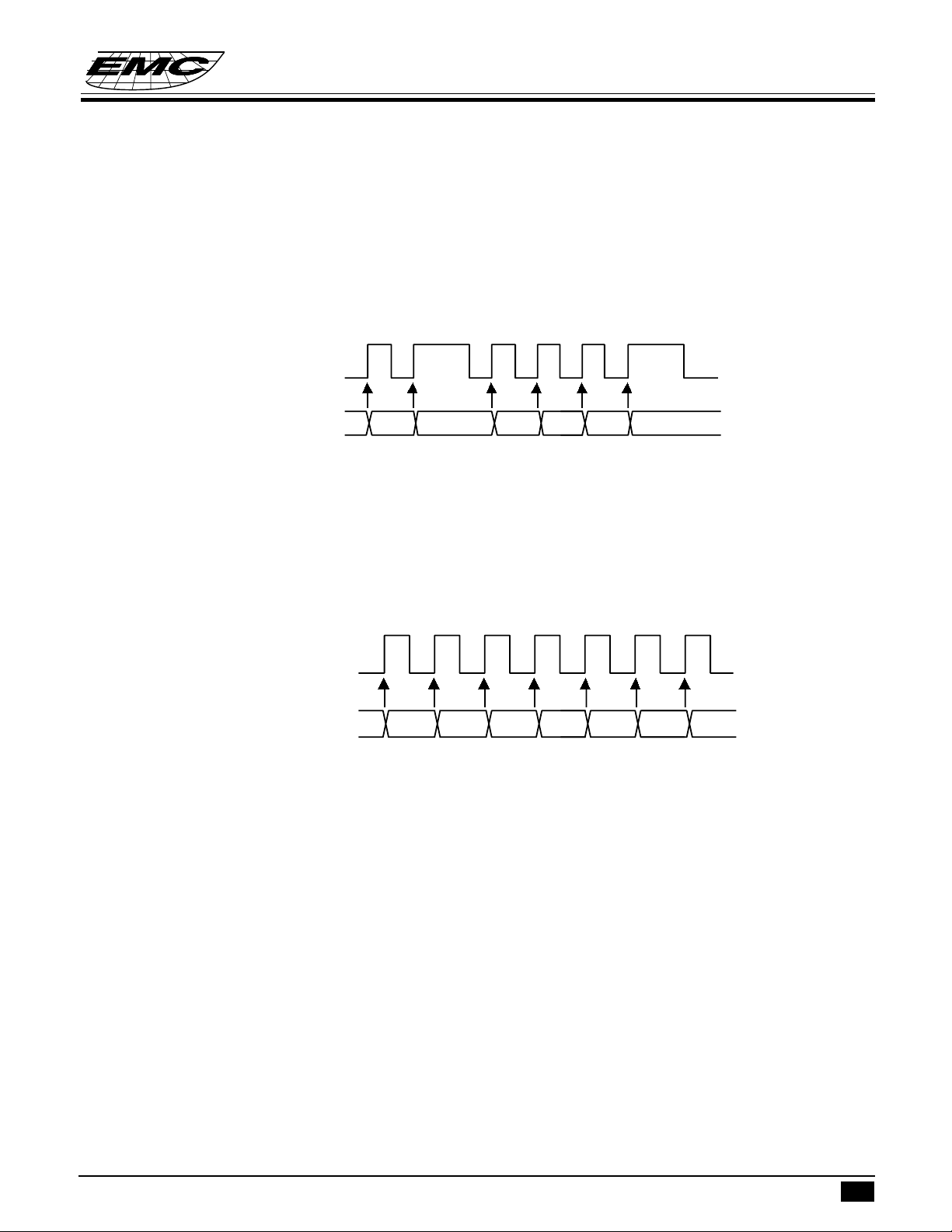

EVENT COUNTER MODE

under event counter mode, the timer/counter is increased by one at any rising edge of P8.1/TRGB for timerB
(P8.3/TRGA for timer A). When timerB (timerA) counts overflow, it will provide an interrupt request
TRGB (TRGA) to interrupt control unit.

P8.1/TRGB (P8.3/TRGA)

TimerB (TimerA) value n n+1 n+2 n+3 n+4 n+5 n+6

PROGRAM EXAMPLE: Enable timerA with P28

LDIA #0100b;
OUTA P28 ; Enable timerA with event counter mode

TIMER MODE

Under timer mode ,the timer/counter is increased by one at any rising edge of internal pulse . User can choose
up to 4 types of internal pulse rate by setting IPSB for timerB (IPSA for timerA).
When timer/counter counts overflow, An interrupt request will be sent to interrupt control unit.

Internal pulse

TimerB (TimerA )value

n n+1 n+2 n+3 n+4 n+5 n+6

n+7

PROGRAM EXAMPLE: To generate TRGA interrupt request after 60 ms with system clock LXlN=32KHz

LDIA #0100B;
EXAE ;enable mask 2
EICIL 110111b ; interrupt latch ←0, enable EI
LDIA #0Ah;
STATAL;
LDIA #00h;
STATAM;
LDIA #0Fh;
STATAH;
LDIA #1000B;
OUTA P28 ; enable timerA with internal pulse rate: LXIN/23 Hz

NOTE: The preset value of timer/counter register is calculated as following procedure.

Internal pulse rate: LXIN/2

3

; LXIN = 32KHz
The time of timer counter count one = 23 /LXIN = 8/32768=0.244ms
The number of internal pulse to get timer overflow = 60 ms/ 0.244ms = 245.901= 0F6h
The preset value of timer/counter register = 1000h - 0F6h = F0Ah

PULSE WIDTH MEASUREMENT MODE

* This specification are subject to be changed without notice.

10.31.2000

18

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

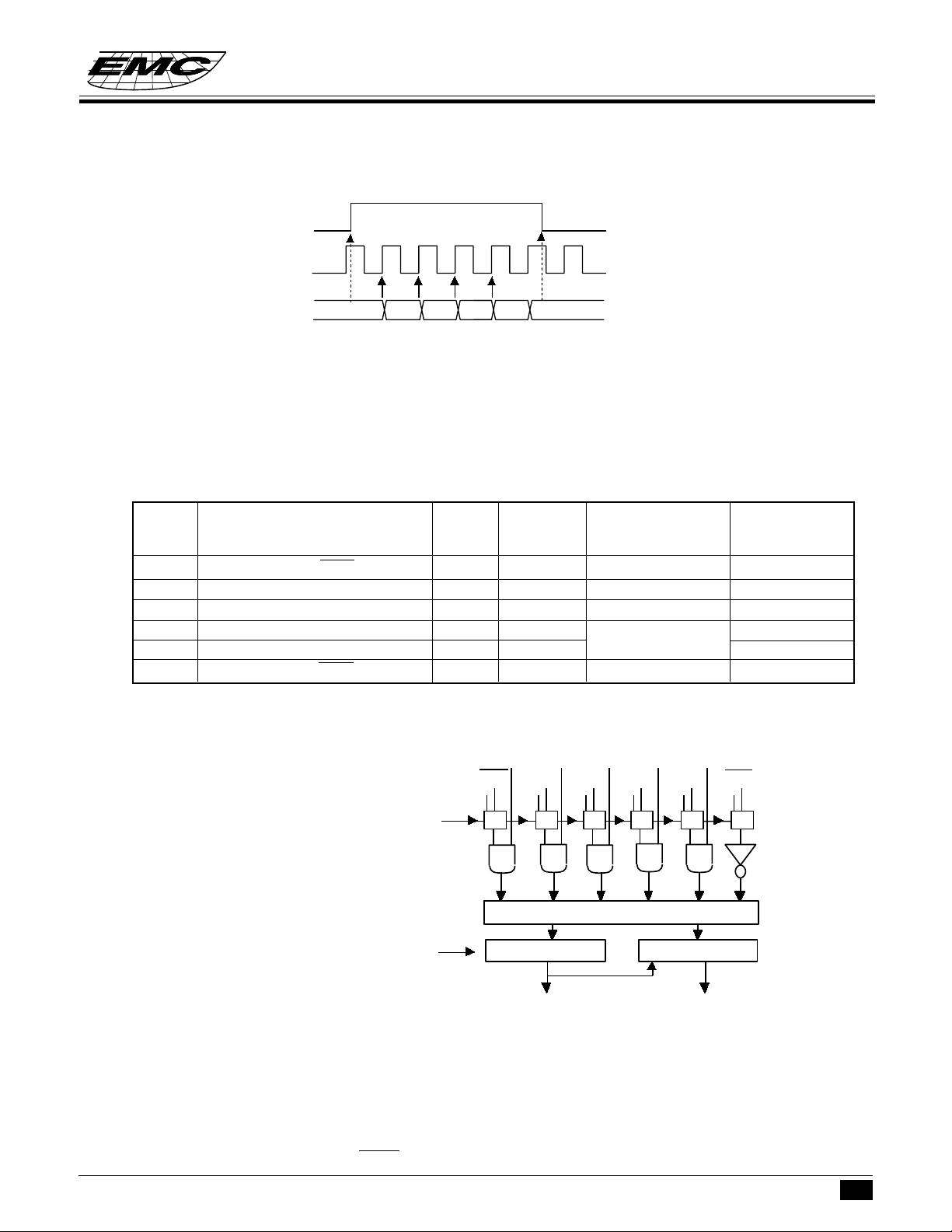

Under the pulse width measurement mode, the counter is incresed at the rising edge of internal pulse during

Preliminary

external timer/counter input (P8.1/TRGB, P8.3/TRGA ) in high level, interrupt request is generated as soon as
timer/counter count overflow.

P8.1/TRGB(P8.3/TRGA)

Internal pulse

TimerB(TimerA) value

n n+1 n+2 n+3 n+4 n+5

PROGRAM EXAMPLE: Enable timerA by pulse width measurement mode .

LDIA #1100b;
OUTA P28 ; Enable timerA with pulse width measurement mode.

INTERRUPT FUNCTION

Six interrupt sources are available, 2 from external interrupt sources and 4 from internal interrupt sources
. Multiple interrupts are admitted according to their priority .

Type Interrupt source Priority Interrupt Interrupt Program ROM

Latch Enable condition entry address

External External interrupt(INT0) 1 IL5 EI=1 002h
Internal speech end interrupt (SPI) 2 IL4 EI=1, MASK3=1 004h
Internal TimerA overflow interrupt (TRGA) 3 IL3 EI=1, MASK2=1 006h
Internal TimerB overflow interrupt (TRGB) 4 IL2 EI=1, MASK1=1 008h
Internal Time base interrupt(TBI) 5 IL1 00Ah
External External interrupt(INT1) 6 IL0 EI=1,MASK0=1 00Ch

INTERRUPT STRUCTURE

MASK0 MASK1 MASK1 MASK2 MASK3

SPI

IL4

INT0

r5

IL5

r4

Entry address generator

Reset by system reset and program

instruction

Reset by system reset and program

instruction

Set by program instruction

INT1

r0

r1

IL0

Interrupt request Interrupt entry address

TBI

IL1

TRGB

EI

TRGA
r3

IL2r2IL3

Priority checker

Interrupt controller:

IL0-IL5 : Interrupt latch . Hold all interrupt requests from all interrupt sources. IL's can not

be set by program, but can be reset by program or system reset, so IL can only
decide which interrupt source can be accepted.

MASK0-MASK3 : Except INT0 ,MASK register may permit or inhibit all interrupt sources.

* This specification are subject to be changed without notice.

10.31.2000

19

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

EI : Enable interrupt Flip-Flop may promit or inhibit all interrupt sources, when inter-

rupt occurs, EI is auto cleared to "0", after RTI instruction is executed, EI is auto
set to "1" again .

Priority checker: Check interrupt priority when multiple interrupts occur.

INTERRUPT OPERATION

The procedure of interrupt operation:

1. Push PC and all flags to stack.

2. Set interrupt entry address into PC.

3. Set SF= 1.

4. Clear EI to inhibit other interrupts occur.

5. Clear the IL with which interrupt source has already been accepted.

6. Excute interrupt subroutine from the interrupt entry address.

7. CPU accept RTI, restore PC and flags from stack . Set EI to accept other interrupt requests.

PROGRAM EXAMPLE: To enable interrupt of "INT0, TRGA"

LDIA #0100B;
EXAE; set mask register "1100b"
EICIL 010111B ; enable interrupt F.F. and clear IL3 and IL5

EM73983

LCD DRIVER

It can directly drive the liquid crystal display ( LCD ) and has 40 segments , 8 commons output pins.
There are total 40x8 dots can be display. The V1~V5 are the LCD bias voltage input pins.

(1) LCD driver control command register:

Port27 3210 Initial value: 0000

LDC * *

LCD DISPLAY CONTROL

LDC Function description
0 0 LCD display disable
0 1 Blanking
1 0 no function
1 1 LCD display enable

* : Don't care .

P27 is the LDC driver control command register . The initial value is 0000 .
When LDC ( bit2 and bit3 of P27 ) is set to "00", the LCD display is disabled .
When LDC is set to Ò01Ó, the LCD is blanking, the COM pins are inactive and the SEG pins
output the display data continuously.
When LDC is set to "11", the LCD display is enabled.

(2) LCD display data area:

The LCD display data is stored in the display data area of the data memory ( RAM) . The LCD display data
area is as illustrated below:

* This specification are subject to be changed without notice.

10.31.2000

20

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

The display data from the display data area are automatically read out and send to the LCD driver directly by

Preliminary

the hardware . Therefore, the display patterns can be changed only by overwritting the contents of the
display data area through software .

The dispaly memory area that is not used to store the LCD display data could be used as the ordinary data
memory.

LCD display data area :

Bank1

P9.3=1

012345 6789ABCDEF

100-10Fh
110-11Fh
120-12Fh
130-13Fh
140-14Fh
150-15Fh
160-16Fh
170-17Fh
180-18Fh
190-19Fh
1A0-1AFh
1B0-1BFh
1C0-1CFh
1D0-1DFh
1E0-1EFh
1F0-1FFh

SEG0

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

COM0
COM1
COM2
COM3
COM4
COM5
COM6
COM7

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SEG25

SEG26

SEG27

SEG28

SEG29

SEG30

SEG31

SEG32

SEG33

SEG34

SEG35

SEG36

SEG37

SEG38

SEG39

P26 is the start address register of LCD common pin.
Port26 3210 Initial value: 0000

CSA

Common start address register

CSA

100-

110-

120-

130-

140-

150-

0000
0001
0010
0011
0100
0101
0110

109h

COM0

119h

COM1
COM0

129h

COM2
COM1
COM0

139h

COM3
COM2
COM1
COM0

149h

COM4
COM3
COM2
COM1
COM0

159h

COM5
COM4
COM3
COM2
COM1
COM0

160­169h

COM6
COM5
COM4
COM3
COM2
COM1
COM0

0111
1000

COM7

1001

COM6
COM5
COM4
COM3
COM2
COM1

COM7
COM6
COM5
COM4
COM3
COM2

COM7
COM6
COM5
COM4
COM3

COM7
COM6
COM5
COM4

COM7
COM6
COM5

COM7
COM6

COM7

1010
1011
1100
1101
1110
1111

PROGRAM EXAMPLE:

LDIA #0000B
OUTA P26
LDIA #1100B ; LCD display enable
OUTA P27
LDIA #1010B ; store 1010B to RAM[101h]
SEP P9,3
STA 01H

* This specification are subject to be changed without notice.

RAM

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

170­179h

180­189h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

190­199h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

1A0­1A9h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

1B0­1B9h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

1C0­1C9h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

1D0­1D9h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

1E0­1EF9h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

10.31.2000

1F0­1F9h

COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

21

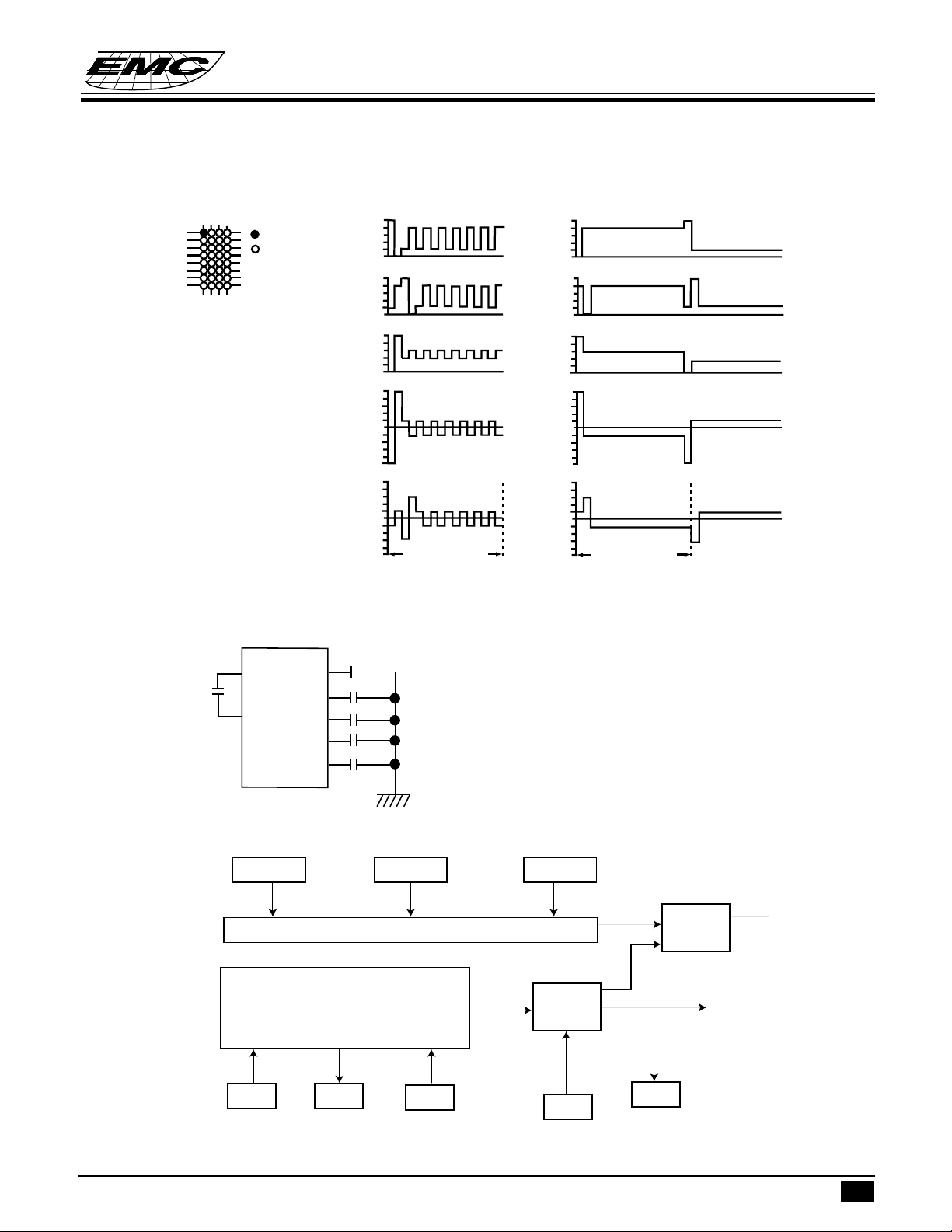

(3) LCD waveform : (1/5 bias)

S
E
G

COM0

COM7

0

: ON
: OFF

Preliminary

* TYPE A :

COM0

V5

V4
V3
V2
V1

Vss

COM1

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

* TYPE B :

COM0

V5

V4
V3
V2
V1

Vss

COM1

SEG0

SEG0-COM0

ON

SEG0-COM1

OFF

Frame freq.=64Hz

SEG0

SEG0-COM0

ON

SEG0-COM1

OFF

Frame freq.=64Hz

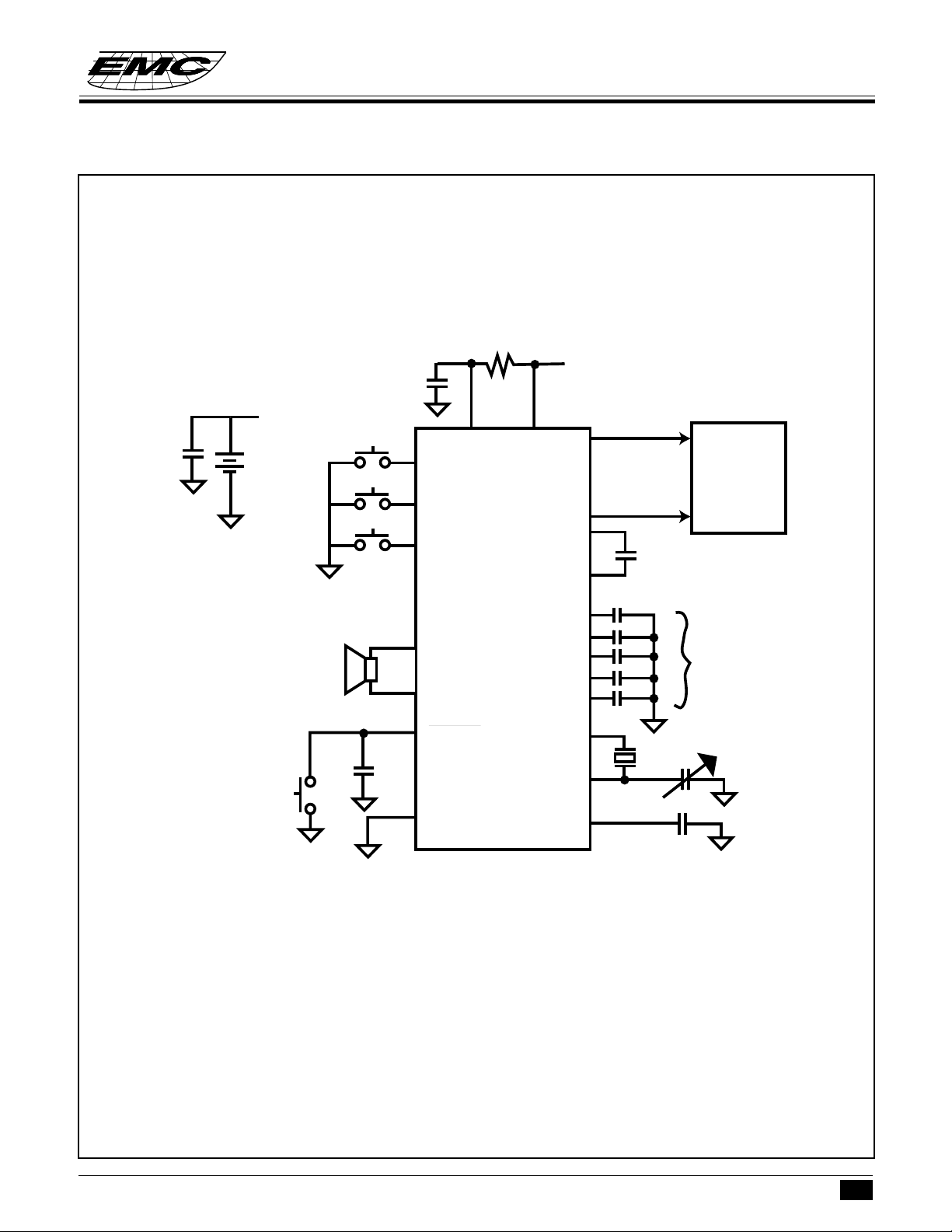

(4) LCD drive voltage :

• The LCD bias voltage is supplied by voltage multiplier. The application circuit is illustated as below :

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

VA

VB

V5
V4
V3
V2
V1

SPEECH SYNTHESIZER

Set sound freq.

P23,24 Write

P7 Write

Set data address
(write 5 times)

speech
ROM

P7 Read

Read data

Set sound mode

P30 Write

Sound effect generator

P6 Write

Set speech address
(write 4 times)

Block diagram of speech and sound effect

* This specification are subject to be changed without notice.

Set sound effect amplitude

P17 Write

speech
decoder

P5 Write

Set sample rate

Speech active

P5.3 read

PWM

BZ1
BZ2

SPI interrupt

10.31.2000

22

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

EM73983 speech synthesizer operates as following :

1. Send the speech start address to the address latch by writing P6 four times.

2. Choose the sampling rate, enable the speech synthesizer by writing P5.

3. The ROM address counters send the ROM address A6 .. A17 to the speech ROM.

4. ACT is the speech acknowledge signal. When the speech synthesizer has voice output. ACT is high .
When ACT is changed from high to low, the speech synthesizer can generate the speech ending
interrupt SPI. The ACT signal can be read from P5.3.

SPEECH SYNTHESIZER CONTROL

Speech sample rate control register (P5 write) :

3210 Initial value : *111

SR

SR Sample rate selection Sample rate

000 PWM on CLK/64/1/3 24K port 5 -- initialization is "*111".
001 CLK/64/1/4 18K port 6 -- initialization is pointed to the low­010 CLK/64/2/3 12K nibble of start address latch.
011 CLK/64/2/4 9K
100 CLK/64/3/3 8K CLK=4.6 MHz
101 CLK/64/3/4 6K
111 PWM off

EM73983

Speech active flag (P5 read) :

3210 Initial value : 0***

ACT * * *

ACT is the speech acknowledge signal. When the speech synthesizer has voice output, ACT is high. When
ACT is high → low, the speech synthesizer can generate the speech ending interrupt SPI.

Speech start address register (P6 write) :

3210 Initial value : 1111

Port 6

P6L1 P6L2 P6L3 P6L4

A9 A8 A7 A6 A13 A12 A11 A10 A17 A16 A15 A14 - - - -

Send the speech start address to the speech synthesizer by writing P6 four times. There is a pointer counter to
point the address latch (P6L1, P6L2, P6L3, P6L4). It will increase one when write P6. So, the first time
writing P6 to P6L1, the second time is P6L2, the third time is P6L3, the fourth time is P6L4 and the fifth time
is P6L1 latch again, ... etc. The pointer counter point to P6L1 when CPU is reset or P5 is writen.
In the NORMAL operation mode, the speech synthesizer is available. In the other operation modes, it is
disable.

* This specification are subject to be changed without notice.

10.31.2000

23

Preliminary

PROGRAM EXAMPLE:

SP_ADR1 EQU 1234H ; the start address of the speech section

:
LDIA #SP_ADR1
OUTA P6
LDIA #SP_ADR1/10H
OUTA P6
LDIA #SP_ADR1/100H
OUTA P6
LDIA #SP_ADR1/1000H
OUTA P6

; set sample rate & start speech

LDIA #0010B

OUTA P5
; wait speech end
WAIT TTP P5,3 ; get speech active flag

B WAIT

USING SPEECH ROM AS DATA ROM

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

The speech ROM can be used for speech synthesizer and for data ROM simutaneously.
First, write initial address to P7 (five times), and after four cycles, you can read P7 to get data, and address
counter increases one automatically.The following read operations must be at an internval of instruction
cycles which are more than 3.
The read operation should be all done before you leave normal mode and change to slow mode.

Get speech ROM data (P7 read) :

3210

Port 7

Set speech ROM address (P7 write) :

3210

Port 7

P7L1 P7L2 P7L3 P7L4 P7L5

A3 A2 A1 A0 A7 A6 A5 A4 A11 A10 A9 A8 A15 A14 A13 A12 - - A17 A16

PROGRAM EXAMPLE:

D_ADR1 EQU 12345H ; the start address of the speech ROM

:

LDIA #D_ADR1

OUTA P7

LDIA #D_ADR1/10H

OUTA P7

LDIA #D_ADR1/100H

OUTA P7

LDIA #D_ADR1/1000H

OUTA P7

LDIA #D_ADR1/10000H

OUTA P7

* This specification are subject to be changed without notice.

10.31.2000

24

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

NOP
NOP

Preliminary

4 cycles

NOP
NOP

; READ DATA

INA P7 ; read D_ADR1
STA TEMP
NOP

3 cycles

INA P7 ; read D_ADR1+1

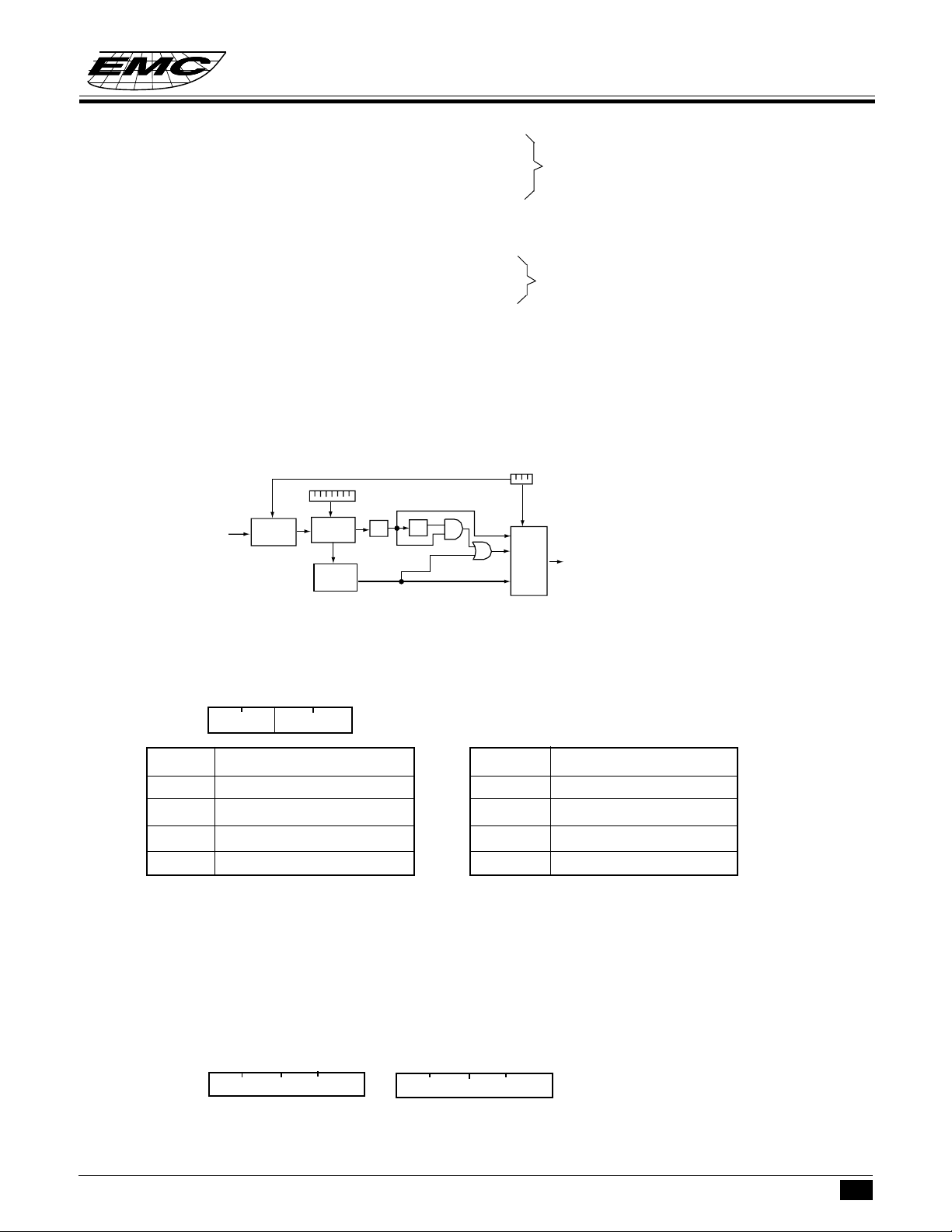

MELODY (SOUND EFFECT) CONTROL

One channel melody/sound effect output, controlled by port 23, 24, 17, and 30.

There is a built-in sound effect. It includes the tone generator and random generator. The tone generator is a
binary down counter and the random generator is a 9-bit liner feedback shift register.

Output
control

P30

PWM ckt.

CLK/8

4 kinds

of divider

f1

Tone

generator

Random

generator

f2x2

P23,P24

÷2

f2

÷2

Sound effect command register (P30)

There are 4 kinds of basic frequency for sound generator which can be selected by P30. The output of sound
effect is tone and random combination.

Port30

3 2 1 0

BFREQ SMODE Initial value : 0000

BFREQ Basic frequency (f1) select SMODE Sound generator mode

0 0 CLK/16 0 0 Disable
0 1 CLK/32 0 1 Tone output
1 0 CLK/64 1 0 Random out put
1 1 Reserved 1 1 Tone+random output
(CLK=4.6MKz)

Tone frequency register (P23, P24)

The 8-bit tone frequency register is P24 and P23. The tone frequency will be changed when user output
the different data to P23. Thus, the data must be output to P24 before P23 when users want to change the 8­bit tone frequency (TF).

Port24 Port23

3 2 1 0 3 2 1 0 Initial value : 1111 1111
Higher nibble register Lower nibble register

** f1=CLK/2X, f2=f1/(TF+1)/2, TF=1~255, TF-0
** Example : CLK=4.6 MHz, BFREQ=10, TF=00110001B.

⇒ f1=71680Hz, f2=71680Hz/50/2=716.8Hz

* This specification are subject to be changed without notice.

10.31.2000

25

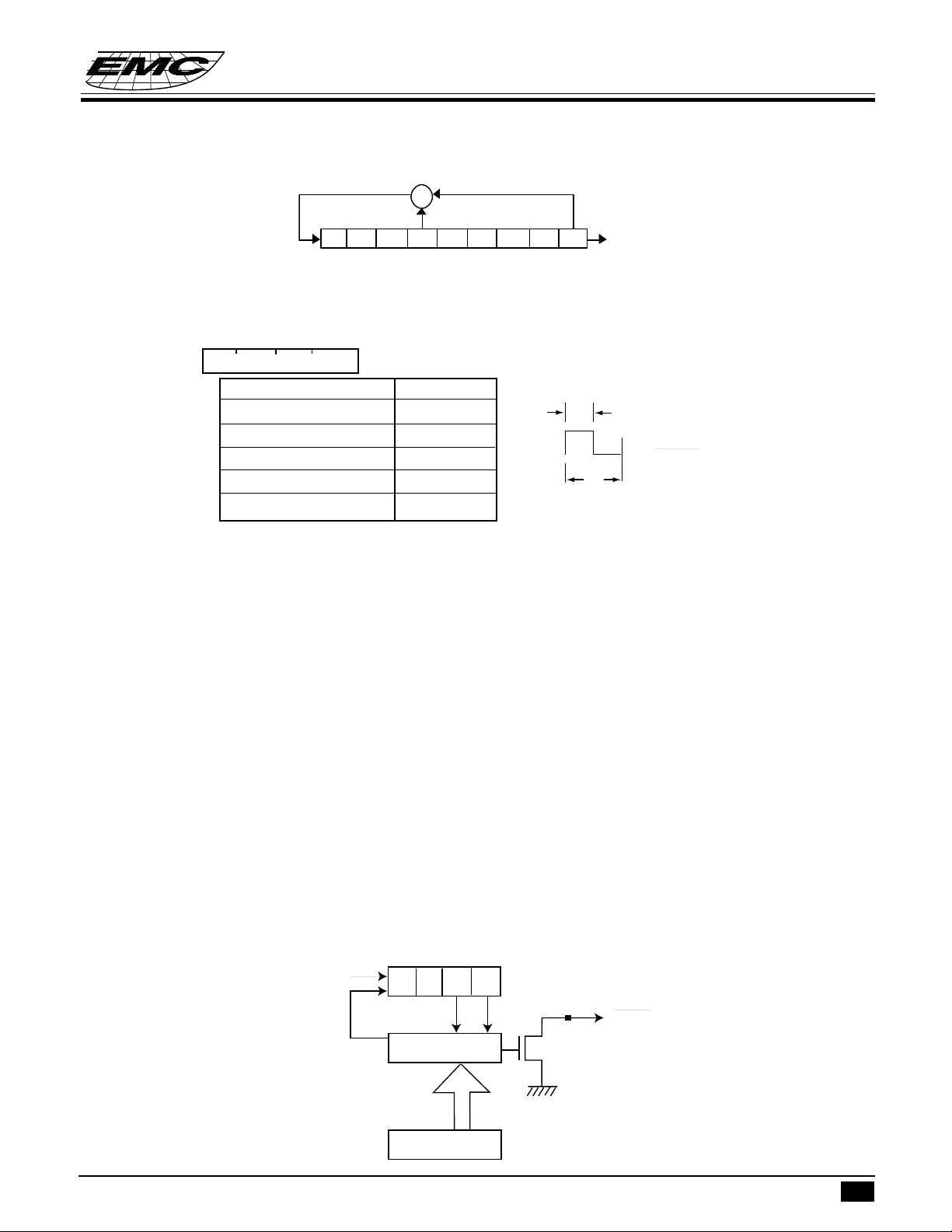

Random generator

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

f(x)=x

9+x4

+1

123456789

+

Volume control register (P17)
The are 16 levels of volume for sound generator. P17 is the volume control register.

Port17 Initial value : 1111
3 2 1 0

VCR

VCR ts/tp
1 1 1 1 15/16
1 1 1 0 14/16

::

0 0 0 1 1/16

ts

1

tp=

CLK/64 (CLK=4.6MHz)

tp

0 0 0 0 0/16

PROGRAM EXAMPLE:

LDIA #1001B ; basic frequency : CLK/32, tone output
OUTA P30
LDIA #0111B ; volume control
OUTA P17
LDIA #0011B ; 1430 Hz tone output
OUTA P24
LDIA #0001B
OUTA P23

WATCH-DOG-TIMER (WDT)

Watch-dog-timer can help user to detect the malfunction (runaway) of CPU and give system a timeup signal every
certain time . User can use the time up signal to give system a reset signal when system is fail.
This function is available by mask option. If the mask option of WDT is enabled, it will stop counting when CPU
is reseted or in the STOP operation mode.
The basic structure of Watch-Dog-Timer control is composed by a 4-stage binary counter and a control unit .
The WDT counter counts for a certain time to check the CPU status, if there is no malfunction happened, the
counter will be cleared and continue counting . Otherwise, if there is a malfunction happened, the WDT control
will send a WDT signal ( low active ) to reset CPU. The WDT checking period is assign by P21 ( WDT command
port ).

13

LXIN/2

counter clear request

WDT counter

0

12

WDT control

P21

WDT
command port

3

RESET pin

mask option

* This specification are subject to be changed without notice.

10.31.2000

26

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

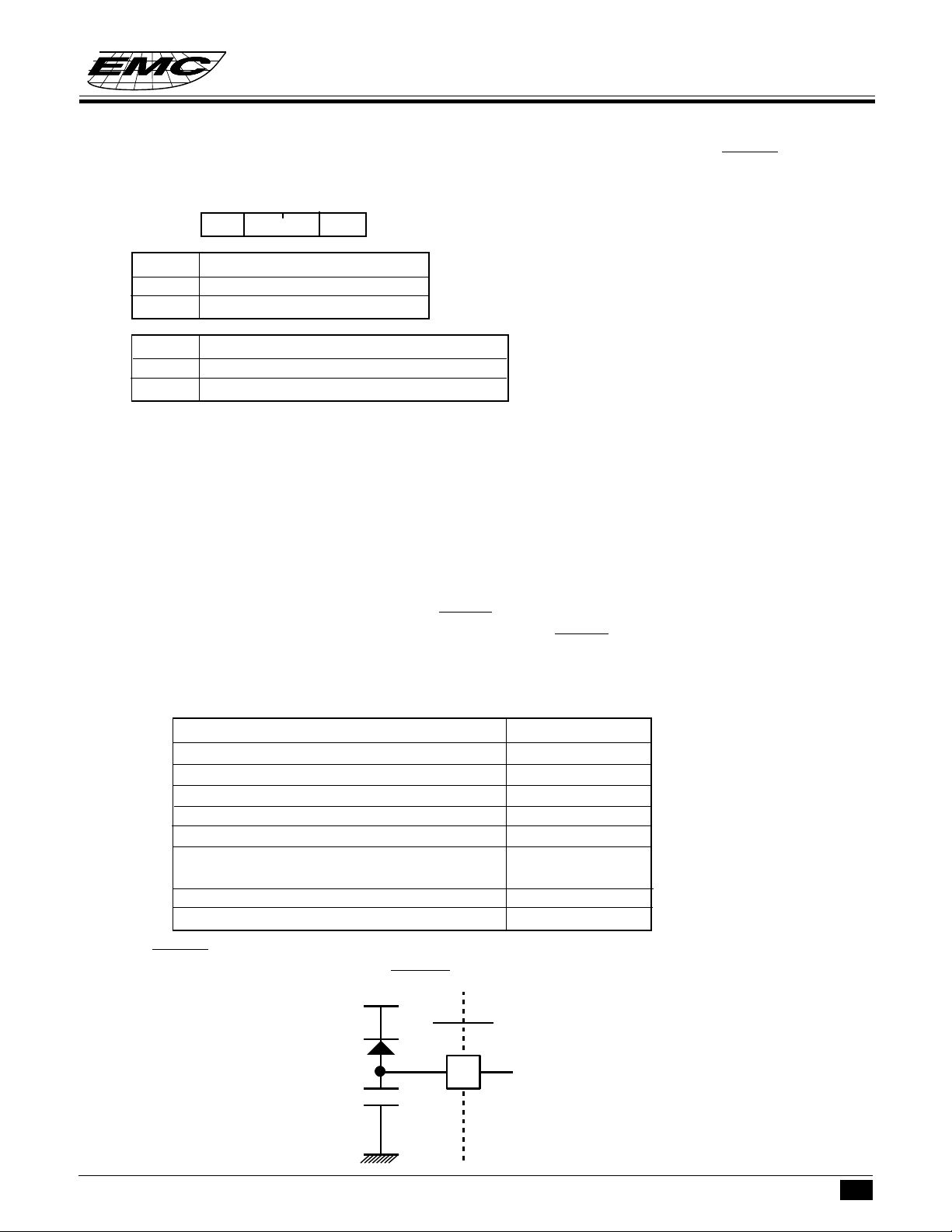

P21 is the control port of watch-dog-timer, and the WDT time up signal is connected to RESET.

Port 21 3210Initial value :0000

CWC * * WDT

CWC Clear watchdog timer counter

0 Clear counter then return to 1
1 Nothing

WDT Set watch-dog-timer detect time

0 3 x 213/LXIN = 3 x 213/32K Hz = 0.75 sec

13

1 7 x 2

PROGRAM EXAMPLE

To enable WDT with 7 x 213/LXIN detection time.

LDIA #0001B
OUTA P21 ; set WDT detection time and clear WDT counter
:
:

/LXIN = 7 x 213/32K Hz = 1.75 sec

EM73983

RESETTING FUNCTION

When CPU in normal working condition and RESET pin is held in low level for three instruction cycles at least,
then CPU begins to initialize the whole internal states, when RESET pin changes to high level, CPU begins
to work in normal condition.
The CPU internal state during reset condition is as following table :

Hardware condition in RESET state Initial value
Program counter 0000h
Status flag 01h
Interrupt enable flip-flop ( EI ) 00h
MASK0 ,1, 2, 3 00h
Interrupt latch ( IL ) 00h
P3, 9, 13, 14, 16, 17, 19, 21, 22, 25, 26, 00h
27, 28, 29, 30
P5, 23, 24 0Fh
CLK, LXIN Start oscillation

The RESET pin is a hysteresis input pin and it has a pull-up resistor available by mask option.
The simplest RESET circuit is connect RESET pin with a capacitor to Vss and a diode to VDD.

RESET

* This specification are subject to be changed without notice.

10.31.2000

27

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

EM73983 I/O PORT DESCRIPTION :

Port Input function Output function Note

0 E Input port , wakeup function
1-- -­2-- -­3 -- I P3(1..0) : ROM bank selection
4 E Input port E Output port
5 I P5.3 : Speech active signal (ACT) I Speech sample rate register
6 -- I Speech start address register
7 I DATA ROM data I Data start address register
8 E Input port, wakeup function, E Output port

external interrupt input

9 -- I P9.3 : RAM bank selection
10 -- -­11 -- -­12 -- -­13 -- -­14 I CPU status register -­15 -- -­16 I STOP mode control register
17 I Sound effect volume control register
18 -­19 I IDLE mode control register
20 -­21 I WDT control register
22 I DUAL/SLOW mode control register
23 I Sound effect frequency register low nibble
24 I Sound effect frequency register high nibble
25 I Timebase control register
26 I LCD common start address register
27 I LCD control register
28 I Timer/counter A control register
29 I Timer/counter B control register
30 I Sound effect command register
31 --

* This specification are subject to be changed without notice.

10.31.2000

28

APPLICATION CIRCUIT

V

BAT

0.1µF

3V

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

0.1µF

V

DD

P0.0

P0.1

P0.2

100

V

DD2

VA

VB

V

BAT

SEG0~
SEG39
COM0~
COM7

0.1µF

EM73983

LCD PANNEL

RESET

100Ω

0.1µF

BZ1

BZ2

RESET

VSS

EM73983

V5
V4
V3
V2
V1

LXOUT

LXIN

CLK

all 0.1µF

32.768KHz

20P

0.022µF

* This specification are subject to be changed without notice.

10.31.2000

29

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

ABSOLUTE MAXIMUM RATINGS

Preliminary

Items Sym. Ratings Conditions

Supply Voltage VDD -0.5V to 6V
Input Voltage V
Output Voltage V
Power Dissipation P
Operating Temperature T
Storage Temperature TSTG -55oC to 125oC

RECOMMANDED OPERATING CONDITIONS
Items Sym. Ratings Condition

Supply Voltage V
Input Voltage V

Operating Frequency FC 4.6MHz CLK

DC ELECTRICAL CHARACTERISTICS (VDD=3±0.3V, VSS=0V, TOPR=25oC)

Parameters Sym. Min. Typ. Max. Unit Conditions

IN -0.5V to VDD+0.5V
O -0.5V to VDD+0.5V

D 300mW TOPR=50

OPR 0

DD 2.2V to 4.8V
IH 0.90xVDD to VDD

o

C to 50oC

VIL 0V to 0.10xVDD

F

S 32KHz LXIN,LXOUT

o

C

Supply current I

DD - 0.5 1.2 mA VDD=3.3V,no load,NORMAL mode,Fs=32KHz

-2538µAV

-712µAV

- 0.1 1 µA V

Hysteresis voltage V

Input current I

HYS+ 0.50VDD - 0.75VDD V RESET, P0, P8

V

HYS- 0.20VDD - 0.40VDD V

IH - - ±1 µA P0, RESET, VDD=3.3V,VIH=3.3/0V

- - ±1 µA Open-drain, V

I

IL - -250 -500 µA Push-pull, VDD=3.3V ,VIL=0.4V,except P4

Output voltage V

OH 2.4 - - V Push-pull, P4(high current PMOS), SOUND,

2.0 2.4 - V Push-pull, P4(low current PMOS), P8,

V

OL - 0.15 0.3 V VDD=2.7V,IOL=0.9mA, P4, P8

Leakage current I
Input resistor R

LO - - 1 µA Open-drain, VDD=3.3V, VO=3.3V

IN 100 200 300 KΩ P0

150 300 450 KΩ RESET

Output current I
of BZ1, BZ2 I
LCD bias voltage V

OH 30 - - mA VDD=3V
OL 30 - - mA

1

V

2

V

3

V

4

V

5

- 0.9 - V VDD=3V, LCD no load

- 1.8 - V

- 2.7 - V

- 3.6 - V

- 4.5 - V

* This specification are subject to be changed without notice.

Fc=4.6MHz

DD=3.3V,no load,SLOW mode,Fs=32KHz

LCD on

DD=3.3V,IDLE mode,LCD off
DD=3.3V, STOP mode

DD=3.3V,VIH=3.3/0V

V

DD=2.7V, IOH=-0.9mA

V

DD=2.7V, IOH=-40µA

VBZ=1.5V

,

10.31.2000

30

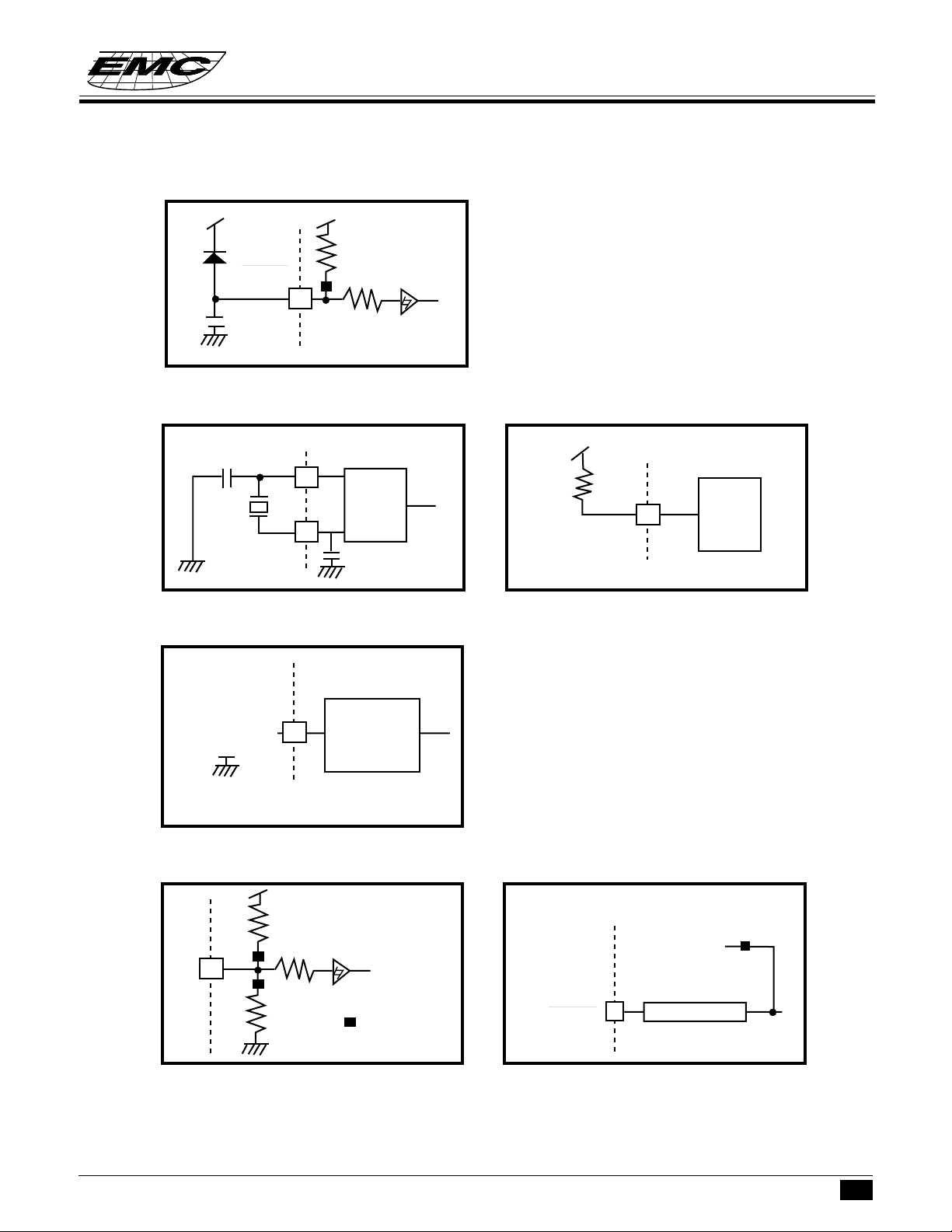

RESET PIN TYPE

TYPE RESET-A

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

RESET

OSCILLATION PIN TYPE

TYPE OSC-B TYPE OSC-H

LXIN

LXOUT

TYPE OSC-G

CLK

mask option

Crystal
Osc.

Internal

Osc.

VDD

LXIN

RC Osc.

INPUT PIN TYPE

TYPE INPUT-A TYPE INPUT-B

: mask option

* This specification are subject to be changed without notice.

WAKEUP function
mask option

P0/WAKEUP TYPE INPUT-A

10.31.2000

31

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

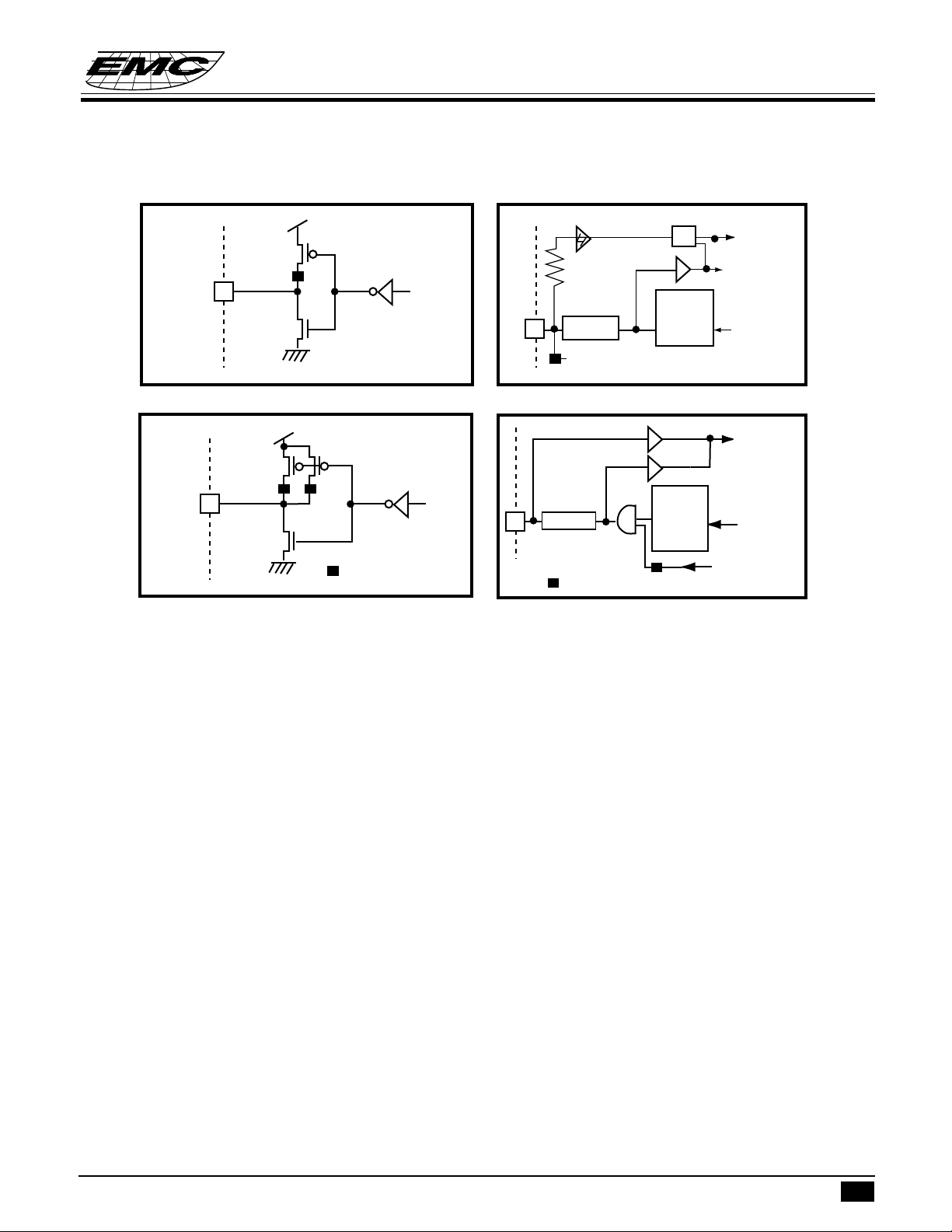

I/O PIN TYPE

TYPE I/O TYPE I/O-L

mask option

TYPE I/O

WAKEUP function
mask option

TYPE I/O-N TYPE I/O-O

path B

path A

SEL

Output
data
latch

EM73983

Special function
control input

Input
data

Output
data

: mask option

TYPE I/O-N

: mask option

path B

path A

Output
data
latch

Input
data

Output
data

Special function
output

Path A : For set and clear bit of port instructions, data goes through path A from output data latch to CPU.
Path B : For input and test instructions, data from output pin go through path B to CPU and the output data latch

will be set to high.

* This specification are subject to be changed without notice.

10.31.2000

32

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

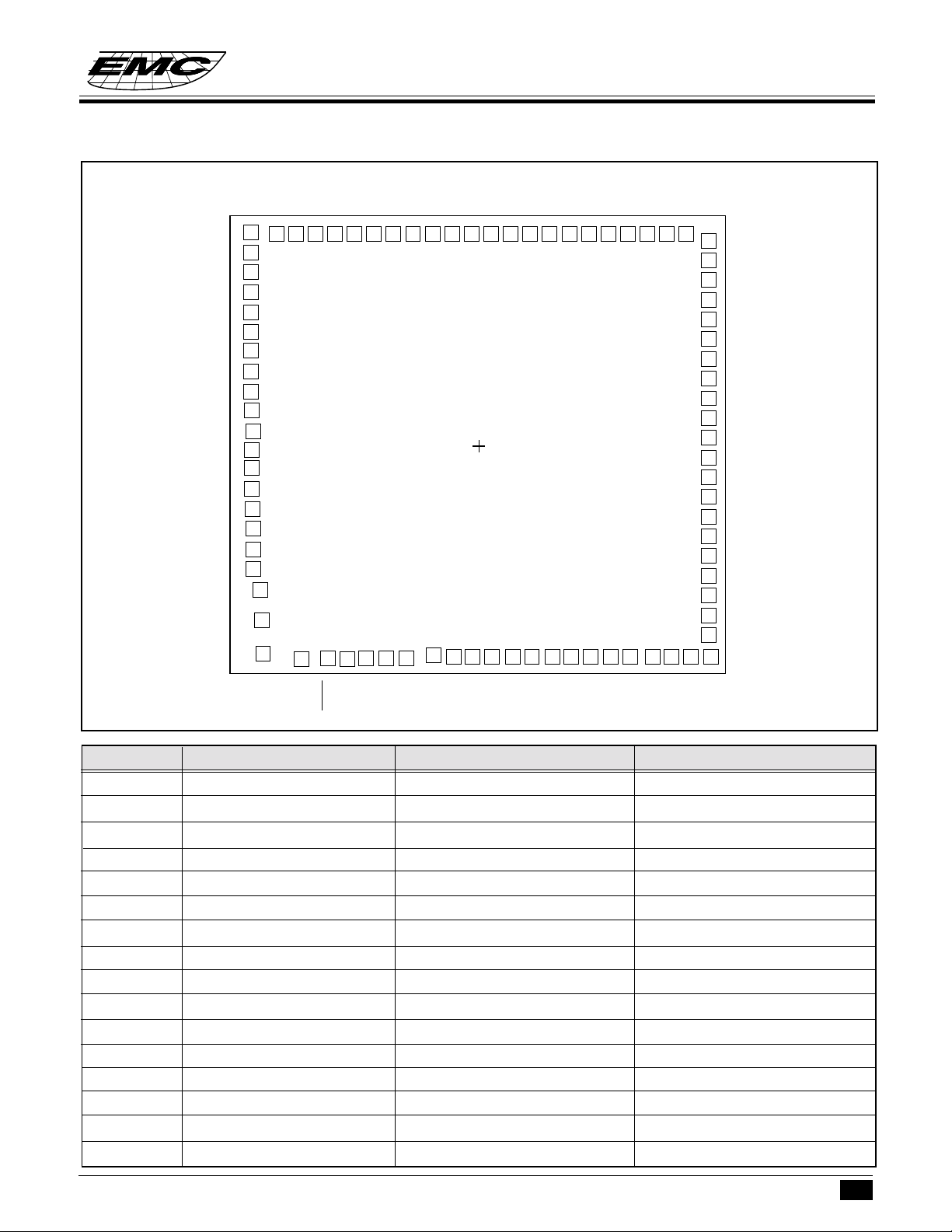

PAD DIAGRAM

SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1

SEG0
COM7
COM6
COM5
COM4
COM3
COM2
COM1
COM0

VDD2

Preliminary

SEG35

SEG36

SEG37

SEG38

SEG39

VB

VA

V5

V4

V3

V2

V1

SEG19

SEG18

SEG17

SEG16

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

1
2
3
4
5
6
7
8

9

10

11
12
13
14
15

16

17

18

19

EM73983

(0,0)

56575859606162636465666768697071727374757677

SEG34

55
54

SEG33

53

SEG32
SEG31

52

SEG30

51

SEG29

50
49

SEG28

48

SEG27

47

SEG26

46

SEG25

45

COM24
COM23

44

SEG22

43
42

SEG21
SEG20

41

BZ1

BZ2

20

21

23

22

VSS

RESET

26 27

25

24

CLK

TEST

LXIN

28

29 30 31 32 33 34 35 363738 39 40

P4.0

P4.1

P4.2

P4.3

P0.0

P0.1

P0.2

LXOUT

VDD

P0.3

P8.0

P8.1

P8.2

P8.3

Pad No. Symbol X Y

1 SEG9 -1400.8 1312.0
2 SEG8 -1400.8 1191.4
3 SEG7 -1400.8 1070.9
4 SEG6 -1400.8 950.4
5 SEG5 -1400.8 829.8
6 SEG4 -1400.8 709.3
7 SEG3 -1400.8 588.7
8 SEG2 -1400.8 468.2

9 SEG1 -1400.8 347.7
10 SEG0 -1400.8 227.1
11 COM7 -1400.8 106.6
12 COM6 -1400.8 -14.0
13 COM5 -1400.8 -134.5
14 COM4 -1400.8 -255.0
15 COM3 -1400.8 -375.6
16 COM2 -1400.8 -496.1

* This specification are subject to be changed without notice.

10.31.2000

33

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Pad No. Symbol X Y

17 COM1 -1400.8 -616.7
18 COM0 -1400.8 -737.2
19 VDD2 -1360.4 -859.4
20 BZ1 -1354.9 -1052.0
21 BZ2 -1354.9 -1266.7
22 VSS -1111.5 -1290.1
23 RESET -948.7 -1290.1
24 CLK -828.1 -1290.1
25 TEST -707.6 -1290.1
26 LXIN -580.4 -1290.1
27 LXOUT -459.9 -1290.1
28 VDD -298.6 -1275.5
29 P4.0 -170.6 -1290.1
30 P4.1 -48.5 -1290.1
31 P4.2 73.6 -1290.1
32 P4.3 195.8 -1290.1
33 P0.0 317.9 -1290.1
34 P0.1 440.1 -1290.1
35 P0.2 562.2 -1290.1
36 P0.3 684.3 -1290.1
37 P8.0 806.5 -1290.1
38 P8.1 928.6 -1290.1
39 P8.2 1050.7 -1290.1
40 P8.3 1172.9 -1290.1
41 SEG20 1405.0 -434.8
42 SEG21 1405.0 -314.3
43 SEG22 1405.0 -193.7
44 SEG23 1405.0 -73.2
45 SEG24 1405.0 47.4
46 SEG25 1405.0 167.9
47 SEG26 1405.0 288.4
48 SEG27 1405.0 409.0
49 SEG28 1405.0 529.5
50 SEG29 1405.0 650.1
51 SEG30 1405.0 770.6
52 SEG31 1405.0 891.1
53 SEG32 1405.0 1011.7
54 SEG33 1405.0 1132.2
55 SEG34 1405.0 1252.8
56 SEG35 1283.2 1289.5
57 SEG36 1162.7 1289.5
58 SEG37 1042.2 1289.5
59 SEG38 921.6 1289.5

EM73983

* This specification are subject to be changed without notice.

10.31.2000

34

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Pad No. Symbol X Y

60 SEG39 801.1 1289.5
61 VB 680.5 1289.5
62 VA 560.0 1289.5
63 V5 439.5 1289.5
64 V4 318.9 1289.5
65 V3 198.4 1289.5
66 V2 77.8 1289.5
67 V1 -42.7 1289.5
68 SEG19 -163.2 1289.5
69 SEG18 -283.8 1289.5
70 SEG17 -404.3 1289.5
71 SEG16 -524.9 1289.5
72 SEG15 -645.4 1289.5
73 SEG14 -765.9 1289.5
74 SEG13 -886.5 1289.5
75 SEG12 -1007.0 1289.5
76 SEG11 -1127.6 1289.5
77 SEG10 -1248.1 1289.5

EM73983

Unit : µm
Chip Size : 3150 x 2930 µm
Note : For PCB layout,IC substrate must be floated or connected to VSS.

* This specification are subject to be changed without notice.

10.31.2000

35

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

INSTRUCTION TABLE

Preliminary

(1) Data Transfer

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZ S

LDA x 0110 1010 xxxx xxxx Acc←RAM[x] 2 2 - Z 1
LDAM 0101 1010 Acc ←RAM[HL] 1 1 - Z 1
LDAX 0110 0101 Acc←ROM[DP]
LDAXI 0110 0111 Acc←ROM[DP]

L

,DP+1 1 2 - Z 1

H

LDH #k 1001 kkkk HR←k11--1
LDHL x 0100 1110 xxxx xx00 LR←RAM[x],HR←RAM[x+1] 2 2 - - 1
LDIA #k 1101 kkkk Acc←k11-Z1
LDL #k 1000 kkkk LR←k11--1
STA x 0110 1001 xxxx xxxx RAM[x]←Acc 2 2 - - 1
STAM 0101 1001 RAM[HL]←Acc 1 1 - - 1
STAMD 0111 1101 RAM[HL]←Acc, LR-1 1 1 - Z C
STAMI 0111 1111 RAM[HL]←Acc, LR+1 1 1 - Z C'
STD #k,y 0100 1000 kkkk yyyy RAM[y]←k22--1
STDMI #k 1010 kkkk RAM[HL]←k, LR+1 1 1 - Z C'
THA 0111 0110 Acc←HR 1 1 - Z 1
TLA 0111 0100 Acc←LR 1 1 - Z 1

12-Z1

(2) Rotate

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

RLCA 0101 0000 ←CF←Acc← 11CZC'
RRCA 0101 0001 →CF→Acc→ 11CZC'

(3) Arithmetic operation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

C ZS

ADCAM 0111 0000 Acc←Acc + RAM[HL] + CF 1 1 C Z C'
ADD #k,y 0100 1001 kkkk yyyy RAM[y]←RAM[y] +k 2 2 - Z C'
ADDA #k 0110 1110 0101 kkkk Acc←Acc+k 2 2 - Z C'
ADDAM 0111 0001 Acc←Acc + RAM[HL] 1 1 - Z C'
ADDH #k 0110 1110 1001 kkkk HR←HR+k 2 2 - Z C'
ADDL #k 0110 1110 0001 kkkk LR←LR+k 2 2 - Z C'
ADDM #k 0110 1110 1101 kkkk RAM[HL]←RAM[HL] +k 2 2 - Z C'
DECA 0101 1100 Acc←Acc-1 1 1 - Z C
DECL 0111 1100 LR←LR-1 1 1 - Z C
DECM 0101 1101 RAM[HL]←RAM[HL] -1 1 1 - Z C
INCA 0101 1110 Acc←Acc + 1 1 1 - Z C'

* This specification are subject to be changed without notice.

10.31.2000

36

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

INCL 0111 1110 LR←LR + 1 1 1 - Z C'
INCM 0101 1111 RAM[HL]←RAM[HL]+1 1 1 - Z C'
SUBA #k 0110 1110 0111 kkkk Acc←k-Acc 2 2 - Z C
SBCAM 0111 0010 Acc←RAM[HLl - Acc - CF' 1 1 C Z C
SUBM #k 0110 1110 1111 kkkk RAM[HL]←k - RAM[HL] 2 2 - Z C

(4) Logical operation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

ANDA #k 0110 1110 0110 kkkk Acc←Acc&k 2 2 - Z Z'
ANDAM 0111 1011 Acc←Acc & RAM[HL] 1 1 - Z Z'
ANDM #k 0110 1110 1110 kkkk RAM[HL]←RAM[HL]&k 2 2 - Z Z'
ORA #k 0110 1110 0100 kkkk Acc←Acc k 2 2 - Z Z'
ORAM 0111 1000 Acc ←Acc RAM[HL] 1 1 - Z Z'
ORM #k 0110 1110 1100 kkkk RAM[HL]←RAM[HL] k 2 2 - Z Z'
XORAM 0111 1001 Acc←Acc^RAM[HL] 1 1 - Z Z'

- -

- -

- -

EM73983

(5) Exchange

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

EXA x 0110 1000 xxxx xxxx Acc↔RAM[x] 2 2 - Z 1
EXAH 0110 0110 Acc↔HR 1 2 - Z 1
EXAL 0110 0100 Acc↔LR 1 2 - Z 1
EXAM 0101 1000 Acc↔RAM[HL] 1 1 - Z 1
EXHL x 0100 1100 xxxx xx00 LR↔RAM[x],

HR↔RAM[x+1] 2 2 - - 1

(6) Branch

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

SBR a 00aa aaaa If SF=1 then PC←PC

12-6.a5-0

11--1

else null

LBR a 1100 aaaa aaaa aaaa If SF= 1 then PC←a else null 2 2 - - 1
SLBR a 0101 0101 1100 aaaa If SF=1 then PC←a else null 3 3 - - 1

aaaa aaaa (a:1000~1FFFh)

0101 0111 1100 aaaa

aaaa aaaa (a:0000~0FFFh)

(7) Compare

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CMP #k,y 0100 1011 kkkk yyyy k-RAM[y] 2 2 C Z Z'
CMPA x 0110 1011 xxxx xxxx RAM[x]-Acc 2 2 C Z Z'

* This specification are subject to be changed without notice.

10.31.2000

37

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CMPAM 0111 0011 RAM[HL] - Acc 1 1 C Z Z'
CMPH #k 0110 1110 1011 kkkk k - HR 2 2 - Z C
CMPIA #k 1011 kkkk k - Acc 1 1 C Z Z'
CMPL #k 0110 1110 0011 kkkk k-LR 2 2 - Z C

(8) Bit manipulation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CLM b 1111 00bb RAM[HL]
CLP p,b 0110 1101 11bb pppp PORT[p]
CLPL 0110 0000 PORT[LR
CLR y,b 0110 1100 11bb yyyy RAM[y]
SEM b 1111 01bb RAM[HL]
SEP p,b 0110 1101 01bb pppp PORT[p]
SEPL 0110 0010 PORT[LR
SET y,b 0110 1100 01bb yyyy RAM[y]
TF y,b 0110 1100 00bb yyyy SF←RAM[y]
TFA b 1111 10bb SF←Acc
TFM b 1111 11bb SF←RAM[HL]
TFP p,b 0110 1101 00bb pppp SF←PORT[p]
TFPL 0110 0001 SF←PORT[LR
TT y,b 0110 1100 10bb yyyy SF←RAM[y]
TTP p,b 0110 1101 10bb pppp SF←PORT[p]

←011--1

b

←022--1

b

+4]LR

3-2

←022--1

b

←111--1

b

←122--1

b

+4]LR

3-2

←122--1

b

'11--*

b

←012--1

1-0

←112 --1

l-0

'22--*

b

'11--*

b

'22--*

b

b

b

+4]LR

3-2

'1 2--*

1-0

22--*
22--*

EM73983

(9) Subroutine

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

LCALL a 0100 0aaa aaaa aaaa STACK[SP]←PC, 2 2 - - -

SP←SP -1, PC←a

SCALL a 1110 nnnn STACK[SP]←PC, 1 2 - - -

SP←SP - 1, PC←a, a = 8n + 6
(n =1∼15),0086h (n = 0)

RET 0100 1111 SP←SP + 1, PC←STACK[SP] 1 2 - - -

(10) Input/output

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

INA p 0110 1111 0100 pppp Acc←PORT[p] 2 2 - Z Z'
INM p 0110 1111 1100 pppp RAM[HL]←PORT[p] 2 2 - - Z'
OUT #k,p 0100 1010 kkkk pppp PORT[p]←k22--1
OUTA p 0110 1111 000p pppp PORT[p]←Acc 2 2 - - 1
OUTM p 0110 1111 100p pppp PORT[p]←RAM[HL] 2 2 - - 1

* This specification are subject to be changed without notice.

10.31.2000

38

EM73983

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

(11) Flag manipulation

Preliminary

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

TFCFC 0101 0011 SF←CF', CF←0110-*
TTCFS 0101 0010 SF←CF, CF←1111-*
TZS 0101 1011 SF←ZF 1 1 - - *

(12) Interrupt control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CIL r 0110 0011 11rr rrrr IL←IL & r 2 2 - - 1
DICIL r 0110 0011 10rr rrrr EIF←0,IL←IL&r 2 2 - - 1
EICIL r 0110 0011 01rr rrrr EIF←1,IL←IL&r 2 2 - - 1
EXAE 0111 0101 MASK↔Acc 1 1 - - 1
RTI 0100 1101 SP←SP+1,FLAG.PC 1 2 * * *

←STACK[SP],EIF ←1

(13) CPU control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

NOP 0101 0110 no operation 1 1 - - -

(14) Timer/Counter & Data pointer & Stack pointer control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

LDADPL 0110 1010 1111 1100 Acc←[DP]
LDADPM 0110 1010 1111 1101 Acc←[DP]
LDADPH 0110 1010 1111 1110 Acc←[DP]

L

M

H

22-Z1
22-Z1
22-Z1

LDASP 0110 1010 1111 1111 Acc←SP 2 2 - Z 1
LDATAL 0110 1010 1111 0100 Acc←[TA]
LDATAM 0110 1010 1111 0101 Acc←[TA]
LDATAH 0110 1010 1111 0110 Acc←[TA]
LDATBL 0110 1010 1111 1000 Acc←[TB]
LDATBM 0110 1010 1111 1001 Acc←[TB]
LDATBH 0110 1010 1111 1010 Acc←[TB]
STADPL 0110 1001 1111 1100 [DP]
STADPM 0110 1001 1111 1101 [DP]
STADPH 0110 1001 1111 1110 [DP]

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

L

M

H

L

M

H

22-Z1
22-Z1
22 -Z1
22-Z1
22-Z1
22-Z1

STASP 0110 1001 1111 1111 SP←Acc 2 2 - - 1
STATAL 0110 1001 1111 0100 [TA]
STATAM 0110 1001 1111 0101 [TA]
STATAH 0110 1001 1111 0110 [TA]
STATBL 0110 1001 1111 1000 [ TB]
STATBM 0110 1001 1111 1001 [TB]
STATBH 0110 1001 1111 1010 [TB]

* This specification are subject to be changed without notice.

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

10.31.2000

39

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

**** SYMBOL DESCRIPTION

Symbol Description Symbol Description

HR H register LR L register
PC Program counter DP Data pointer
SP Stack pointer STACK[SP] Stack specified by SP

CC Accumulator FLAG All flags

A
CF Carry flag ZF Zero flag
SF Status flag EI Enable interrupt register
IL Interrupt latch MASK Interrupt mask
PORT[p] Port ( address : p ) ΤΑ Timer/counter A
ΤΒ Timer/counter B RAM[HL] Data memory (address : HL )
RAM[x] Data memory (address : x ) ROM[DP]
ROM[DP]

H High 4-bit of program memory [DP]L Low 4-bit of data pointer register

[DP]M Middle 4-bit of data pointer register [DP]H High 4-bit of data pointer register
[TA]L([TB]L) Low 4-bit of timer/counter A [TA]M([TB]M) Middle 4-bit of timer/counter A

(timer/counter B) register (timer/counter B) register

[TA]H([TB]H) High 4-bit of timer/counter A LR

1-0

(timer/counter B) register 1 to 0 of LR

LR

PC

3-2

12-6

Bit 3 to 2 of LR a

5-0

Bit 12 to 6 of program counter ← Transfer

↔ Exchange + Addition

- Substraction & Logic AND

- -

Logic OR ^ Logic XOR

Inverse operation . Concatenation
#k 4-bit immediate data x 8-bit RAM address
y 4-bit zero-page address p 4-bit or 5-bit port address
b Bit address r 6-bit interrupt latch

L Low 4-bit of program memory

Contents of bit assigned by bit

Bit 5 to 0 of destination address for

branch instruction

EM73983

* This specification are subject to be changed without notice.

10.31.2000

40
