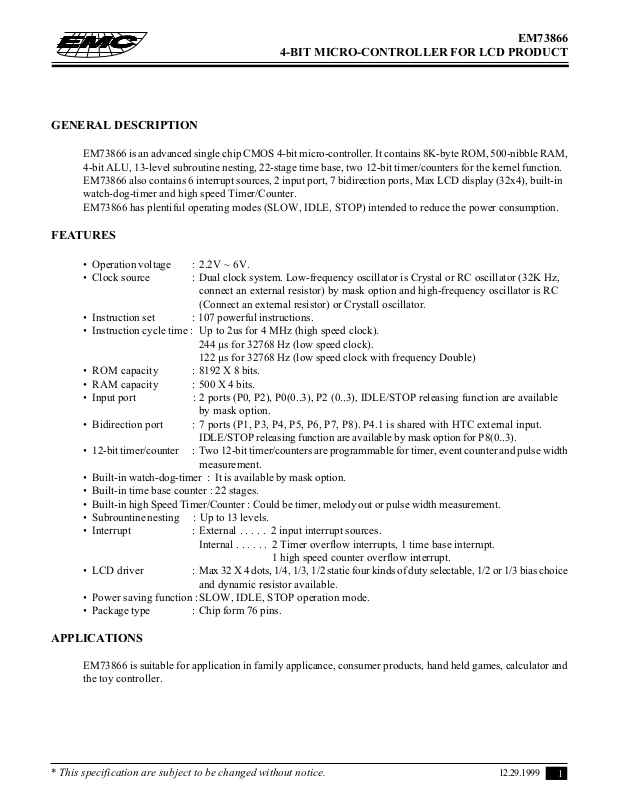

GENERAL DESCRIPTION

EM73866 is an advanced single chip CMOS 4-bit micro-controller. It contains 8K-byte ROM, 500-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function. EM73866 also contains 6 interrupt sources, 2 input port, 7 bidirection ports, Max LCD display (32x4), built-in watch-dog-timer and high speed Timer/Counter. EM73866 has plentiful operating modes (SLOW, IDLE, STOP) intended to reduce the power consumption.

FEATURES

 Operation voltage : 2.2V ~ 6V.  Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz,

 Instruction set : 107 powerful instructions.  Instruction cycle time : Up to 2us for 4 MHz (high speed clock).

 ROM capacity : 8192 X 8 bits.  RAM capacity : 500 X 4 bits.  Input port : 2 ports (P0, P2), P0(0..3), P2 (0..3), IDLE/STOP releasing function are available

 Bidirection port : 7 ports (P1, P3, P4, P5, P6, P7, P8). P4.1 is shared with HTC external input.

 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse width

 Built-in watch-dog-timer : It is available by mask option.  Built-in time base counter : 22 stages.  Built-in high Speed Timer/Counter : Could be timer, melody out or pulse width measurement.  Subrountine nesting : Up to 13 levels.

 Interrupt : External . . . . . 2 input interrupt sources.

 LCD driver : Max 32 X 4 dots, 1/4, 1/3, 1/2 static four kinds of duty selectable, 1/2 or 1/3 bias choice

 Power saving function :SLOW, IDLE, STOP operation mode.  Package type : Chip form 76 pins.

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

connect an external resistor) by mask option and high-frequency oscillator is RC (Connect an external resistor) or Crystall oscillator.

244 µs for 32768 Hz (low speed clock). 122 µs for 32768 Hz (low speed clock with frequency Double)

by mask option.

IDLE/STOP releasing function are available by mask option for P8(0..3).

measurement.

Internal . . . . . . 2 Timer overflow interrupts, 1 time base interrupt.

1 high speed counter overflow interrupt.

and dynamic resistor available.

APPLICATIONS

EM73866 is suitable for application in family applicance, consumer products, hand held games, calculator and the toy controller.

* This specification are subject to be changed without notice.

12.29.1999

Page 2

FUNCTION BLOCK DIAGRAM

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

LXOUT

Generator

ROM

LXIN

Clock (slow)

System Control

Data Bus

Timing

Generator

Data pointer

ACC

ALU

Flag

ZCS

I/O Control

P1.0 - P1.1

Stack pointer

P3.0 - P3.3

P6.0 - P6.1

Sleep Mode

Control

Stack

RAM

WAKEUPA,C

P8(0,2)(INT1,0)/

P0(0..3)/WAKEUP(0..3) P2(0..3)/WAKEUP(4..7)

P4(0..3) P5(0..3)

/WAKEUPD

P7.0

VSS

/WAKEUP(P8..11)

/WAKEUP(P12..15)

TEST

RLC

Generator

(TA,TB)

XINXOUT

Clock

Instruction Decoder Instruction Register

RESET

VDD

Reset

Control

Interrupt

Control

Time

Timer/Counter

Base

V1 V2 V3

LCD

SEG0~SEG29

COM0~COM3

PIN DESCRIPTIONS

Symbol Pin-type Function

RESET RESET-A System reset input signal, low active

XIN/RCOSC OSC-A/OSC-H1 Crystal/RC clock source connecting pin XOUT OSC-A Crystal connecting pin LXIN OSC-B/OSC-H2 Crystal/RC connecting pin for low speed clock source LXOUT OSC-B Crystal connecting pin for low speed clock source P0(0..3)/WAKEUP(0..3) INPUT-K 8-bit input pins with IDLE/STOP releasing function P2(0..3)/WAKEUP(4..7) mask option : wakeup enable, negative edge release, pull-up

P1(0..1) I/O-Z 2-bit bidirection I/O pins with high current function source

Power supply (+) Power supply (-)

mask option : none

pull-up

wakeup enable, negative edge release, none wakeup enable, positive edge release, pull-down wakeup enable, positive edge release, none wakeup disable, pull-up wakeup disable, pull-down wakeup disable, none

mask option 1: initial low

initial high

mask option 2: low current push-pull

normal current push-pull high current push-pull NMOS open-drain PMOS open-drain

* This specification are subject to be changed without notice.

12.29.1999

Page 3

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PIN DESCRIPTIONS

Symbol Pin-type Function

P3(0,1)/SEG(30,31) I/O-O 2-bit bidirection I/O pins are shared with LCD segment pin

mask option : segment pin

low current push-pull normal current push-pull open-drain

P3(2,3), P6(0,1) I/O-N 4-bit bidirection I/O pins

mask option : low current push-pull

normal current push-pull open-drain

P4.0/SOUND/WAKEUP8 I/O-R1 1-bit bidirection I/O with inverse sound output and IDLE/STOP

releasing function. mask option : wakeup disable, low current push-pull

wakeup disable, normal current push-pull wakeup disable, high current push-pull wakeup disable, open-drain wakeup disable, SOUND wakup enable, low current push-pull wakeup enable, normal current push-pull

P4.1(TRGH)/WAKEUP9 I/O-R1 1-bit bidirection I/O with HTC output and IDLE/STOP releasing

function. mask option : wakeup disble, low current push-pull

wakeup disable, normal current push-pull wakeup disable, high current push-pull wakeup disable, NMOS open-drain wakeup disable, PMOS open-drain wakeup enable, low current push-pull wakeup enable, normal current push-pull

P4(2,3)/WAKEUP(10,11) I/O-R1 2-bit bidirection I/O pins with IDLE/STOP releasing function

mask option : wakeup disble, low current push-pull

P5(0..3)/WAKEUP(12..15) I/O-S 4-bit bidirection I/O pins with IDLE/STOP releasing function

mask option : wakeup disable, low current push-pull

wakeup disable, normal current push-pull wakeup disable, open-drain wakeup enable, low current push-pull

wakeup enable, normal current push-pull P7.0/TRGA/WAKEUPD I/O-S 2-bit bidirection I/O pins with timer/counterA, B external intput and P8.1/TRGB/WAKEUPB IDLE/STOP releasing function

mask option : wakeup disable, low current push-pull

wakeup disable, normal current push-pull

wakeup disable, open-drain

wakeup enable, low current push-pull

wakeup enable, normal current push-pull

* This specification are subject to be changed without notice.

12.29.1999

Page 4

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PIN DESCRIPTIONS

Symbol Pin-type Function

P8.0(INT1)/WAKEUPA I/O-S 2-bit bidirection I/O pins with interrupt 0, 1 external intput and P8.2(INT0)/WAKEUPC IDLE/STOP releasing function

mask option : wakeup disable, low current push-pull

wakeup disable, normal current push-pull

wakeup disable, open-drain

wakeup enable, low current push-pull

wakeup enable, normal current push-pull COM(0..3) -- LCD common pins SEG(0..29) -- LCD segment pins V1, V2, V3, V

RLC

-- LCD bias pins

EM73866

FUNCTION DESCRIPTIONS

PROGRAM ROM ( 8K X 8 bits )

8 K x 8 bits program ROM contains user's program and some fixed data. The basic structure of the program ROM may be categorized into 5 partitions.

1. Address 0000h: Reset start address.

2. Address 0002h - 000Ch : 6 kinds of interrupt service routine entry addresses.

3. Address 000Eh - 0086h : SCALL subroutine entry address, only available at 000Eh, 0016h, 001Eh, 0026h, 002Eh, 0036h, 003Eh, 0046h, 004Eh, 0056h, 005Eh, 0066h, 006Eh, 0076h, 007Eh, 0086h.

4. Address 0000h - 07FFh : LCALL subroutine entry address.

5. Address 0000h - 1FFFh : Except used as above function, the other region can be used as user's program and

data region.

* This specification are subject to be changed without notice.

12.29.1999

Page 5

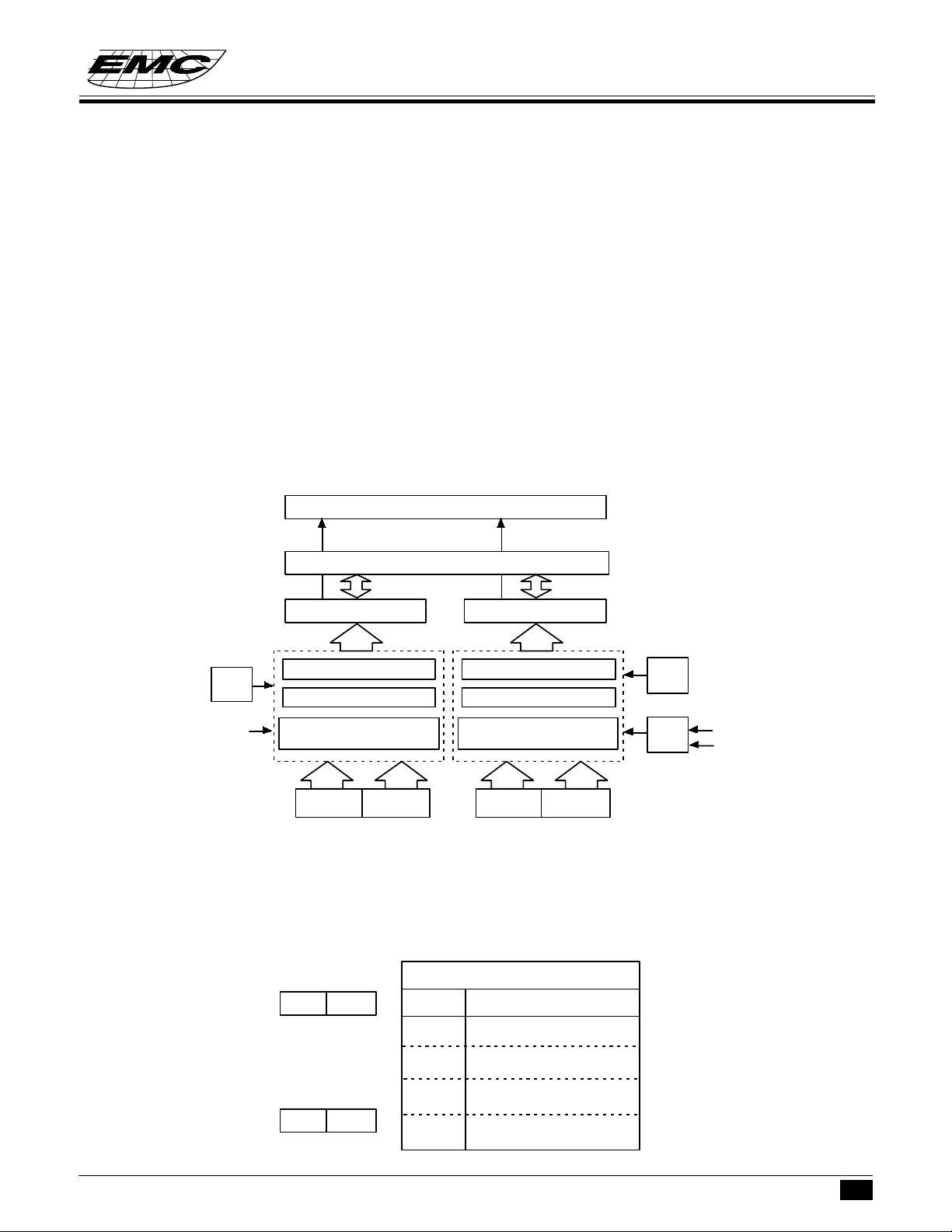

address 8192 x 8 bits 0000h

0002h 0004h 0006h 0008h 000Ah 000Ch 000Eh 0086h

07FFh 0800h

0FFFh 1000h

1FFFh

Reset start address INT0 ; External interrupt service routine entry address

HTCI; High speed counter interrupt service routine entry address TRGA; Timer/counterA interrupt serice routine entry address

TRGB; Timer/counterA interrupt serice routine entry address TBI; Time base interrupt serice routine entry address INT1; External interrupt serice routine entry address

SCALL, subroutine call entry address

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Subroutine call entry address designated by [LCALL a] instruction

Data table for [LDAX],[LDAXI] instruction

DP is a 12-bit data register that stores the program ROM address as pointer for the ROM code data. User has to initially load ROM address into DP with instructions "STADPL", and "STADPM, STADPH", then then to obtain the lower nibble of ROM code data by instruction "LDAX" and higher nibble by instruction "LDAXI"

PROGRAM EXAMPLE: Read out the ROM code of address 1777h by table-look-up instruction.

LDIA #07h; STADPL ; [DP] STADPM ; [DP] STADPH ; [DP]

← 07h

← 07h, Load DP=777h

: LDL #00h; LDH #03h;

LDAX ; ACC ← 6h STAMI ; RAM[30] ← 6h LDAXI ; ACC ← 5h STAM ; RAM[31] ← 5h

; ORG 1777h DATA 56h;

DATA RAM ( 500-nibble )

A total 500-nibble data RAM is available from address 000 to 1FFh. DATA RAM includes the zero page region, stacks and data areas.

* This specification are subject to be changed without notice.

12.29.1999

Page 6

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

: : :

: : : : : :

Increment

Level 0 Level 4 Level 8

Level 12

Zero-page

Level 1 Level 5 Level 9

Level 2 Level 6

Level 10

Increment

Level 3 Level 7

Level 11

Bank 0

Bank 1

Address 000h - 00Fh 010h - 01Fh 020h - 02Fh

0C0h - 0CFh

0D0h - 0DFh

0E0h - 0EFh

0F0h - 0F3h

100h - 10Fh 110h - 11Fh

1F0h - 1FFh

ZERO- PAGE:

From 000h to 00Fh is the zero-page location. It is used as the zero-page address mode pointer for the instruction of "STD #k,y; ADD #k,y; CLR y,b; CMP k,y".

PROGRAM EXAMPLE: To write immediate data "07h" to RAM [03] and to clear bit 2 of RAM [0Eh].

STD #07h, 03h ; RAM[03] ← 07h

CLR 0Eh,2 ; RAM[0Eh]

← 0

STACK:

There are 13 (maximum) stack levels that user can use for subroutine (including interrupt and CALL). User can assign any level be the starting stack by providing the level number to stack pointer (SP). When an instruction (CALL or interrupt) is invoked, before enter the subroutine, the previous PC address is saved into the stack until returned from those subroutines, the PC value is restored by the data saved in stack.

SPECIAL PURPOSE REGISTER:

The instruction concerning with "Timer/counter", "Data Pointer" and "Stack Pointer" at instruction table 14

be sure the RAM bank must be set in Bank0.

DATA AREA:

Except the area used by user's application, the whole RAM can be used as data area for storing and loading general data.

ADDRESSING MODE

The 500 nibble data memory consists of two banks (bank 0 and bank 1). There are 244x4 bits (address 000h~0F3h) in bank 0 and 256x4 bits (address 100h~1FFh) in bank 1.

* This specification are subject to be changed without notice.

12.29.1999

Page 7

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

The bank is selected by P9.3. When P9.3 is cleared to "0", the bank 0 is selected. When P9.3 is set to "1", the bank 1 is selected. There are 3 addressing mode to access the data memory, namely -

(1) Indirect addressing mode:

The address in the certain bank is specified by the HL registers.

P9.3 HR LR

RAM address

PROGRAM EXAMPLE: Load the data of RAM address "143h" to RAM address "032h".

SEP P9,3 ; P9.3← 1 LDL #3h ; LR← 3 LDH #4h ; HR← 4 LDAM ; Acc← RAM[143h] CLP P9,3 ; P9.3← 0 LDL #2h ; LR← 2 LDH #3h ; HR← 3 STAM ; RAM[032h]← Acc

(2) Direct addressing mode:

The address in the bank is directly specified by 8 bits code of the second byte in the instruction field.

instruction field

xxxxxxxx

P9.3

RAM address

PROGRAM EXAMPLE: Load the data of RAM address "143h" to RAM address "023h".

SEP P9,3 ; P9.3← 1 LDA 43 h ; Acc← RAM[143h] CLP P9,3 ; P9.3← 0 STA 23h ; RAM[023h]← Acc

(3) Zero-page addressing mode:

The address is the lower 4 bits code of the second byte in the instruction field.This kind of instructions are only available for the zero page. Area in bank0, even the P9.3 is set.

xxxxxxxx

instruction field

yyyy

RAM address

PROGRAM EXAMPLE: Write immediate "0Fh" to RAM address "005h".

STD #0Fh, 05h ; RAM[05h]← 0Fh

* This specification are subject to be changed without notice.

0000

yyyy

12.29.1999

Page 8

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PROGRAM COUNTER (8K ROM)

Program counter ( PC ) is composed by a 13-bit counter, which indicates the next executed address for the instruction of program ROM instruction. For BRANCH and CALL instructions, PC is changed by instruction indicated. PC can only indicate the address from 0000h-1FFFh.

(1) Branch instruction:

SBR a

Object code: 00aa aaaa

Condition: SF=1; PC ← PC

PC Hold original PC value+1 aaaaaa

SF=0; PC← PC +1( branch condition not satisified)

PC Original PC value + 1

( branch condition satisified )

12-6.a

LBR a

Object code: 1100 aaaa aaaa aaaa

Condition: SF=1; PC ← PC

Hold

a a a a a a aaaaaa

( branch condition satisified )

12.a

SF=0; PC← PC +2( branch condition not satisified)

PC Original PC value + 2

SLBR a

Object code: 0101 0101 1100 aaaa aaaa aaaa (a:1000h~1FFFh)

0101 0111 1100 aaaa aaaa aaaa (a:0000h~0FFFh)

Condition: SF=1; PC ← a ( branch condition satisified )

PCaaaaaaaaaaaa a

SF=0 ; PC ← PC + 3 ( branch condition not satisified )

PC Original PC value + 3

(2) Subrountine instruction:

SCALL a

Object code: 1110 nnnn

Condition : PC ← a ; a=8n+6 ; n=1..Fh ; a=86h, n=0

PC00000aaaaa aaa

* This specification are subject to be changed without notice.

12.29.1999

Page 9

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

LCALL a

Object code: 0100 0aaa aaaa aaaa

Condition: PC ← a

PC00aaaaaaaaaa a

RET

Object code: 0100 1111

Condition: PC ← STACK[SP]; SP + 1

PC The return address stored in stack

RT I

Object code: 0100 1101

Condition : FLAG. PC ← STACK[SP]; EI ← 1; SP + 1

PC The return address stored in stack

EM73866

(3) Interrupt acceptance operation:

When an interrupt is accepted, the original PC is pushed into stack and interrupt vector will be loaded into PC,The interrupt vectors are as following:

INT0 (External interrupt from P8.2)

PC0000000000010

TRGH (High speed counter interrupt)

PC0000000000100

TRGA (Timer A overflow interrupt)

PC0000000000110

TRGB (Time B overflow interrupt)

PC0000000001000

TBI (Time base interrupt)

PC0000000001010

INT1 (External interrupt from P8.0)

PC0000000001100

(4) Reset operation:

PC000000000000 0

* This specification are subject to be changed without notice.

12.29.1999

Page 10

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

(5) Other operations:

For 1-byte instruction execution: PC + 1 For 2-byte instruction execution: PC + 2 For 3-byte instruction execution: PC + 3

ACCUMULATOR

Accumulator is a 4-bit data register for temporary data. For the arithematic, logic and comparative opertion .., ACC plays a role which holds the source data and result.

FLAGS

There are 3 kinds of flag, CF ( Carry flag ), ZF ( Zero flag ), SF ( Status flag ), these 3 1-bit flags are affected

by the arithematic, logic and comparative .... operation.

All flags will be put into stack when an interrupt subrountine is served, and the flags will be restored after RTI instruction executed.

(1) Carry Flag ( CF )

The carry flag is affected by following operation : a. Addition : CF as a carry out indicator, when the addition operation has a carry-out, CF will be "1", in

another word, if the operation has no carry-out, CF will be "0".

b. Subtraction : CF as a borrow-in indicator, when the subtraction operation must has a borrow-in, the CF

will be "0", in another word, if no borrow-in, CF will be "1".

c. Comparision : CF is as a borrow-in indicator for Comparision operation as the same as subtraction

operation.

d. Rotation : CF shifts into the empty bit of accumulator for the rotation and holds the shift out data after

rotation.

e. CF test instruction : For TFCFC instruction, the content of CF sends into SF then clear itself "0".

For TTSFC instruction, the content of CF sends into SF then set itself "1".

(2) Zero Flag ( ZF )

ZF is affected by the result of ALU, if the ALU operation generate a "0" result, the ZF will be "1", otherwise, the ZF will be "0".

(3) Status Flag ( SF )

The SF is affected by instruction operation and system status.

a. SF is initiated to "1" for reset condition.

b. Branch instruction is decided by SF, when SF=1, branch condition will be satisified, otherwise, branch

condition will not be satisified by SF = 0.

PROGRAM EXAMPLE:

Check following arithematic operation for CF, ZF, SF

* This specification are subject to be changed without notice.

12.29.1999

Page 11

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

CF ZF SF LDIA #00h; - 1 1 LDIA #03h; - 0 1 ADDA #05h; - 0 1 ADDA #0Dh; - 0 0 ADDA #0Eh; - 0 0

ALU

The arithematic operation of 4-bit data is performed in ALU unit. There are 2 flags can be affected by the result of ALU operation, ZF and SF. The operation of ALU can be affected by CF only.

ALU STRUCTURE

ALU supported user arithematic operation function, including : addition, subtraction and rotaion.

DATA BUS

ALU

ZF CF SF

ALU FUNCTION

(1) Addition:

For instruction ADDAM, ADCAM, ADDM #k, ADD #k,y .... ALU supports additional function.

The additional operation can affect CF and ZF. For additional operation, if the result is "0", ZF will be "1", otherwise, not equal "0", ZF will be "0". When the addition operation has a carry-out, CF will be "1", otherwise, CF will be "0".

EXAMPLE:

Operation Carry Zero

3+4=7 0 0 7+F=6 1 0 0+0=0 0 1 8+8=0 1 1

(2) Subtraction:

For instruction SUBM #k, SUBA #k, SBCAM, DECM... ALU supports user subtraction function. The subtraction operation can affect CF and ZF, For subtraction operation, if the result is negative, CF will be "0", it means a borrow out, otherwise, if the result is positive, CF will be "1". For ZF, if the result of subtraction operation is "0", the ZF will be "1", otherwise, ZF will be "1".

* This specification are subject to be changed without notice.

12.29.1999

Page 12

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

EXAMPLE:

Operation Carry Zero 8-4=4 1 0 7-F= -8(1000) 0 0 9-9=0 1 1

(3) Rotation:

There are two kinds of rotation operation, one is rotation left, the other is rotation right. RLCA instruction rotates Acc value to left, shift the CF value into the LSB bit of Acc and the shift out data will be hold in CF.

MSB LSB

ACC

RRCA instruction operation rotates Acc value to right, shift the CF value into the MSB bit of Acc and the shift out data will be hold in CF.

MSB LSB

ACC

PROGRAM EXAMPLE: To rotate Acc right and shift a "1" into the MSB bit of Acc.

TTCFS; CF ← 1

RRCA; rotate Acc right and shift CF=1 into MSB.

HL REGISTER

HL register are two 4-bit registers, they are used as a pair of pointer for the address of RAM memory and also 2 independent temporary 4-bit data registers. For some instruction, L register can be a pointer to indicate the pin number (Port4).

HL REGISTER STRUCTURE

3 2 1 0

H REGISTER

* This specification are subject to be changed without notice.

L REGISTER

12.29.1999

Page 13

HL REGISTER FUNCTION

(1) For instruction : LDL #k, LDH #k, THA, THL, INCL, DECL, EXAL, EXAH, HL register used as a

temporary register.

PROGRAM EXAMPLE: Load immediate data "5h" into L register, "Dh" into H register.

LDL #05h; LDH #0Dh;

(2) For instruction LDAM, STAM, STAMI.., HL register used as a pointer for the address of RAM memory.

PROGRAM EXAMPLE: Store immediate data #Ah into RAM of address 35h.

LDL #5h; LDH #3h;

STDMI #0Ah; RAM[35] ← Ah

(3) For instruction : SELP, CLPL, TFPL, L regieter be a pointer to indicate the bit of I/O port.

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

When LR = 0 indicate P4.0

PROGRAM EXAMPLE: To set bit 0 of Port4 to "1"

LDL #00h;

SEPL ; P4.0 ← 1

STACK POINTER (SP)

Stack pointer is a 4-bit register which stores the present stack level number. Before using stack, user must set the SP value first, CPU will not initiate the SP value after reset condition. When a new subroutine is accepted, the SP will be decreased one automatically, in another word, if returning from a subroutine, the SP will be increased one. The data transfer between ACC and SP is by instruction of "LDASP" and "STASP". When "LDASP" and "STASP" are used, Port 9.3 must be set to 0.

DATA POINTER (DP)

Data pointer is a 12-bit register which stores the address of ROM can indicate the ROM code data specified by user (refer to data ROM).

When "LDADPL", "LDADPM" and "LDADPH" are used, Port 9.3 must be set to 0.

CLOCK AND TIMING GENERATOR

The clock generator is supported by a dual clock system, the clock source comes from crystal (resonator) or RC oscillation for both high or low frequency osc. are decided by mask option.

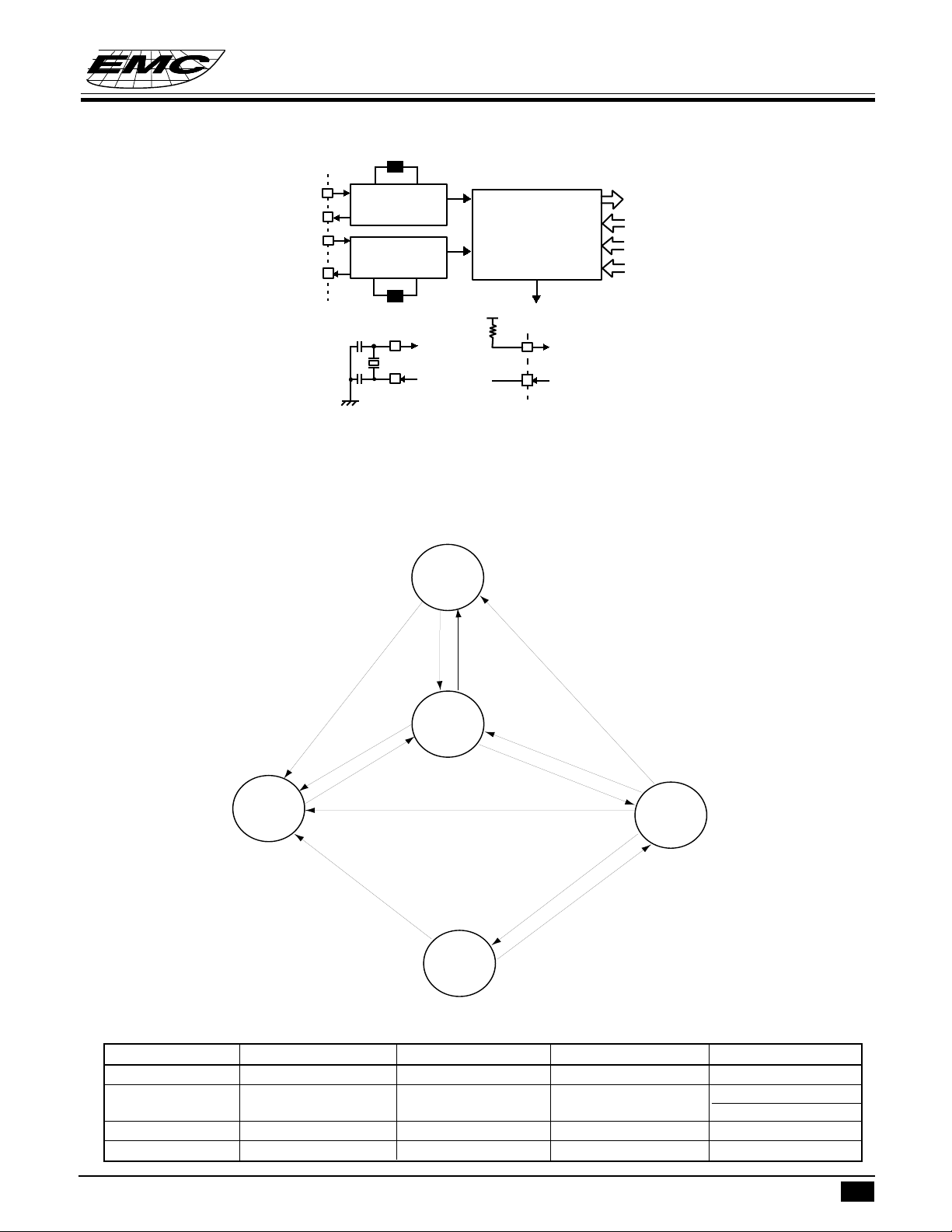

CLOCK GENERATOR STRUCTURE

There are two clock generator for system clock control. P14 is the status register for the CPU status. P16, P19 and P22 are the system clock mode control ports.

* This specification are subject to be changed without notice.

12.29.1999

Page 14

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Mask option for choose Crystal or RC oscillator

EM73866

XIN

XOUT

LXIN

LXOUT

High-frequency

generator

Low-frequency

generator

Mask option for choose Crystal or RC oscillator

Crystal connection or

(

Res=100K for high frequency osc

LXIN/XIN

LXOUT/XOUT

/ Res=1M for slow frequency osc)

System clock

mode control

System control

Res

RC connection

P14

P16

P19

P22

LXIN/XIN

LXOUT/XOUT

SYSTEM CLOCK MODE CONTROL

The system clock mode controller can start or stop the high-frequency and low-frequency clock oscillator and switch between these two basic clocks. EM73866 has four operation modes (NORMAL, SLOW, IDLE and STOP operation modes).

STOP

operation

mode

High osc : stopped

Low osc : stopped

Command

NORMAL

operation

mode

Reset

IDLE (CPU stops)

(P16)

High osc : oscillating Low osc : oscillating

Command

(P22)

High osc : stopped Low osc : oscillating

Command

(P22)

Command

(P16)

(P19)

I/O or internal timer wakeup

SLOW

operation

mode

High osc : stopped Low osc : oscillating

RESET

operation

Reset

I/O wakeup

Reset

Reset release

Operation Mode Oscillator System Clock Available function One instruction cycle

NORMAL High, Low frequency High frequency clock LCD, High speed timer 8 / fc SLOW Low frequency Low frequency clock LCD, High speed timer 8 / fs

8 / fs x 2 (freq.Double) IDLE Low frequency CPU stops LCD STOP None CPU stops All disable -

* This specification are subject to be changed without notice.

12.29.1999

Page 15

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

NORMAL OPERATION MODE

The 4-bit µc is in the NORMAL operation mode when the CPU is reseted. This mode is a dual clock system (high-frequency and low-frequency clocks oscillating). It can be changed to SLOW or STOP operation mode by the command register (P22 or P16). LCD display and high speed timer/counter with melody output are available for the NORMAL operation mode.

SLOW OPERATION MODE

The SLOW operation mode is a single clock system (low-frequency clock oscillating). It can be changed to the DUAL operation mode by the command register (P22), STOP operation mode by P16 and IDLE operation mode by P19. LCD display and high speed timer/counter with melody output are available for the SLOW operation mode.

32 1 0 Initial value : 0000

P22

* SOM

SOM Low-frequency With low-frequency double

000 2^3/LXIN RC solw to normal 2^3/LXIN RC solw to normal

001 2^4/LXIN RC solw to normal 2^4/LXIN RC solw to normal 010 2^11/LXIN X'tal slow to normal 2^11/LXIN X'tal slow to normal 011 2^12/LXIN X'tal slow to normal 2^12/LXIN X'tal slow to normal 1** normal to slow normal to slow

P14 32 10 Initial value : *000

* WKS LFS CPUS

LFS Low-frequency status CPUS CPU status

0 LXIN source is not stable 0 NORMAL operation mode 1 LXIN source is stable 1 SLOW operation mode

WKS Wakeup status

0 Wakeup not by internal timer 1 Wakeup by internal timer

Port14 is the status register for CPU. P14.0 (CPU status) and P14.1 (Low-frequency status) are read-only bits. p14.2 (wakeup status) will be set to "1" when CPU is wake-up by internal timer. P14.2 will be cleared to "0" when user out data to P14.

IDLE OPERATION MODE

The IDLE operation mode suspends all SLOW operations except for the low-frequency clock and LCD driver. It retains the internal status with low power consumption without stopping the clock function and LCD display. LCD display is available for the IDLE operation mode. The IDLE operation mode will be wakeup and return to the SLOW operation mode by the internal timing generator or I/O pins ( P0(0..3)/WAKEUP(0..3), P2(0..3)/WAKEUP(4..7), P4(0..3)/WAKEUP(8..11), P5(0..3)/WAKEUP(12..15), P7.0/WAKEUPD or P8 (0..2)/WAKEUP(A..C) ).

* This specification are subject to be changed without notice.

12.29.1999

Page 16

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

P19

32 10 Initial value : 0000

IDME SIDR

IDME Enable IDLE mode SIDR Select IDLE releasing condition 0 1 Enable IDLE mode 0 0 P0(0..3), P2(0..3), P4(0..3), P5(0..3), P7.0, P8(0..2) pin input * * Reserved 0 1 P0(0..3), P2(0..3), P4(0..3), P5(0..3), P7.0, P8(0..2) pin input and 1 sec

signal (0.5 sec with frequency Double)

1 0 P0(0..3), P2(0..3), P4(0..3), P5(0..3), P7.0, P8(0..2) pin input and 0.5

sec signal (0.25 sec with frequency Double)

1 1 P0(0..3), P2(0..3), P4(0..3), P5(0..3), P7.0, P8(0..2) pin input and 15.

625 ms signal (7.8 ms with frequency Double)

STOP OPERATION MODE

The STOP operation mode suspends system operation and holds the internal status immediately before the suspension with low power consumption. This mode will be released by reset or I/O pins (P0(0..3)/, P2 (0..

3), P4(0..3), P5(0..3), P7.0 or P8(0..2)).

LCD display and high speed timer/counter with melody output are disabled in STOP mode.

Initial value : 0000 P16 3 2 1 0

SWWT Set wake up

Stop wake up time ( go to NORMAL )

1 0 0 2^9/XIN for RC osc.

1 1 1 2^19/XIN for Crystal osc.

1 0 1 2^10/XIN for RC osc.

1 1 0 2^18/XIN for Crystal osc.

TIME BASE INTERRUPT (TBI )

The time base can be used to generate a fixed frequency interrupt. There are 8 kinds of frequencies can be selected by setting P25.

P25 3 2 1 0

initial value : 0000

Interrupt Rate

P25 Low-frequency With low-frequency double

NORMAL mode SLOW mode NORMAL mode SLOW mode 0 0 x x disable disable disable disable 0 1 0 0 LXIN / 2

Hz Reserved LXIN / 22 Hz Reserved 0 1 0 1 LXIN / 24 Hz Reserved LXIN / 23 Hz Reserved 0 1 1 0 LXIN / 25 Hz Reserved LXIN / 24 Hz Reserved 0 1 1 1 LXIN / 2

Hz LXIN / 2

1 1 0 0 LXIN / 21 Hz Reserved LXIN / 2

Hz LXIN / 2

Hz Reserved

1 1 0 1 LXIN / 26 Hz LXIN / 26 Hz LXIN / 25 Hz LXIN / 25 Hz 1 1 1 0 LXIN / 28 Hz LXIN / 28 Hz LXIN / 27 Hz LXIN / 27 Hz 1 1 1 1 LXIN / 2

Hz LXIN / 2

Hz LXIN / 29 Hz LXIN / 29 Hz

1 0 x x Reserved Reserved Reserved Reserved

* This specification are subject to be changed without notice.

12.29.1999

Page 17

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

TIMER / COUNTER (TIMERA, TIMERB)

Timer/counters can support user three special functions:

1. Even counter

2. Timer.

3. Pulse-width measurement.

These three functions can be executed by 2 timer/counter independently. For timerA, the counter data is saved in timer register TAH, TAM, TAL, which user can set counter initial value and read the counter value by instruction "LDATAH(M,L), STATAH(M,L)" and timer register is TBH, TBM, TBL and W/R instruction "LDATBH (M,L), STATBH (M,L)".

The basic structure of timer/counter is composed by two same structure counter, these two counters can be set initial value and send counter value to timer register, P28 and P29 are the command ports for timerA and timer B, user can choose different operation mode and different internal clock rate by setting these two ports. When timer/counter overflow, it will generate a TRGA(B) interrupt request to interrupt control unit.

INTERRUPT CONTROL

TRGB request

12 BIT COUNTER

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

CONTROL

TMSB IPSB

P8.1/

TRGB

MUX

internal clock high speed timer/counter

P7.0/

TRGA

internal clock

TRGA request

12 BIT COUNTER

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

P28

CONTROL

TMSA

DATA BUS

IPSA

P29

TIMER/COUNTER CONTROL

P8.1/TRGB, P7.0/TRGA are the external timer inputs for timerB and timerA, they are used in event counter and pulse-width measurement mode. Timer/counter command port: P28 is the command port for timer/counterA and P29 is for the timer/ counterB.

Port 28

3 2 1 0 TMSA IPSA

Initial state: 0000

TIMER/COUNTER MODE SELECTION

TMSA (B) Function description

0 0 Stop

0 1 Event counter mode

Port 29

3 2 1 0

TMSB

Initial state: 0000

IPSB

1 0 Timer mode

1 1 Pulse width measurement mode

* This specification are subject to be changed without notice.

12.29.1999

Page 18

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

INTERNAL PULSE-RATE SELECTION

IPSA Low-frequency With low-frequency double

NORMAL mode SLOW mode NORMAL mode SLOW mode 0 0 LXIN/2 0 1 LXIN/2 1 0 LXIN/211 Hz LXIN/211 Hz LXIN/210 Hz LXIN/210 Hz 1 1 LXIN/215 Hz LXIN/215 Hz LXIN/214 Hz LXIN/214 Hz

IPSB Low-frequency With low-frequency double

NORMAL mode SLOW mode NORMAL mode SLOW mode 0 0 Depend on high speed timer/counter Depend on high speed timer/counter 0 1 LXIN/2 1 0 LXIN/2 1 1 LXIN/213 Hz LXIN/213 Hz LXIN/212 Hz LXIN/212 Hz

Hz Reserved LXIN/22 Hz Reserved

Hz LXIN/27 Hz LXIN/26 Hz LXIN/26 H z

INTERNAL PULSE-RATE SELECTION

Hz LXIN/25 Hz LXIN/24 Hz LXIN/24 Hz

Hz LXIN/29 Hz LXIN/28 Hz LXIN/28 Hz

EM73866

TIMER/COUNTER FUNCTION

Timer/counter A can be programmable for timer, event counter and pulse width measurement. Each timer/ counter can execute any one of these functions independly.

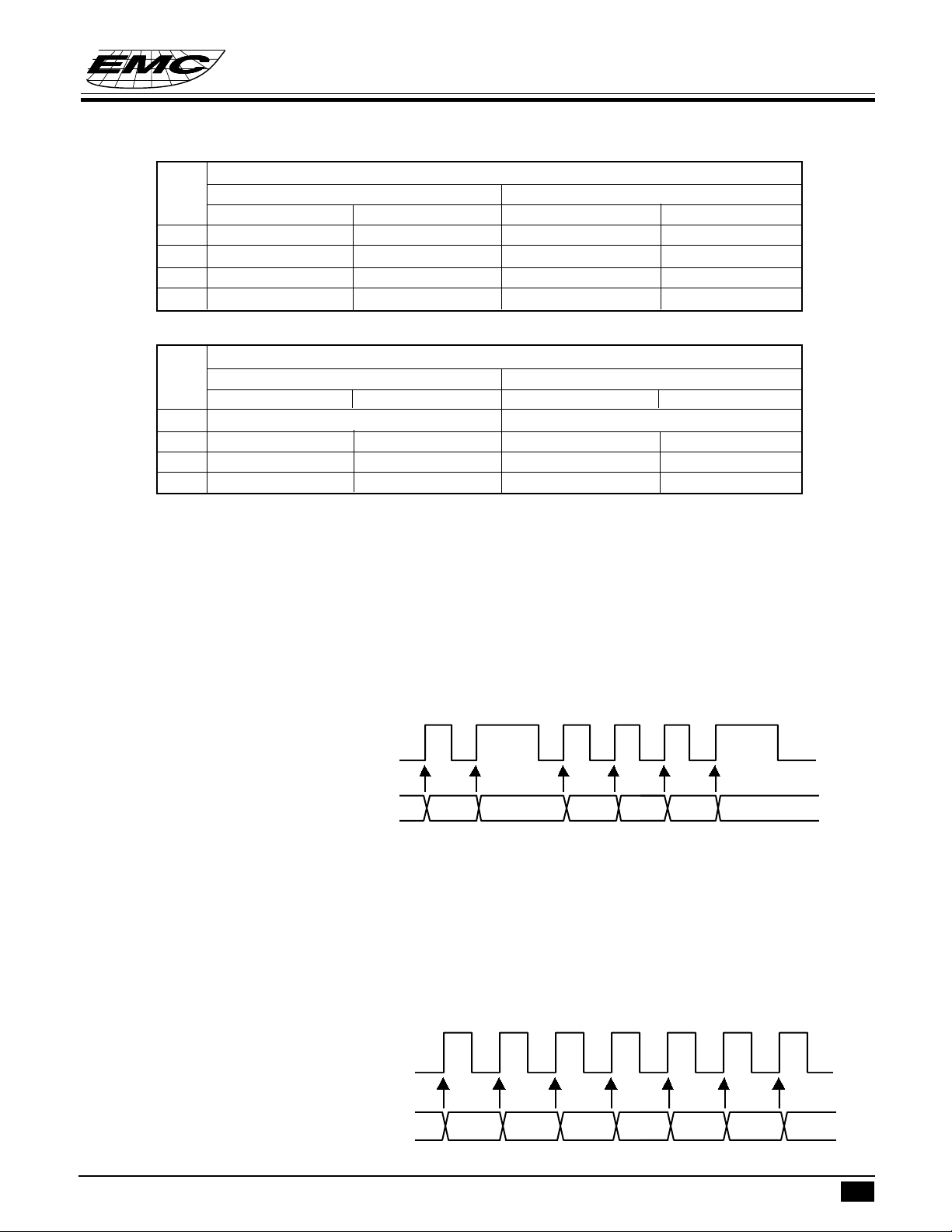

EVENT COUNTER MODE

For event counter mode, timer/counter increases one at any rising edge of P8.1/TRGB for timerB (P7.0/ TRGA for timer A). When timerB (timerA) counts overflow, it will give interrupt control an interrupt request TRGB (TRGA).

P8.1/TRGB (P7.0/TRGA)

TimerB (TimerA) value n n+1 n+2 n+3 n+4 n+5 n+6

PROGRAM EXAMPLE: Enable timerA with P28

LDIA #0100B ; OUTA P28 ; Enable timerA with event counter mode

TIMER MODE

For timer mode, timer/counter increase one at any rising edge of internal pulse. User can choose 4 kinds of internal pulse rate by setting IPSB for timerB (IPSA for timerA). When timer/counter counts overflow, TRGB (TRGA) will be generated to interrupt control unit.

Internal pulse

TimerB (TimerA )value

n n+1 n+2 n+3 n+4 n+5 n+6 n+7

* This specification are subject to be changed without notice.

12.29.1999

Page 19

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PROGRAM EXAMPLE: To generate TRGA interrupt request after 60 ms with system clock LXlN=32KHz

LDIA #0100B ; EXAE ; enable mask 2

EICIL 110111B ; interrupt latch ←0, enable EI

LDIA #0AH ; STATAL ; LDIA #00H ; STATAM ; LDIA #0FH ; STATAH ; LDIA #1000B ; OUTA P28 ; enable timerA with internal pulse rate: LXIN/23 Hz

NOTE: The preset value of timer/counter register is calculated as following procedure.

Internal pulse rate: LXIN/2

; LXIN = 32KHz The time of timer counter count one = 23 /LXIN = 8/32768=0.244ms The number of internal pulse to get timer overflow = 60 ms/ 0.244ms = 245.901= 0F6H The preset value of timer/counter register = 1000H - 0F6H = 0F0AH

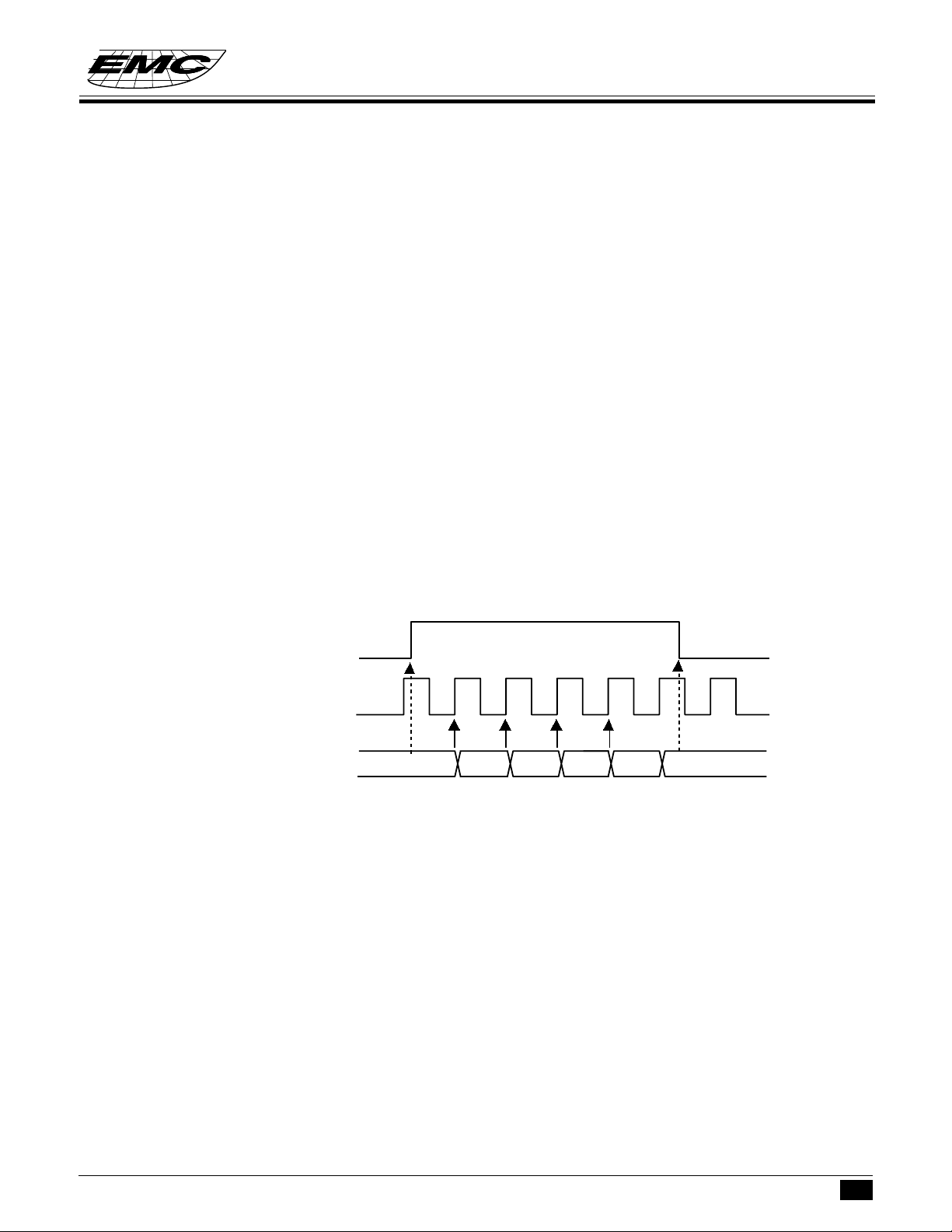

PULSE WIDTH MEASUREMENT MODE

For the pulse width measurement mode, the counter only incresed by the rising edge of internal pulse rate as external timer/counter input (P8.1/TRGB, P7.0/TRGA ), interrupt request will be generated as soon as timer/counter count overflow.

P8.1/TRGB(P8.3/TRGA)

Internal pulse

TimerB(TimerA) value

n n+1 n+2 n+3 n+4 n+5

PROGRAM EXAMPLE: Enable timerA by pulse width measurement mode.

LDIA #1100b ; OUTA P28 ; Enable timerA with pulse width measurement mode.

HIGH SPEED TIMER/COUNTER

EM73866 has one 8-bit high speed timer/counter (HTC). It supports three special functions : auto load timer, melody output and pulse width measurement modes. The HTC is available for the NORMAL and SLOW operation mode.

The HTC can be set initial value and send counter value to counter registers (P11 and P10), P31 is the command port for HTC, user can choose different operation mode and different internal clockrate by setting the port. The timer/counter increase one at the rising edge of internal pulse. The HTC can generate an overflow interrupt (HTCI) when it overflows. The HTCI cannot be generated when the HTC is in the melody mode or disabled.

* This specification are subject to be changed without notice.

12.29.1999

Page 20

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

P4.0/SOUND

P4.1/TRGH

Output data

mask option

HTC

P31(3,2)

P31(1,0)

XIN

Ö2

Input data

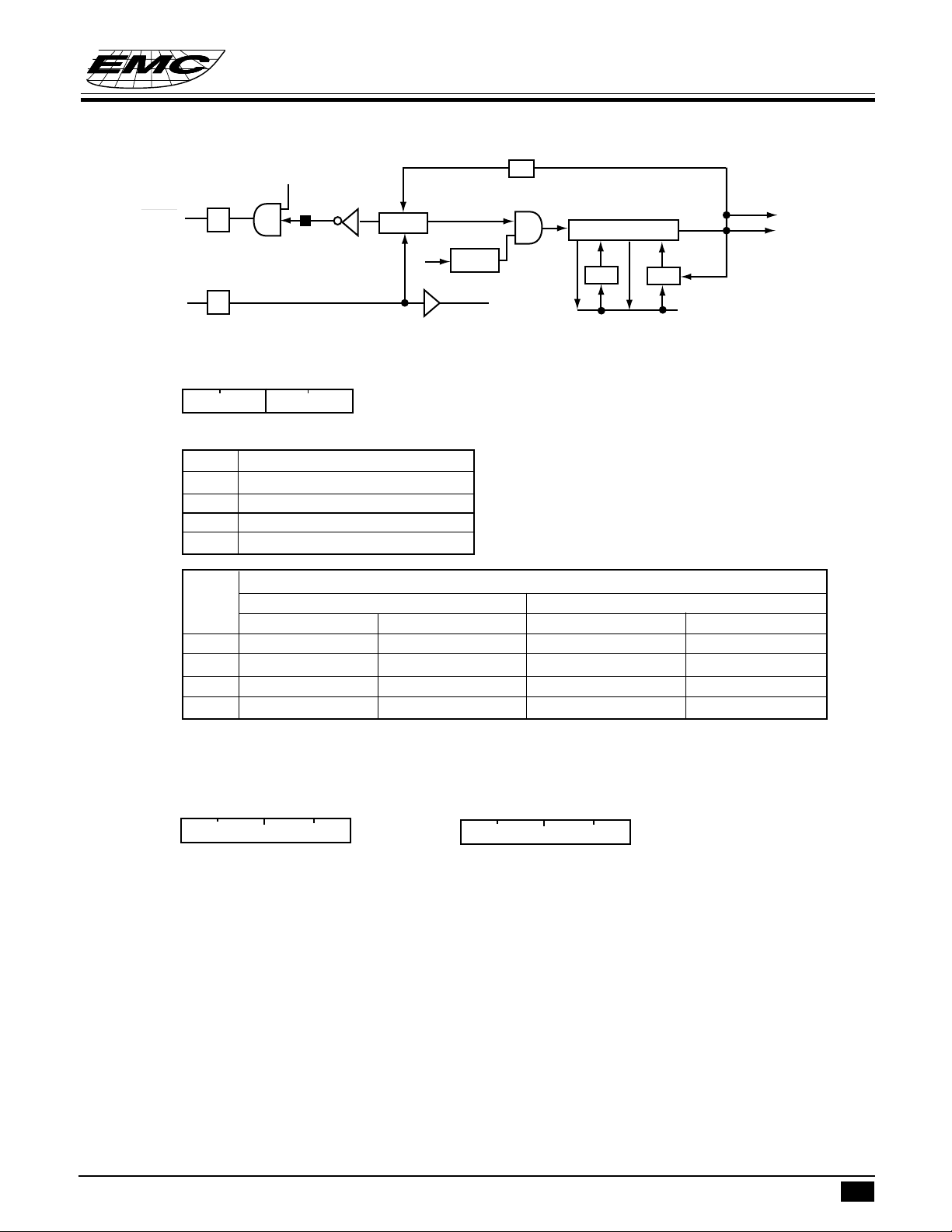

P31 is the command register of the 8-bit high speed timer/counter.

P31 3210 Initial value : 0000

HTMS HIPS

HTMS Mode selection

0 0 Stop 0 1 Auto load timer mode 1 0 Melody mode 1 1 Pulse width measurement mode

CLOCK RATE SELECTION

HIPS Low-frequency With low-frequency double

NORMAL mode SLOW mode NORMAL mode SLOW mode 0 0 LXIN/20 Hz LXIN/20 Hz 2xLXIN Hz 2xLXIN Hz 0 1 LXIN/22 Hz LXIN/22 Hz LXIN/21Hz LXIN/21 Hz 1 0 RCIN/24 Hz Reserved RCIN/23 Hz Reserved 1 1 RCIN/26 Hz Reserved RCIN/25Hz Reserved

8-bit binary counter

P11

P10

Overflow

Reload

Data bus

HTCI interrupt

Timer/counter B

P11 and P10 are the counter registers of the 8-bit high speed timer/counter. P10 is the lower nibble register and P11 is the higher nibble register. (HT is the value of counter registers.)

P11 3210 P10 3210Initial value : 0000 0000 (HT)

Higher nibble register Lower nibble register

* This specification are subject to be changed without notice.

12.29.1999

Page 21

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

** F

=[(XIN/2X)/(100H-HT)]/2, HT=0~255

HTC

** Example : LXIN=32K Hz, HIPS=01, HT=11110000B=0F0H.

⇒F

=[(32K Hz/22)/(100H-0f0H)]/2=256 Hz.

HTC

LDIA #1111B OUTA P11 LDIA #0000B OUTA P10 LDIA #1001B OUTA P31

The value of 8-bit binary up counter can be presetted by P10 and P11. The value of registers can loaded into the HTC when the counter starts counting or occurs overflow. If user write value to the registers before the next overflow occurs, the preset value can be changed. The preset value will be changed when users output the different data to P10 and P11. The count value of HTC can be read from P10 and P11. The value is unstable when user read the value during counting. Thus, user must disable the counter before reading the value. The P4.0/SOUND and SOUND pins will output the squre wave in the melody mode. When the CPU is not in the melody mode, the P4.0/SOUND is high and SOUND is low. The P4.1/RGH pin will be the input pin in the pulse width measurement mode. User must output high to P4.1/ TRGH and then it can be the HTC external input pin. When the HTC is disabled, the P4.1 pin is a normal I/ O pin.

INTERRUPT FUNCTION

There are 6 interrupt sources, 2 external interrupt sources, 4 internal interrupt sources. Multiple interrupts are admitted according the priority.

Type Interrupt source Priority Interrupt Interrupt Program ROM

Latch Enable condition entry address

External External interrupt (INT0) 1 IL5 EI=1 002H Internal High speed timer overflow interrupt(HTCI) 2 IL4 EI=1, MASK3=1 004H Internal TimerA overflow interrupt (TRGA) 3 IL3 EI=1, MASK2=1 006H Internal TimerB overflow interrupt (TRGB) 4 IL2 EI=1, MASK1=1 008H Internal Time base interrupt (TBI) 5 IL1 00AH External External interrupt(INT1) 6 IL0 EI=1,MASK0=1 00CH

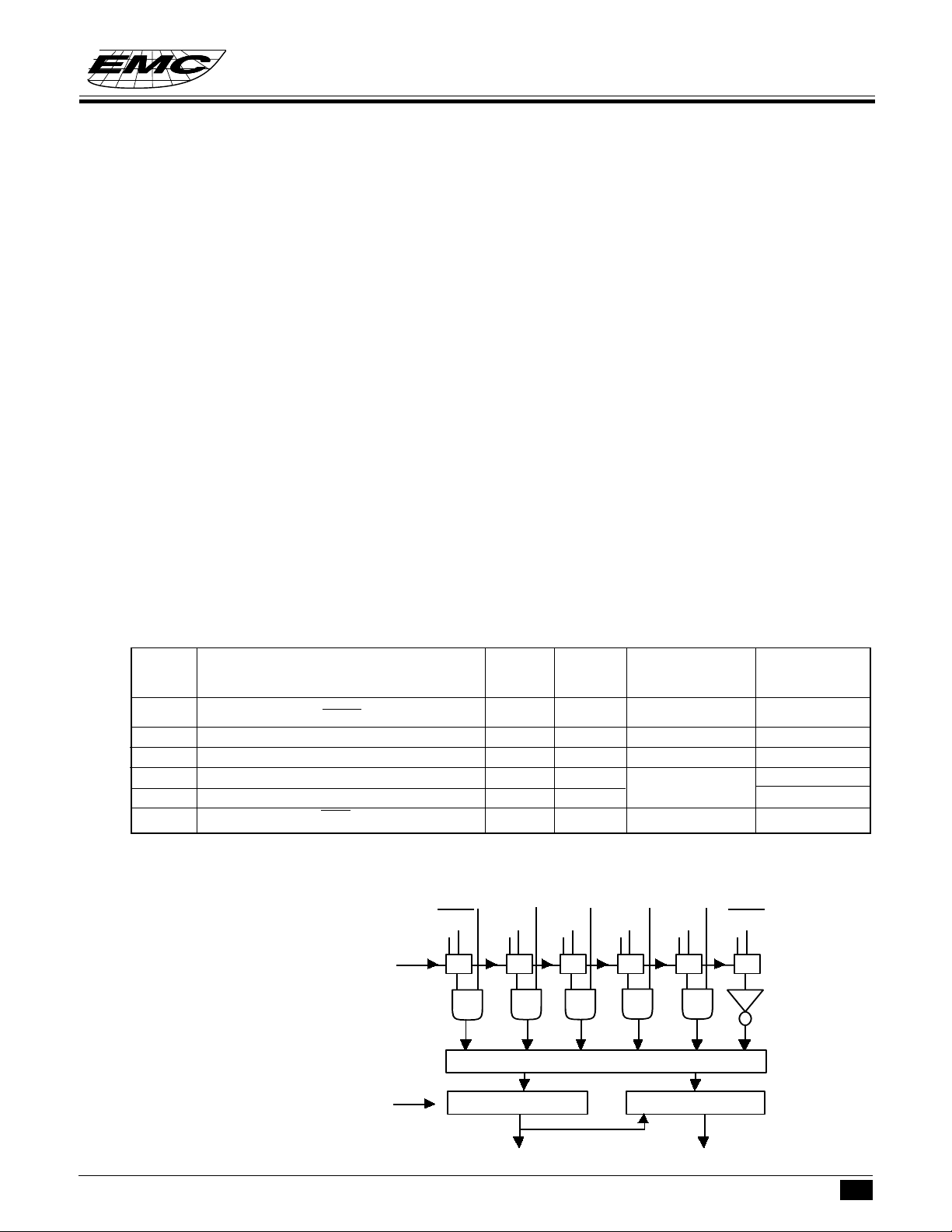

INTERRUPT STRUCTURE

MASK0 MASK1 MASK1 MASK2 MASK3

Reset by system reset and program instruction

Reset by system reset and program

instruction

Set by program instruction

INT1

IL0

TBI

TRGB TRGA

IL1

IL2

Priority checker

HTCI

IL3

Entry address generator

IL4

INT0

IL5

Interrupt request Interrupt entry address

* This specification are subject to be changed without notice.

12.29.1999

Page 22

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Interrupt controller:

IL0-IL5 : Interrupt latch. Hold all interrupt requests from all interrupt sources. ILr can not be

set by program, but can be reset by program or system reset, so IL only can decide which interrupt source can be accepted.

MASK0-MASK3 : Except INT0 ,MASK register can promit or inhibit all interrupt sources.

EI : Enable interrupt Flip-Flop can promit or inhibit all interrupt sources, when inter-

rupt happened, EI is cleared to "0" automatically, after RTI instruction happened, EI will be set to "1" again.

Priority checker: Check interrupt priority when multiple interrupts happened.

INTERRUPT FUNCTION

The procedure of interrupt operation:

1. Push PC and all flags to stack.

2. Set interrupt entry address into PC.

3. Set SF= 1.

4. Clear EI to inhibit other interrupts happened.

5. Clear the IL for which interrupt source has already be accepted.

6. To excute interrupt subrountine from the interrupt entry address.

7. CPU accept RTI, restore PC and flags from stack. Set EI to accept other interrupt requests.

EM73866

PROGRAM EXAMPLE: To enable interrupt of "INT0, TRGA"

LDIA #1100B ; EXAE ; set mask register "1100B" EICIL 111111B ; enable interrupt F.F.

LCD DRIVER

EM73866 can directly drive the liquid crystal display (LCD) and has max. 32 segment and 4 common output pins. There are total 32 x 4 dots can be display. The VRLC pin is the LCD driver power input, there is the voltage of (VCC-VRLC) to LCD.

CONTROL OF LCD DRIVER

The LCD driver control command register is P27. When LDC is 00, the LCD is disabled and changes the duty only. When LDC is 01, the LCD is blanking, the COM pins are inactive and the SEG pins continuously output the display data. When LDC is 11, the LCD driver enables, the power switch is turned on and it cannot off forever except the CPU is reseted or sleeping. User must enable the LCD driver by self when the CPU is waked up.

Port27

3 2 1 0 Initial value : 0000

LDC DUTY

LDC LCD display control DUTY Driving method select Frame frequency

0 0 LCD display disable & change duty 0 0 1/4 duty (1/3 bias) 85 Hz 0 1 Blanking 0 1 1/3 duty (1/3 bias) 114 Hz 1 0 Reserved 1 0 1/2 duty (1/2 bias) 171 Hz 1 1 LCD display enable 1 1 Static 85 Hz

* This specification are subject to be changed without notice.

12.29.1999

Page 23

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

The storing region of data RAM for LCD display data.

RAM COM3 COM2 COM1 COM0

address bit3 bit2 bit1 bit0 SEG0 20H SEG1 21H SEG2 22H :: SEG32 3FH

The relation between LCD display data and driving method

Driving method bit3 bit2 bit1 bit0 1/4 duty COM3 COM2 COM1 COM0 1/3 duty - COM2 COM1 COM0 1/2 duty - - COM1 COM0 Static - - - COM0

PROGRAM EXAMPLE:

LDIA #0000B OUTA P27 ; Set LCD duty LDIA #1100B OUTA P27 ; Enable LCD LDIA #1010B STA 24H

EM73866

LCD driving methods

There are four kinds of driving methods can be selected by DUTY (P27.0~P27.1). Ther are two waveform types, but for the reason of the number of voltage transition point in type A is greater than type B, so type B gets a better display performance. The driving waveforms type A and B of LCD driver are as below :

* This specification are subject to be changed without notice.

12.29.1999

Page 24

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

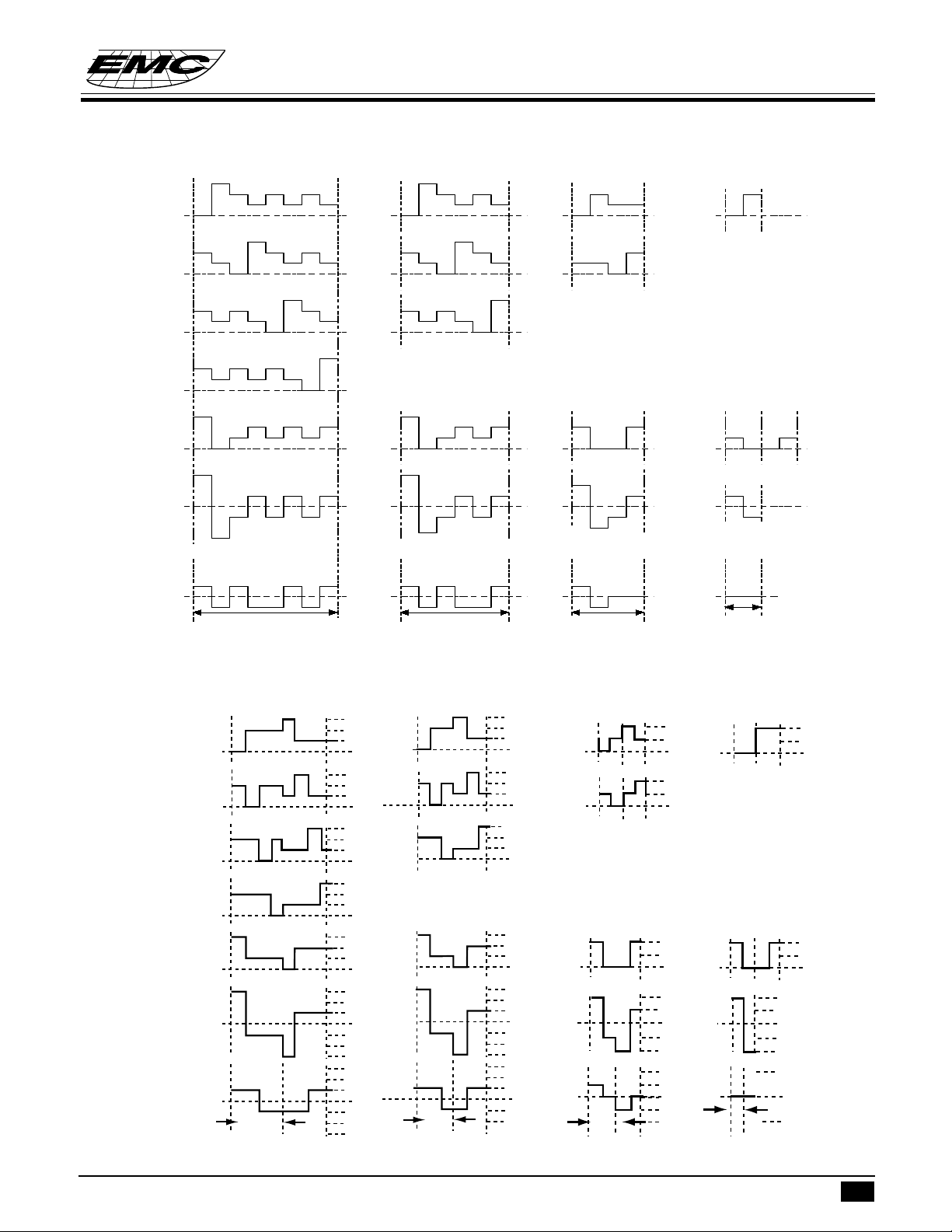

TYPE A :

• 1/4 duty (1/3 bias) • 1/3 duty (1/3 bias) • 1/2 duty (1/2 bias) • Static COM0

COM1

COM2

COM3

COM0 COM0

COM1 COM1

COM2

SEG0SEG0

COM0

SEG0SEG0

OFF

SEG0~COM0SEG0~COM0SEG0~COM0SEG0~COM0

ONONONON

SEG0~COM0SEG0~COM1SEG0~COM1SEG0~COM1

OFFOFFOFFOFF

TYPE B :

COM0

COM1

COM2

COM3

SEG0

SEG0-COM0

SEG0-COM1

OFF

Frame

(1) 1/4 duty (1/3 bias)

V3 V2 V1 Vss

-V1

-V2

-V3 V3

V2 V1 Vss

-V1

Frame

-V2

-V3

Frame

(2 ) 1/3 duty (1/3 bias)

V3 V2 V1 Vss

-V1

-V2

-V3 V3

V2 V1 Vss

-V1

Frame

-V2

-V3

Frame

(3) 1/2 duty (1/2 bias)

V3 V1 Vss

-V1

-V3 V3

V1 Vss

-V1

-V3

Frame

(4) static

OFF

Frame

Vss

-V3

Vss

-V3

V3 V1 Vss

* This specification are subject to be changed without notice.

12.29.1999

Page 25

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

WATCH-DOG-TIMER (WDT)

Watch-dog-timer can help user to detect the malfunction (runaway) of CPU and give system a timeup signal every certain time. User can use the time up signal to give system a reset signal when system is fail. This function is available by mask option. If the mask option of WDT is enabled, it will stop counting when CPU

is reseted or in the STOP operation mode. The basic structure of Watch-Dog-Timer control is composed by a 4-stage binary counter and a control unit. The WDT counter counts for a certain time to check the CPU status, if there is no malfunction happened, the counter will be cleared and continue counting. Otherwise, if there is a malfunction happened, the WDT control will send a WDT signal (low active) to reset CPU. The WDT checking period is assign by P21 (WDT command port).

WDT counter

LXIN/2

counter clear request

WDT control

RESET pin

mask option

P21

WDT command port

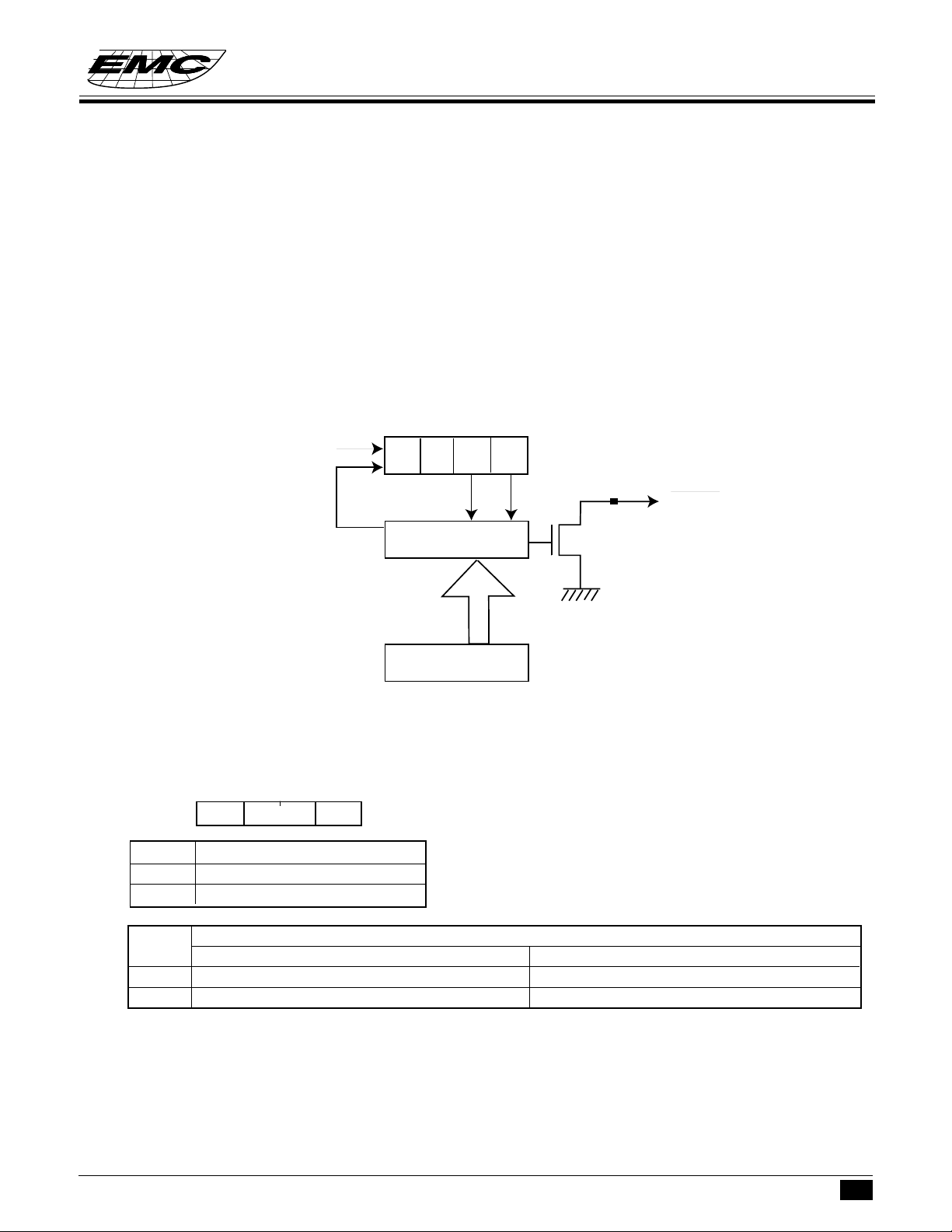

P21 is the control port of watch-dog-timer, and the WDT time up signal is connected to RESET.

Port 21 3210Initial value :0000

CWC * * WDT

CWC Clear watchdog timer counter

0 Clear counter then return to 1 1 Nothing

WDT SET WATCH-DOG-TIMER DETECT TIME

Low-frequency With low-frequency double 0 3 x 213/LXIN = 3 x 213/32K Hz = 0.75 sec 3 x 212/LXIN = 3 x 212/32K Hz = 0.375 sec 1 7 x 213/LXIN = 7 x 213/32K Hz = 1.75 sec 7 x 212/LXIN = 7 x 212/32K Hz = 0.875 sec

* This specification are subject to be changed without notice.

12.29.1999

Page 26

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PROGRAM EXAMPLE

To enable WDT with 7x2

LDIA #0001B OUTA P 21 ; set WDT detection time and clear WDT counter : :

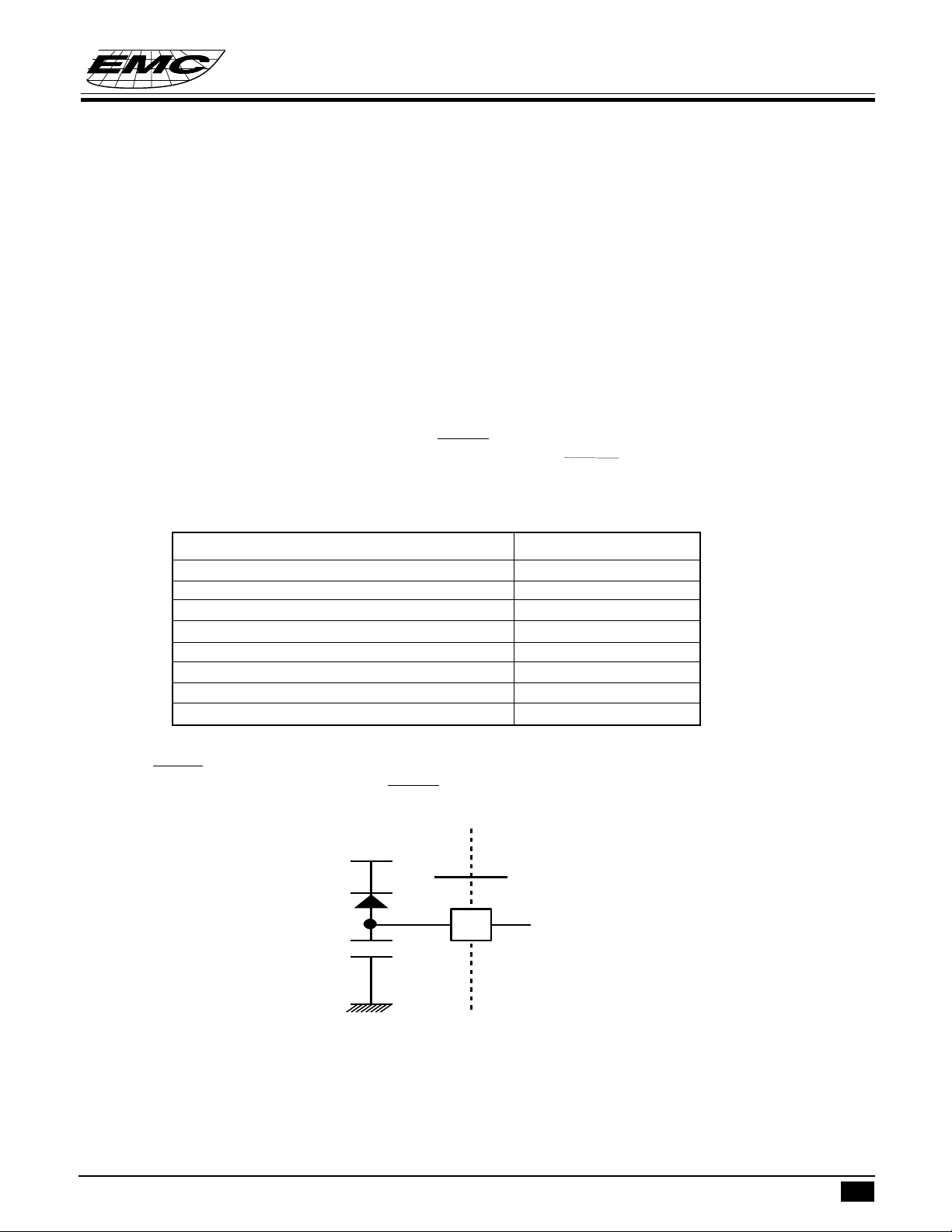

RESETTING FUNCTION

When CPU in normal working condition and RESET pin holds in low level for three instruction cycles at least, then CPU begins to initialize the whole internal states, and when RESET pin changes to high level, CPU begins to work in normal condition. The CPU internal state during reset condition is as following table :

/LXIN detection time.

Hardware condition in RESET state Initial value Program counter 0000h Status flag 01h Interrupt enable flip-flop ( EI ) 00h MASK0 ,1, 2, 3 00h Interrupt latch ( IL ) 00h P10, 11,14, 16, 19, 21, 22, 25, 27, 28, 29, 31 00h P1, 3, 4, 5, 6, 7, 8 0Fh Both oscillator Start oscillation

The RESET pin is a hysteresis input pin and it has a pull-up resistor available by mask option. The simplest RESET circuit is connect RESET pin with a capacitor to V

and a diode to VDD.

RESET

* This specification are subject to be changed without notice.

12.29.1999

Page 27

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

EM73866 I/O PORT DESCRIPTION :

Port Input function Output function Note

0 E Input port , wakeup function 1 E Input port E Output port 2 E Input port , wakeup function -3 E Input port E Output port, shared with segment 4 E Input port , wakeup function E Output port 5 E Input port , wakeup function E Output port, P4.0/SOUND, P4.1(TRGH) 6 E Input port E Output port 7 E Input port, wakeup function E Output port, P7.0(TRGA) 8 E Input port, wakeup function E Output port,P8.0(INT1),P8.1(TRGB),P8.2(INT1)

9 -- -10 -- I High speed Timer/Counter Register Low nibble 11 -- I High speed Timer/Counter Register High nibble 12 -- -13 -- -14 I CPU status I Clear P14.0 to 0 15 -- -16 I STOP mode control register 17 -18 -19 I IDLE mode control register 20 -21 I WDT control register 22 I Slow mode control register 23 -24 -25 I Timebase control register 26 -27 I LCD control register 28 I Timer/counter A control register 29 I Timer/counter B control register 30 -31 I HTC control register

E : External port I : Internal port

* This specification are subject to be changed without notice.

12.29.1999

Page 28

ABSOLUTE MAXIMUM RATINGS

Items Sym. Ratings Conditions

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Supply Voltage V Input Voltage V Output Voltage V Power Dissipation P Operating Temperature T Storage Temperature T

OPR

STG

-0.5V to 6V

-0.5V to VDD+0.5V

-0.5V to VDD+0.5V 300mW T 0oC to 50oC

-55oC to 125oC

OPR

=50oC

RECOMMANDED OPERATING CONDITIONS

Items Sym. Ratings Condition

Min. Max.

Supply Voltage V

Input Voltage V schmitt circuit V Operating Frequency F

Fs 32KHz LXIN, LXOUT (crystal osc)

Normal 2.2V 4MHz by RC osc Slow 2.2V Idle 2.2V 6.0V

Stop 2.0V

0.80xVDD to V 0V to 0.20 to V

: 2.0~5.5V

4MHz Osc

* This specification are subject to be changed without notice.

12.29.1999

Page 29

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

DC ELECTRICAL CHARACTERISTICS (VDD=5±0.5V, VSS=0V, T

OPR

=25oC)

Parameters Sym. Min. Typ. Max. Unit Conditions

Supply current I

Hysteresis voltage V

Input I

DD_Xtal

DD_RC

HYS+

HYS-

current - - ±1 µA Open-drain,V

High current 12 16 20 mA P1,P4 I/O port acts as input(push-pull),

Normal current I

Low current 20 24 28 µA P1,P3~8 Output V Voltage V

High current IOH 9 11 14 mA P1,P4,optional VDD=4.5V,VOH=2.2V Normal current 420 460 500 µA P1,P3~8,optional

OH1

Low current 18 22 27 µA P1,P3~8,optional Leakage current I Input resistor R

LO - - 1 µA Open-drain,VDD=5.5V,Vo=5.5V

IN 120 150 180 KΩ P0,P2,pull-up,optional

High Frequency 20 30 % V Variation R=100K Low Frequency 20 30 % V

Variation R=1MΩ

-1 2mAV

=5.5V,no load,NORMAL mode,

Fc=4MHz, Fs=32KHz (crystal)

- 100 150 µA V

=5.5V,no load,SLOW mode,Fs=32KHz

(crystal)

- 80 100 µA V

=5.5V,no load,RV

=68K,IDLE mode,

RLC

Fs=32KHz (crystal)

- 0.1 1 µA V

=5.5V,STOP mode (crystal)

- 650 1000 µA VDD=5.5V,no load,NORMAL mode, Fc=4MHz,Fs=32KHz (RC, OSC)

- 80 120 µA V

=5.5V,no load,SLOW mode,Fs=32KHz

(RC, OSC)

-4570µAV

=5.5V,no load,RV

=68K,IDLE mode,

RLC

Fs=32KHz (RC, OSC)

- 0.1 1 µA V

0.50V

0.20V

- 0.75V

- 0.40V

V RESET,all I/O ports except P3

=5.5V,STOP mode (RC, OSC)

- - ±1 µA RESET, P0,P2, VDD=5.5V,VIH=5.5/0V

=5.5V,VIH=5.5/0V

450 550 650 µA P1,P3~8 optional,VDD=4.5V,VIL=0.2V

3- -VV

=4.5V,IOH=3mA for P1

2.2 - - V VDD=4.5V,see IOH=typical. for P3~8

- - 0.2 V VDD=4.5V,IOL=0.5mA,P1,P3~8

120 150 180 K Ω P0,P2,pull-down,optional

50 70 90 K Ω RESET

=2.2~5.5V+10% RC OSC

+2%, fc=4MHz

=2.2~5.5V+10% RC OSC

+2%, fs=32KHz

* This specification are subject to be changed without notice.

12.29.1999

Page 30

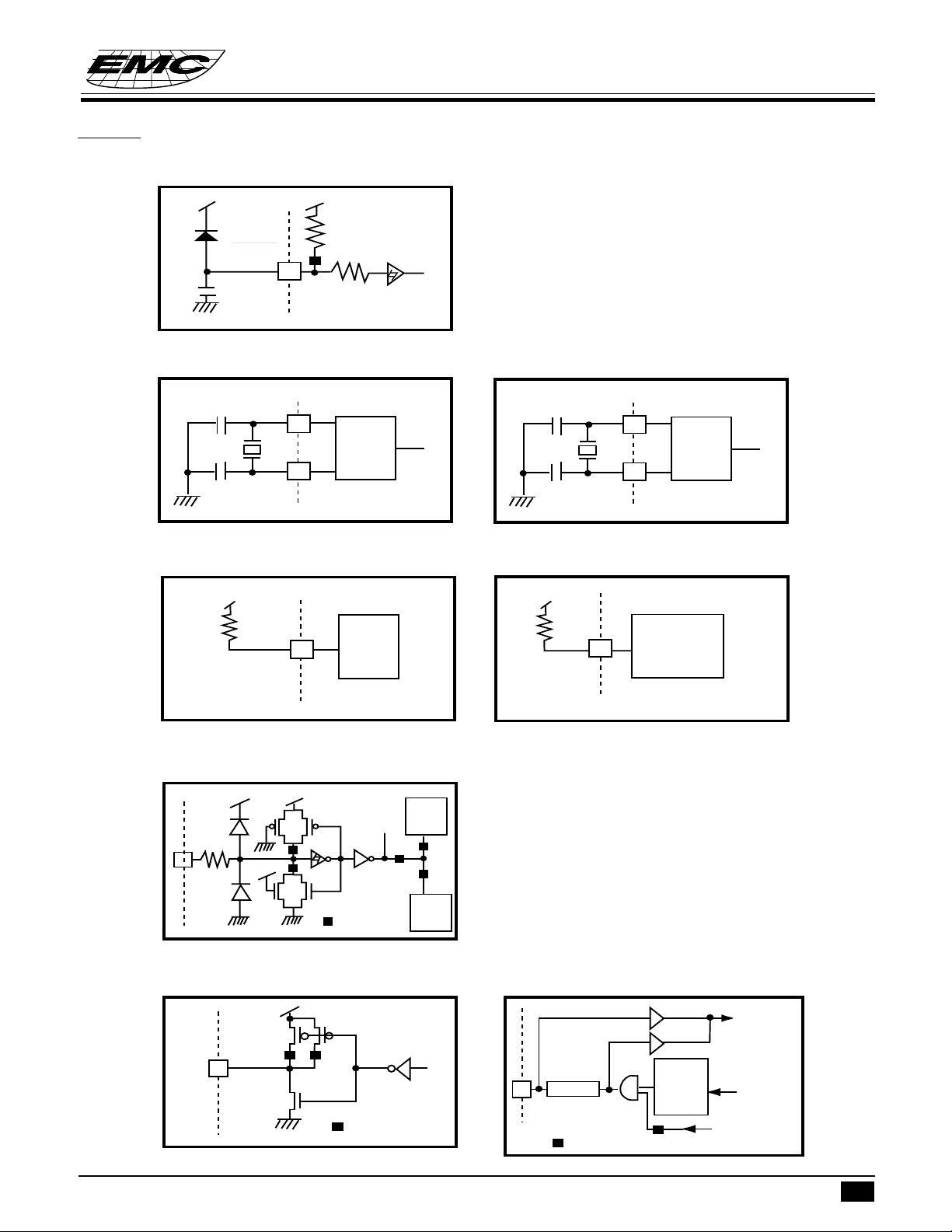

RESET PIN TYPE

TYPE RESET-A

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

RESET

OSCILLATION PIN TYPE

TYPE OSC-A TYPE OSC-B

XIN

XOUT

TYPE OSC-H1 (Low frequency) TYPE OSC-H2 (High frequency)

VDD

1Mohm

LXIN

mask option

Crystal Osc.

RC Osc.

10Kohm

VDD

OSC

LXIN

Crystal Osc.

LXOUT

RC Osc.

INPUT PIN TYPE

TYPE INPUT-K

positive

input data

WAKEUP mask option

: mask option

edge

detector

negative

edge

detector

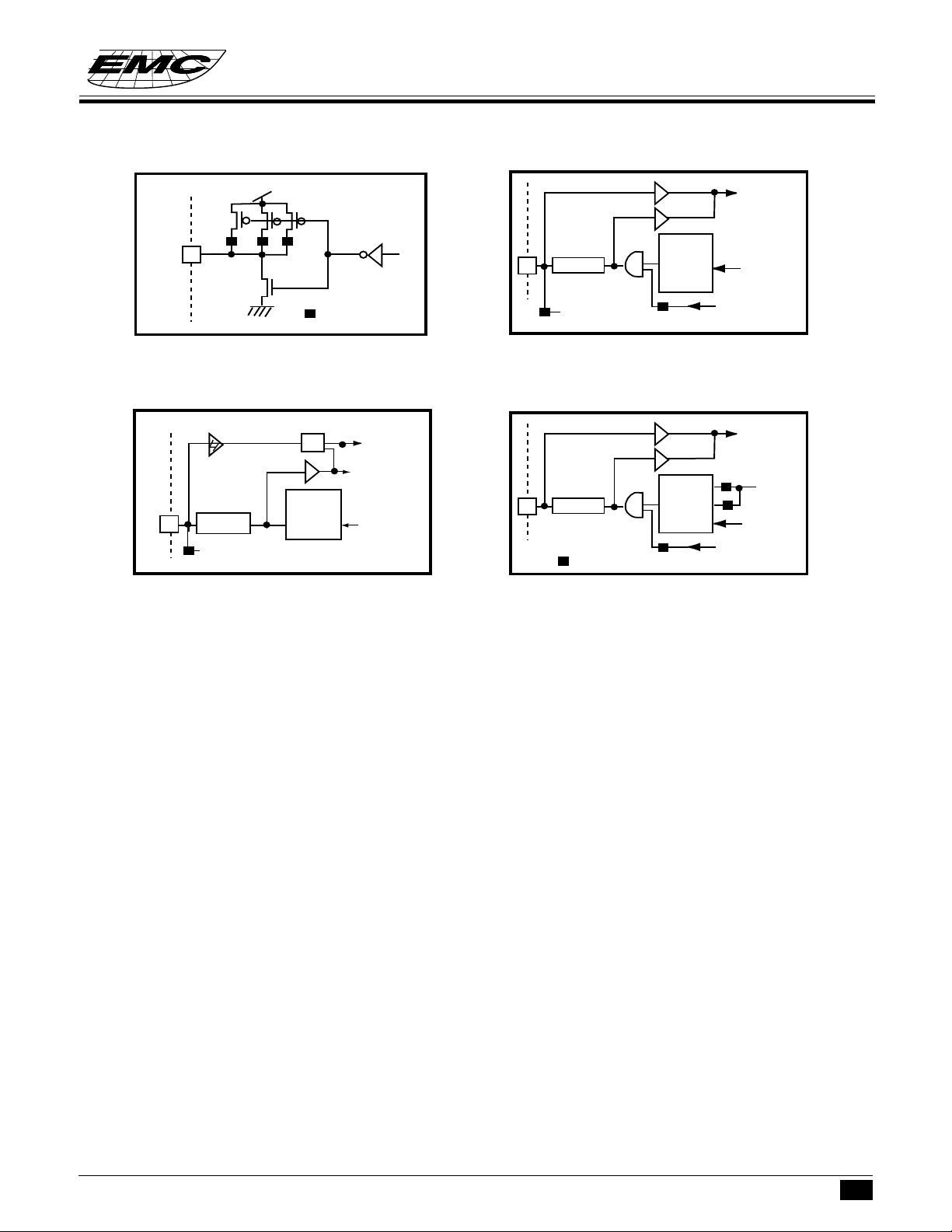

I/O PIN TYPE

TYPE I/O-N TYPE I/O-O

: mask option

* This specification are subject to be changed without notice.

TYPE I/O-N

: mask option

path B

path A

Output data latch

Input data

Output data

Special function output

12.29.1999

Page 31

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

TYPE I/O-Q TYPE I/O-R1

EM73866

: mask option

path B

path A

TYPE I/O-Q

WAKEUP function mask option

Output data latch

Input data

Output data

Special function output

TYPE I/O-S TYPE I/O-Z

Special function

path B

path A

TYPE I/O-N

WAKEUP function mask option

SEL

Output data latch

control input

Input data

TYPE I/O-Q

Output data

Path A : For set and clear bit of port instructions, data goes through path A from output data latch to CPU. Path B : For input and test instructions, data from output pin go through path B to CPU and the output data latch

will be set to high.

path B

path A

: mask option

Output data latch

S R

Special function output

Input data

Power-on reset

Output data

* This specification are subject to be changed without notice.

12.29.1999

Page 32

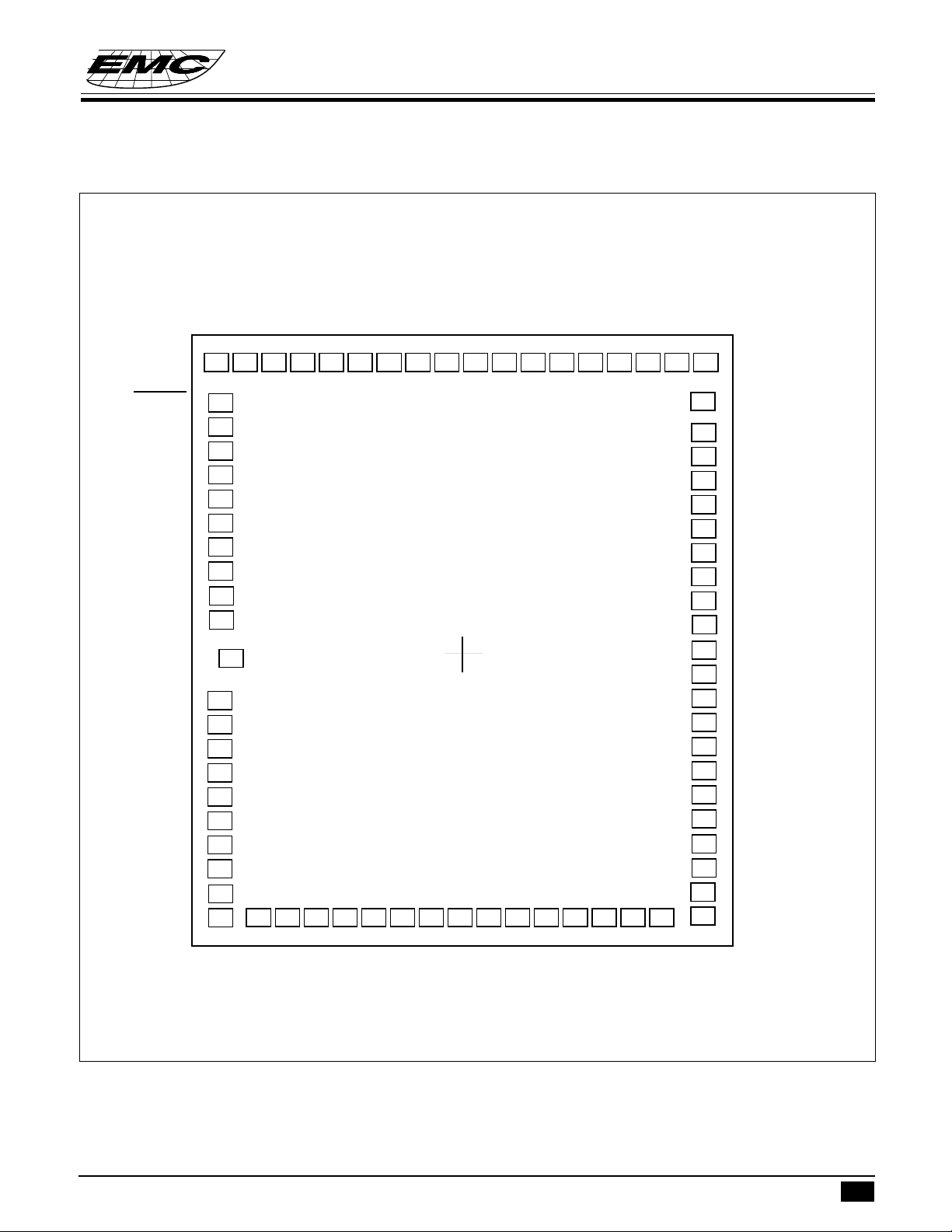

PAD DIAGRAM

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

P5.1/W

P5.0/W

P7.0/W/TRGA

P1.1

P1.0

VDD

P8.2/W/INT0

P8.1/W/TRGB

P8.0/W/INT1

P2.3/W

P2.2/W

P2.1/W

P2.0/W

P0.3/W

P0.2/W

P0.1/W

P0.0/W

1 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60

EM73866

P5.2/W

RESET 2

XOUT 3

XIN/OSC 4

TEST 5

P6.1 6 P6.0 7 P3.3 8

P3.2 9 P3.1/(SEG31) 10 P3.0/(SEG30) 11

VSS 12

VRLC 13

V1 14 V2 15 V3 16

VDD 17 SEG0 18 SEG1 19 SEG2 20 SEG3 21 SEG4 22

( 0 , 0 )

EM73866

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

59 VSS 58 P5.3/W

57 P4.0/SOUND/W 56 P4.1/W 55 P4.2/W 54 P4.3/W 53 LXIN 52 LXOUT 51 COM3 50 COM2 49 COM1 48 COM0 47 SEG29 46 SEG28 45 SEG27 44 SEG26 43 SEG25 42 SEG24 41 SEG23 40 SEG22 39 SEG21 38 SEG20

SEG5

* This specification are subject to be changed without notice.

SEG10

SEG12

SEG11

SEG9

SEG8

SEG7

SEG6

SEG14

SEG13

SEG16

SEG15

SEG18

SEG17

SEG19

12.29.1999

Page 33

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Pad No. Symbol X Y

1 P0.0/W -1056.5 1391.1 2 RESET -1030.3 1186.6

3 XOUT -1030.3 1066.7 4 XIN/OSC -1030.3 946.7 5 TEST -1030.3 826.7 6 P6.1 -1030.3 703.3 7 P6.0 -1030.3 583.4 8 P3.3 -1030.3 459.5 9 P3.2 -1030.3 339.6 10 P3.1/(SEG31) -1030.3 215.8 11 P3.0/(SEG30) -1030.3 95.8 12 VSS -991.7 -105.5 13 VRLC -1030.3 -271.5 14 V1 -1030.3 -391.5 15 V2 -1030.3 -511.5 16 V3 -1030.3 -631.5 17 VDD -1030.3 -782.8 18 SEG0 -1030.3 -902.8 19 SEG1 -1030.3 -1022.8 20 SEG2 -1030.3 -1142.8 21 SEG3 -1030.3 -1262.8 22 SEG4 -1030.3 -1382.8 23 SEG5 -839.4 -1390.2

24 SEG6 -719.4 -1390.2 25 SEG7 -599.4 -1390.2 26 SEG8 -479.4 -1390.2

27 SEG9 -359.4 -1390.2 28 SEG10 -239.4 -1390.2 29 SEG11 -119.4 -1390.2 30 SEG12 0.6 -1390.2 31 SEG13 120.6 -1390.2 32 SEG14 240.6 -1390.2 33 SEG15 360.6 -1390.2 34 SEG16 480.6 -1390.2 35 SEG17 600.6 -1390.2 36 SEG18 720.6 -1390.2 37 SEG19 840.6 -1390.2

38 SEG20 1030.2 -1390.7 39 SEG21 1030.2 -1270.7 40 SEG22 1030.2 -1150.7

EM73866

* This specification are subject to be changed without notice.

12.29.1999

Page 34

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Pad No. Symbol X Y

41 SEG23 1030.2 -1030.7 42 SEG24 1030.2 -910.7 43 SEG25 1030.2 -790.7 44 SEG26 1030.2 -670.7 45 SEG27 1030.2 -550.7 46 SEG28 1030.2 -430.7 47 SEG29 1030.2 -310.7 48 COM0 1030.2 -190.7 49 COM1 1030.2 -70.7 50 COM2 1030.2 49.3 51 COM3 1030.2 169.3 52 LXOUT 1030.2 289.3 53 LXIN 1030.2 409.2 54 P4.3/W 1030.2 531.2 55 P4.2/W 1030.2 651.2 56 P4.1/W 1030.2 775.0 57 P4.0/SOUND/W 1030.2 895.0 58 P5.3/W 1030.2 1018.8 59 VSS 1030.2 1181.6 60 P5.2/W 1061.1 1391.1 61 P5.1/W 941.0 1391.1 62 P5.0/W 817.2 1391.1 63 P7.0/W/TRGA 697.2 1391.1 64 P1.1 573.4 1391.1 65 P1.0 453.4 1391.1 66 VD D 332.0 1391.1 67 P8.2/W/INT0 180.7 1391.1 68 P8.1/WTRGB 56.9 1391.1 69 P8.0/W/INT1 -63.1 1391.1 70 P2.3/W -189.5 1391.1 71 P2.2/W -309.5 1391.1 72 P2.1/W -438.5 1391.1 73 P2.0/W -558.5 1391.1 74 P0.3/W -687.5 1391.1 75 P0.2/W -807.5 1391.1 76 P0.1/W -936.5 1391.1

EM73866

Chip size : 2420 * 3140 UM

Unit : µm

For PCB layout, IC substrate must be floated or connected at Vss.

* This specification are subject to be changed without notice.

12.29.1999

Page 35

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

INSTRUCTION TABLE

(1) Data Transfer

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZ S

LDA x 0110 1010 xxxx xxxx Acc←RAM[x] 2 2 - Z 1 LDAM 0101 1010 Acc ←RAM[HL] 1 1 - Z 1 LDAX 0110 0101 Acc←ROM[DP] LDAXI 0110 0111 Acc←ROM[DP]

,DP+1 1 2 - Z 1

LDH #k 1001 kkkk HR←k11--1 LDHL x 0100 1110 xxxx xx00 LR←RAM[x],HR←RAM[x+1] 2 2 - - 1 LDIA #k 1101 kkkk Acc←k11-Z1 LDL #k 1000 kkkk LR←k11--1 STA x 0110 1001 xxxx xxxx RAM[x]←Acc 2 2 - - 1 STAM 0101 1001 RAM[HL]←Acc 1 1 - - 1 STAMD 0111 1101 RAM[HL]←Acc, LR-1 1 1 - Z C STAMI 0111 1111 RAM[HL]←Acc, LR+1 1 1 - Z C' STD #k,y 0100 1000 kkkk yyyy RAM[y]←k22--1 STDMI #k 1010 kkkk RAM[HL]←k, LR+1 1 1 - Z C' THA 0111 0110 Acc←HR 1 1 - Z 1 TLA 0111 0100 Acc←LR 1 1 - Z 1

12-Z1

(2) Rotate

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

RLCA 0101 0000 ←CF←Acc← 11CZC' RRCA 0101 0001 →CF→Acc→ 11CZC'

(3) Arithmetic operation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

C ZS

ADCAM 0111 0000 Acc←Acc + RAM[HL] + CF 1 1 C Z C' ADD #k,y 0100 1001 kkkk yyyy RAM[y]←RAM[y] +k 2 2 - Z C' ADDA #k 0110 1110 0101 kkkk Acc←Acc+k 2 2 - Z C' ADDAM 0111 0001 Acc←Acc + RAM[HL] 1 1 - Z C' ADDH #k 0110 1110 1001 kkkk HR←HR+k 2 2 - Z C' ADDL #k 0110 1110 0001 kkkk LR←LR+k 2 2 - Z C' ADDM #k 0110 1110 1101 kkkk RAM[HL]←RAM[HL] +k 2 2 - Z C' DECA 0101 1100 Acc←Acc-1 1 1 - Z C DECL 0111 1100 LR←LR-1 1 1 - Z C DECM 0101 1101 RAM[HL]←RAM[HL] -1 1 1 - Z C INCA 0101 1110 Acc←Acc + 1 1 1 - Z C'

* This specification are subject to be changed without notice.

12.29.1999

Page 36

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

INCL 0111 1110 LR←LR + 1 1 1 - Z C' INCM 0101 1111 RAM[HL]←RAM[HL]+1 1 1 - Z C' SUBA #k 0110 1110 0111 kkkk Acc←k-Acc 2 2 - Z C SBCAM 0111 0010 Acc←RAM[HLl - Acc - CF' 1 1 C Z C SUBM #k 0110 1110 1111 kkkk RAM[HL]←k - RAM[HL] 2 2 - Z C

(4) Logical operation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

ANDA #k 0110 1110 0110 kkkk Acc←Acc&k 2 2 - Z Z' ANDAM 0111 1011 Acc←Acc & RAM[HL] 1 1 - Z Z' ANDM #k 0110 1110 1110 kkkk RAM[HL]←RAM[HL]&k 2 2 - Z Z' ORA #k 0110 1110 0100 kkkk Acc←Acc k 2 2 - Z Z' ORAM 0111 1000 Acc ←Acc RAM[HL] 1 1 - Z Z' ORM #k 0110 1110 1100 kkkk RAM[HL]←RAM[HL] k 2 2 - Z Z' XORAM 0111 1001 Acc←Acc^RAM[HL] 1 1 - Z Z'

- -

(5) Exchange

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

EXA x 0110 1000 xxxx xxxx Acc↔RAM[x] 2 2 - Z 1 EXAH 0110 0110 Acc↔HR 1 2 - Z 1 EXAL 0110 0100 Acc↔LR 1 2 - Z 1 EXAM 0101 1000 Acc↔RAM[HL] 1 1 - Z 1 EXHL x 0100 1100 xxxx xx00 LR↔RAM[x],

HR↔RAM[x+1] 2 2 - - 1

(6) Branch

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

SBR a 00aa aaaa If SF=1 then PC←PC

12-6.a5-0

11--1

else null

LBR a 1100 aaaa aaaa aaaa If SF= 1 then PC←a else null 2 2 - - 1 SLBR a 0101 0101 1100 aaaa If SF=1 then PC←a else null 3 3 - - 1

aaaa aaaa (a:1000~1FFFh)

0101 0111 1100 aaaa

aaaa aaaa (a:0000~0FFFh)

(7) Compare

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CMP #k,y 0100 1011 kkkk yyyy k-RAM[y] 2 2 C Z Z' CMPA x 0110 1011 xxxx xxxx RAM[x]-Acc 2 2 C Z Z'

* This specification are subject to be changed without notice.

12.29.1999

Page 37

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CMPAM 0111 0011 RAM[HL] - Acc 1 1 C Z Z' CMPH #k 0110 1110 1011 kkkk k - HR 2 2 - Z C CMPIA #k 1011 kkkk k - Acc 1 1 C Z Z' CMPL #k 0110 1110 0011 kkkk k-LR 2 2 - Z C

(8) Bit manipulation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CLM b 1111 00bb RAM[HL] CLP p,b 0110 1101 11bb pppp PORT[p] CLPL 0110 0000 PORT[LR CLR y,b 0110 1100 11bb yyyy RAM[y] SEM b 1111 01bb RAM[HL] SEP p,b 0110 1101 01bb pppp PORT[p] SEPL 0110 0010 PORT[LR SET y,b 0110 1100 01bb yyyy RAM[y]

TF y,b 0110 1100 00bb yyyy SF←RAM[y] TFA b 1111 10bb SF←Acc TFM b 1111 11bb SF←RAM[HL] TFP p,b 0110 1101 00bb pppp SF←PORT[p] TFPL 0110 0001 SF←PORT[LR TT y,b 0110 1100 10bb yyyy SF←RAM[y] TTP p,b 0110 1101 10bb pppp SF←PORT[p]

←011--1

←022--1

+4]LR

3-2

←022--1

←111--1

←122--1

+4]LR

3-2

←122--1

'11--*

←012--1

1-0

←112 --1

l-0

'22--*

'11--*

'22--*

+4]LR

3-2

'1 2--*

1-0

22--*

(9) Subroutine

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

LCALL a 0100 0aaa aaaa aaaa STACK[SP]←PC, 2 2 - - -

SP←SP -1, PC←a

SCALL a 1110 nnnn STACK[SP]←PC, 1 2 - - -

SP←SP - 1, PC←a, a = 8n + 6 (n =1∼15),0086h (n = 0)

RET 0100 1111 SP←SP + 1, PC←STACK[SP] 1 2 - - -

(10) Input/output

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

INA p 0110 1111 0100 pppp Acc←PORT[p] 2 2 - Z Z' INM p 0110 1111 1100 pppp RAM[HL]←PORT[p] 2 2 - - Z' OUT #k,p 0100 1010 kkkk pppp PORT[p]←k22--1 OUTA p 0110 1111 000p pppp PORT[p]←Acc 2 2 - - 1 OUTM p 0110 1111 100p pppp PORT[p]←RAM[HL] 2 2 - - 1

* This specification are subject to be changed without notice.

12.29.1999

Page 38

EM73866

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

(11) Flag manipulation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

TFCFC 0101 0011 SF←CF', CF←0110-* TTCFS 0101 0010 SF←CF, CF←1111-* TZS 0101 1011 SF←ZF 1 1 - - *

(12) Interrupt control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CIL r 0110 0011 11rr rrrr IL←IL & r 2 2 - - 1 DICIL r 0110 0011 10rr rrrr EIF←0,IL←IL&r 2 2 - - 1 EICIL r 0110 0011 01rr rrrr EIF←1,IL←IL&r 2 2 - - 1 EXAE 0111 0101 MASK↔Acc 1 1 - - 1 RTI 0100 1101 SP←SP+1,FLAG.PC 1 2 * * *

←STACK[SP],EIF ←1

(13) CPU control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

NOP 0101 0110 no operation 1 1 - - -

(14) Timer/Counter & Data pointer & Stack pointer control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

LDADPL 0110 1010 1111 1100 Acc←[DP] LDADPM 0110 1010 1111 1101 Acc←[DP] LDADPH 0110 1010 1111 1110 Acc←[DP]

22-Z1 22-Z1 22-Z1

LDASP 0110 1010 1111 1111 Acc←SP 2 2 - Z 1 LDATAL 0110 1010 1111 0100 Acc←[TA] LDATAM 0110 1010 1111 0101 Acc←[TA] LDATAH 0110 1010 1111 0110 Acc←[TA] LDATBL 0110 1010 1111 1000 Acc←[TB] LDATBM 0110 1010 1111 1001 Acc←[TB] LDATBH 0110 1010 1111 1010 Acc←[TB]

STADPL 0110 1001 1111 1100 [DP] STADPM 0110 1001 1111 1101 [DP] STADPH 0110 1001 1111 1110 [DP]

←Acc 2 2 - - 1

22-Z1 22-Z1 22 -Z1 22-Z1 22-Z1 22-Z1

STASP 0110 1001 1111 1111 SP←Acc 2 2 - - 1

STATAL 0110 1001 1111 0100 [TA] STATAM 0110 1001 1111 0101 [TA] STATAH 0110 1001 1111 0110 [TA] STATBL 0110 1001 1111 1000 [ TB] STATBM 0110 1001 1111 1001 [TB] STATBH 0110 1001 1111 1010 [TB]

* This specification are subject to be changed without notice.

←Acc 2 2 - - 1

12.29.1999

Page 39

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

**** SYMBOL DESCRIPTION

Symbol Description Symbol Description

HR H register LR L register PC Program counter DP Data pointer SP Stack pointer STACK[SP] Stack specified by SP A

CF Carry flag ZF Zero flag SF Status flag EI Enable interrupt register IL Interrupt latch MASK Interrupt mask

PORT[p] Port ( address : p ) ΤΑ Timer/counter A ΤΒ Timer/counter B RAM[HL] Data memory (address : HL )

RAM[x] Data memory (address : x ) ROM[DP] ROM[DP] [DP]

[TA]L([TB]L) Low 4-bit of timer/counter A [TA]M([TB]M) Middle 4-bit of timer/counter A

[TA]H([TB]H) High 4-bit of timer/counter A LR

3-2

12-6

↔ Exchange + Addition

- Substraction & Logic AND

- -

#k 4-bit immediate data x 8-bit RAM address y 4-bit zero-page address p 4-bit or 5-bit port address b Bit address r 6-bit interrupt latch

Accumulator FLAG All flags

Low 4-bit of program memory Low 4-bit of data pointer register High 4-bit of data pointer register

High 4-bit of program memory [DP]

Middle 4-bit of data pointer register [DP]

(timer/counter B) register (timer/counter B) register

1-0

Contents of bit assigned by bit (timer/counter B) register 1 to 0 of LR Bit 3 to 2 of LR a

5-0

Bit 5 to 0 of destination address for

branch instruction

Bit 12 to 6 of program counter ← Transfer

Logic OR ^ Logic XOR Inverse operation . Concatenation

EM73866

* This specification are subject to be changed without notice.

12.29.1999
