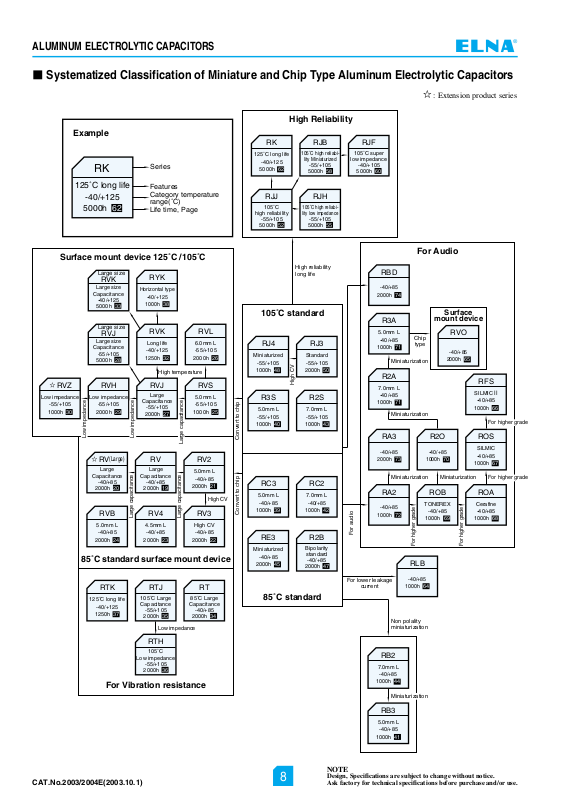

ALUMINUM ELECTROLYTIC CAPACITORS

CAT.No.2003/2004E(2003.10.1)

Systematized Classification of Miniature and Chip Type Aluminum Electrolytic Capacitors

High Reliability

: Extension product series

RK

125˚C long life

-40/+125

5000h 62

RJB

105˚C high reliabi-

lity Miniaturized

-55/+105

5000h 58

RJJ

105˚C

high reliability

-55/+105

5000h 52

RJH

105˚C high reliabi­lity low impedance

-55/+105

5000h 55

RJF

105˚C super

low impedance

-40/+105

5000h 60

Example

Series

Features
Category temperature
range(˚C)
Life time, Page

RK

125˚C long life

-40/+125

5000h 62

105˚C standard

85˚C standard

RBD

-40/+85

2000h

74

R3A

5.0mm L

-40/+85

1000h 71

R2A

7.0mm L

-40/+85

1000h 71

For audio

For Audio

RYK

Horizontal type

-40/+125

1000h

38

RV2

5.0mm L

-40/+85

2000h 21

RVB

5.0mm L

-40/+85

2000h 24

RV4

4.5mm L

-40/+85

2000h 23

RV3

High CV

-40/+85

2000h 22

RVK

Long life

-40/+125

1250h 32

RVL

6.0mm L

-55/+105

2000h 26

RVZ

Low impedance

-55/+105

1000h 30

RVH

Low impedance

-55/+105

2000h 29

RVS

5.0mm L

-55/+105

1000h 25

Surface mount device 125˚C /105˚C

RJ4

Miniaturized

-55/+105

1000h 48

RJ3

Standard

-55/+105

2000h 50

R3S

5.0mm L

-55/+105

1000h 40

R2S

7.0mm L

-55/+105

1000h 43

RC3

5.0mm L

-40/+85

1000h 39

RC2

7.0mm L

-40/+85

1000h

42

RE3

Miniaturized

-40/+85

2000h 45

ROB

TONEREX

-40/+85

1000h 69

ROA

Cerafine

-40/+85

1000h 68

For higher grade

For higher grade

Miniaturization

Miniaturization

Miniaturization

Miniaturization

ROS

SILMIC

-40/+85

1000h 67

RFS

SILMIC

II

-40/+85

1000h 66

Surface

mount device

RVO

-40/+85

2000h

65

Chip
type

85˚C standard surface mount device

For Vibration resistance

RTH

105˚C

Low impedance

-55/+105

2000h 36

RTJ

105˚C Large
Capacitance

-55/+105

2000h 35

RV

Large

Capacitance

-40/+85

2000h 19

RVJ

Large

Capacitance

-55/+105

2000h 27

RV

(Large)

Large

Capacitance

-40/+85

2000h 20

RT

85˚C Large

Capacitance

-40/+85

2000h 34

Large size

RVJ

Large size

Capacitance

-55/+105

5000h 28

Large size

RVK

Large size

Capacitance

-40/+125

5000h 33

High reliability
long life

RA3

-40/+85

2000h

73

R2O

-40/+85

1000h

70

RA2

-40/+85

1000h

72

RLB

-40/+85

1000h

64

For lower leakage

current

RB2

7.0mm L

-40/+85

1000h

44

Non polality
miniaturization

RB3

5.0mm L

-40/+85

1000h 41

Miniaturization

Convert to chip

R2B

Bipolarity

standard

-40/+85

2000h 47

Convert to chip

High CV

Low impedance

Low impedance

Large capacitance

Large capacitance

Large capacitance

High temperature

Low impedance

RTK

125˚C long life

-40/+125

1250h 37

High CV

For higher grade

For higher grade

9

NOTE

Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.

ALUMINUM ELECTROLYTIC CAPACITORS

CAT.No.2003/2004E(2003.10.1)

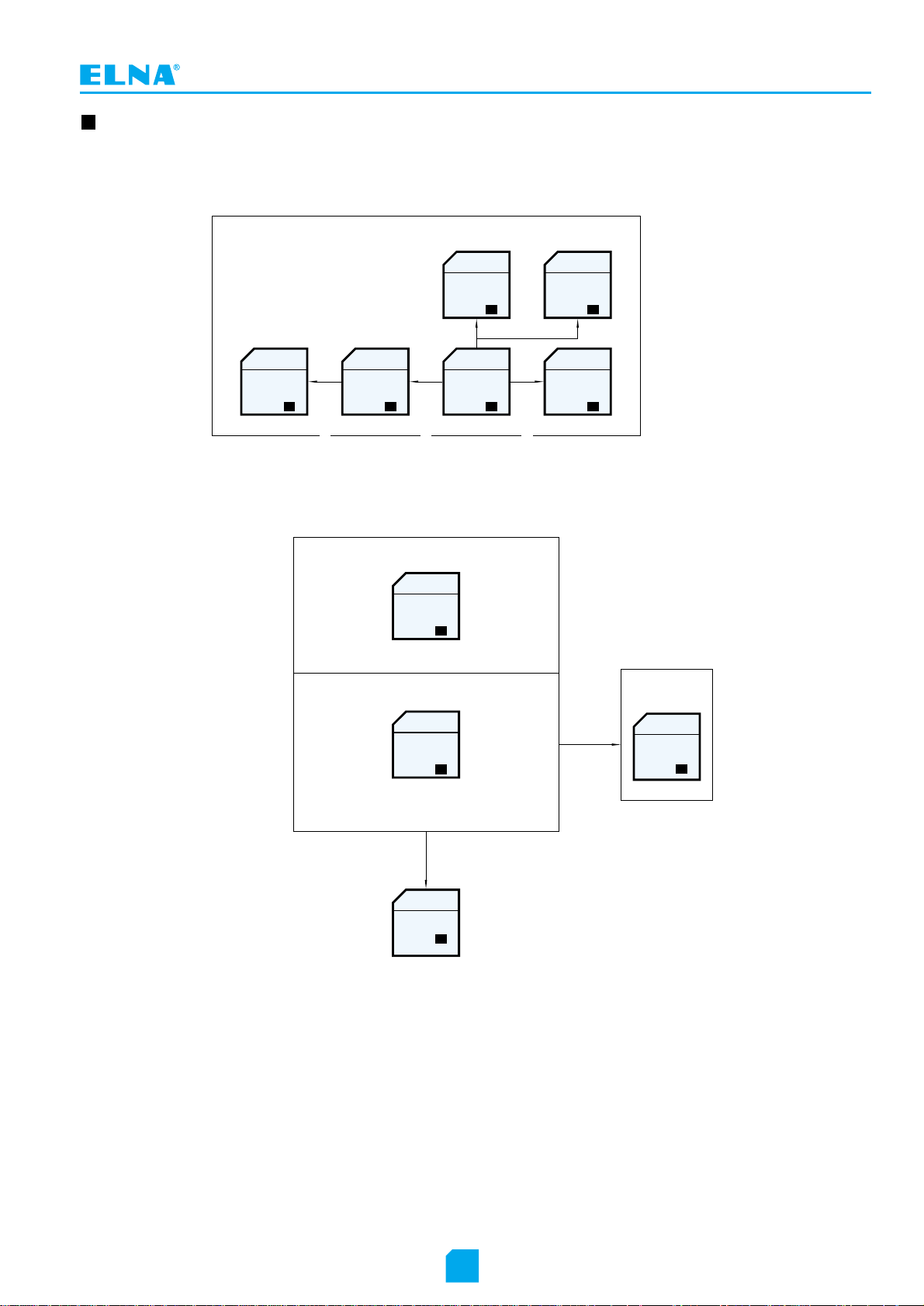

Systematized Classification of Large Aluminum Electrolytic Capacitors

High Reliability

Miniaturization

Miniaturization

High reliability

LUH

Durable against

over voltage

-25/+105

2000h 90

LUV

Compatible with

VDE

-25/+105

2000h 88

LPG

High ripple

Standard

-25/+105

2000h 78

LPH

Miniaturization

High ripple

-25/+105

2000h 80

LPT

Ultra mini

High ripple

-25/+105

2000h 83

LPX

Long life

High reliability

-25/+105

5000h 88

Over voltage

105˚C standard

85˚C standard

L3J

Wide temp.

range

-40/+105

2000h 79

LPO

(TONEREX)

-40/+85

1000h

92

LP5

Standard

(Miniaturization)

-40/+85

2000h 75

LH7

-40/+85

1000h 77

For audio

For Audio

∗ There are overseas factory product only on this page.
