Elite Series Table
Datasheet
3 pgs515.47 Kb0

Datasheet Elite Series Table Datasheet

Download

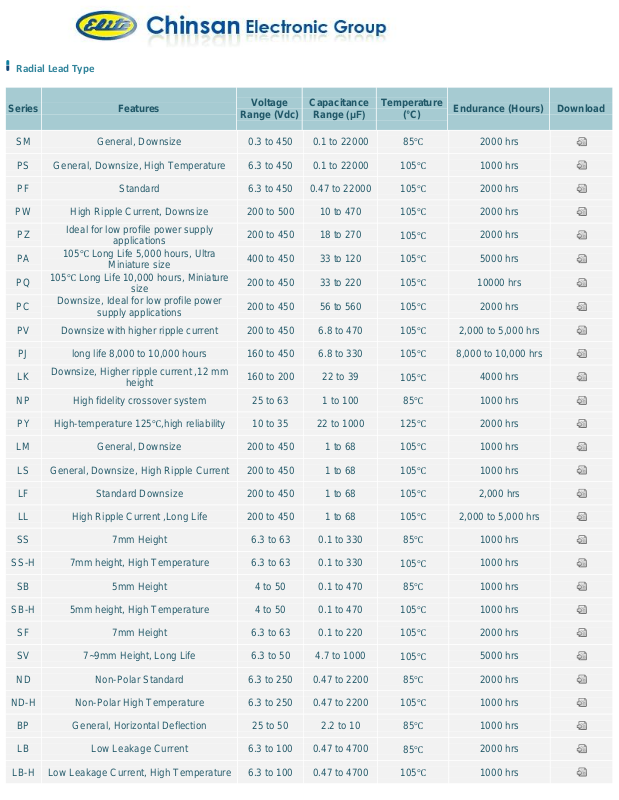

Page 1
Radial Lead Type
Series
Features
Voltage
Capacitance
Range (μF)
Temperature
(°C)
Endurance (Hours)
Download
SM
General, Downsize
0.3 to 450
0.1 to 22000
85℃
2000 hrs
PS
General, Downsize, High Temperature
6.3 to 450
0.1 to 22000
105℃
1000 hrs
PF
Standard
6.3 to 450
0.47 to 22000
105℃
2000 hrs
PW
High Ripple Current, Downsize
200 to 500
10 to 470
105℃
2000 hrs
PZ
Ideal for low profile power supply
applications
200 to 450
18 to 270
105℃
2000 hrs
PA
105℃ Long Life 5,000 hours, Ultra
Miniature size
400 to 450
33 to 120
105℃
5000 hrs
PQ
105℃ Long Life 10,000 hours, Miniature
size
200 to 450
33 to 220
105℃
10000 hrs
PC
Downsize, Ideal for low profile power
supply applications
200 to 450
56 to 560
105℃
2000 hrs
PV
Downsize with higher ripple current
200 to 450
6.8 to 470
105℃
2,000 to 5,000 hrs
PJ
long life 8,000 to 10,000 hours
160 to 450
6.8 to 330
105℃
8,000 to 10,000 hrs
LK
Downsize, Higher ripple current ,12 mm
height
160 to 200
22 to 39
105℃
4000 hrs
NP
High fidelity crossover system
25 to 63
1 to 100
85℃
1000 hrs
PY
High-temperature 125℃,high reliability
10 to 35
22 to 1000
125℃
2000 hrs
LM
General, Downsize
200 to 450
1 to 68
105℃
1000 hrs
LS
General, Downsize, High Ripple Current
200 to 450
1 to 68
105℃
1000 hrs
LF
Standard Downsize
200 to 450
1 to 68
105℃
2,000 hrs
LL
High Ripple Current ,Long Life
200 to 450
1 to 68
105℃
2,000 to 5,000 hrs
SS
7mm Height
6.3 to 63
0.1 to 330
85℃
1000 hrs
SS-H
7mm height, High Temperature
6.3 to 63
0.1 to 330
105℃
1000 hrs
SB
5mm Height
4 to 50
0.1 to 470
85℃
1000 hrs
SB-H
5mm height, High Temperature
4 to 50
0.1 to 470
105℃
1000 hrs
SF
7mm Height
6.3 to 63
0.1 to 220
105℃
2000 hrs
SV
7~9mm Height, Long Life
6.3 to 50
4.7 to 1000
105℃
5000 hrs
ND
Non-Polar Standard
6.3 to 250
0.47 to 2200
85℃
2000 hrs
ND-H
Non-Polar High Temperature
6.3 to 250
0.47 to 2200
105℃
1000 hrs
BP
General, Horizontal Deflection
25 to 50
2.2 to 10
85℃
1000 hrs
LB
Low Leakage Current
6.3 to 100
0.47 to 4700
85℃
2000 hrs
LB-H
Low Leakage Current, High Temperature
6.3 to 100
0.47 to 4700
105℃
1000 hrs
Page 2
Low ESR Type
Series
Features
Voltage
Capacitance
Range (μF)
Temperature
(°C)
Endurance (Hours)
Download
EM
Low Impedance, High Ripple Current
Miniature Size
6.3 to 35
33 to 470
105℃
1,000 to 2,000 hrs
ER
High ripple current , miniature size with 7
to 9 mm height
6.3 to 35
33 to 470
105℃
2,000 to 3,000 hrs
ES
Low Impedance, High Ripple Current
6.3 to 100
4.7 to 10000
105℃
2,000 hrs
EL
Extremely Low Impedance, Downsize
6.3 to 50
55 to 6800
105℃
2,000 hrs
EA
Extremely Low Impedance, Downsize
6.3 to 50
56 to 6800
105℃
2,000 hrs
EB
Extremely Low Impedance, High Ripple
Current
6.3 to 16
82 to 3300
105℃
1,000 to 2,000 hrs
ED
Low Impedance, High Ripple Current
63 to 100
10 to 10000
105℃
2,000 to 5,000 hrs
EK
Miniaturized, Low Impedance, High Ripple
Current
6.3 to 50
0.1 to 6800
105℃
2,000 to 5,000 hrs
EP
Miniaturized, Low Impedance, 12 mm
height
10 to 100
68 to 1800
105℃
4,000 hrs
EC
Miniaturized, Low ESR and low
impedance
10 to 100
68 to 1800
105℃
5,000 hrs
EH
Low Impedance ,High Ripple Current, 9
mm height
10 to 35
150 to 820
105℃
3,000 to 4,000 hrs
EJ
Low Impedance, Long Life
6.3 to 63
10 to 10000
105℃
3,000 to 5,000 hrs
EV
Low Impedance, High Ripple Current
6.3 to 35
10 to 8200
105℃
3,000 to 6,000 hrs
EG
Low Impedance, High Ripple
Current ,Long Life
6.3 to 63
10 to 10000
105℃
3,000 to 6,000 hrs
EY
Miniaturized, Low impedance, High Ripple
Current
6.3 to 100
6.8 to 18000
105℃
4,000 to 10,000 hrs
Series
Features
Voltage
Capacitance
Range (μF)
Operating
Temperature
Range (°C)
Load Life (hrs)
Download
UPS
Super low ESR 7 mΩ Large capacity
2.5 to 16
150 to 1500
-55 to 105℃
2,000 hrs
UPR
Super low ESR 8 mΩ Small size
2.5 to 6.3
470 to 820
-55 to 105℃
2,000 hrs
RP
Low ESR 12 mΩ High ripple current
2.5 to 16
100 to 2700
-55 to 105℃
2,000 hrs
GP
Low ESR, High voltage
2.5 to 35
18 to 1000
-55 to 105℃
2,000 hrs
Series
Features
Voltage
Capacitance
Range (μF)
Operating
Temperature
Range (°C)
Load Life (hrs)
Download
SG
Low ESR at High Frequency Range
2.5 to 16
33 to 1500
-55 to 105℃
2,000 hrs
SP
Super Low ESR at High Frequency Range
2.5 to 10
100 to 1000
-55 to 105℃
2,000 hrs
SU
Ultra Low ESR at High Frequency Range
2.5 to 6.3
390 to 820
-55 to 105℃
2,000 hrs
Polymer Radial Lead Type
Polymer SMD Type
Page 3
Series
Features
Voltage
Capacitance
Range (μF)
Temperature
(°C)
Endurance (Hours)
Download
GM
General , Standard
16 to 450
56 to 68000
85℃
2,000 hrs
GM
Downsize
200 to 450
82 to 1000
85℃
2,000 hrs
GR
General , Downsize
350 to 450
82 to 680
85℃
2,000 hrs
GS
General , Long life
200 to 450
68 to 2200
85℃
3,000 hrs
GD
General , Standard , Horizontal Mounting
160 to 450
82 to 1200
85℃
2,000 hrs
GH
High ripple current
400 to 450
68 to 680
85℃
2,000 hrs
PX
High Temperature, Horizontal Mounting
160 to 450
68 to 1500
105℃
2,000 hrs
PM
General , High Temperature
16 to 450
56 to 68000
105℃
1,000 hrs
PL
General, High Temperature, Long Life
16 to 450
47 to 47000
105℃
2,000 hrs
PO
Snap-in terminal , more downsized
400 to 450
68 to 680
105℃
2,000 hrs
PI
Snap-in terminal , downsized
400 to 450
56 to 680
105℃
3,000 hrs
PK
High Temperature , Long Life
200 to 450
56 to 2200
105℃
3,000 hrs
PT
General, High Temperature , Long Life
200 to 400
68 to 1000
105℃
4,000 hrs
PD
Smaller size with higher ripple current
400 to 450
82 to 330
105℃
3,000 hrs
PG
Smaller size with higher ripple current
200 to 450
68 to 2200
105℃
5,000 hrs
PH
High ripple current
400 to 450
82 to 560
105℃
2,000 hrs
GA
Snap-in Terminal Type
25 to 100
680 to 10000
85℃
1,000 hrs
GL
Lug Terminal Type
50 to 100
6800 to 22000
85℃
1,000 hrs
AQ
For Power Supply and Air-Conditioner, HU
Terminal
400 to 450
330 to 820
85℃
3,000 hrs
AN
For Power Supply and Air-Conditioner ,
AC Terminal
400 to 450
800 to 3300
85℃
3,000 hrs
Series
Features
Terminal
Type
Voltage
Capacitance
Range (μF)
Temperature
(°C)
Endurance
(Hours)
Download
SC
Standard
Screw
200 to 450
820 to 33000
85℃
2,000 hrs
SA
Long Life
Screw
160 to 450
1000 to 68000
85℃
5,000 hrs
SK
High temperature , Long Life
Screw
200 to 400
1000 to 39000
105℃
2,000 hrs
SX
High temperature , Long Life
Screw
200 to 400
1000 to 39000
105℃
5,000 hrs
Snap-In, Lug Terminal Type
Screw Type
CopyRight © Taiwan Chinsan Electronic Industrial Co., Ltd.
