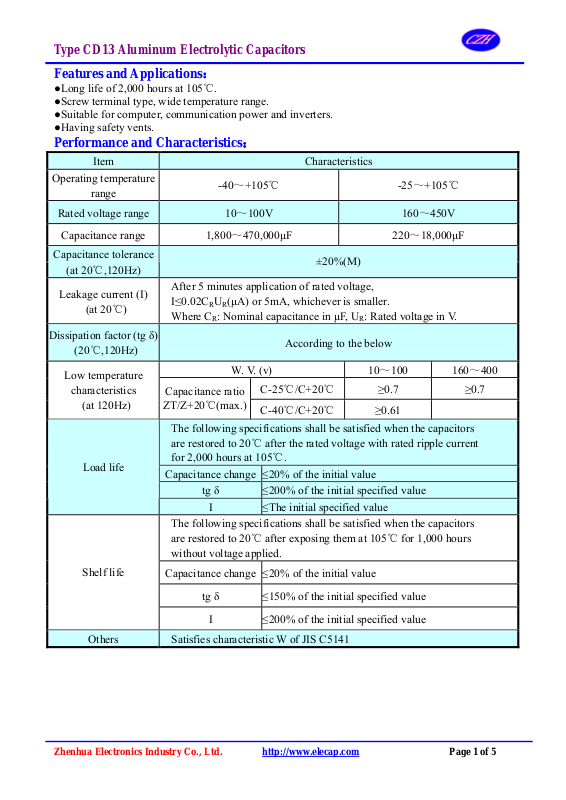

Page 1
Type CD13 Aluminum Electrolytic Capacitors
Features and Applications：
●Long life of 2,000 hours at 105 .℃
●Screw terminal type, wide temperature range.
●Suitable for computer, communication power and inverters.
●Having safety vents.
Performance and Characteristics：
Item Characteristics
Operating temperature
range
Rated voltage range 10～100V 160～450V
Capacitance range 1,800～470,000µF 220～18,000µF
Capacitance tolerance
(at 20 ,120Hz)℃
Leakage current (I)
(at 20 ) ℃
Dissipation factor (tg δ)
(20℃,120Hz)
Low temperature
characteristics
(at 120Hz)
Load life
After 5 minutes application of rated voltage,
I≤0.02CRUR(µA) or 5mA, whichever is smaller.
Where CR: Nominal capacitance in µF, UR: Rated voltage in V.
Capacitance ratio
ZT/Z+20℃(max.)
The following specifications shall be satisfied when the capacitors
are restored to 20 after the rated voltage with rated ripple current ℃
for 2,000 hours at 105 .℃
Capacitance change ≤20% of the initial value
-40～+105℃ -25～+105℃
±20%(M)
According to the below
W. V. (v) 10～100 160～400
C-25℃/C+20℃ ≥0.7 ≥0.7
C-40℃/C+20℃ ≥0.61 111
tg δ ≤200% of the initial specified value
I ≤The initial specified value
The following specifications shall be satisfied when the capacitors
are restored to 20 after exposing them at 105 for 1,000 hours ℃℃
without voltage applied.
Shelf life
Others Satisfies characteristic W of JIS C5141
Capacitance change ≤20% of the initial value
tg δ ≤150% of the initial specified value
I ≤200% of the initial specified value
Zhenhua Electronics Industry Co., Ltd. http://www.elecap.com Page 1 of 5
Page 2
Type CD13 Aluminum Electrolytic Capacitors
Case Size D×L(mm), D.F. And Maximum Ripple Current (A rms/at 105℃,120Hz)
W.V.(v)
Cap.(µF)
D×L tgδ I
10 16 25 35 50
D×L tgδ I
～
D×L tgδ I
～
D×L tgδ I～ D×L tgδ I
～
3,900 1 1 1 1 1 1 1 1 1 1 1 1 35×50 0.2 2.7
4,700 1 1 1 1 1 1 1 1 1 1 1 1 35×50 0.2 2.9
5,600 1 1 1 1 1 1 1 1 1 1 1 1 35×50 0.2 3.2
6,800 1 1 1 1 1 1 1 1 1 1 1 1 35×50 0.2 3.5
8,200 1 1 1 1 1 1 1 1 1 35×50 0.3 3.2 35×60 0.2 3.7
10,000 1 1 1 1 1 1 1 1 1 35×50 0.3 3.5 35×80 0.25 4.7
12,000 1 1 1 1 1 1 35×50 0.25 3.5 35×60 0.3 4.1 35×80 0.25 5.1
15,000 1 1 1 1 1 1 35×50 0.35 4 35×60 0.3 4.6 35×80 0.25 5.8
18,000 1 1 1 35×50 0.4 4.1 35×60 0.35 4.7 35×80 0.3 5.8 42×80 0.25 7
22,000 1 1 1 35×50 0.4 4.5 35×60 0.35 5.2 35×80 0.3 6.4 42×100 0.25 8.5
27,000 35×50 0.45 4.7 35×60 0.4 5.4 35×80 0.35 6.5 42×80 0.3 7.8 42×100 0.25 9.4
33,000 35×50 0.5 4.9 35×60 0.45 5.6 35×80 0.4 6.7 42×100 0.3 9.5 50×100 0.25 11.5
～
39,000 35×60 0.5 5.8 35×80 0.45 6.9 42×80 0.4 8.1 42×100 0.35 9.6 50×120 0.25 13.5
47,000 35×80 0.5 7.2 35×80 0.5 7.2 42×100 0.4 9.8 50×100 0.35 11.6 50×120 0.3 13.6
56,000 35×80 0.5 7.2 42×80 0.5 8.7 42×100 0.45 10.1 50×100 0.4 11.8 65×100 0.35 14.6
68,000 42×80 0.5 8.7 42×80 0.55 9.1 50×100 0.45 12.3 50×120 0.4 14.1 65×120 0.35 17.5
82,000 42×80 0.65 9.2 42×100 0.55 11.1 50×100 0.5 12.8 65×100 0.45 15.6 65×120 0.4 19.6
100,000 42×100 0.65 11.3 42×100 0.65 11.3 50×120 0.5 15.3 65×120 0.45 18.7 76×120 0.45 20.4
120,000 42×100 0.75 11.5 50×100 0.65 13.6 65×100 0.65 15.7 65×120 0.55 18.5 76×120 0.45 22.4
150,000 50×100 0.8 13.7 50×120 0.7 15.9 65×120 0.65 19 76×120 0.65 20.8 1 1 1
180,000 50×120 0.8 16.3 50×120 0.8 16.3 65×120 0.8 18.8 76×120 0.8 20.5 1 1 1
220,000 50×120 0.85 17.4 65×120 0.85 20.2 76×120 0.85 22 1 1 1 1 1 1
270,000 65×120 1 20.6 65×120 1 20.6 76×120 1 22.5 1 1 1 1 1 1
330,000 76×120 1.2 20.8 76×120 1.3 21.8 1 1 1 1 1 1 1 1 1
390,000 76×120 1.5 22.1 76×120 1.5 22.1 1 1 1 1 1 1 1 1 1
470,000 76×120 1.8 22.1 76×140 1.6 25.1 1 1 1 1 1 1 1 1 1
Zhenhua Electronics Industry Co., Ltd.
[email protected] Page 2 of 5
Page 3
Type CD13 Aluminum Electrolytic Capacitors
Case Size D×L(mm), D.F. And Maximum Ripple Current (A rms/at 105℃,120Hz)
W.V.(v)
Cap.(µF)
D×L tgδ I～ D×L tgδ I
63 80 100 160 200
D×L tgδ I
～
D×L tgδ I～ D×L tgδ I
～
330 1 1 1 1 1 1 1 1 1 1 1 1 35×50 0.15 0.8
470 1 1 1 1 1 1 1 1 1 1 1 1 35×50 0.15 0.9
560 1 1 1 1 1 1 1 1 1 1 1 1 35×50 0.15 1
680 1 1 1 1 1 1 1 1 1 35×50 0.15 1.3 35×50 0.15 1.1
1,000 1 1 1 1 1 1 1 1 1 35×50 0.15 1.6 35×60 0.15 1.5
1,200 1 1 1 1 1 1 1 1 1 35×60 0.15 1.8 35×60 0.15 1.6
1,500 1 1 1 1 1 1 1 1 1 35×60 0.15 2.1 35×80 0.15 2
1,800 1 1 1 1 1 1 35×50 0.1 2.6 35×80 0.15 2.6 35×80 0.15 2.2
2,200 1 1 1 35×50 0.15 2.3 35×50 0.1 2.8 35×80 0.15 2.8 42×80 0.15 2.7
2,700 35×50 0.2 2.2 35×50 0.15 2.6 35×60 0.1 3.4 42×80 0.15 3.5 42×100 0.15 3.3
3,300 35×50 0.2 2.5 35×50 0.15 2.8 35×60 0.1 4.3 42×100 0.2 3.7 42×100 0.15 3.3
3,900 35×50 0.2 2.7 35×60 0.15 3.3 35×80 0.12 4.2 42×100 0.2 4 50×100 0.15 3.9
4,700 35×50 0.2 2.9 35×60 0.15 3.7 35×80 0.12 5.1 50×100 0.2 4.8 65×100 0.2 5
～
5,600 35×60 0.2 3.5 35×80 0.15 4.5 42×80 0.12 5.6 50×100 0.2 5.3 65×100 0.2 5.5
6,800 35×60 0.2 3.8 35×80 0.15 5 42×100 0.15 6.1 50×120 0.2 6.3 65×120 0.2 6.5
8,200 35×80 0.2 4.8 42×80 0.2 5.3 42×100 0.15 6.7 65×100 0.2 7.4 65×120 0.2 7.2
10,000 35×80 0.2 5.3 42×100 0.2 6.4 50×100 0.15 8.2 65×120 0.2 8.9 76×120 0.2 8.7
12,000 42×80 0.25 5.7 42×100 0.2 7 50×120 0.15 9.7 76×100 0.2 9.8 76×120 0.2 9.5
15,000 42×100 0.25 7 50×100 0.2 8.7 50×120 0.15 10.8 76×120 0.2 11.9 1 1 1
18,000 42×100 0.25 7.7 50×120 0.2 10.3 65×100 0.2 11 76×140 0.2 13.9 1 1 1
22,000 50×100 0.25 9.4 50×120 0.2 11.4 65×120 0.2 13.1 1 1 1 1 1 1
27,000 50×120 0.25 11.3 65×100 0.25 12 65×120 0.25 14.2 1 1 1 1 1 1
33,000 50×120 0.25 12.5 76×100 0.25 14.6 76×120 0.25 15.7 1 1 1 1 1 1
39,000 35×100 0.3 13.2 76×100 0.3 14.4 76×140 0.25 18.3 1 1 1 1 1 1
47,000 65×120 0.3 15.7 76×120 0.3 17.1 1 1 1 1 1 1 1 1 1
56,000 65×120 0.3 17.1 76×120 0.3 18.7 1 1 1 1 1 1 1 1 1
68,000 76×120 0.35 19.1 1 1 1 1 1 1 1 1 1 1 1 1
82,000 76×140 0.4 21 1 1 1 1 1 1 1 1 1 1 1 1
Zhenhua Electronics Industry Co., Ltd. http://www.elecap.com
Page 3 of 5

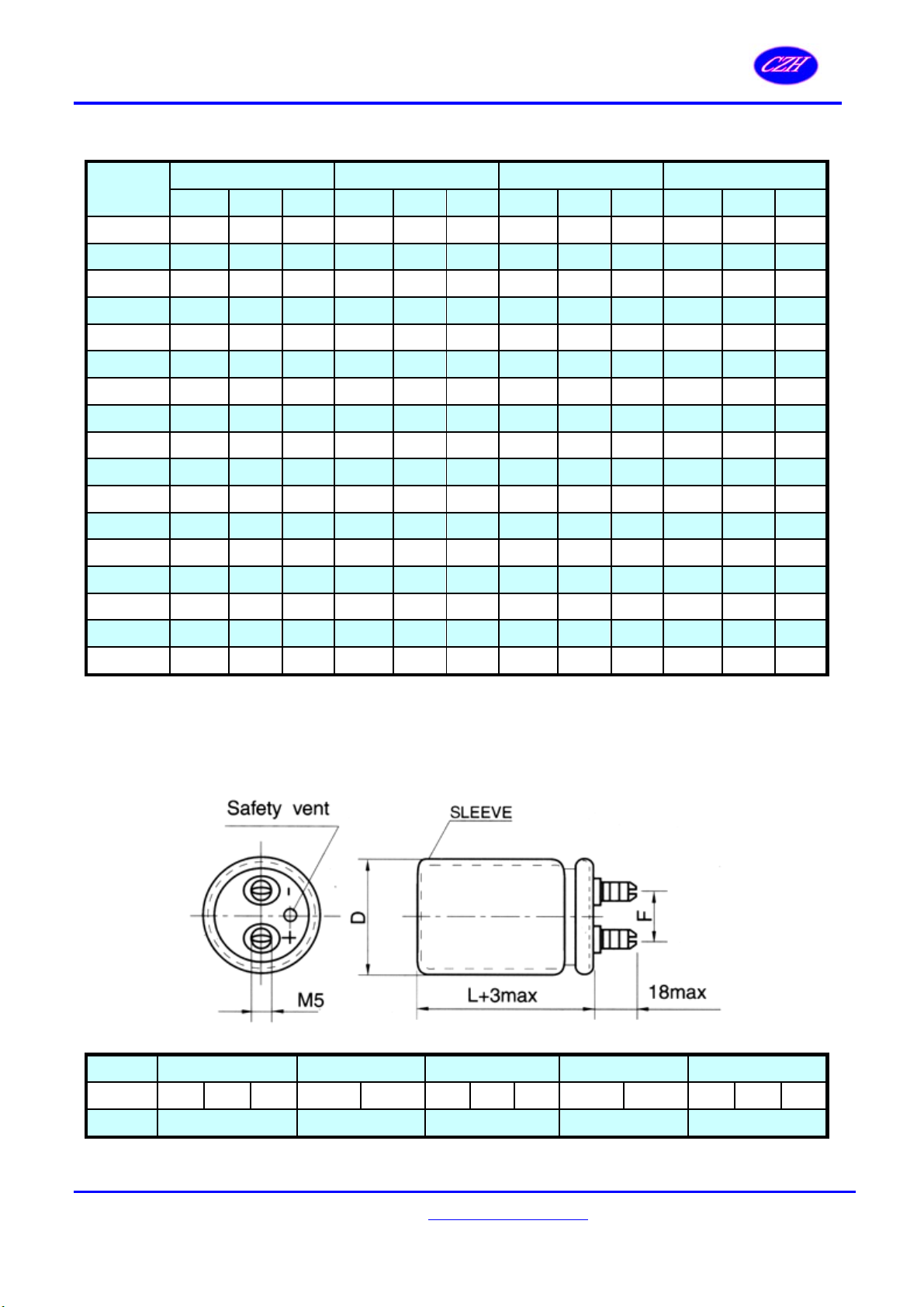

Page 4
Type CD13 Aluminum Electrolytic Capacitors
Case Size D×L(mm), D.F. And Maximum Ripple Current (A rms/at 105℃,120Hz)
250 315 350 400 W.V.(v)
Cap.(µF)
220 1 1 1 35×50 0.1 0.9 35×50 0.1 0.9 35×50 0.1 0.9
330 35×50 0.15 0.9 35×50 0.1 1.1 35×50 0.1 1.1 35×60 0.1 1.2
470 35×50 0.15 1.1 35×60 0.1 1.4 35×60 0.1 1.4 35×80 0.1 1.6
560 35×50 0.15 1.2 35×60 0.1 1.5 35×60 0.1 1.5 35×80 0.1 1.8
680 35×60 0.15 1.4 35×80 0.1 1.9 35×80 0.15 1.6 42×80 0.15 1.7
1,000 35×80 0.2 1.7 42×80 0.15 2.1 42×100 0.15 2.3 42×100 0.15 2.3
1,200 35×80 0.2 1.8 42×100 0.15 2.6 42×100 0.15 2.6 50×100 0.15 2.8
1,500 42×80 0.2 2.2 42×100 0.15 2.9 50×100 0.15 3.2 50×100 0.15 3.2
1,800 42×100 0.2 2.7 50×100 0.15 3.5 50×120 0.15 3.8 65×100 0.15 4
2,200 42×100 0.2 3 50×120 0.15 4.2 50×120 0.15 4.2 65×100 0.15 4.4
2,700 50×100 0.2 3.7 50×120 0.15 4.6 65×100 0.15 4.9 65×120 0.15 5.3
3,300 50×120 0.2 4.4 65×100 0.15 5.4 65×120 0.15 5.9 76×120 0.15 6.4
D×L tgδ I～ D×L tgδ I～ D×L tgδ I～ D×L tgδ I～
3,900 50×120 0.2 4.8 65×120 0.15 6.4 76×120 0.15 7 76×140 0.15 7.5
4,700 65×100 0.2 6.1 76×100 0.15 7.1 76×120 0.15 7.7 76×140 0.15 8.2
5,600 65×120 0.2 6.6 76×120 0.15 8.4 76×140 0.15 8.9 1 1 1
6,800 76×120 0.2 8 76×140 0.15 9.9 1 1 1 1 1 1
8,200 76×120 0.2 8.8 1 1 1 1 1 1 1 1 1
Ripple Current Multipliers
Dimensions
D±1.5 35 42 50 65 76
L 50 60 80 80 100 80 100 120 100 120 100 120 140
F±0.5 14 15 22 28 32
Zhenhua Electronics Industry Co., Ltd.
[email protected] Page 4 of 5

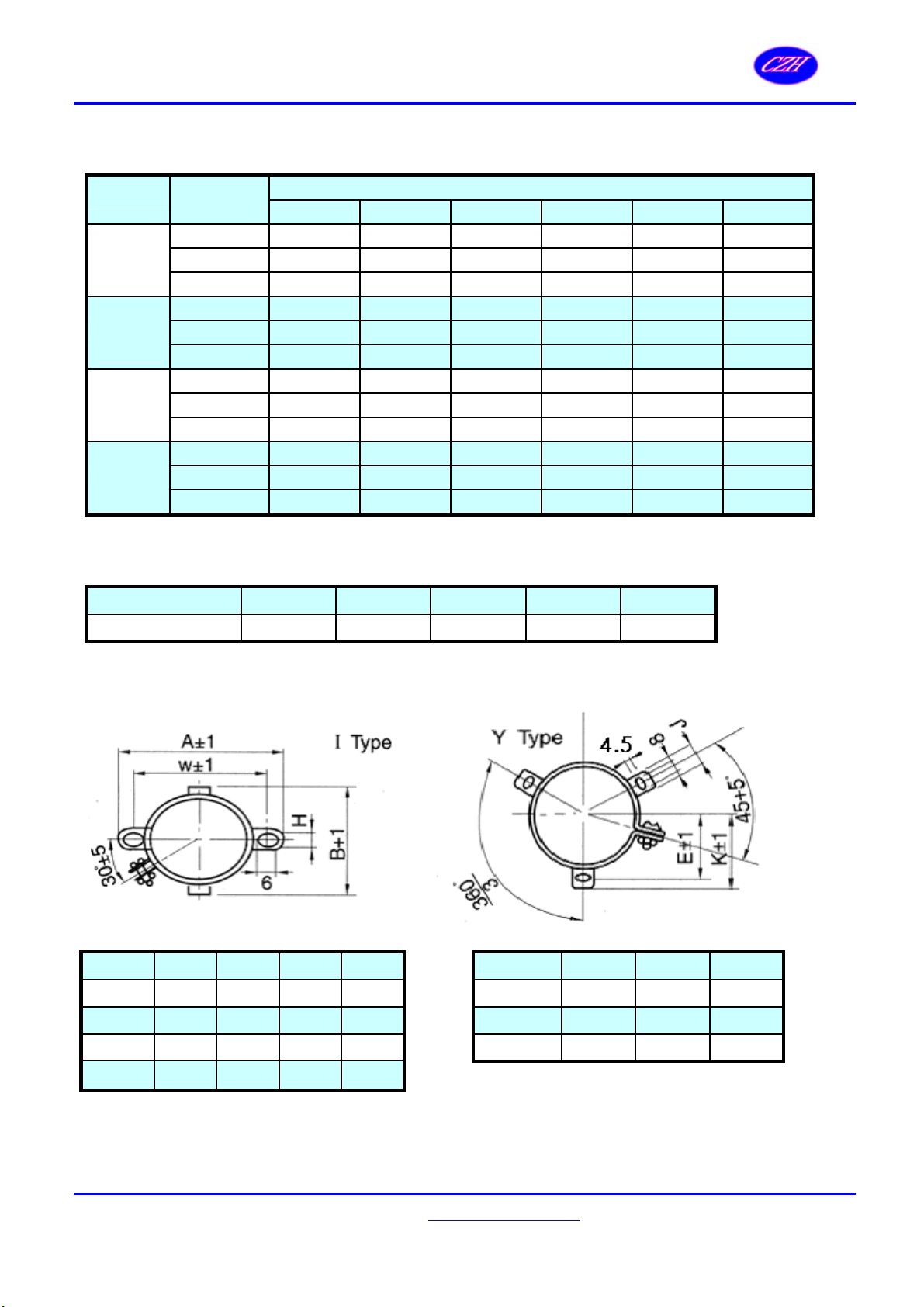

Page 5
Type CD13 Aluminum Electrolytic Capacitors
Frequency multiplying factor
W. V. (v)
10～50
63～100
160～250
350～450
φD
50 60 120 360 1K ≥10K
35 42 0.95 0.96 1 1.03 1.04 1.04
50 65 0.97 0.98 1 1.02 1.03 1.03
76 0.98 0.99 1 1.02 1.03 1.03
35 42 0.9 0.94 1 1.09 1.03 1.15
50 65 0.93 0.97 1 1.06 1.1 1.13
76 0.95 0.98 1 1.03 1.08 1.08
35 42 0.71 0.79 1 1.1 1.15 1.21
50 65 0.83 0.88 1 1.08 1.13 1.2
76 0.85 0.9 1 1.06 1.11 1.2
35 42 0.65 0.74 1 1.1 1.16 1.22
50 65 0.81 0.87 1 1.08 1.13 1.21
76 0.85 0.9 1 1.06 1.11 1.2
Temperature multiplying factor
Temperature℃)
Factor 2.47 2.37 2.17 1.67 1
45 60 70 85 105
Freq.(Hz)
Mounting clamp
φD A B W H φD E K J
35 62 44 50 3.2 50 32.5 37 14
42 64 50 54 3.5 65(63.5) 38 43.5 14
50 80 64 68 4.5 76 44.5 50.5 14
65(63.5) 93 76 81 4.5
Zhenhua Electronics Industry Co., Ltd. http://www.elecap.com
Page 5 of 5
