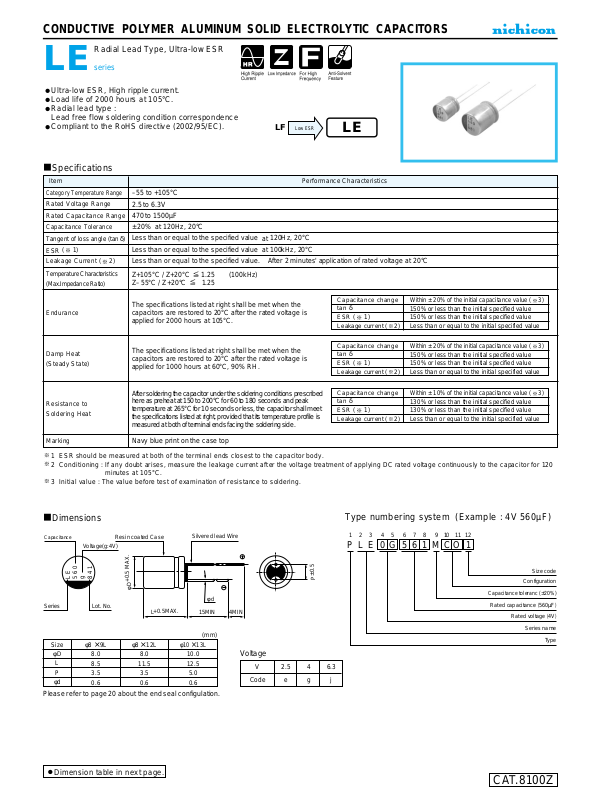

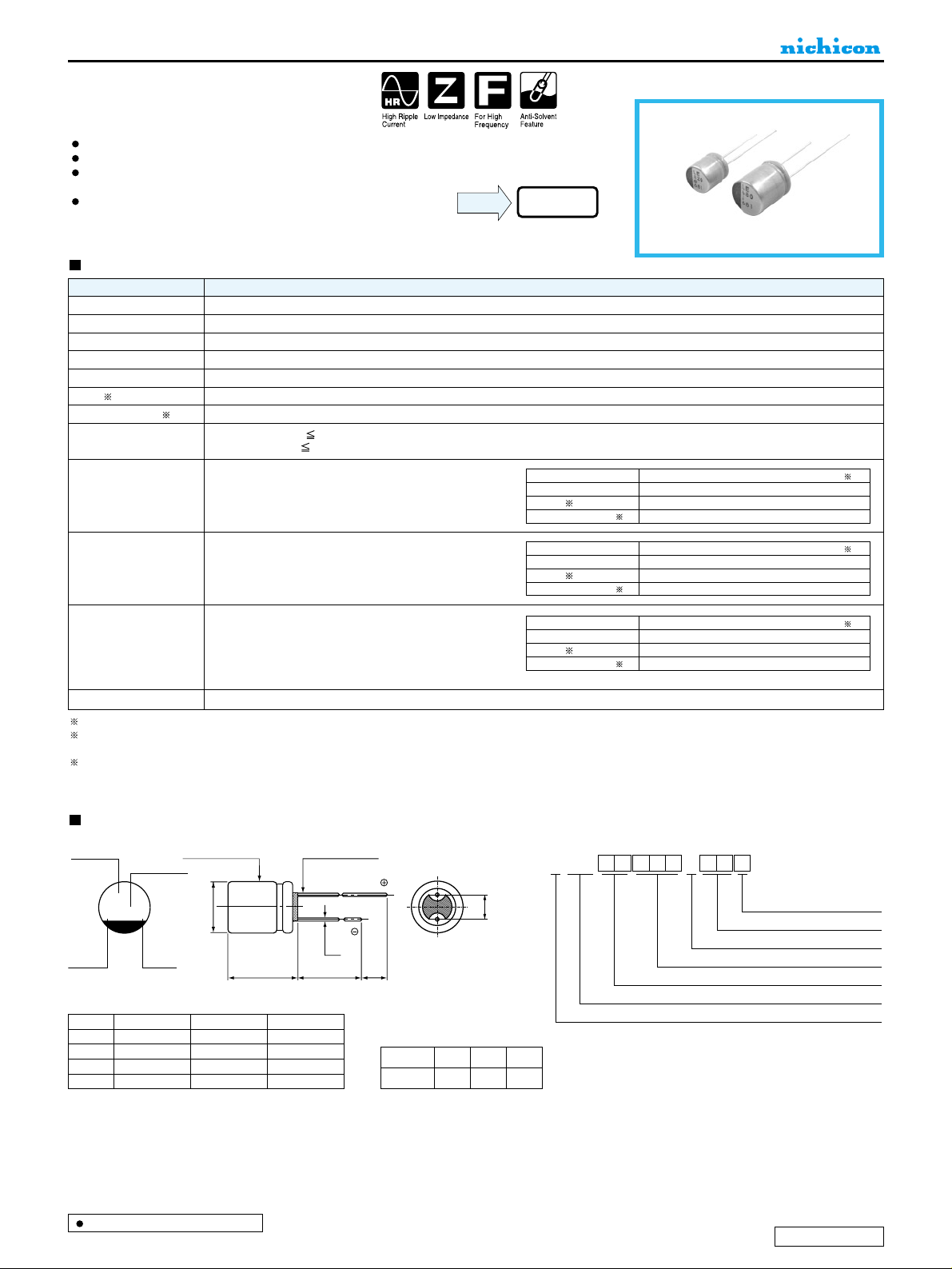

Page 1
CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
LEseries
Radial Lead Type, Ultra-low ESR
Specifications
Temperature Characteristics
(Max.Impedance Ratio)
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Tangent of loss angle (tan δ)
ESR
(1)
Leakage Current ( 2)
Performance CharacteristicsItem
–55 to +105°C
2.5 to 6.3V
470 to 1500µF
±20% at 120Hz, 20°C
Less than or equal to the specified value
at
120Hz, 20°C
Less than or equal to the specified value
at
100kHz, 20°C
Less than or equal to the specified value. After 2 minutes' application of rated voltage at 20°C
Z+105°C / Z+20°C 1.25 (100kHz)
Z
–
55°C / Z+20°C 1.25
Endurance
Damp Heat
(Steady State)
Resistance to
Soldering Heat
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 2000 hours at 105°C.
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 60°C, 90% RH.
After soldering the capacitor under the soldering conditions prescribed
here as preheat at 150 to 200°C for 60 to 180 seconds and peak
temperature at 265°C for 10 seconds or less, the capacitor shall meet
the specifications listed at right, provided that its temperature profile is
measured at both of terminal ends facing the soldering side.
Capacitance change
tan δ
Leakage current ( 2)
ESR
(1)
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Capacitance change
tan δ
Leakage current ( 2)
ESR
(1)
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Capacitance change
tan δ
Leakage current ( 2)
ESR
(1)
Within ± 10% of the initial capacitance value ( 3)
130% or less than the initial specified value
130% or less than the initial specified value
Less than or equal to the initial specified value
Ultra-low ESR, High ripple current.
Load life of 2000 hours at 105°C.
Radial lead type :
Lead free flow soldering condition correspondence
Compliant to the RoHS directive (2002/95/EC).
1 ESR should be measured at both of the terminal ends closest to the capacitor body.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
3 Initial value : The value before test of examination of resistance to soldering.
Dimensions
Type numbering system (Example : 4V 560µF)
Dimension table in next page.
LE
LF
Low ESR
Please refer to page 20 about the end seal configulation.
Voltage
V 2.5 4 6.3
Code e g j
Size
φD
L
P
φd
φ8
× 9L
8.0
8.5
3.5
0.6
φ8 × 12L
8.0
11.5
3.5
0.6
φ10 × 13L
10.0
12.5
5.0
0.6
(mm)
Marking
Navy blue print on the case top
CAT.8100Z
Capacitance
Series
Voltage(g:4V)
LE
560g841
Lot. No.
Resin coated Case
+0.5 MAX.
φD
+0.5MAX.
L
Silvered lead Wire
15MIN
φd
4MIN
±0.5
P
P1L2E304G5566718M9C10O111
12
Configuration
Capacitance toleranc (±20%)
Rated capacitance (560µF
Rated voltage (4V
Series name
Size code
)
)
Type
Page 2
CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
LEseries
Taping specifications are given in page 20, 21, 22.
Please refer to page 3 for the minimum order quantity.
Rated ripple current (mArms) at 105°C 100kHz
Standard Ratings
: In this case, will be put at 12th digit of type numbering system.
6
No marked, will be put at 12th digit of type numbering system.
1
CAT.8100Z
Rated Voltage
(V)
Code
2.5
(0E)
4
(0G)
6.3
(0J)
Surge Voltage
(V)
2.8
4.6
7.2
Rated Capacitance
(µF)
560
820
820
1000
1500
560
680
820
1200
470
680
820
Case Size
φD × L (mm)
×
9
8
×
9
8
×
12
8
×
13
10
×
13
10
×
9
8
×
12
8
×
13
10
×
13
10
×
12
8
×
13
10
×
13
10
tan δ Part Number
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
Leakage Current
(µA)
280
410
410
500
750
448
544
656
960
592
857
1033
ESR (mΩ)
(at 100kHz 20°C)
5
5
5
5
5
5
5
5
5
5
5
5
Rated Ripple
(mArms)
6100
6300
6600
7100
7300
6000
6500
7000
7200
6400
6700
6800
PLE0E561MCO1
PLE0E821MCO6
PLE0E821MDO1
PLE0E102MDO1
PLE0E152MDO1
PLE0G561MCO1
PLE0G681MDO1
PLE0G821MDO1
PLE0G122MDO1
PLE0J471MDO1
PLE0J681MDO1
PLE0J821MDO1
