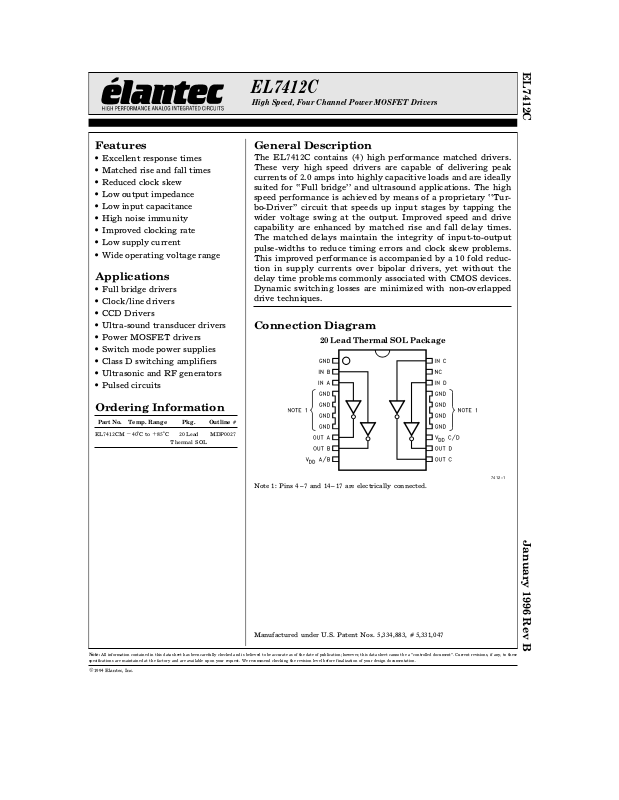

EL7412C

High Speed, Four Channel Power MOSFET Drivers

EL7412C January 1996 Rev B

Features

# Excellent response times
# Matched rise and fall times
# Reduced clock skew
# Low output impedance
# Low input capacitance
# High noise immunity
# Improved clocking rate
# Low supply current
# Wide operating voltage range

Applications

# Full bridge drivers
# Clock/line drivers
# CCD Drivers
# Ultra-sound transducer drivers
# Power MOSFET drivers
# Switch mode power supplies
# Class D switching amplifiers
# Ultrasonic and RF generators
# Pulsed circuits

Ordering Information

Part No. Temp. Range Pkg. Outline

EL7412CMb40§Ctoa85§C 20 Lead MDP0027

Thermal SOL

General Description

The EL7412C contains (4) high performance matched drivers.
These very high speed drivers are capable of delivering peak
currents of 2.0 amps into highly capacitive loads and are ideally
suited for ‘‘Full bridge’’ and ultrasound applications. The high
speed performance is achieved by means of a proprietary ‘‘Tur­bo-Driver’’ circuit that speeds up input stages by tapping the
wider voltage swing at the output. Improved speed and drive
capability are enhanced by matched rise and fall delay times.
The matched delays maintain the integrity of input-to-output
pulse-widths to reduce timing errors and clock skew problems.
This improved performance is accompanied by a 10 fold reduc­tion in supply currents over bipolar drivers, yet without the
delay time problems commonly associated with CMOS devices.
Dynamic switching losses are minimized with non-overlapped
drive techniques.

Connection Diagram

20 Lead Thermal SOL Package

Ý

Note 1: Pins 4 – 7 and 14 – 17 are electrically connected.

Ý

Manufactured under U.S. Patent Nos. 5,334,883,

Note: All information contained in this data sheet has been carefully checked and is believed to be accurate as of the date of publication; however, this data sheet cannot be a ‘‘controlled document’’. Current revisions, if any, to these
specifications are maintained at the factory and are available upon your request. We recommend checking the revision level before finalization of your design documentation.

©

1994 Elantec, Inc.

5,331,047

7412– 1

EL7412C

High Speed, Four Channel Power MOSFET Drivers

Absolute Maximum Ratings

Supply (Vato Gnd) 16.5V
Input Pins

b

0.3V toa0.3V above V
Combined Peak Output Current 8A
Storage Temperature Range
Ambient Operating Temperature

Important Note:
All parameters having Min/Max specifications are guaranteed. The Test Level column indicates the specific device testing actually
performed during production and Quality inspection. Elantec performs most electrical tests using modern high-speed automatic test
equipment, specifically the LTX77 Series system. Unless otherwise noted, all tests are pulsed tests, therefore T

Test Level Test Procedure

I 100% production tested and QA sample tested per QA test plan QCX0002.

II 100% production tested at T

III QA sample tested per QA test plan QCX0002.
IV Parameter is guaranteed (but not tested) by Design and Characterization Data.

V Parameter is typical value at T

T

MAX

and T

MIN

DC Electrical Characteristics

Parameter Description

b

65§Ctoa150§C

b

40§Ctoa85§C

e

25§C and QA sample tested at T

A

per QA test plan QCX0002.

e

25§C for information purposes only.

A

e

T

A

Conditions Level

Input

V

I

V

I

V

IH

IH

IL

IL

HVS

Logic ‘‘1’’ Input Voltage 2.4 I V

Logic ‘‘1’’ Input Current

@

V

DD

Logic ‘‘0’’ Input Voltage 0.8 I V

Logic ‘‘0’’ Input Current

@

0V 0.1 10 I mA

Input Hysteresis 0.3 V V

Output

R

OH

R

OL

I

PK

I

DC

Pull-Up Resistance I

Pull-Down Resistance I

OUT

OUT

Peak Output Current Source 2

Sink 2

Continuous Output Current Source/Sink 100 I mA

Power Supply

I

S

V

S

Power Supply Current Inputs High 2 5 I mA

Operating Voltage 4.5 15 I V

Operating Junction Temperature 125

a

Power Dissipation

20-Pin ‘‘Batwing’’ SOIC 1500 mW

e

T

J

e

25§C,

A

25§C, V

Test

e

15V unless otherwise specified

DD

Min Typ Max

Test

0.1 10 I mA

eb

100 mA 3 6 I X

ea

100 mA 4 6 I X

IV A

§

e

TA.

C

Units

C

TD is 3.1in

2

EL7412C

High Speed, Four Channel Power MOSFET Drivers

AC Electrical Characteristics

Parameter Description

Switching Characteristics

t

R

t

F

t

D1

t

D2

Rise Time C

Fall Time C

Turn-On Delay Time See Timing Table 18 25 IV ns

Turn-Off Delay Time See Timing Table 20 25 IV ns

Timing Table

e

T

25§C, Ve15V unless otherwise specified

A

Test

Conditions Level

e

500 pF 7.5

L

e

C

1000 pF 10 20

L

e

500 pF 10

L

e

C

1000 pF 13 20

L

Min Typ Max

Standard Test Configuration

Pins 2, 18, 20 connected to V

DD

Test

IV ns

IV ns

Units

TD is 1.5in

7412– 3

7412– 2

Simplified Schematic

3

7412– 4

EL7412C

High Speed, Four Channel Power MOSFET Drivers

Typical Performance Curves

Max Power/Derating Curves

Input Current vs Voltage

7412– 5

Peak Drive vs Supply Voltage

7412– 7

‘‘ON’’ Resistance vs Supply Voltage

Switch Threshold vs
Supply Voltage

7412– 6

7412– 8

7412– 10

4

EL7412C

High Speed, Four Channel Power MOSFET Drivers

Typical Performance Curves

Average Supply Current vs
Voltage and Frequency

Rise/Fall Time vs Load

Ð Contd.

7412– 11

Average Supply Current
vs Capacitive Load

Rise/Fall Time vs Supply Voltage

7412– 12

7412– 13

7412– 14

5

EL7412C

High Speed, Four Channel Power MOSFET Drivers

Typical Performance Curves

Propagation Delay vs Supply Voltage

Ð Contd.

7412– 15

Delay vs Temperature

Rise/Fall Time vs Temperature

7412– 16

7412– 17

6
