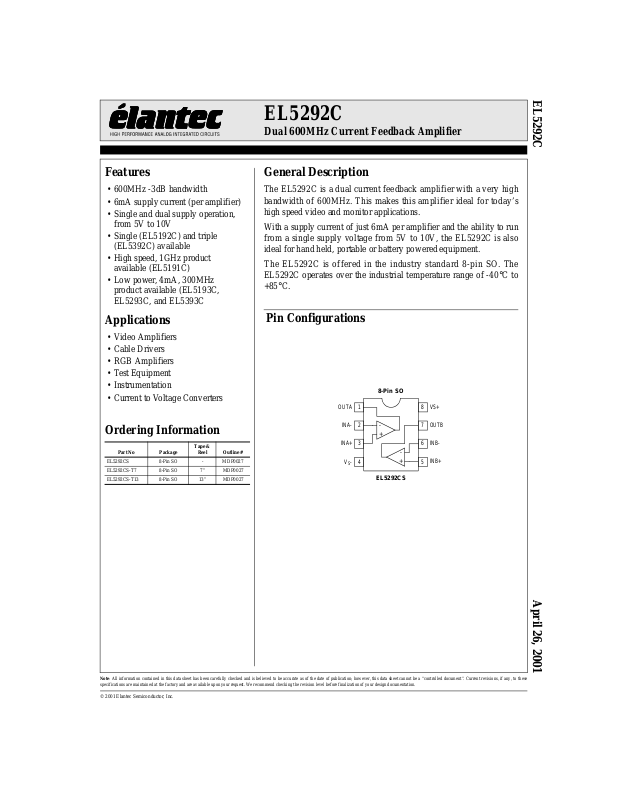

EL5292C

Dual 600MHz Current Feedback Amplifier

EL5292C

Features

• 600MHz -3dB band w idth

• 6mA supply current (per amplifier)

• Single and dual sup p l y op er a tion,

from 5V to 10V

• Single (EL5192C) and triple
(EL5392C) available

• High speed, 1GHz product
available (EL519 1C )

• Low power, 4mA, 300MHz
product available (EL5193C,
EL5293C, and EL5393C

Applications

• Video Amplifiers

• Cable Drivers

• RGB Amplifiers

• Test Equipment

• Instrumentation

• Current to Voltage Converters

Ordering Information

Part No Package

EL5292CS 8-Pin SO - MDP0027 EL5292CS-T7 8-Pin SO 7” MDP0027 EL5292CS-T13 8-Pin SO 13” MDP0027

Tape &

Reel Outline #

General Description

The EL5292C is a dual current feedback amplifier with a very h igh
bandwidth of 600MHz. This makes this amplifier ideal for today’s
high speed video and monitor applications .

With a supply current of just 6mA per amplifier and the ability to run
from a single supply voltage from 5V to 10V, the EL5292C is also
ideal for hand held, portable or battery powered equipment.

The EL5292C is offered in the industry standard 8-pin SO. The
EL5292C operates over the industrial temperature range of -40°C to
+85°C.

Pin Configurations

8-Pin SO

INA-

INA+

1

2

-

+

3

4

-

V

S

EL5292CS

8

VS+OUTA

7

OUTB

INB-

6

-

INB+

+

5

Note: All information contained in this data sheet has been carefully checked and is believed to be accurate as of the date of publication; however, this data sheet cannot be a “controlled document”. Current revisions, if any, to these
specifications are maintained at the factory and are available upon your request . W e recommend checking the revision level befo re finalization of your design documentation.

© 2001 Elantec Semiconductor, Inc.

April 26, 2001

EL5292C

Dual 600MHz Current Feedback Amplifier

EL5292C

Absolute Maximum Ratings (T

Values beyond absolute maximum ratings can cause the device to be pre­maturely damaged. Absolute maximum ratings are stress ratings only and
functional device operation is not implied.

Supply Voltage between V
Maximum Continuous Output Current 50mA

+ and VS-11V

S

= 25°C)

A

Operating Junction Temperature 125°C
Power Dissipation See Curves
Pin Voltages V

- - 0.5V to VS+ +0.5V

S

Storage Temperature -65°C to +150°C
Operating Temperature -40°C to +85°C

Important Note:
All parameters having Min/Max specifications are guaranteed. Typ values are for information purposes only. Unless otherwise noted, all tests are at the

specified temperature and are pulsed tests, therefore: T

= TC = TA.

J

Electrical Characteristics

VS+ = +5V, VS- = -5V, RF = 750Ω for AV = 1, RF = 375Ω for AV = 2, RL = 150Ω, TA = 25°C unless otherwise specified.

Parameter Description Conditions Min Typ Max Unit

AC Performance

BW -3dB Bandwidth A

BW1 0.1dB Bandwidth 25 MHz
SR Slew Rate V
ts 0.1% Settling Time V
C

S

e

n

i

- IN- input current noise 20 pA/√Hz

n

i

+ IN+ input current noise 50 pA/√Hz

n

dG Differential Gain Error
dP Differential Phase Error

Channel Separation f = 5MHz 60 dB
Input Voltage Noise 4.1 nV/√Hz

[1]

[1]

DC Performance

V
T
R

OS
CVOS
OL

Offset Voltage -10 1 10 mV
Input Offset Voltage Temperature Coefficient Measured from T
Transimpediance 200 400 kΩ

Input Characteristics

CMIR Common Mode Input Range ±3 ±3.3 V CMRR Common Mode Rejection Ratio 42 50 dB +I

IN

-I

IN

R

IN

C

IN

+ Input Current -60 3 60 µA

- Input Current -35 4 35 µA
Input Resistance 37 kΩ
Input Capacitance 0.5 pF

Output Characteristics

V

I

OUT

O

Output Voltage Swing RL = 150Ω to GND ±3.4 ±3.7 V

Output Current RL = 10Ω to GND 95 120 mA

Supply

Is

ON

Supply Current No Load, V

PSRR Power Supply Rejection Ratio DC, V

-IPSR - Input Current Power Supply Rejection DC, V

1. Standard NTSC test, AC signal amplitude = 286mV

p-p

= +1 600 MHz

V

A

= +2 300 MHz

V

=-2.5V to +2.5V, AV = [phone] V/µs

O

= -2.5V to +2.5V, AV = -1 9 ns

OUT

AV = +2 0.015 % AV = +2 0.04 °

to T

MIN

MAX

R

= 1KΩ to GND ±3.8 ±4.0 V

L

= 0V 5 6 7.25 mA

IN

= ±4.75V to ±5.25V 55 75 dB

S

= ±4.75 to ±5.25V -2 2 µA/V

S

5µV/°C

, f = 3.58MHz

2
