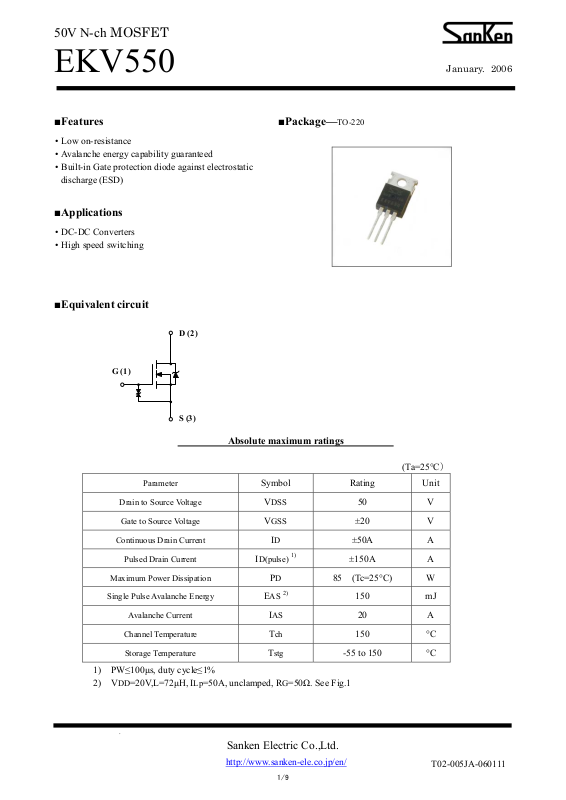

Datasheet ekv550 Datasheet

50V N-ch MOSFET

1/9

EKV550 January. 2006

■Features

• Low on-resistance

• Avalanche energy capability guaranteed

• Built-in Gate protection diode against electrostatic
discharge (ESD)

■Package—TO-220

■Applications

• DC-DC Converters

• High speed switching

■Equivalent circuit

G (1)

Absolute maximum ratings

(Ta=25°C）

Parameter Symbol Rating Unit

D (2)

S (3)

Drain to Source Voltage VDSS 50 V

Gate to Source Voltage VGSS ±20 V

Continuous Drain Current ID ±50A A

Pulsed Drain Current ID(pulse)

Maximum Power Dissipation PD 85 (Tc=25°C) W

Single Pulse Avalanche Energy EAS

Avalanche Current IAS 20 A

Channel Temperature Tch 150 °C

Storage Temperature Tstg -55 to 150 °C

1) PW≤100μs, duty cycle≤1%

2) V

DD=20V,L=72μH, ILp=50A, unclamped, RG=50Ω. See Fig.1

.

1)

±150A A

2)

150 mJ

Sanken Electric Co.,Ltd.

http://www.sanken-ele.co.jp/en/

T02-005JA-060111

50V N-ch MOSFET

2/9

EKV550 January. 2006

Electrical characteristics

(Ta=25°C）

Parameter Symbol Test Conditions

MIN. TYP. MAX.

Limits

Unit

Drain to Source breakdown Voltage

Gate to Source Leakage Current

Drain to Source Leakage Current

Gate Threshold Voltage

Forward Transconductance

Static Drain to Source On-Resistance

Input Capacitance

Output Capacitance

Reverse Transfer Capacitance

Turn-On Delay Time

Rise Time

Turn-Off Delay Time

Fall Time

V(BR)DSS ID=100μA,VGS=0V 250 V

IGSS VGS=± 2 0V ±10 μA

DSS VDS=50V, VGS=0V 100 μA

I

VTH VDS=10V, ID=250μA 3.0 4.2 V

Re(Yfs) VDS=10V, ID=25A 17 S

DS(on) ID=25A, VGS=10V 12 15 mΩ

R

Ciss 2000

Coss 1200

Crss

td(on)

tr

td(off)

tf

DS=10V

V

GS=0V

V

f=1MHz

D=25A, VDD≈25V

I

L=1Ω, VGS=10V

R

G=10Ω

R

See Fig.2

pF

500

30

360

ns

130

120

Source-Drain Diode Forward Voltage

.

VSD ISD=50A,VGS=0V 1.0 1.5 V

Sanken Electric Co.,Ltd.

T02-005JA-060111

50V N-ch MOSFET

3/9

EKV550 January. 2006

Characteristic Curves (Tc=25°C)

150

ID-VDS Characteristics (typical)

12V

10V

9V

RDS(ON)-ID Characteristics (typical)

14

12

8V

10

VGS=10V

100

ID (A)

7V

50

6V

8

6

RDS(ON) (mΩ)

4

2

0

0 1020304050

ID (A)

0

0246810

VDS (V)

VGS=5

25

20

RDS(ON)-Tc Characteristics (typical)

ID=25A
VGS=10V

15

50

ID-VGS Characteristics (typical)

VDS=10V

40

10

RDS(ON) (mΩ)

5

0

-75 -50 -25 0 25 50 75 100 125 150
Tc (℃)

30

ID (A)

20

Tc=125℃

25℃

1.5

1

VDS-VGS Characteristics (typical)

10

-55℃

0

0246810

VGS (V)

VDS (V)

0.5

0

1 10 100

VGS (V)

ID=50A

ID=25A

Sanken Electric Co.,Ltd.

T02-005JA-060111

50V N-ch MOSFET

4/9

EKV550 January. 2006

Characteristic Curves (Tc=25°C)

100

Tc=-55℃

10

Re(yfs)-ID Characteristics (typical)

25℃

125℃

VDS=10V

VDS=10V

Capacitance-VDS Characteristics (typical)

10000

VGS=0V
f=1MHz

Re(yfs) (S)

1

Ciss

0.1

0.1 1 10 100

IDR-VSD Characteristics (typical)

ID (A)

50

1000

Coss

Capacitance (pF)

Crss

40

VGS=10V

100

0 1020304050

VDS (V)

30

IDR (A)

20

VGS=0VVGS=5V

10

0

0 0.2 0.4 0.6 0.8 1 1.2

90

80

70

60

VSD (V)

PD-Ta Characteristics

無限大放熱板付

ID　(A)

1000

100

10

1

SAFE OPERATING AREA

ID(pulse)　MAX.

PW=10ms

RDS(on)　LIMITED

Tc=25℃
1shot

PW=1ms

50

ＰＤ (W)

40

30

20

10

放熱板無し

0

0 50 100 150

Ta (℃)

0.1

0.1 1 10 100
VDS　(V)

Sanken Electric Co.,Ltd.

T02-005JA-060111

50V N-ch MOSFET

5/9

EKV550 January. 2006

Fig.1 Unclamped Inductive Test Method

L

I

V

GS

0V

R

G

L

V

DS

I

V

DD

Lp

I

L

V

DS

(a) Test Circuit (b) Waveforms

Fig.2 Switching Time Test Method

R

L

V
I
R

I

D

V

DS

V

R

R

V

GS

0V

G

V

DD

P.W.=10μs

Duty cycle≦1%

(a) Test Circuit

GS

V

90%

10%

V

DS

90%

t

d(on)

t

r

t

on

t

d(off)

t

off

(b) Waveforms

10%

t

f

EAS=

V

(BR)DSS

V

DD

1

·L·ILP2·

2

DD≈25V

D=25A

L=1Ω
GS=10V
G=5Ω

V

(BR)DSS

DD(BR)DSS

VV

−

Sanken Electric Co.,Ltd.

T02-005JA-060111

50V N-ch MOSFET

6/9

EKV550 January. 2006

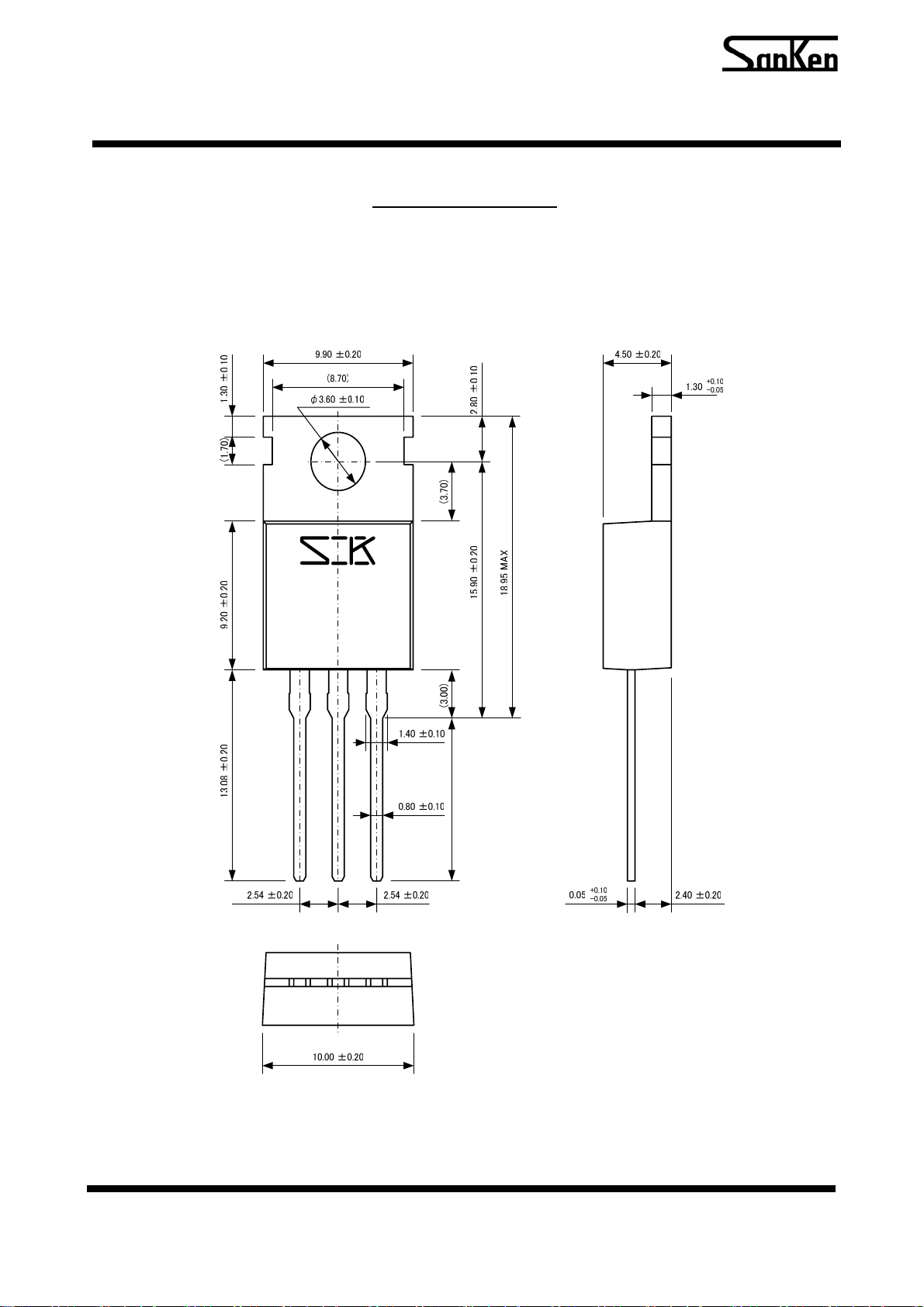

External Dimensions

TO-220

Mass: Approx. 2.1g

(1) (2) (3)

(1) Gate

(2) Drain (Back Side)

(3) Source

Sanken Electric Co.,Ltd.

T02-005JA-060111

50V N-ch MOSFET

7/9

EKV550 January. 2006
