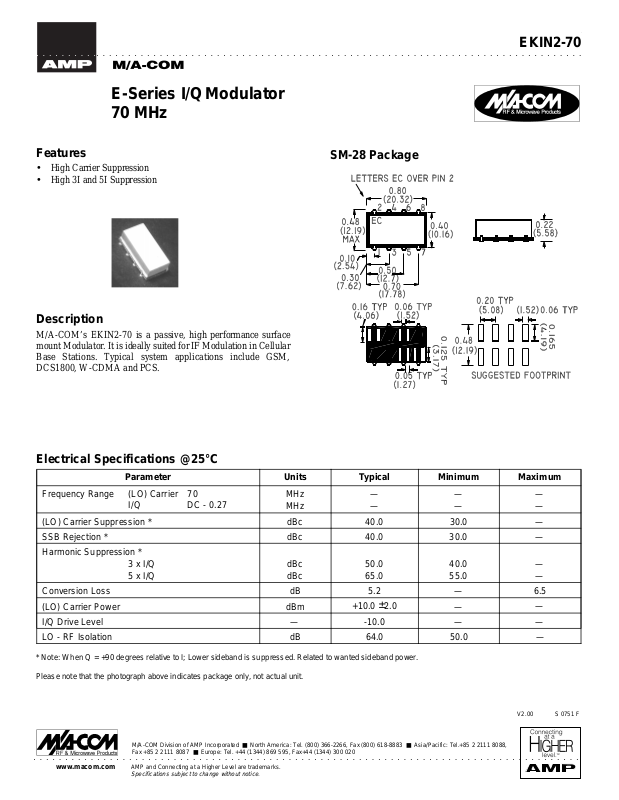

Page 1
E-Series I/Q Modulator — 70 MHz EKIN2-70
g
g
EKIN2-70
E-Series I/Q Modulator
70 MHz
Features
• High Carrier Suppression
• High 3I and 5I Suppression
Description
M/A-COM’s EKIN2-70 is a passive, high performance surface
mount Modulator. It is ideally suited for IF Modulation in Cellular
Base Stations. Typical system applications include GSM,
DCS1800, W-CDMA and PCS.
SM-28 Package
Electrical Specifications @25°C
Parameter Units Typical Minimum Maximum
Frequency Ran
(LO) Carrier Suppression * dBc 40.0 30.0 —
SSB Rejection * dBc 40.0 30.0 —
Harmonic Suppression *
Conversion Loss dB 5.2 — 6.5
(LO) Carrier Power dBm
I/Q Drive Level — -10.0 — —
LO - RF Isolati on dB 64.0 50.0 —
* Note: When Q = +90 degrees relative to I; Lower sideband is suppressed. Related to wanted sideband power.
Please note that the photograph above indicates package only, not actual unit.
www.macom.com AMP and Connectin
e (LO) Carrier 70
I/Q DC - 0.27
3 x I/Q
5 x I/Q
M/A-COM Division of AMP Incorporated ■ North America: Tel. (800) 366-2266, Fax (800) 618-8883 ■ Asia/Pacific: Tel.+85 2 2111 8088,
Fax +85 2 2111 8087 ■ Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Specifications subject to change without notice.
at a Higher Level are trademarks.
MHz
MHz
dBc
dBc
—
—
50.0
65.0
+10.0
—
—
40.0
55.0
±
2.0
—
V2.00 S 0751 F
—
—
—
—
—
Page 2
E-Series I/Q Modulator — 70 MHz EKIN2-70
g
g
Absolute Maximum Ratings
Parameter Absolut e Maxim um
Operatin
Stora
Pin Temperature (10 Sec) 260°C
Typical Performance
0.0
-10.0
-20.0
-30.0
-40.0
-50.0
dB
-60.0
-70.0
-80.0
-90.0
-100.0
Temperature -55°C to +85°C
e Temperature -55°C to +100°C
@ +25°C
Harmonic Suppression
189.5 189.7 189.9 190.1 190.3 190.5
Frequency (MHz)
Functional Configuration
Function Pin No.
LO 1
RF 8
I5
Q6
External 50 Ohms —
Case Ground 2,3,4,7
Not Connected —
www.macom.com
M/A-COM Division of AMP Incorporated ■ North America: Tel. (800) 366-2266, Fax (800) 618-8883 ■ Asia/Pacific: Tel.+85 2 2111 8088,
Fax +85 2 2111 8087 ■ Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
V2.00 S 0751 F
