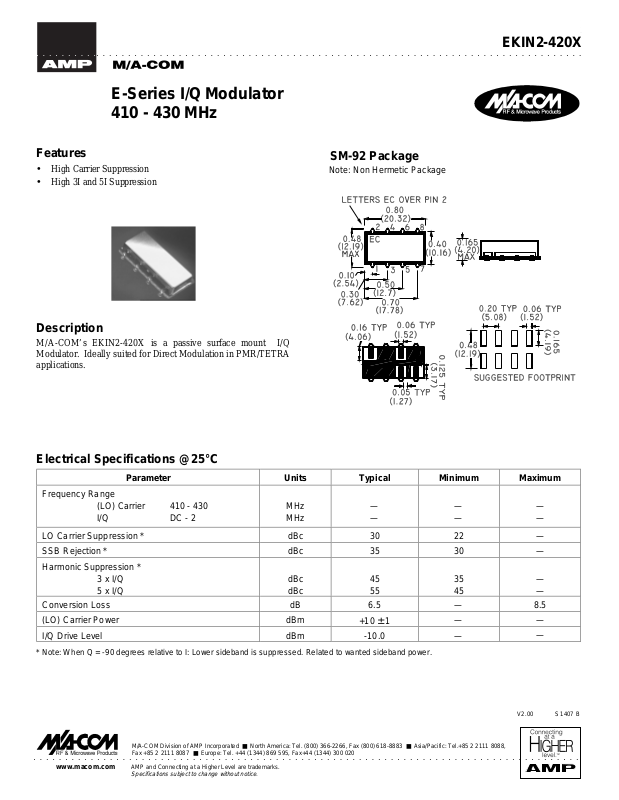

E-Series I/Q Modulator — 410 - 430 MHz EKIN2-420X

EKIN2-420X

E-Series I/Q Modulator
410 - 430 MHz

Features

• High Carrier Suppression

• High 3I and 5I Suppression

Description

M/A-COM’s EKIN2-420X is a passive surface mount I/Q
Modulator. Ideally suited for Direct Modulation in PMR/TETRA
applications.

SM-92 Package

Note: Non Hermetic Package

Electrical Specifications @25°C

Parameter Units Typical Minimum Maximum

Frequency Range
(LO) Carrier 410 - 430
I/Q DC - 2

LO Carrier Suppression * dBc 30 22 —
SSB Rejection * dBc 35
Harmonic Suppression *

3 x I/Q
5 x I/Q

Conversion Loss dB 6.5 — 8.5
(LO) Carrier Power dBm
I/Q Drive Level dBm -10.0 —

* Note: When Q = -90 degrees relative to I: Lower sideband is suppressed. Related to wanted sideband power.

M/A-COM Division of AMP Incorporated ■ North America: Tel. [phone], Fax [phone] ■ Asia/Pacific: Tel.[phone],
Fax [phone] ■ Europe: Tel. [phone], Fax[phone]

www.macom.com AMP and Connecting at a Higher Level are trademarks.

Specifications subject to change without notice.

MHz
MHz

dBc
dBc

—
—

45
55

+10 ± 1

—
—

30 —

35
45

—

V2.00 S 1407 B

—
—

—
—

—
—

E-Series I/Q Modulator — 410 - 430 MHz EKIN2-420X

Operating Characteristics

Impedance 50 Ohms Nominal

Parameter Absolute Maximum

Operating Temperature -10°C to +70°C

Storage Temperature -55°C to +100°C

Pin Temperature (10 Sec) 260°C

Typical Performance @ +25°C

Functional Configuration

Function Pin No.

LO 1
RF 8

I 5

Q 6

External 50 Ohms —

Case Ground 2,3,4,7

Not Connected —
