Datasheet EFJ2803K, EFJ2803H, EFJ2803E, EFJ2803 Datasheet (MSK)

V

IN

+V

out

CASE
GND

OUTPUT
COMMON

INPUT
COMMON

3A

ISO-9001 CERTIFIED BY DSCC

EMI FILTER

M.S.KENNEDY CORP.

4707 Dey Road Liverpool, N.Y. 13088

HIREL DESIGN

 WELDED HERMETIC PACKAGE

 ALL CERAMIC CAPACITORS

 SURFACE MOUNT MAGNETICS

FEATURES

 REPLACES APEX FDHC461

 55º TO +125ºC OPERATION

 40db MINIMUM DIFFERENTIAL MODE REJECTION

AT 200 KHz

 60db MINIMUM DIFFERENTIAL MODE REJECTION

FROM 500 KHzTO 50 MHz

 MEETS MILSTD461C CEO3 STANDARDS FOR

MSK DHC2800 SERIES DCDC CONVERTERS

 MILSTD704A THROUGH E POWER BUS

COMPATABILITY

EFJ2803

[phone]

EQUIVALENT SCHEMATIC

DESCRIPTION

The EFJ2803 is a high reliability EMI filter for use with the
DAC2800/DHC2800 series of DC-DC converters. This filter
has been designed to reduce the input line reflected ripple
current to within the limit of MIL-STD-461C, CE03.

EFJ2803 hybird EMI filters utilize all ceramic capacitors,
surface mount magnetics and ultrasonically bonded alumi­num wires to provide reliable operation at all operating tem­peratures while surviving very high G forces.

The 8-pin package is hermetically sealed and isolated from
the internal circuits. Heat sinking is recommended for full
power operation at elevated ambient temperatures. Multiple
DC-DC converters may use the same filter, up to the rated
throughput current of the filter.

TYPICAL APPLICATION

EXTERNAL CONNECTIONS

1

+VIN

2

+VOUT

3

+VOUT

4

CASE GROUND

5

OUTPUT COMMON

6

OUTPUT COMMON

7

INPUT COMMON

8

CASE GROUND

Rev. - 2/011

EFJ2803

ABSOLUTE MAXIMUM RATINGS

SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS

INPUT VOLTAGE RANGE 0-50Vdc
INPUT VOLTAGE TRANSIENT 80V @ 50ms
OUTPUT CURRENT
TEMPERATURE RANGE, storage –65 to 150°C.
OPERATING TEMPERATURE, case –55 to ±125°C.

2

3Adc

SPECIFICATIONS

PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

INPUT VOLTAGE STEADY STATE 0 28 40 V
INPUT CURRENT DC 3A
OUTPUT VOLTAGE STEADY STATE V
OUTPUT CURRENT STEADY STATE 3 A
DC RESISTANCE (Rdc) T = 125°C 0.5 @ 25°C 0.85 Ohms
DIFFERENTIAL MODE REJECTION 200 Khz 40 db
DIFFERENTIAL MODE REJECTION 500KHz–50MHz 60 db
COMMON MODE REJECTION 2MHz–50MHz 40 db
CAPACITANCE ANY PIN TO CASE 4 nF
ISOLATION ANY PIN TO CASE, 500Vdc 100 MOhm
OPERATING TEMPERATURE RANGE CASE BASEPLATE –55 +125 ºC
STORAGE TEMPERATURE RANGE CASE BASEPLATE –65 +150 ºC
POWER DISSIPATION 1Adc, T=125°C 0.65 0.85 W
CASE TEMPERATURE RISE CASE TO AIR 38 °C/W

NOTES: 1. Tcase= -55°C to 125°C unless otherwise specified.

2. Typical Dissipation at 3 amps is 6 watts.

= Vin-Iin(RDC) Vdc

out

Rev. - 2/012

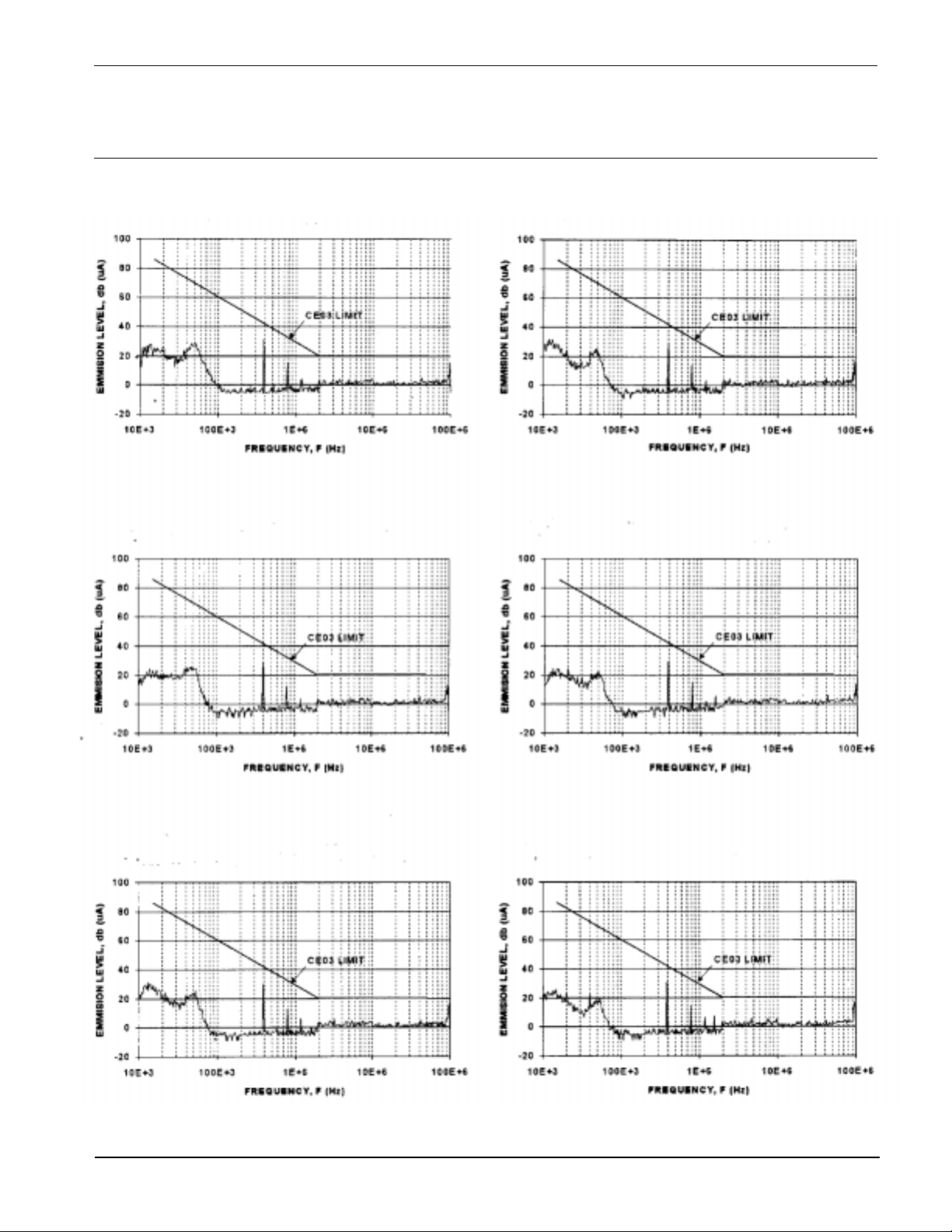

TYPICAL PERFORMANCE

GRAPHS

EFJ2803

DHC2803S CONVERTER WITH EFJ2803 FILTER

DAC2812S CONVERTER WITH EFJ2803 FILTER DAC2815SS CONVERTER WITH EFJ2803 FILTER

DHC2805S CONVERTER WITH EFJ2803 FILTER

DAC2812D CONVERTER WITH EFJ2803 FILTER

DAC2815D CONVERTER WITH EFJ2803 FILTER

Rev. - 2/013

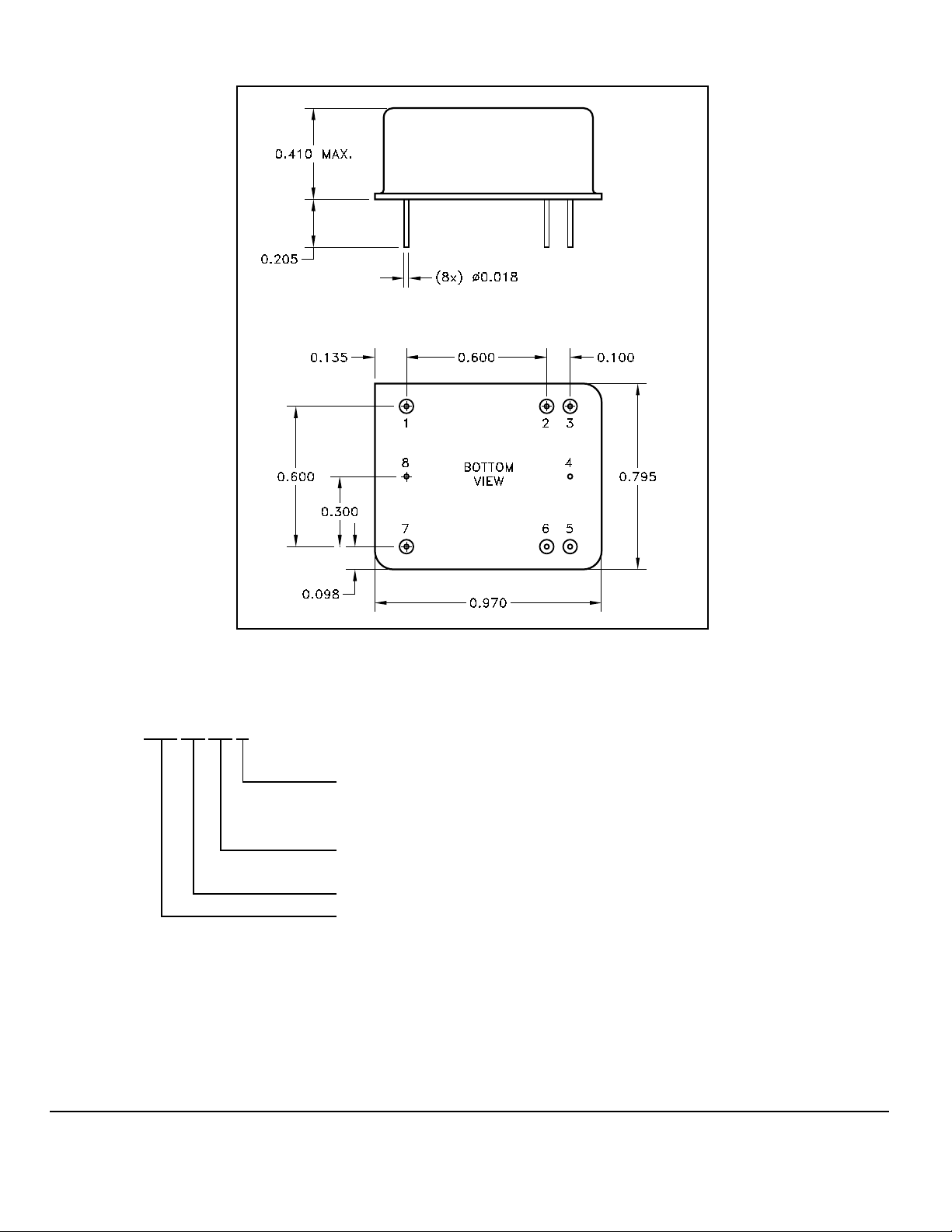

MECHANICAL SPECIFICATIONS

NOTE: ALL DIMENSIONS ARE ±0.010 INCHES UNLESS OTHERWISE LABELED.

ORDERING INFORMATION

EFJ2803

SCREENING

BLANK= INDUSTRIAL; E= EXTENDED RELIABILITY;

H= CLASS H; K= CLASS K

OUTPUT CURRENT

03=3A

NOMINAL INPUT VOLTAGE

GENERAL PART NUMBER

The above example is an industrial grade 3 Amp EMI Filter

M.S. Kennedy Corp.

4707 Dey Road, Liverpool, New York 13088

Phone [phone]

FAX [phone]

www.mskennedy.com

The information contained herein is believed to be accurate at the time of printing. MSK reserves the right to make

changes to its products or specifications without notice, however, and assumes no liability for the use of its products.

Please visit our website for the most recent revision of this datasheet.

4

Rev. - 2/01
