Page 1
For capacitance of more than 1000µF add 0.02 for every increase of 1000µF.

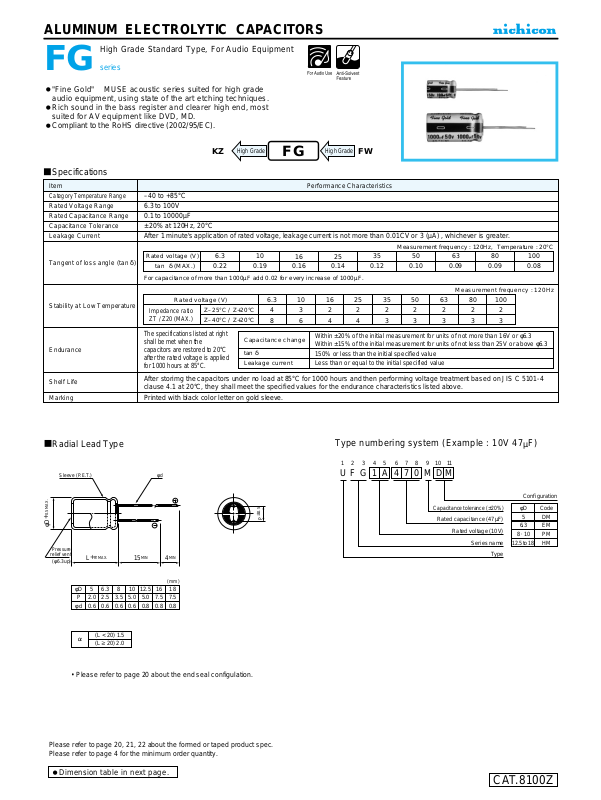

ALUMINUM ELECTROLYTIC CAPACITORS
FGseries
High Grade Standard Type, For Audio Equipment
Type numbering system (Example : 10V 47µF)
Specifications
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan δ)
Stability at Low Temperature
Endurance
Shelf Life
Marking
Performance CharacteristicsItem
–40 to +85°C
6.3 to 100V
0.1 to 10000µF
±20% at 120Hz, 20°C
After 1 minute's application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.
Printed with black color letter on gold sleeve.
Measurement frequency : 120Hz
The specifications listed at right
shall be met when the
capacitors are restored to 20
°C
after the rated voltage is applied
for 1000 hours at 85
°C.
After storimg the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Rated voltage (V)
tan δ (MAX.)
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.09
80
0.09
100
0.08
Z–25°C / Z+20°C
Z–40°C / Z+20°C
Rated voltage (V)
Impedance ratio
ZT / Z20 (MAX.)
6.3
4
8
10
3
6
16
2
4
25
2
4
35
2
3
50
2
3
63
2
3
80
2
3
100
2
3
Capacitance change
Leakage current
tan δ
Within ±20% of the initial measurement for units of not more than 16V or φ6.3
Within ±15% of the initial measurement for units of not less than 25V or above φ6.3
150%or less than the initial specified value
Less than or equal to the initial specified value
Measurement frequency : 120Hz, Temperature : 20°C
"Fine Gold" MUSE acoustic series suited for high grade
audio equipment, using state of the art etching techniques.
Rich sound in the bass register and clearer high end, most
suited for AV equipment like DVD, MD.
Compliant to the RoHS directive (2002/95/EC).
L
+
MAX.
15
MIN
4
MIN
φD
+
0.5MAX.
φD
P
φd
5
2.0
0.6
6.3
2.5
0.6
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.8
16
7.5
0.8
18
7.5
0.8
(φ6.3up)
(L < 20) 1.5
(L 20) 2.0
Sleeve (P.E.T.)
φd
Pressure
relief vent
(mm)
P
±0.5
U1F2G314A5467708M9D10M
11
φD
5 DM
6.3
8 · 10EMPM
12.5 to 18
HM
Configuration
Capacitance tolerance (±20%)
Rated capacitance (47µF)
Rated voltage (10V)
Series name
Type
Code
Radial Lead Type
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
FG
KZ
High Grade High Grade
Dimension table in next page.
FW
• Please refer to page 20 about the end seal configulation.
CAT.8100Z
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
Dimensions
Rated ripple current (mArms) at 85°C 120Hz
0.1
0.22
0.33
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
3300
4700
6800
10000
0R1
R22
R33
R47
010
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
332
472
682
103
0.10 × 12.5
10 × 20
12.5 × 250.
16 × 25
0.16 × 31.5
0.18 × 35.5
18 × 40
270
485
867
1135
1431
1810
2100
V
05× 11
6.3× 11.
0.08× 11.5
0.10× 12.5
10× 16
12.5× 200.
16× 25
0.16× 31.5
0.16× 35.5
18× 40
60
99
170
247
330
601
1047
1520
1840
2049
05× 11
6.3× 11.
00.8× 11.5
0.10× 12.5
10× 16
10× 20
12.5× 250.
16× 25
0.16× 35.5
0.18× 35.5
57
74
128
226
309
406
723
1290
1720
2140
05× 11
6.3× 11.
6.3× 11.
0.08× 11.5
10× 16
10× 20
12.5× 20.0
16× 25
0.16× 35.5
18× 40
50
70
85
140
260
351
476
854
1570
1794
6.3× 11.
6.3× 11.
00.8× 11.5
0.10× 12.5
10× 20
12.5× 200.
12.5× 250.
16× 25
0.18× 35.5
60
75
101
176
320
446
590
1060
1840
05× 11
05× 11
05× 11
05× 11
05× 11
05× 11
05× 11
05× 11
05× 11
6.3× 11.
0.08× 11.5
0.08× 11.5
10× 16
12.5× 200.
12.5× 200.
16× 25
0.16× 31.5
1.1
2.4
3.6
5.0
9.0
18
22
27
39
65
93
111
215
390
488
650
1143
50352516106.3
1H1V1E1C1A0J
Code
Cap.(µF)
0.1
0.22
0.33
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
0R1
R22
R33
R47
010
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
V
6.3× 11.
0.08× 11.5
0.08× 11.5
0.10× 12.5
10× 20
12.5× 200.
12.5× 250.
16× 25
0.18× 35.5
50
85
105
140
255
420
541
840
1400
6.3× 11.
11.8× 11.5
0.10× 12.5
10× 16
12.5× 20.0
12.5× 25.0
.016× 31.5
.016× 35.5
055
100
130
170
270
490
650
920
05× 11
05× 11
05× 11
05× 11
05× 11
05× 11
05× 11
05× 11
0.08× 11.5
0.10× 12.5
10× 16
10× 20
12.5× 200
16× 25
0.16× 31.5
0.18× 35.5
2.3
5.5
8.0
10
15
22
27
36
65
110
150
190
300
549
734
980
1008063
2A1K1J
Code
Cap.(µF)
Rated
ripple
Case size
φD × L (mm)
FGseries
Frequency coefficient of rated ripple current
Frequency
Cap.(µF)
0.1 to 47
100 to 470
1000 to 10000
50Hz
0.75
0.80
0.85
120Hz
1.00
1.00
1.00
300Hz
1.35
1.23
1.10
1kHz
1.57
1.34
1.13
10kHz or more
2.00
1.50
1.15
CAT.8100Z
