Datasheet e-ck Datasheet

Dimension table in next page.

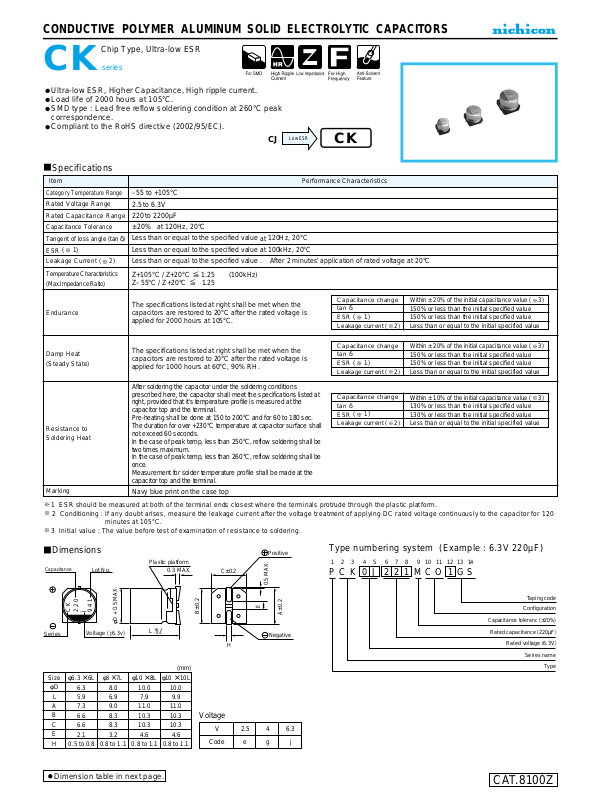

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

CKseries

Chip Type, Ultra-low ESR

Specifications

Temperature Characteristics
(Max.Impedance Ratio)

Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Tangent of loss angle (tan δ)
ESR

(1)

Leakage Current ( 2)

Performance CharacteristicsItem

–55 to +105°C

2.5 to 6.3V
220 to 2200µF
±20% at 120Hz, 20°C

Less than or equal to the specified value

at

120Hz, 20°C

Less than or equal to the specified value

at

100kHz, 20°C

Less than or equal to the specified value . After 2 minutes' application of rated voltage at 20°C
Z+105°C / Z+20°C 1.25 (100kHz)

Z

–

55°C / Z+20°C 1.25

Endurance

Damp Heat
(Steady State)

Resistance to
Soldering Heat

Marking

The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 2000 hours at 105°C.

The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 60°C, 90% RH.

After soldering the capacitor under the soldering conditions
prescribed here, the capacitor shall meet the specifications listed at
right, provided that it's temperature profile is measured at the
capacitor top and the terminal.
Pre-heating shall be done at 150 to 200°C and for 60 to 180 sec.
The duration for over +230°C temperature at capacitor surface shall
not exceed 60 seconds.
In the case of peak temp, less than 250°C, reflow soldering shall be
two times maximum.
In the case of peak temp, less than 260°C, reflow soldering shall be
once.
Measurement for solder temperature profile shall be made at the
capacitor top and the terminal.

Navy blue print on the case top

Capacitance change
tan δ

Leakage current ( 2)

ESR

(1)

Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value

Capacitance change
tan δ

Leakage current ( 2)

ESR

(1)

Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value

Capacitance change
tan δ

Leakage current ( 2)

ESR

(1)

Within ± 10% of the initial capacitance value ( 3)
130% or less than the initial specified value
130% or less than the initial specified value
Less than or equal to the initial specified value

Ultra-low ESR, Higher Capacitance, High ripple current.
Load life of 2000 hours at 105°C.
SMD type : Lead free reflow soldering condition at 260°C peak
correspondence.
Compliant to the RoHS directive (2002/95/EC).

1 ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120

minutes at 105°C.

3 Initial value : The value before test of examination of resistance to soldering.

Dimensions

Type numbering system (Example : 6.3V 220µF)

Voltage

V 2.5 4 6.3

Code e g j

Size

φD

L
A
B
C
E
H

φ6.3 × 6L

6.3

5.9

7.3

6.6

6.6

2.1

0.5 to 0.8

φ8 × 7L

8.0

6.9

9.0

8.3

8.3

3.2

0.8 to 1.1

φ10 × 8L

10.0

7.9

11.0

10.3

10.3

4.6

0.8 to 1.1

φ10 × 10L

10.0

9.9

11.0

10.3

10.3

4.6

0.8 to 1.1

(mm)

CK

CJ

Low ESR

CAT.8100Z

Capacitance

Series

CK

220j941

Voltage

Lot No.

Plastic platform

(j:6.3v)

φD + 0.5 MAX.

+0.1

L

-0.4

0.3 MAX.

C±0.2

B±0.2

H

E

Positive

0.5 MAX.

A±0.2

Negative

P1C2K304J5262718M9C10O11112G13S

14

Taping code

Configuration

Capacitance toleranc (±20%)

Rated capacitance (220µF

Rated voltage (6.3V

Series name

)
)

Type

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

CKseries

Standard Ratings

No marked, will be put at 12th digit of type numbering system.

1

Taping specifications are given in page 23.
Recommended land size, soldering by reflow are given in page 18, 19.
Please refer to page 3 for the minimum order quantity.

Rated ripple current (mArms) at 105°C 100kHz

Rated Capacitance

(µF)

Rated Voltage

(V)(code)

Surge Voltage

(V)

Leakage Current

(µA)

ESR (mΩ)

(at 100kHz 20°C)

Rated Ripple

(mArms)

tan δ Part Number

Case Size

φD × L (mm)

2.5

(0E)

6.3

(0J)

4

(0G)

2.8

7.2

4.6

390
560

680
1200
2200

330

470

560
1000
1800

220

330

390

820
1500

293
420
510
900

1650

396
564

672
1200
2160

416

624

737
1550
2835

10

9
9
9
8

10

9
9
9
8

10

9
9
9
8

3900
4500
4500
5000
6000
3900
4500
4500
5000
6000
3900
4500
4500
5000
6000

PCK0E391MCO1GS
PCK0E561MCO1GS
PCK0E681MCO1GS
PCK0E122MCO1GS
PCK0E222MCO1GS
PCK0G331MCO1GS
PCK0G471MCO1GS
PCK0G561MCO1GS
PCK0G102MCO1GS
PCK0G182MCO1GS
PCK0J221MCO1GS
PCK0J331MCO1GS
PCK0J391MCO1GS
PCK0J821MCO1GS
PCK0J152MCO1GS

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

0.12

6.3

×

6

8

×

7

8

×

7

10

×

8

10

×

10

6.3

×

6

8

×

7

8

×

7

10

×

8

10

×

10

6.3

×

6

8

×

7

8

×

7

10

×

8

10

×

10

CAT.8100Z
