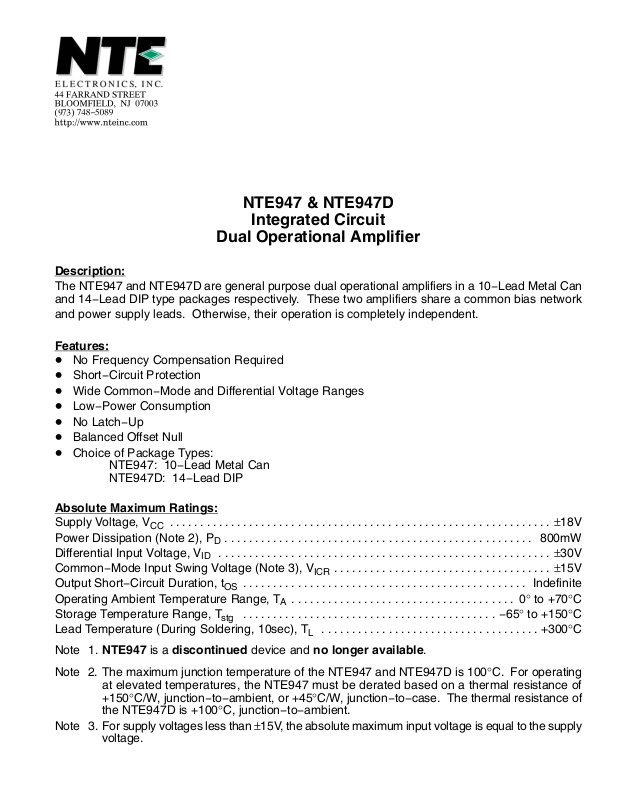

NTE947 & NTE947D
Integrated Circuit
Dual Operational Amplifier
Description:
The NTE947 and NTE947D are general purpose dual operational amplifiers in a 10−Lead Metal Can
and 14−Lead DIP type packages respectively. These two amplifiers share a common bias network
and power supply leads. Otherwise, their operation is completely independent.
Features:
D No Frequency Compensation Required
D Short−Circuit Protection
D Wide Common−Mode and Differential Voltage Ranges
D Low−Power Consumption
D No Latch−Up
D Balanced Offset Null
D Choice of Package Types:
NTE947: 10−Lead Metal Can
NTE947D: 14−Lead DIP
Absolute Maximum Ratings:
Supply Voltage, V
Power Dissipation (Note 2), P
Differential Input Voltage, V
CC
D
ID
Common−Mode Input Swing Voltage (Note 3), V
Output Short−Circuit Duration, t
Operating Ambient Temperature Range, T
Storage Temperature Range, T
OS
A
stg
Lead Temperature (During Soldering, 10sec), T
ICR
0° to +70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−65° to +150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
L
±18V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
800mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
±30V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
±15V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indefinite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+300°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note 1. NTE947 is a discontinued device and no longer available.
Note 2. The maximum junction temperature of the NTE947 and NTE947D is 100°C. For operating
at elevated temperatures, the NTE947 must be derated based on a thermal resistance of
+150°C/W, junction−to−ambient, or +45°C/W, junction−to−case. The thermal resistance of
the NTE947D is +100°C, junction−to−ambient.
Note 3. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply
voltage.

Electrical Characteristics: (VS = ±15V, 0° ≤ TA ≤ +70°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Input Offset Voltage V
RS ≤ 10kΩ TA = +25°C − 2.0 6.0 mV
IO
0° ≤ TA ≤ +70°C − − 7.5 mV
Input Offset Voltage Adjustment Range TA = +25°C, VS = ±20V − ±15 − mV
Input Offset Current I
TA = +25°C − 20 200 nA
IO
0° ≤ TA ≤ +70°C − − 300 nA
Input Bias Current I
TA = +25°C − 80 500 nA
IB
0° ≤ TA ≤ +70°C − − 0.8 μA
Input Resistance r
Common−Mode Input Voltage Swing V
Large Signal Voltage Gain
TA = +25°C, VS = ±20V 0.3 2.0 − MΩ
i
TA = +25°C ±12 ±13 − V
ICR
VS = ±15V,
TA = +25°C 20 200 − V/mV
,
0° ≤ TA ≤ +70°C 15 − − V/mV
Output Voltage Swing V
R
≥ 2kΩ
L
VS = ±15V RL ≥ 10kΩ ±12 ±14 − V
OR
RL ≥ 2kΩ ±10 ±13 − V
Output Short−Circuit Current I
Common−Mode Rejection Ratio CMRR 0° ≤ TA ≤ +70°C, RS ≤ 10kΩ,
Supply Voltage Rejection Ratio SVRR 0° ≤ TA ≤ +70°C, RS ≤ 10kΩ,
Transient Response
t
PLH
Rise Time
TA = +25°C − 25 − mA
OS
70 90 − dB
V
= ±12V
CM
77 96 − dB
V
= ±20V to ±5V
S
TA = +25°C, Unity Gain
− 0.3 − μs
Overshoot − 5 − %
Slew Rate SR TA = +25°C, Unity Gain − 0.5 − V/μs
Supply Current (Per Amplifier) ICC, IEETA = +25°C − 1.7 2.8 mA
Power Consumption (Per Amplifier) P
TA = +25°C, VS = ±15V − 50 85 mW
C
Pin Connection Diagram
NTE947
NTE947D
(Top View)
V (+) B
Output B
N.C.
Invert Input B Non−Invert Input B
8
9
10
Output A
6
7
1
2
5
3
V (+) A
V (−)
Non−Invert Input A
4
Invert Input A
Invert Input A
Non−Invert Input A
Offset Null A
V (−)
Offset Null B
Non−Invert Input B
Invert Input B
1
2
3
4
5
6
7
Offset Null A
14
13
V (+) A
Output A
12
N.C.
11
Output B
10
V (+) B
9
Offset Null B
8
