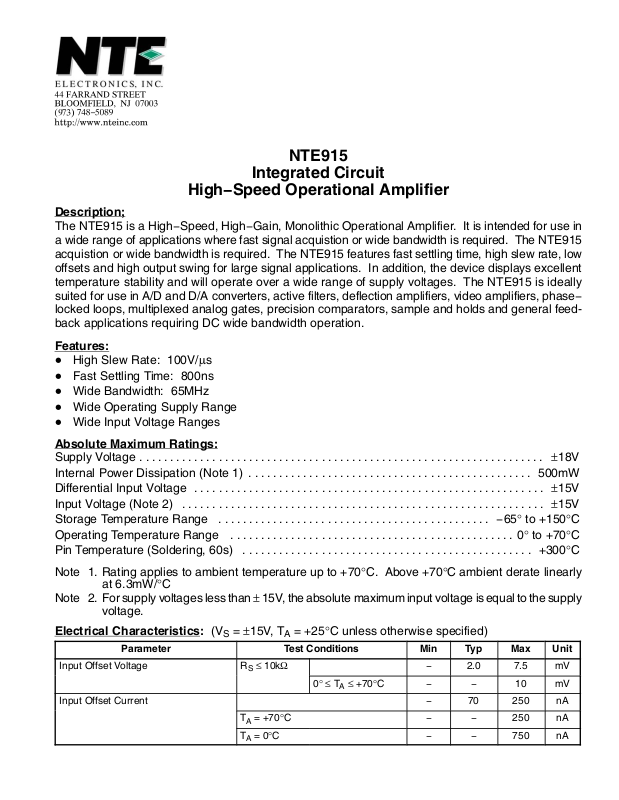

NTE915
Integrated Circuit
High−Speed Operational Amplifier
Description;
The NTE915 is a High−Speed, High−Gain, Monolithic Operational Amplifier. It is intended for use in
a wide range of applications where fast signal acquistion or wide bandwidth is required. The NTE915
acquistion or wide bandwidth is required. The NTE915 features fast settling time, high slew rate, low
offsets and high output swing for large signal applications. In addition, the device displays excellent
temperature stability and will operate over a wide range of supply voltages. The NTE915 is ideally
suited for use in A/D and D/A converters, active filters, deflection amplifiers, video amplifiers, phase−
locked loops, multiplexed analog gates, precision comparators, sample and holds and general feedback applications requiring DC wide bandwidth operation.
Features:
D High Slew Rate: 100V/µs
D Fast Settling Time: 800ns
D Wide Bandwidth: 65MHz
D Wide Operating Supply Range
D Wide Input Voltage Ranges
Absolute Maximum Ratings:
Supply Voltage ±18V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internal Power Dissipation (Note 1) 500mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential Input Voltage ±15V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Voltage (Note 2) ±15V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage Temperature Range −65° to +150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature Range 0° to +70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Temperature (Soldering, 60s) +300°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note 1. Rating applies to ambient temperature up to +70°C. Above +70°C ambient derate linearly
at 6.3mW/°C
Note 2. For supply voltages less than ± 15V, the absolute maximum input voltage is equal to the supply
voltage.
Electrical Characteristics: (VS = ±15V, TA = +25°C unless otherwise specified)
Parameter Test Conditions Min Typ Max Unit
Input Offset Voltage RS ≤ 10kΩ − 2.0 7.5 mV
0° ≤ TA ≤ +70°C − − 10 mV
Input Offset Current − 70 250 nA
TA = +70°C − − 250 nA
TA = 0°C − − 750 nA
Page 2
Electrical Characteristics (Cont’d): (VS = ±15V, TA = +25°C unless otherwise specified)
Parameter Test Conditions Min Typ Max Unit
Input Bias Current − 0.4 1.5 µA
TA = +70°C − − 1500 nA
TA = 0°C − − 7.5 µA
Input Resistance − 1.0 − MΩ
Input Voltage Range ±10 ±12 − V
Large Signal Voltage Gain
Output Resistance − 75 − Ω
Supply Current − 5.5 10 mA
Power Consumption − 165 300 mW
Settling Time (Unity Gain) V
Transient Response (Unity Gain)
Rise Time VIN = 400mV − 30 75 ns
Overshoot − 25 50 %
Slew Rate AV = 100 − 70 − V/µs
Common Mode Rejection Ratio RS ≤ 10kΩ 74 92 − dB
Supply Voltage Rejection Ratio RS ≤ 10kΩ, 0° ≤ TA ≤ +70°C − 45
Output Voltage Swing RL ≥ 2kΩ, 0° ≤ TA ≤ +70°C ±10 ±13 − V
RL ≥ 2kΩ,
V
= ±10V
OUT
= ±5V − 800 − ns
OUT
AV = 10 − 38 − V/µs
AV = 1 (non−inverting) 10 18 − V/µs
AV = 1 (inverting) − 100 − V/µs
0° ≤ TA ≤ +70°C 8,000 − − −
10,000 30,000 − −
(Note 3)
400
(Note 1)
µV/V
Note 1. Rating applies to ambient temperature up to +70°C. Above +70°C ambient derate linearly
at 6.3mW/°C
Note 3. Specification applies to TA = +25°C only.
Pin Connection Diagram
(Top View)
V (+)
Comp 2B
Comp 1A
Comp 2A
7
8
9
10
1
Output
6
2
CascodeComp 1B
V (−)
5
Non−Inverting Input
4
3
Inverting Input
Page 3

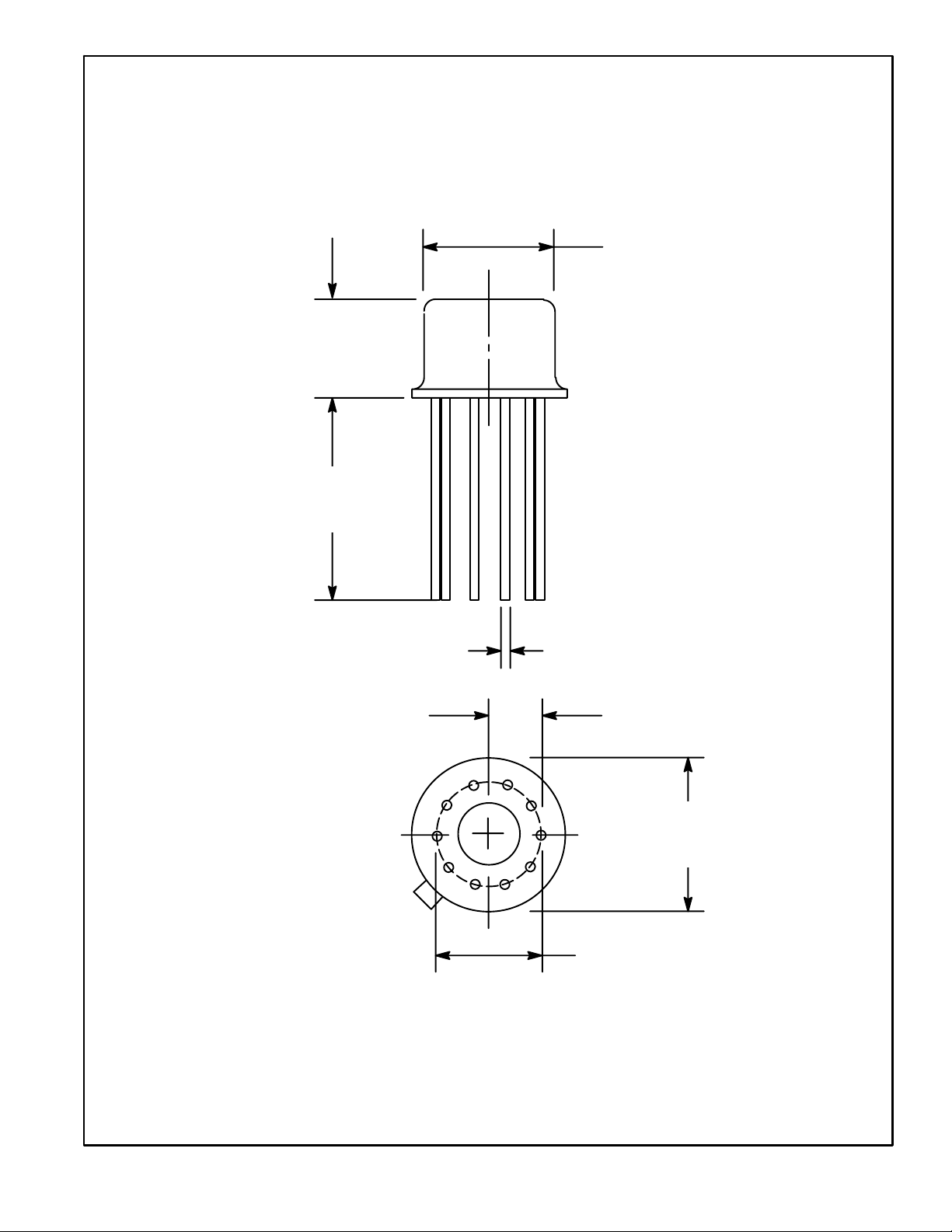

.175
(4.45)
Max
.500
(12.7)
Min
.335 (8.52) Dia Max
.018 (0.45) Dia Typ
.100 (2.54)
3
2
1
10
9
4
5
.370
6
7
8
.200 (5.08) Dia
(9.4)
Max
