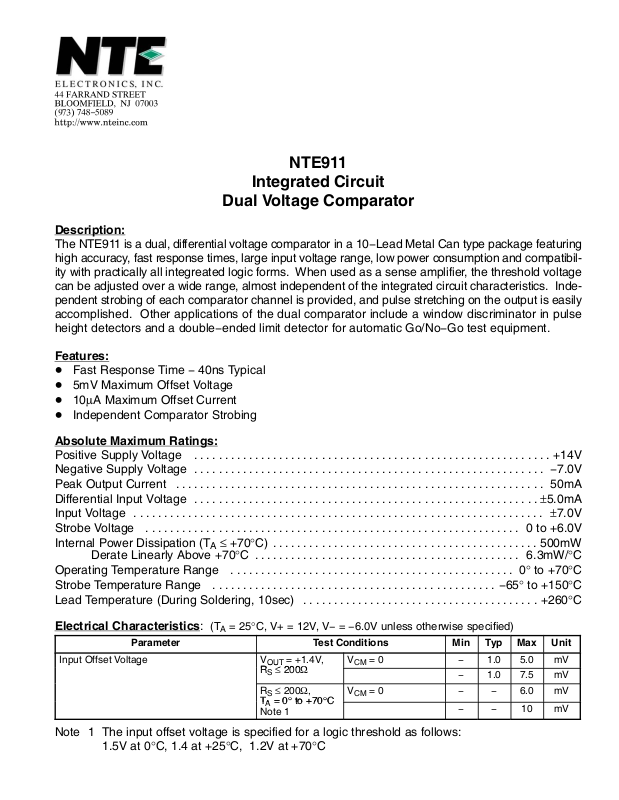

Page 1
NTE911
pg
OUT
TA = 0° to +70°C
Integrated Circuit
Dual Voltage Comparator
Description:
The NTE911 is a dual, differential voltage comparator in a 10−Lead Metal Can type package featuring
high accuracy, fast response times, large input voltage range, low power consumption and compatibility with practically all integreated logic forms. When used as a sense amplifier, the threshold voltage
can be adjusted over a wide range, almost independent of the integrated circuit characteristics. Independent strobing of each comparator channel is provided, and pulse stretching on the output is easily
accomplished. Other applications of the dual comparator include a window discriminator in pulse
height detectors and a double−ended limit detector for automatic Go/No−Go test equipment.
Features:
D Fast Response Time − 40ns Typical
D 5mV Maximum Offset Voltage
D 10µA Maximum Offset Current
D Independent Comparator Strobing
Absolute Maximum Ratings:
Positive Supply Voltage +14V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Negative Supply Voltage −7.0V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peak Output Current 50mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential Input Voltage ±5.0mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Voltage ±7.0V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strobe Voltage 0 to +6.0V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internal Power Dissipation (TA ≤ +70°C) 500mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Derate Linearly Above +70°C 6.3mW/°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature Range 0° to +70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strobe Temperature Range −65° to +150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lead Temperature (During Soldering, 10sec) +260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics: (T
Input Offset Voltage V
Note 1 The input offset voltage is specified for a logic threshold as follows:
1.5V at 0°C, 1.4 at +25°C, 1.2V at +70°C
= 25°C, V+ = 12V, V− = −6.0V unless otherwise specified)
A
Parameter Test Conditions Min Typ Max Unit
= +1.4V,
OUT
RS ≤ 200Ω
RS ≤ 200Ω,
°
Note 1
VCM = 0 − 1.0 5.0 mV
− 1.0 7.5 mV
VCM = 0 − − 6.0 mV
°
− − 10 mV
Page 2
Parameter Test Conditions Min Typ Max Unit
p
p
g
Input Offset Current
Input Bias Current
Voltage Gain
Response Time Note 2 − 40 − ns
Strobe Release Time − 12 − ns
Input Voltage Range V = −7V ±5 − − V
Differential Input Voltage Range ±5 − − V
Output Resistance − 200 − Ω
Output HIGH Voltage VIN ≥ 10mV − 4.5 5.0 V
Loaded Output HIGH Voltage VIN ≥ 10mV, IO = 5mA 2.5 3.5 − V
Output LOW Voltage VIN ≥ 10mV −1.0 −0.5 0 V
Strobed Output Level V
Output Sink Current VIN ≥ 10mV, V
Strobe Current V
Positive Supply Current V
Negative Supply Current V
Power Consumption − 130 230 mW
Temperature Coefficient of Input Offset Voltage TA = 0° to +70°C − 5.0 − µV/°C
Note 1 V
Note 1 TA = 0° to +70°C − − 25 µA
TA = 0° to +70°C − − 150 µA
TA = 0° to +70°C 500 − −
STROBE
STROBE
OUT
OUT
≤ 0.3V −1.0 − 0 V
≥ 0 0.5 0.8 − mA
OUT
= 100mV − 1.2 2.5 mA
= GND, Inverting Input = +10mV 8.6 − mA
= GND, Inverting Input = +10mV − 3.9 − mA
= +1.4V − 0.5 15 µA
OUT
− 25 100 µA
700 1500 −
Note 1 The input offset voltage is specified for a logic threshold as follows:
1.5V at 0°C, 1.4 at +25°C, 1.2V at +70°C
Note 2. The response time specified is for a 100mV step input with 5mV overdrive.
Pin Connection Diagram
(Top View)
Invert Input B
Strobe B
Output
V (+)
7
8
9
10
1
GND
Non−Invert Input B
6
5
V (−)
4
3
Invert Input A
2
Strobe A
Non−Invert Input A
Page 3
.175
(4.45)
Max
.500
(12.7)
Min
.335 (8.52) Dia Max
.018 (0.45) Dia Typ
1
10
.100 (2.54)
3
2
9
4
5
.370
6
7
8
.200 (5.08) Dia
(9.4)
Max
