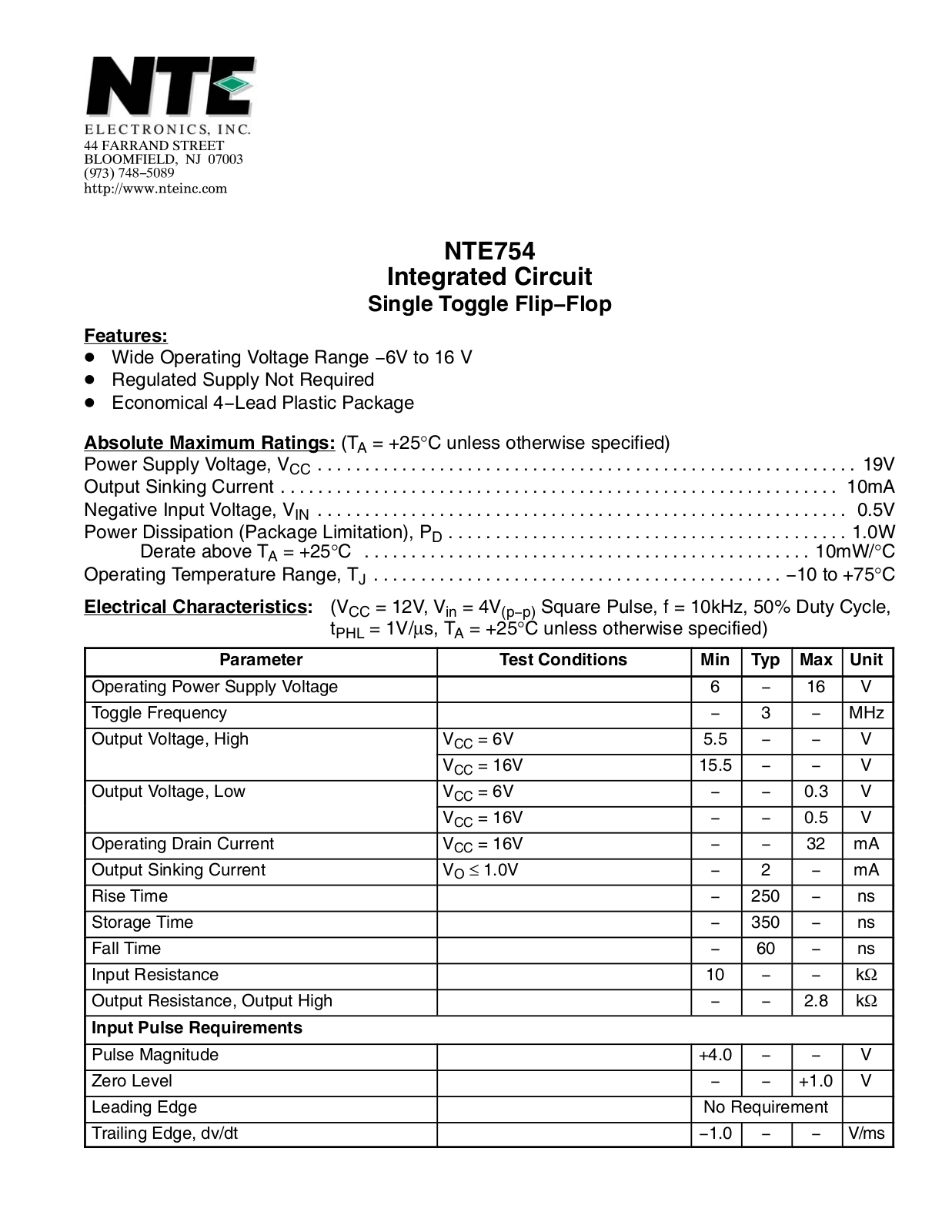

NTE754
Integrated Circuit
Single Toggle Flip−Flop
Features:
D Wide Operating Voltage Range −6V to 16 V
D Regulated Supply Not Required
D Economical 4−Lead Plastic Package
Absolute Maximum Ratings:
Power Supply Voltage, V
(TA = +25°C unless otherwise specified)
CC
Output Sinking Current 10mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Negative Input Voltage, V
Power Dissipation (Package Limitation), P
Derate above T
Operating Temperature Range, T
Electrical Characteristics
Parameter Test Conditions Min Typ Max Unit
Operating Power Supply Voltage 6 − 16 V
Toggle Frequency − 3 − MHz
Output Voltage, High VCC = 6V 5.5 − − V
Output Voltage, Low VCC = 6V − − 0.3 V
Operating Drain Current VCC = 16V − − 32 mA
Output Sinking Current VO ≤ 1.0V − 2 − mA
Rise Time − 250 − ns
Storage Time − 350 − ns
Fall Time − 60 − ns
Input Resistance 10 − − kΩ
Output Resistance, Output High − − 2.8 kΩ
IN
D
= +25°C 10mW/°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A
J
: (VCC = 12V, Vin = 4V
= 1V/µs, TA = +25°C unless otherwise specified)
t
PHL
VCC = 16V 15.5 − − V
VCC = 16V − − 0.5 V
Square Pulse, f = 10kHz, 50% Duty Cycle,
(p−p)
1.0W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−10 to +75°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.5V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Pulse Requirements
Pulse Magnitude +4.0 − − V
Zero Level − − +1.0 V
Leading Edge No Requirement
Trailing Edge, dv/dt −1.0 − − V/ms
Page 2

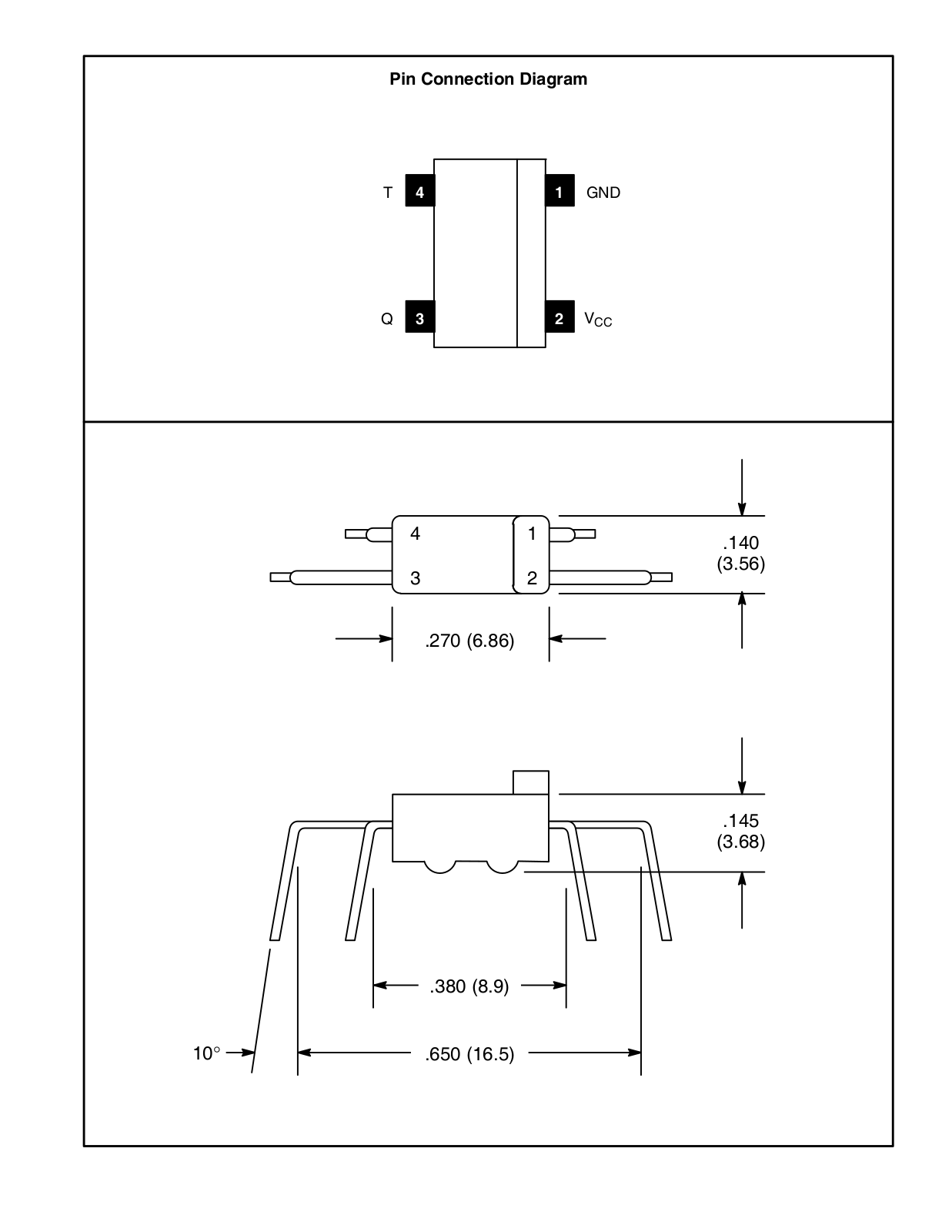

Pin Connection Diagram
T
1
GND4
Q
4
3
3
.270 (6.86)
V
2
CC
1
.140
(3.56)
2
10°
.145
(3.68)
.380 (8.9)
.650 (16.5)
