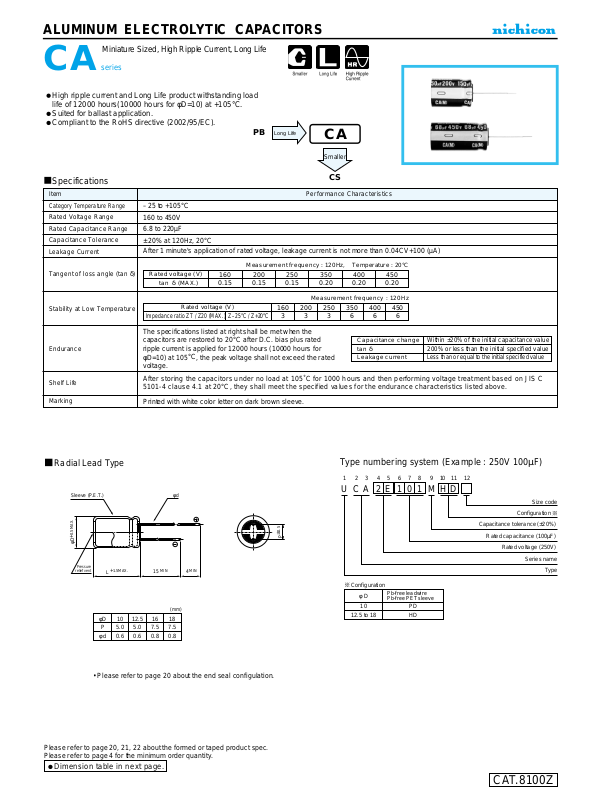

Page 1
Item
CAseries
Miniature Sized, High Ripple Current, Long Life
High ripple current and Long Life product withstanding load
life of 12000 hours(10000 hours for φD=10) at +105°C.
Suited for ballast application.
Compliant to the RoHS directive (2002/95/EC).
ALUMINUM ELECTROLYTIC CAPACITORS
U1C2A324E5160718M
91011
Capacitance tolerance (±20%)
Rated capacitance (100µF)
Rated voltage (250V)
H D12T
Size code
Series name
Type
φDP10
5.0
12.5
5.0167.5187.5
φd 0.6 0.6 0.8 0.8
L
+ 1.5M AX.
15
MIN
4
MIN
Radial Lead Type
Sleeve (P.E.T.)
φd
Pressure
relief vent
Type numbering system (Example : 250V 100µF)
Configuration
φD
+
0.5MAX.
P
±0.5
φ D
10
Pb-free leadwire
Pb-free PET sleeve
PD
12.5 to 18 HD
Configuration
(mm)
Dimension table in next page.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Specifications
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan δ)
Stability at Low Temperature
Endurance
Shelf Life
Marking
Performance Characteristics
–25 to +105°C
160 to 450V
6.8 to 220µF
±20% at 120Hz, 20°C
After 1 minute's application of rated voltage, leakage current is not more than 0.04CV+100 (µA)
Printed with white color letter on dark brown sleeve.
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C
5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Measurement frequency : 120Hz
Capacitance change
Leakage current
The specifications listed at right shall be met when the
capacitors are restored to 20°Cafter D.C. bias plus rated
ripple current is applied for 12000 hours (10000 hours for
φD=10) at 105°C, the peak voltage shall not exceed the rated
voltage.
tan δ
Within ±20% of the initial capacitance value
Less than or equal to the initial specified value
200% or less than the initial specified value
Z–25°C / Z+20°C
Rated voltage (V)
Impedance ratio ZT / Z20 (MAX.)
16032003250335064006450
6
Measurement frequency :120Hz, Temperature :20°C
Rated voltage (V)
tan δ (MAX.)
160
0.15
200
0.15
250
0.15
400
0.20
450
0.20
350
0.20
CA
PB
Long Life
CS
Smaller
• Please refer to page 20 about the end seal configulation.
CAT.8100Z
Page 2
CAseries
ALUMINUM ELECTROLYTIC CAPACITORS
V
10
× 16
10
× 20
10
× 20
12.5
× 20
12.5
× 25
16
× 20
16
× 25
18
× 20
16
× 31.5
18
× 25
16
× 31.5
18
× 25
250
500
565
725
950
970
1280
1180
1360
1360
1400
1400
10 × 16
10
× 20
12.5
× 20
12.5
× 20
12.5
× 25
16
× 20
16
× 25
18
× 20
16
× 31.5
18
× 25
18
× 31.5
250
500
600
780
950
970
1280
1180
1360
1360
1700
10 × 20
12.5
× 20
12.5
× 20
12.5
× 25
16
× 20
16
× 25
18
× 20
16
× 31.5
18
× 25
18
× 31.5
300
600
630
720
750
1000
920
1400
1345
1500
10 × 16
10
× 20
12.5
× 20
16
× 20
16
× 25
18
× 20
16
× 31.5
18
× 25
220
280
350
600
700
750
1100
875
10 × 16
10
× 20
12.5
× 20
16
× 20
16
× 25
18
× 20
16
× 31.5
18
× 25
18
× 31.5
220
280
430
600
640
640
840
840
1000
10 × 20
12.5
× 20
16
× 25
18
× 20
16
× 31.5
18
× 25
18
× 31.5
150
320
560
560
700
700
900
2C 2D 2E 2V 2G 2W
160 200 250 350 400 450
Case size
φD × L (mm)
: In this case, 6 will be put at 12th digit
of type numbering system.
Frequency
Coefficient
50Hz
0.40
120Hz
0.50
1kHz
0.80
10kHz
0.90
100kHz or more
1.00
Dimensions
Frequency coefficient of rated ripple current
Cap.
(µF)
Code
6.8
10
22
33
47
68
100
150
220
6R8
100
220
330
470
680
101
151
221
: Rated ripple current (mArms) at 105°C 100kHz
CAT.8100Z
