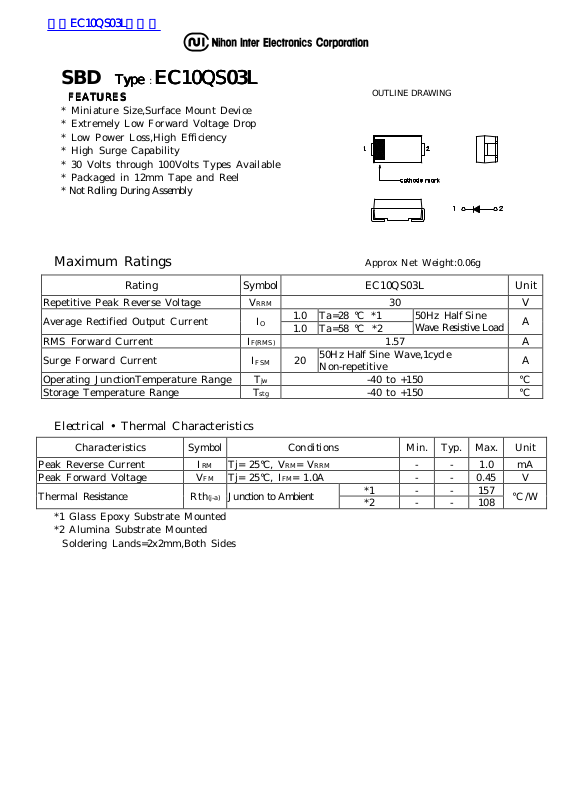

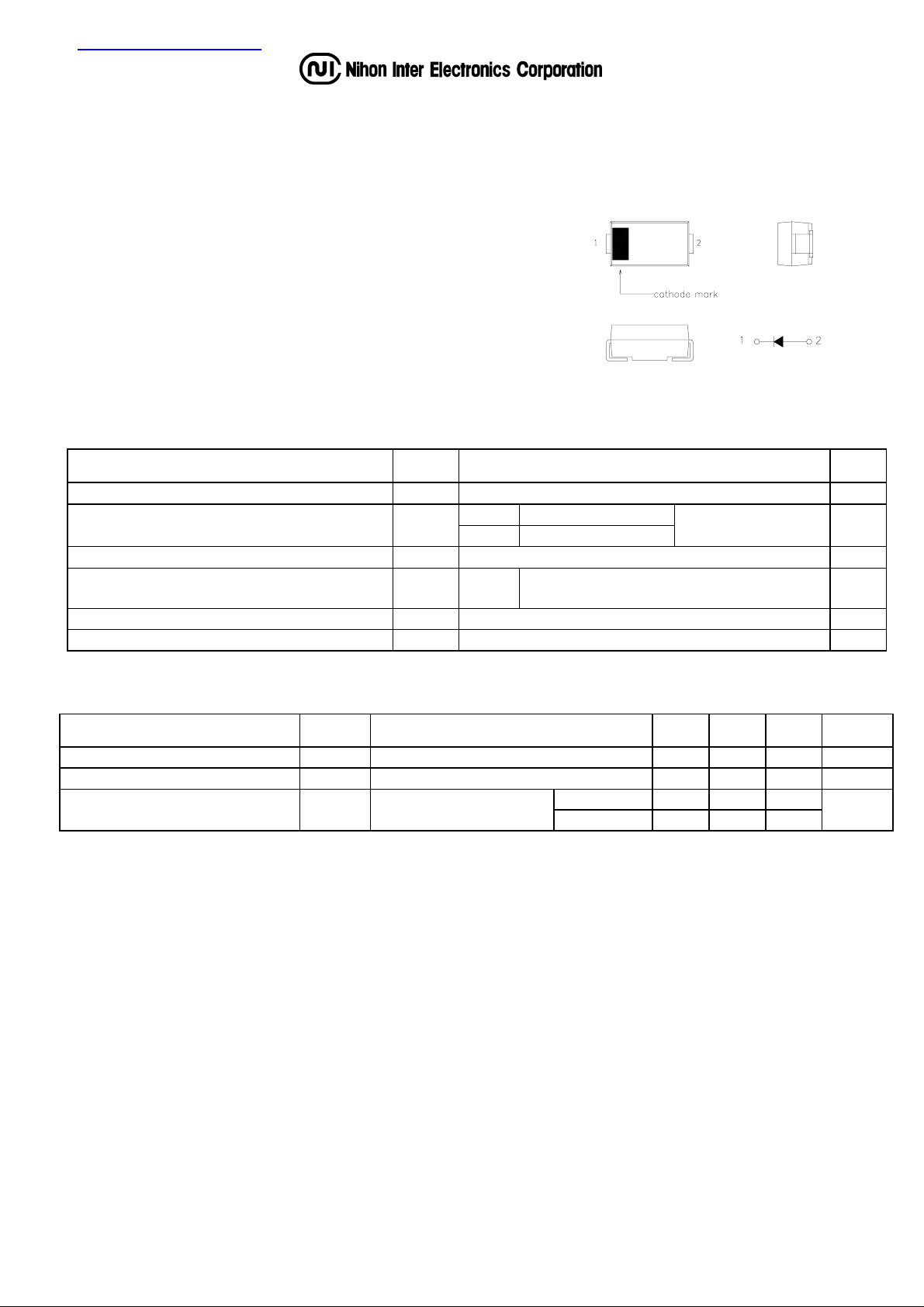

SBD Type
FEATURES
FEATURES
FEATURESFEATURES
* Miniature Size,Surface Mount Device
* Extremely Low Forward Voltage Drop
* Low Power Loss,High Efficiency
* High Surge Capability
* 30 Volts through 100Volts Types Available
* Packaged in 12mm Tape and Reel
* Not Rolling During Assembly
Type : EC10QS03L
TypeType
EC10QS03L
EC10QS03LEC10QS03L
OUTLINE DRAWING
Maximum Ratings Approx Net Weight:0.06g
Rating Symbol EC10QS03L Unit
Repetitive Peak Reverse Voltage
Average Rectified Output Current IO
RMS Forward Current
Surge Forward Current I
V
RRM
1.0
Ta=28 °C *1
1.0
Ta=58 °C *2
I
1.57
F(RMS)
20
FSM
50Hz Half Sine Wave,1cycle
Non-repetitive
30
Operating JunctionTemperature Range Tjw -40 to +150
Storage Temperature Range T
-40 to +150
stg
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min. Typ. Max. Unit
Peak Reverse Current
Peak Forward Voltage
Thermal Resistance Rth
*1 Glass Epoxy Substrate Mounted
*2 Alumina Substrate Mounted
Soldering Lands=2x2mm,Both Sides
I
V
Tj= 25°C, V
RM
Tj= 25°C, I
FM
Junction to Ambient
(j-a)
= V
RM
= 1.0A
FM
RRM
*1 - - 157
*2 - - 108
V
50Hz Half Sine
Wave Resistive Load
A
A
A
°C
°C
- - 1.0 mA
- - 0.45 V
/W
°C
Page 2

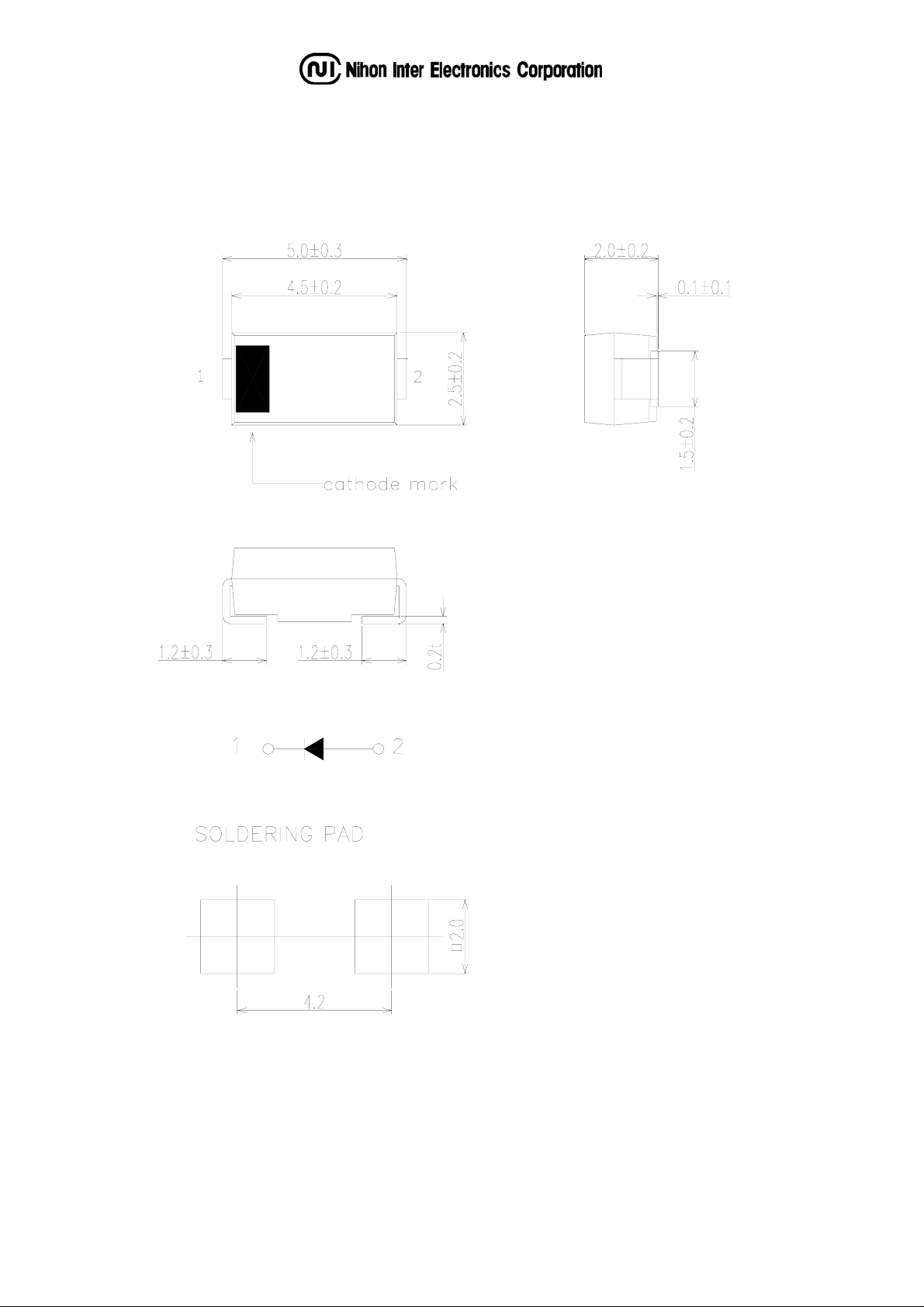

EC10QS_ OUTLINE DRAWING (Dimensions in mm)
Page 3

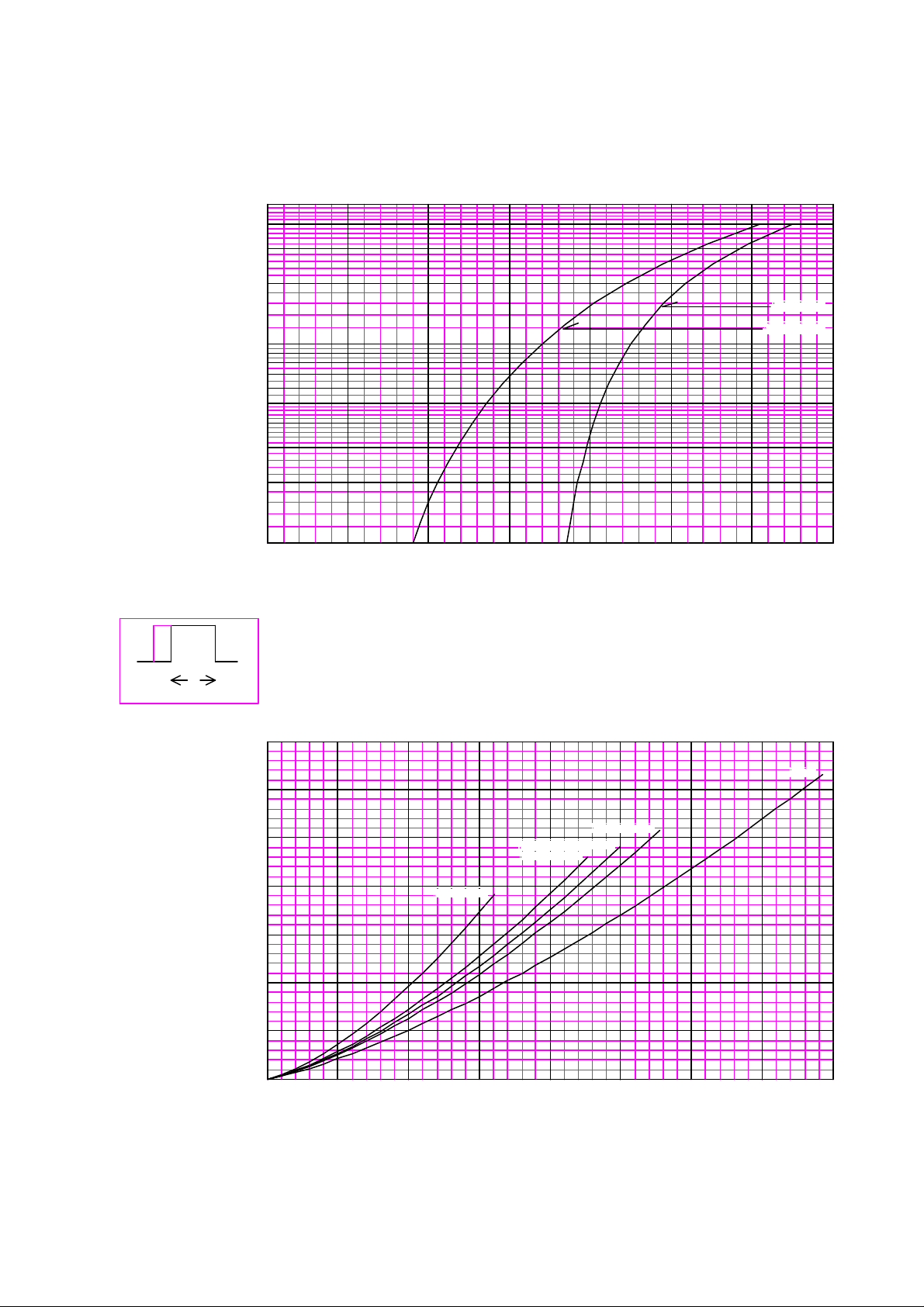

FORWARD CURRENT VS. VOLTAGE
5
2
1
0.5
0.2
INSTANTANEOUS FORWARD CURRENT (A)
0.1
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7
INSTANTANEOUS FORWARD VOLTAGE (V)
EC10QS03L
Tj=25°C
Tj=150°C
0° 180°
CONDUCTION ANGLE
θ
AVERAGE FORWARD POWER DISSIPATION (W)
AVERAGE FORWARD POWER DISSIPATION
0.7
0.6
0.5
0.4
RECT 60°
HALF SINE WAVE
RECT 120°
RECT 180°
0.3
0.2
0.1
0
0 0.4 0.8 1.2 1.6
AVERAGE FORWARD CURRENT (A)
EC10QS03L
D.C.
Page 4

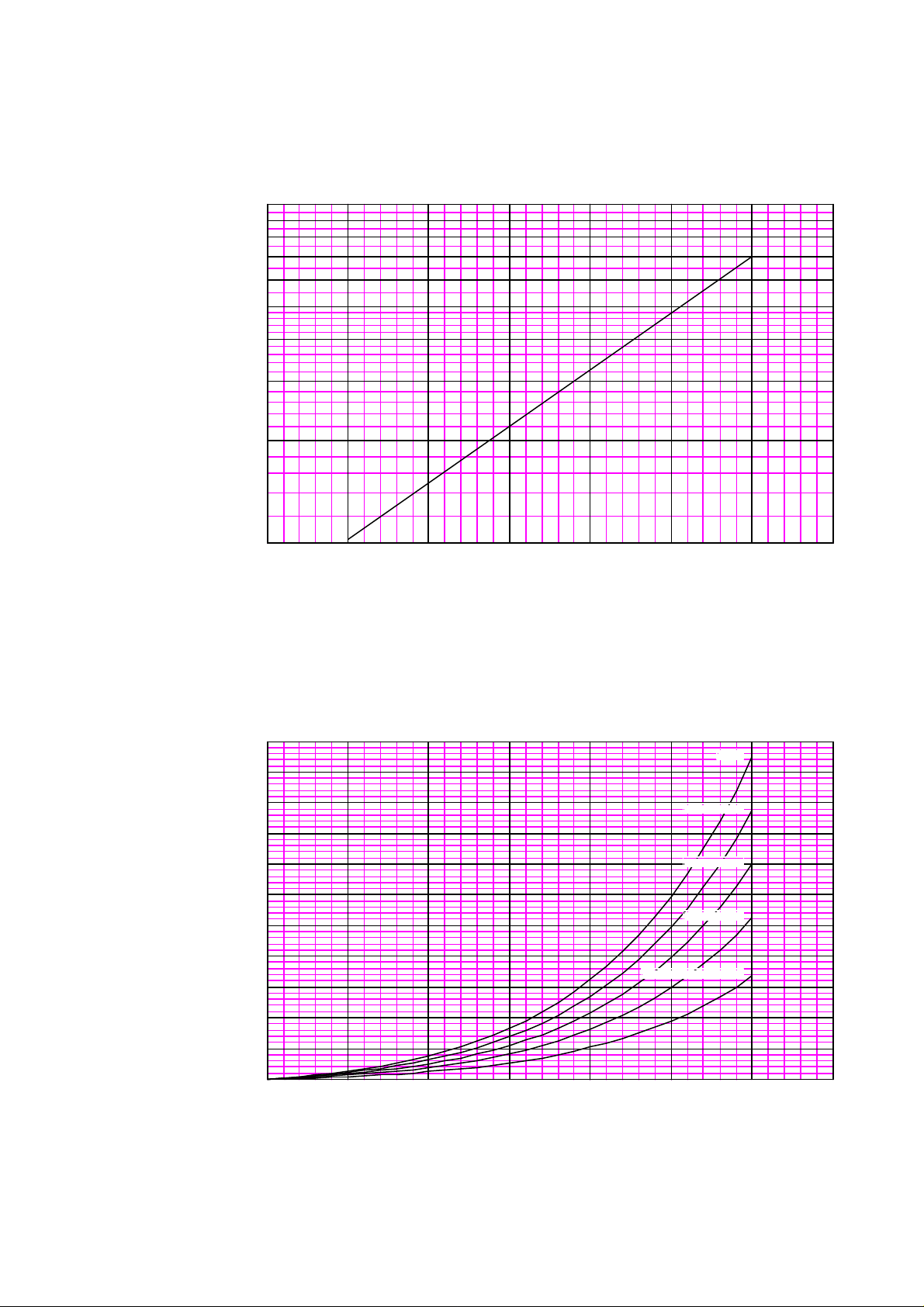

PEAK REVERSE CURRENT VS. PEAK REVERSE VOLTAGE
100
50
20
PEAK REVERSE CURRENT (mA)
10
0 5 10 15 20 25 30 35
Tj= 150 °C
EC10QS03L
PEAK REVERSE VOLTAGE (V)
AVERAGE REVERSE POWER DISSIPATION
2.0
1.6
1.2
0.8
0.4
AVERAGE REVERSE POWER DISSIPATION (W)
0
0 5 10 15 20 25 30 35
REVERSE VOLTAGE (V)
EC10QS03L
D.C.
RECT 300°
RECT 240°
RECT 180°
HALF SINE WAVE
Page 5
0° 180°
CONDUCTION ANGLE
θ

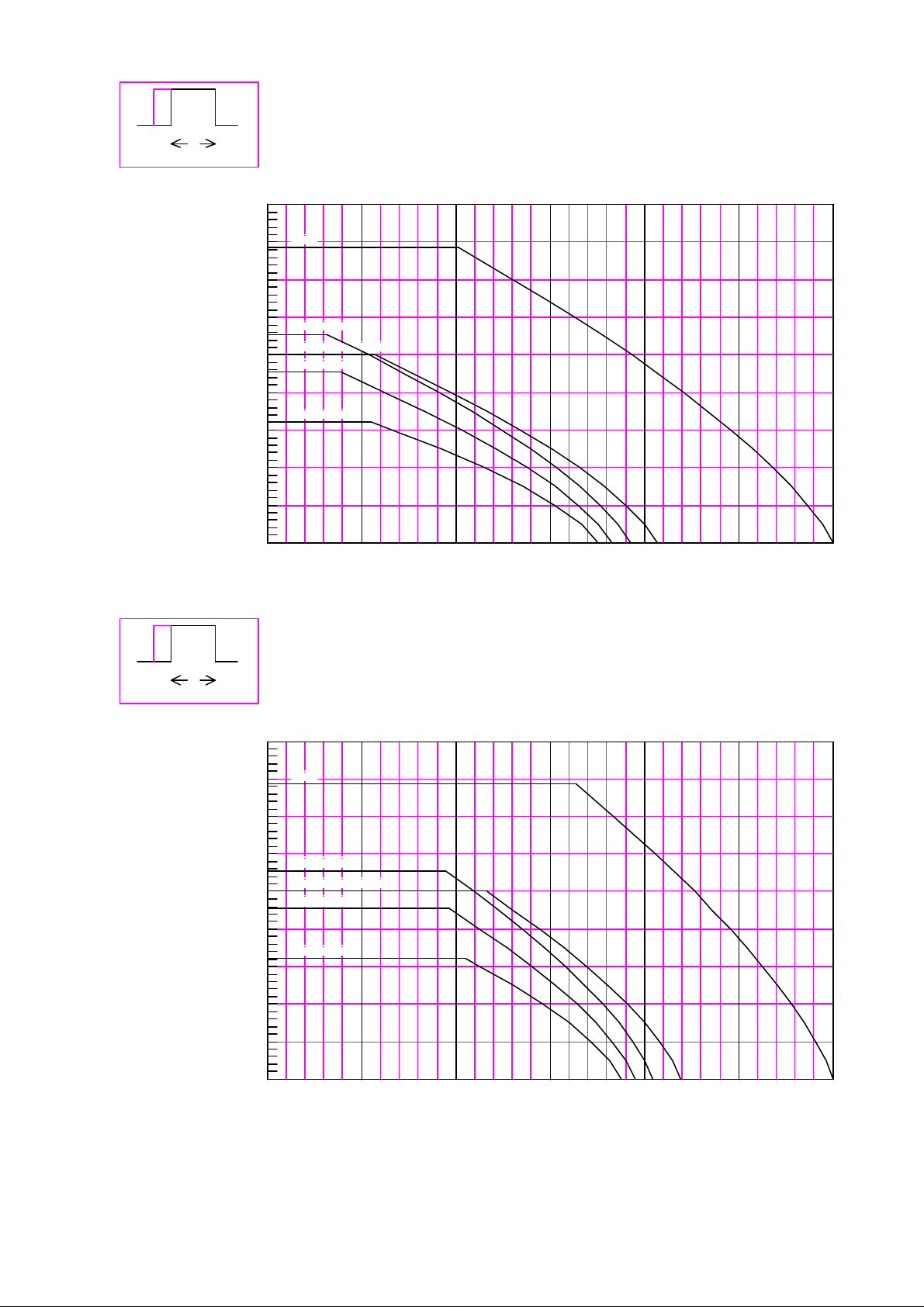

AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
Glass -Epoxy Su bstra te m ounted(Lan d=2×2m m ),VRM=30V
EC10QS03L
AVERAGE FORWARD CURRENT (A)
0° 180°
CONDUCTION ANGLE
θ
1.6
1.2
D.C.
RECT 180°.
HALF SINE WAVE.
RECT 120°.
0.8
RECT 60°.
0.4
0
0 25 50 75 100 125 150
AMBIENT TEMPERATURE (°C)
AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
Alumina S ub strate m ounted(Land =2 ×2m m ),VRM=30V
EC10QS03L
1.6
1.2
D.C.
RECT 180°.
HALF SINE WAVE.
RECT 120°.
0.8
RECT 60°.
0.4
AVERAGE FORWARD CURRENT (A)
0
0 25 50 75 100 125 150
AMBIENT TEMPERATURE (°C)
Page 6
20
16
12

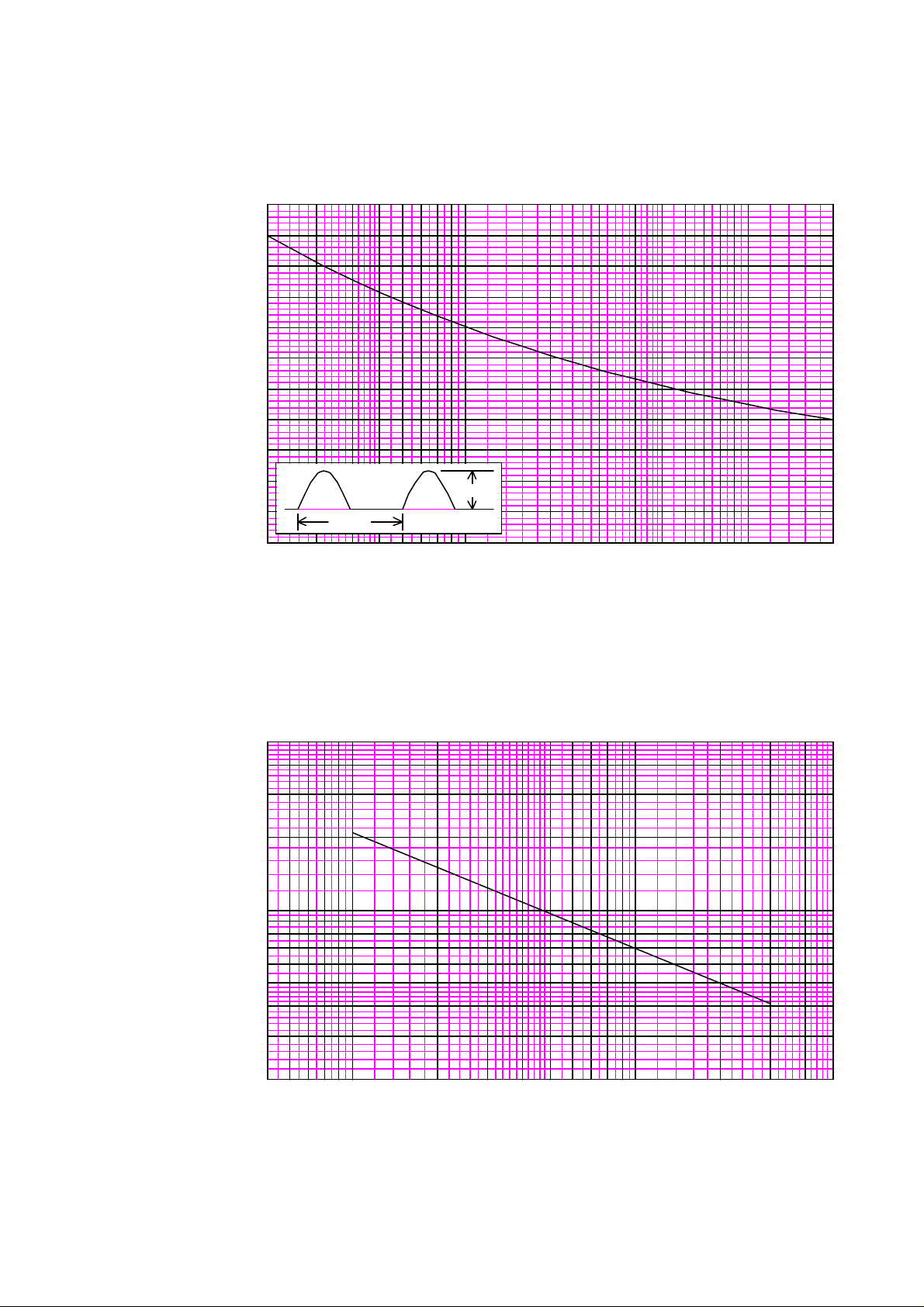

SURGE CURRENT RATINGS
f=50Hz,Half Sine Wave,Non-Repetitive,No Load
EC10QS03L
8
SURGE FORWARD CURRENT (A)
4
0.02s
0
0.02 0.05 0.1 0.2 0.5 1 2
JUNCTION CAPACITANCE VS. REVERSE VOLTAGE
Tj=25°C,V m =20m V
500
200
100
I
FSM
TIME (s)
,f= 100 kHz,Typica l Value
RM S
EC10QS03L
50
JUNCTION CAPACITANCE (pF)
20
0.5 1 2 5 10 20 50
REVERSE VOLTAGE (V)
