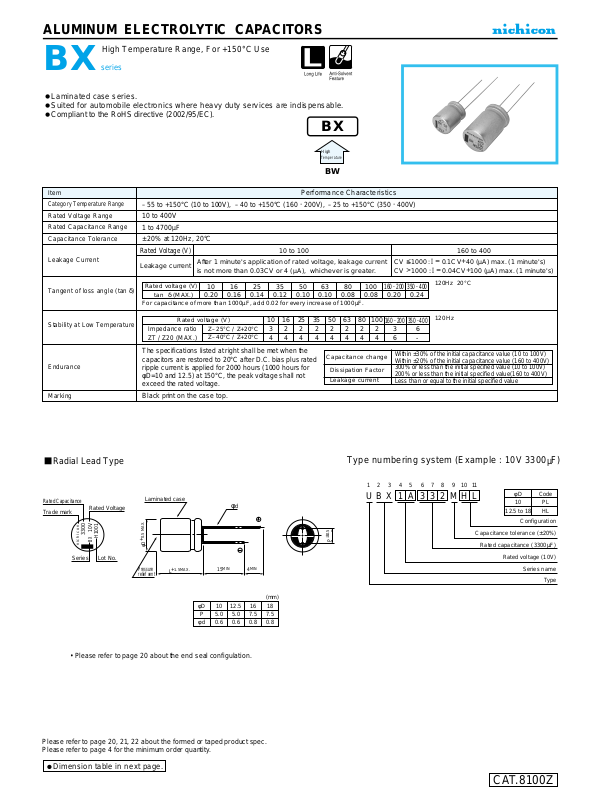

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
U1B2X314A5363728M9H10L
11
Configuration
Capacitance tolerance (±20%)
Rated capacitance (3300µF)
Rated voltage (10V)
Series name
Type
φD
10
Code
PL
12.5 to 18 HL
φD
P
φd
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
15
MIN
4
MIN
φD
+
0.5 MAX.
nichicon
3300
BX
10V
H1001
Rated Capacitance
Trade mark
Series
Laminated case
Rated Voltage
Lot No.
Pressure
relief vent
φd
L
+
1.5MAX.
(mm)
P
±0.5
BXseries
High Temperature Range, For +150°C Use
Laminated case series.
Suited for automobile electronics where heavy duty services are indispensable.
Compliant to the RoHS directive (2002/95/EC).
Radial Lead Type
Type numbering system (Example : 10V 3300µF)
BX
BW
Dimension table in next page.
High
Temperature
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Item
Performance Characteristics
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan δ)
Stability at Low Temperature
Endurance
Marking
–55 to +150°C (10 to 100V), –40 to +150°C (160 ·200V), –25 to +150°C (350 ·400V)
10 to 400V
1 to 4700µF
±20% at 120Hz, 20°C
Black print on the case top.
Capacitance change
Leakage current
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 2000 hours (1000 hours for
φD=10 and 12.5) at 150°C, the peak voltage shall not
exceed the rated voltage.
Dissipation Factor
Within ±30% of the initial capacitance value (10 to 100V)
Within ±20% of the initial capacitance value (160 to 400V)
300% or less than the initial specified value (10 to 100V)
200% or less than the initial specified value(160 to 400V)
Less than or equal to the initial specified value
120Hz
Z–25°C / Z+20°C
Z–40°C / Z+20°C
Rated voltage (V)
120Hz 20°C
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
tan δ (MAX.)
10
0.20160.16250.14350.12500.10630.10800.08
100
0.08
160·200
0.20
350·400
0.24
Impedance ratio
ZT / Z20 (MAX.)
10
3
4
16
2
4
25
2
4
35
2
4
50
2
4
63
2
4
80
2
4
100
2
4
160·200
3
6
350·400
6
-
Rated Voltage (V)
Leakage current
After 1 minute's application of rated voltage, leakage current
is not more than 0.03CV or 4 (µA), whichever is greater.
160 to 400
CV
<
=
1000:
I
=
0.1CV+40 (µA) max. (1 minute's)
CV >1000:
I
=
0.04CV+100 (µA) max. (1 minute's)
10 to 100
• Please refer to page 20 about the end seal configulation.
CAT.8100Z
Page 2
010
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
332
472
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
3300
4700
Dimensions
10
1A
16
1C
25
1E
35
1V
10 × 16
10
×
20
12.5
×
25
16
×
31.5
18
×
35.5
18
×
40
300
400
600
1000
1200
1300
Cap..
(µF)
Code
10 × 16
10
×
20
12.5
×
20
16
×
25
18
×
35.5
18
×
40
300
400
600
800
1200
1300
10 × 12.5
12.5
×
20
12.5
×
25
16
×
25
16
×
31.5
250
500
600
800
1000
10 × 12.5
10
×
12.5
10
×
12.5
10
×
12.5
10
×
12.5
10
×
12.5
10
×
12.5
10
×
12.5
10
×
20
12.5
×
25
16
×
25
16
×
31.5
18
×
40
35
50
60
85
175
200
225
250
400
600
800
1000
1300
Rated Ripple (mA rms) at 150°C 100kHz
V (Code)
Rated
ripple
Cace size
φD×
L (mm)
4R7
6R8
100
150
220
330
470
560
680
101
4.7
6.8
10
15
22
33
47
56
68
100
160
2C
200
2D
350
2V
400
2G
10 × 12.5
10
×
12.5
10
×
16
12.5
×
20
12.5
×
20
12.5
×
25
16
×
20
16
×
25
110
110
160
230
250
270
290
300
Cap..
(µF)
Code
10 × 12.5
10
×
12.5
10
×
16
10
×
20
12.5
×
20
12.5
×
25
16
×
20
16
×
25
83
83
130
170
210
250
270
290
10 × 16
10
×
20
12.5
×
20
12.5
×
25
77
110
120
130
10 × 20
12.5
×
20
12.5
×
25
12.5
×
25
83
88
105
105
V (Code)
Rated
ripple
Cace size
φD×
L (mm)
220
330
470
560
680
101
221
331
471
561
681
102
22
33
47
56
68
100
220
330
470
560
680
1000
50
1H
63
1J
80
1K
100
2A
10 × 12.5
10
×
20
12.5
×
20
12.5
×
25
12.5
×
31.5
16
×
25
16
×
31.5
380
640
770
960
1080
1190
1420
Cap..
(µF)
Code
10 × 12.5
10
×
16
10
×
20
12.5
×
25
12.5
×
31.5
16
×
25
16
×
31.5
16
×
35.5
430
560
710
1040
1170
1280
1520
1520
10 × 12.5
10
×
16
10
×
20
10
×
20
12.5
×
20
16
×
25
16
×
31.5
18
×
31.5
420
550
690
690
820
1250
1480
1530
10 × 12.5
10
×
16
10
×
20
10
×
20
12.5
×
20
12.5
×
25
16
×
31.5
18
×
31.5
390
510
640
640
760
950
1380
1430
Rated ripple current (mArms) at 150
°C 100kHz
Rated ripple current (mArms) at 150
°C 120Hz
V (Code)
Rated
ripple
Cace size
φD×
L (mm)
ALUMINUM ELECTROLYTIC CAPACITORS
BXseries
Frequency coefficient of rated ripple current
Frequency
CV
1000 > CV
1000 CV
120Hz
0.50
0.67
V
10
to 100
300Hz
0.64
0.79
1kHz
0.83
0.91
10kHz or more
1.00
1.00
4.7 to 330
.47 to 100
50Hz
0.75
0.80
V
160
to
4
00
120Hz
1.00
1.00
300Hz
1.25
1.15
1kHz
1.50
1.30
10kHz
1.75
1.40
100kHz
1.80
1.50
Frequency coefficient of rated ripple current
Frequency
Cap.(µF)
CAT.8100Z
