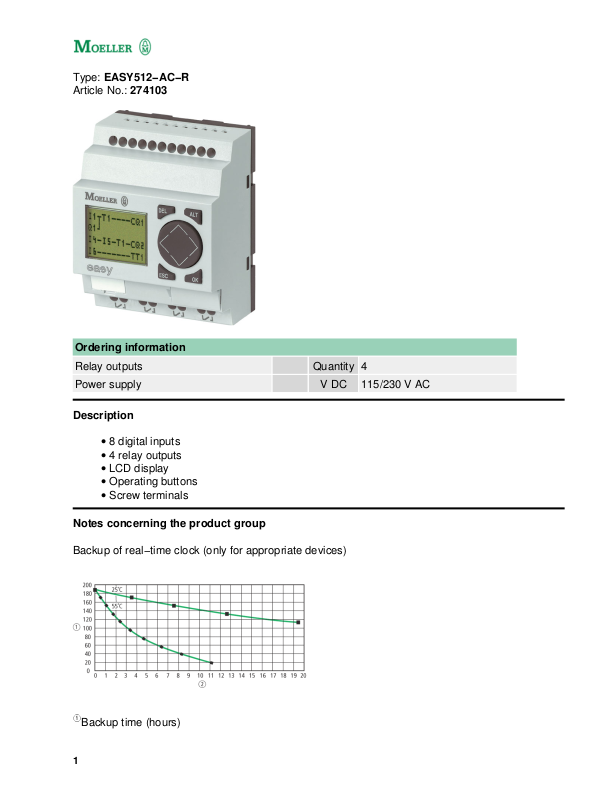

Type: EASY512−AC−R
Article No.: 274103

Ordering information

Relay outputs Quantity 4
Power supply V DC 115/230 V AC

Description

8 digital inputs•
4 relay outputs•
LCD display•
Operating buttons•
Screw terminals•

Notes concerning the product group

Backup of real−time clock (only for appropriate devices)

Backup time (hours)

1

Operating time (years)

General

EN 55011, EN 55022, IEC/EN

Standards

61000−4, IEC 60068−2−6, IEC

60068−2−27
Dimensions (W × H × D) mm 71.5 × 90 × 58 (4 PE)
Weight kg 0,2

Top−hat rail IEC/EN 60715, 35
Mounting

mm or screw fixing using fixing

brackets ZB4−101−GF1

(accessories)

Terminal capacities

Solid mm20.24 (AWG 22 – 12)
Flexible with ferrule mm20.22.5 (AWG 22 – 12)
Standard screwdriver mm 3.5 × 0.8
Max. tightening torque Nm 0,6

Climatic environmental conditions

−25 to 55, cold as per IEC

Operating ambient temperature °C

60068−2−1, heat as per IEC

60068−2−2

Condensation

Take appropriate measures to

prevent condensation
LCD display (clearly legible) °C 055
Storage °C −40/+70
Relative humidity, non−condensing

(IEC/EN 60068−2−30)

% 5 – 95

Air pressure (operation) hPa 795 – 1080
Corrosion resistance
IEC/EN 60068−2−42 4 days SO2cm3/m310
IEC/EN 60068−2−43 4 days H2S cm3/m31

Ambient conditions, mechanical

Pollution degree 2
Degree of protection (IEC/EN

60529)

IP 20

Vibrations (IEC/EN 60068−2−6)
Constant amplitude 0.15 mm Hz 10 – 57
Constant acceleration 2 g Hz 57 – 150
Mechanical shock resistance

(IEC/EN 60068−2−27)

Impacts 18

semi−sinusoidal 15 g/11 ms
Drop to IEC/EN 60068−2−31 Drop height mm 50

2

Free fall, packaged (IEC/EN
60068−2−32)

m 1

Mounting position horizontal/vertical

Electromagnetic compatibility (EMC)

Electrostatic discharge (IEC/EN
61000−4−2, Level 3, ESD)

Air discharge kV 8
Contact discharge kV 6
Electromagnetic fields (IEC/EN

61000−4−3, RFI)
Radio interference suppression

(EN 55011)

V/m 10

EN 55011 Class B, EN 55022

Class B
Burst pulses (IEC/EN 61000−4−4,

level 3)
Supply cables kV 2
Signal lines kV 2
High−energy pulses (surge)

(IEC/EN 61000−4−5)
High−energy pulses (surge)

(IEC/EN 61000−4−5, level 2)

kV

kV

2 (supply cables, symmetrical,

EASY...AC)

0.5 (supply cables,

symmetrical, EASY...DC)
Immunity to line−conducted

interference to (IEC/EN

V 10

61000−4−6)

Insulation resistance

Clearance in air and creepage
distances

EN 50178, UL 508, CSA

C22.2, no. 142
Insulation resistance EN 50178

Backup/accuracy of the real−time clock

Accuracy of the real−time clock typ. ± 5 (± 0.5 hannually)

Repetition accuracy of timing relays

Accuracy of timing relays (of
values)

% ± 1

Resolution
Range “S” ms 10
Range “M:S” s 1
Range “H:M” min 1

Retentive memory

Write cycles of the retentive
memory

1000000 (106)

Power supply

Rated operational voltage U

3

e

100/110/115/120/230/240 AC

V

(+10/−15 %)

Admissible range V AC 85 – 264
Frequency Hz 5060 (± 5%)
Input current
at 115/120 V AC 60 Hz mA Normally 40
at 230/240 V AC 50 Hz mA Normally 20
Voltage dips (IEC/EN 61131−2) ms 20
Power loss
at 115/120 V AC VA Normally5
at 115/230 V AC VA Normally5

Digital inputs 115/230 V AC

Number 8
Status indication LCD−display (if present)
Potential isolation
From power supply No
Between digital inputs No
From the outputs Yes
Rated voltage L (sinusoidal)
On 0 signal V AC 0 – 40
On 1 signal V AC 79 – 264
Rated frequency Hz 50 – 60
Input current on 1 signal

I1 to I6 mA

I7 to I8 mA

6 × 0.25 (at 115 V AC, 60 Hz)

6 × 0.5 (at 230 V AC, 50 Hz)

2 × 4 (at 115 V AC, 60 Hz) 2 ×

6 (at 230 V AC, 50 Hz)
Delay time
Delay time (0 – 1/1 – 0) I1 to I6, I9

to I12, R1 to R12
Debounce ON 50/60 Hz ms 8066
Debounce OFF 50/60 Hz ms 2016
Delay time I7, I8 (1 – 0)
Debounce ON 50/60 Hz ms 160150
Debounce OFF 50/60 Hz ms 100100
Delay time I7, I8 (0 – 1)
Debounce ON 50/60 Hz ms 8066
Debounce OFF 50/60 Hz ms 2016
Max. admissible cable length (per

input)
I1 to I6 m 40

4

I7, I8 m Normally100

Relay outputs

Number 4
Outputs in groups of 1
Parallel switching of outputs for

increased output

Protection of an output relay

Not permissible

Miniature circuit−breaker B16

or fuse 8 A (slow)
Potential isolation
From power supply Yes
From the inputs Yes
From the PC interface, memory

card NET network, EASY−Link

No

Safe isolation V AC 300
Basic insulation V AC 600
Lifespan, mechanical Operations × 10610
Contacts
Conventional thermal current (10 A

UL)
Recommended for load: 12 V

AC/DC
Short−circuit−proof cos = 1,

characteristic B16 at 600 A

A 8

mA > 500

A 16

Short−circuit−proof cos = 0.5 to

0.7, characteristic B16 at 900 A
Rated impulse withstand voltage

U

of contact coil

imp

Rated operational voltage U
Rated insulation voltage U
Safe isolation to EN 50178

between coil and contact
Safe isolation to EN 50178

between 2 contacts
Making capacity
AC−15, 250 V AC, 3 A (600

Ops./h)
DC−13 L/R 150 ms 24 V DC, 1 A

(500 Ops./h)

Operations 300000

Operations 200000

Breaking capacity
AC−15, 250 V AC, 3 A (600

Ops./h)

Operations 300000

A 16

kV 6

e

i

V AC 250
V AC 250

V AC 300

V AC 300

Operations 200000

5

DC−13 L/R 150 ms 24 V DC, 1 A
(500 Ops./h)

Filament bulb load
1000 W at 230/240 V AC Operations 25000
500 W at 115/120 V AC Operations 25000
Fluorescent lamp load
Fluorescent lamp load 10 × 58 W

at 230/240 V AC
With upstream electrical device Operations 25000
Uncompensated Operations 25000
Fluorescent lamp load 1 × 58 W at

230/240 V AC, conventional,

Operations 25000

compensated
Switching frequency
Mechanical operations × 10610
Switching frequency Hz 10
Resistive load/lamp load Hz 2
Inductive load Hz 0,5
UL/CSA
Uninterrupted current at 240 V AC A 10
Uninterrupted current at 24 V DC A 8
AC
Control Circuit Rating Codes

(utilization category)

B 300 Light Pilot Duty

Max. rated operational voltage V AC 300
Max. thermal uninterrupted current

= 1 at B 300
Max. make/break capacity 1 at B

300

A 5

VA 3600360

DC
Control Circuit Rating Codes

(utilization category)

R 300 Light Pilot Duty

Max. rated operational voltage V DC 300
Max. thermal uninterrupted current

at R 300

A 1

Max. make/break capacity at R 300 VA 2828

Notes

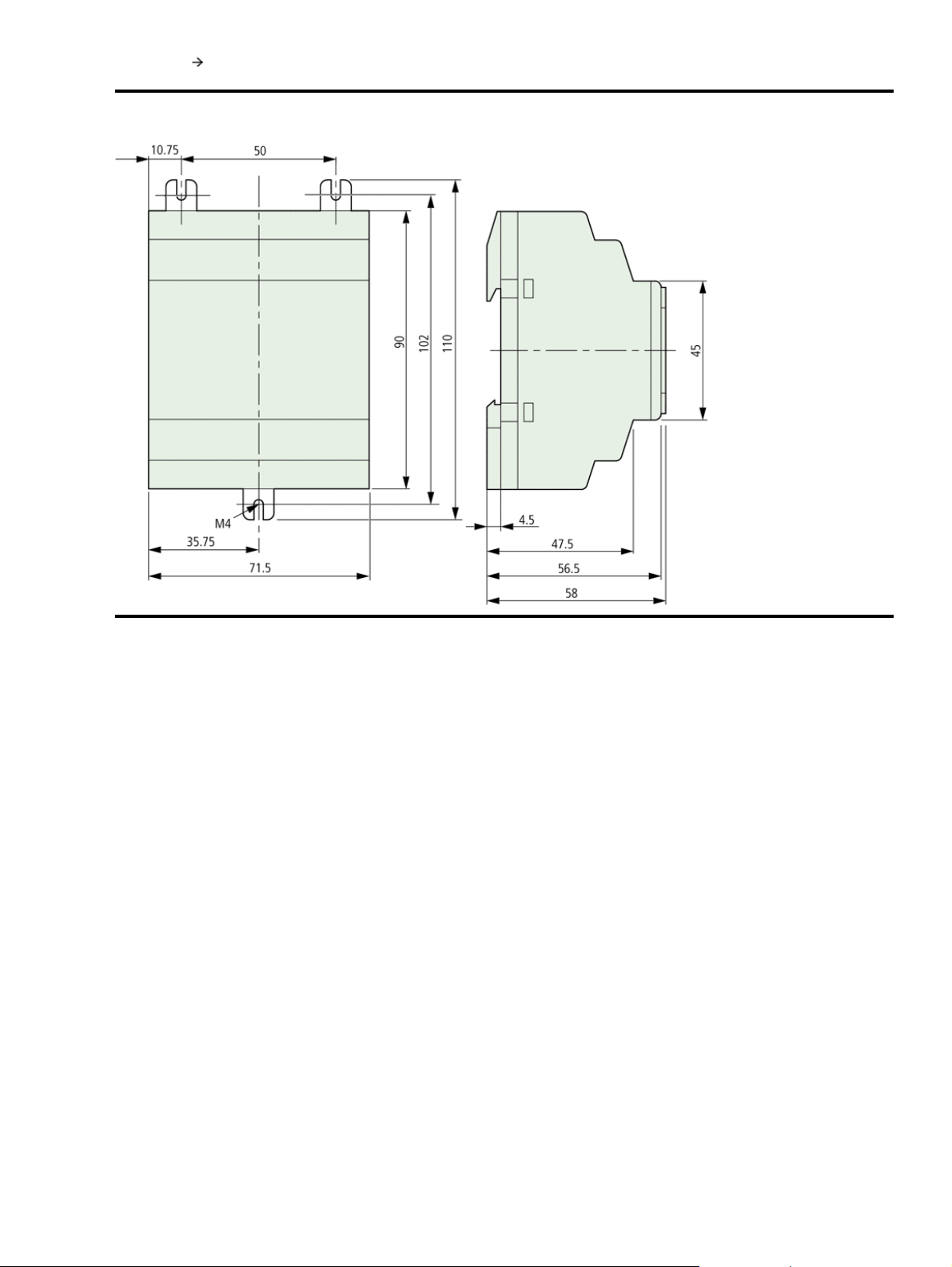

Dimensions

Notes

For additional Technical Data EASY5... and EASY7... AWB2528−1508GB,

6

EASY8... AWB2528−1423D

Dimensions
