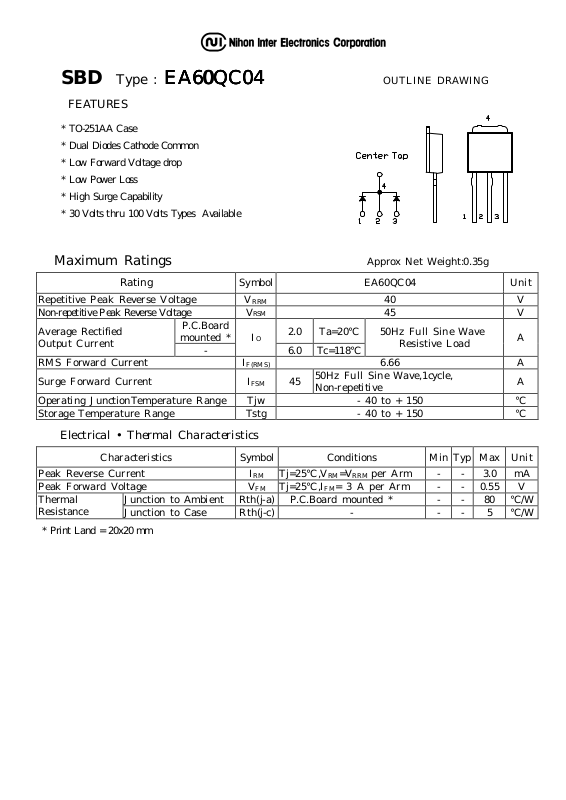

Page 1
SBD Type : EA
FEATURES
* TO-251AA Case
* Dual Diodes Cathode Common
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 30 Volts thru 100 Volts Types Available
EA60QC04
60QC04
EAEA
60QC0460QC04
OUTLINE DRAWING
Maximum Ratings Approx Net Weight:0.35g
Rating
Repetitive Peak Reverse Voltage V
Non-repetitive Peak Reverse Voltage V
Average Rectified
Output Current
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range
Storage Temperature Range
P.C.Board
mounted *
-
Symbol EA60QC04 Unit
RRM
RSM
I
O
F(RMS)
FSM
Tjw - 40 to + 150
Tstg - 40 to + 150
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min Typ Max Unit
Peak Reverse Current IRM
Peak Forward Voltage VFM
Thermal
Resistance
* Print Land = 20x20 mm
Junction to Ambient Rth(j-a) P.C.Board mounted * - - 80
Junction to Case Rth(j-c) - - - 5
40 V
45 V
2.0
6.0
6.66 A
45
Tj=25°C,V
Tj=25°C,I
Ta=20°C
Tc=118°C
50Hz Full Sine Wave,1cycle,
Non-repetitive
RM=VRRM
= 3 A per Arm
FM
50Hz Full Sine Wave
Resistive Load
per Arm
- - 3.0 mA
- - 0.55 V
A
A
°C
°C
°C/W
°C/W
Page 2

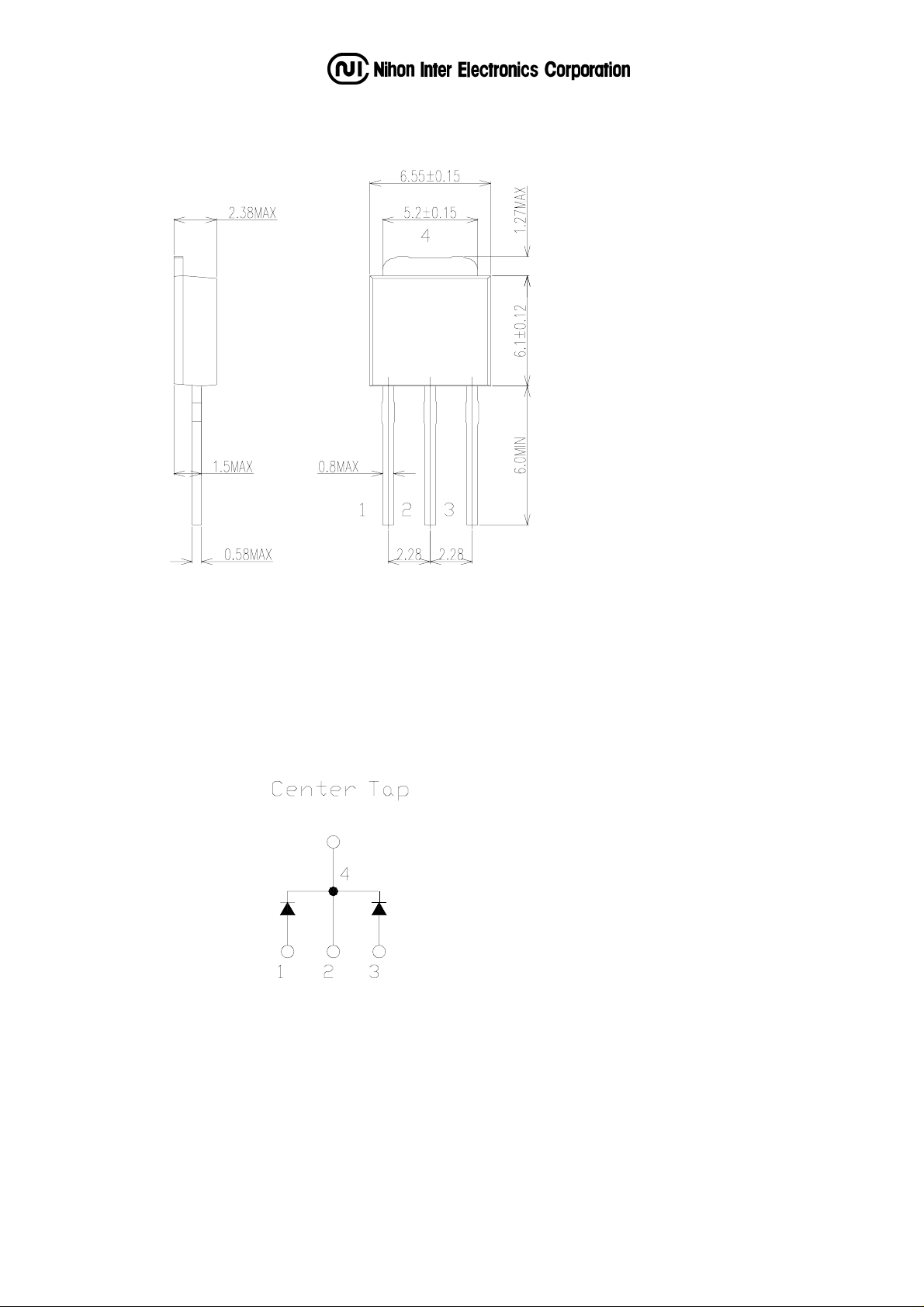

EA60QC04 OUTLINE DRAWING (Dimensions in mm)
