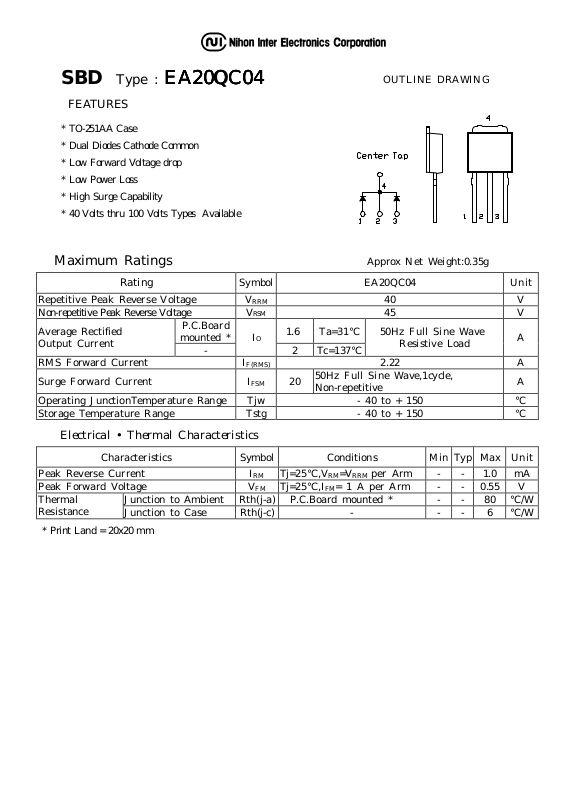

Page 1

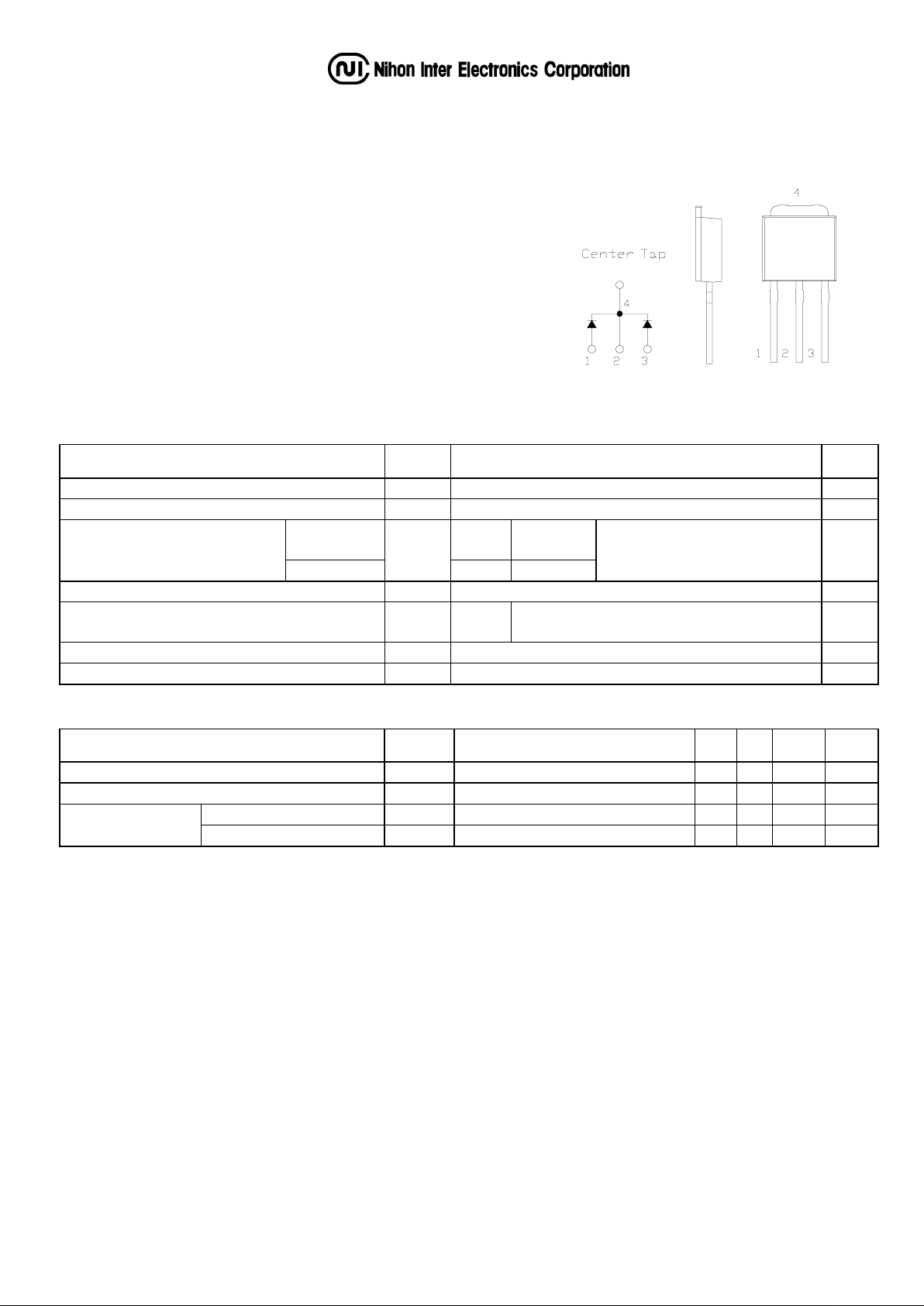

OUTLINE DRAWING
Maximum Ratings Approx Net Weight:0.35g
Rating
Symbol EA20QC04 Unit
Repetitive Peak Reverse Voltage V
RRM
40 V
Non-repetitive Peak Reverse Voltage V
RSM
45 V
P.C.Board
mounted *
1.6
Ta=31°C
Average Rectified
Output Current
-
I
O
2
Tc=137°C
50Hz Full Sine Wave
Resistive Load
A
RMS Forward Current I
F(RMS)
2.22 A
Surge Forward Current I
FSM
20
50Hz Full Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range
Tjw - 40 to + 150
°C
Storage Temperature Range
Tstg - 40 to + 150
°C
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min Typ Max Unit
Peak Reverse Current IRM
Tj=25°C,V
RM=VRRM
per Arm
- - 1.0 mA
Peak Forward Voltage VFM
Tj=25°C,I
FM
= 1 A per Arm
- - 0.55 V
Junction to Ambient Rth(j-a) P.C.Board mounted * - - 80
°C/W
Thermal
Resistance
Junction to Case Rth(j-c) - - - 6
°C/W
* Print Land = 20x20 mm
SBD Type : EA2
EA2EA2
EA20QC04
0QC040QC04
0QC04
FEATURES
* TO-251AA Case
* Dual Diodes Cathode Common
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available
Page 2

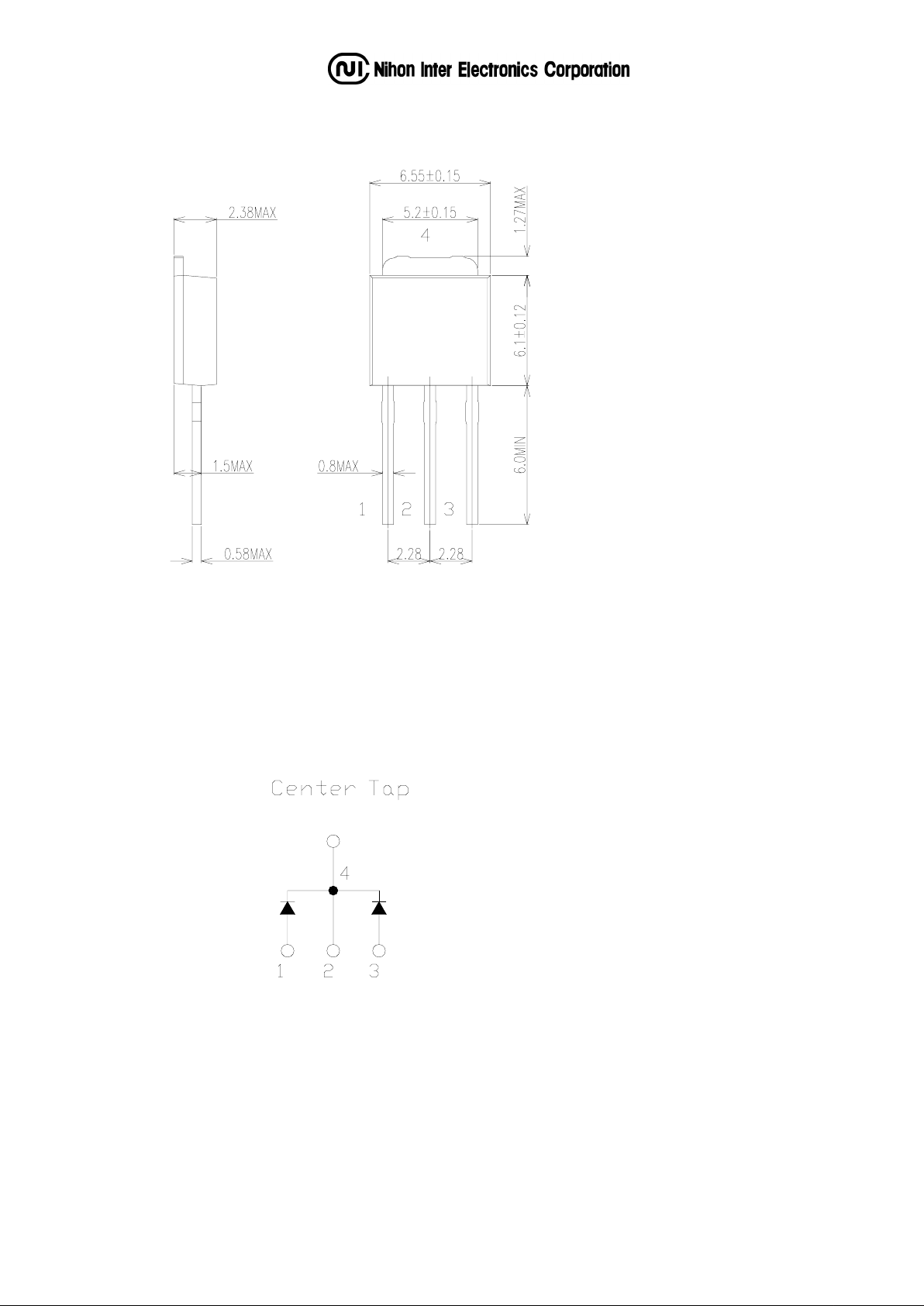

EA20QC04 OUTLINE DRAWING (Dimensions in mm)
