Page 1

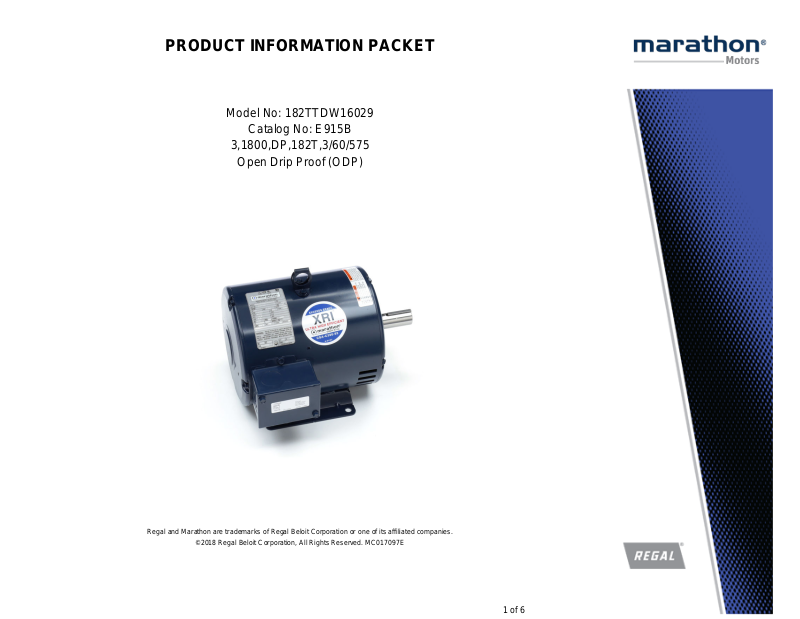

PRODUCT INFORMATION PACKET
Model No: 182TTDW16029
Catalog No: E915B
3,1800,DP,182T,3/60/575
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 182TTDW16029, Catalog No:E915B 3,1800,DP,182T,3/60/575
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 575 V
Current
Service Factor
Efficiency 89.5 % Duty Continous
Insulation Class
KVA Code K Frame 182T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code
3 Hp
3.2 A
1.15
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
2.2 kW
1760 rpm
3
B
6206
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 1.125 in Shaft Extension 2.81 in
Assembly/Box Mounting

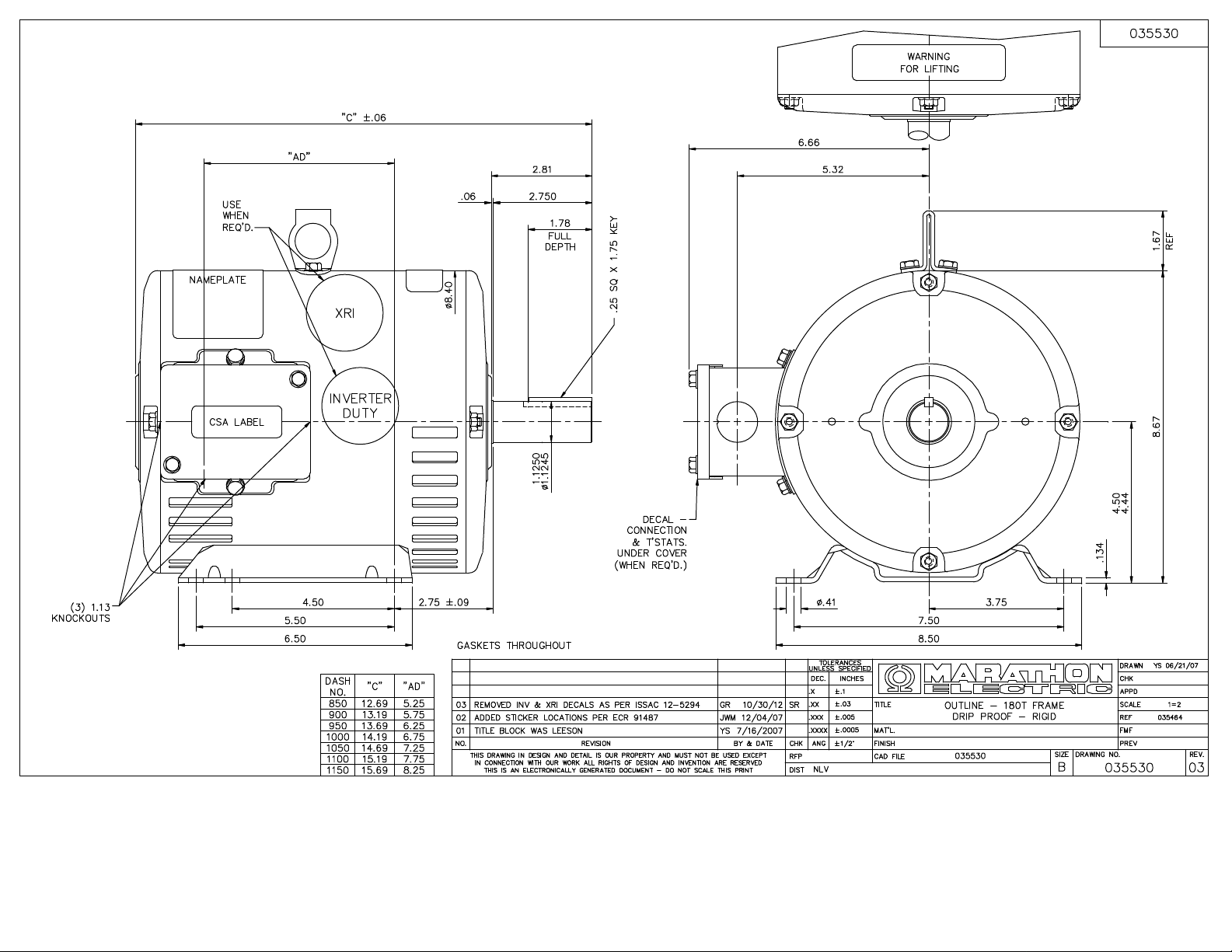

Outline Drawing
Rigid base
13.19 in
F1 Only
035530-900
Motor Orientation
Frame Length

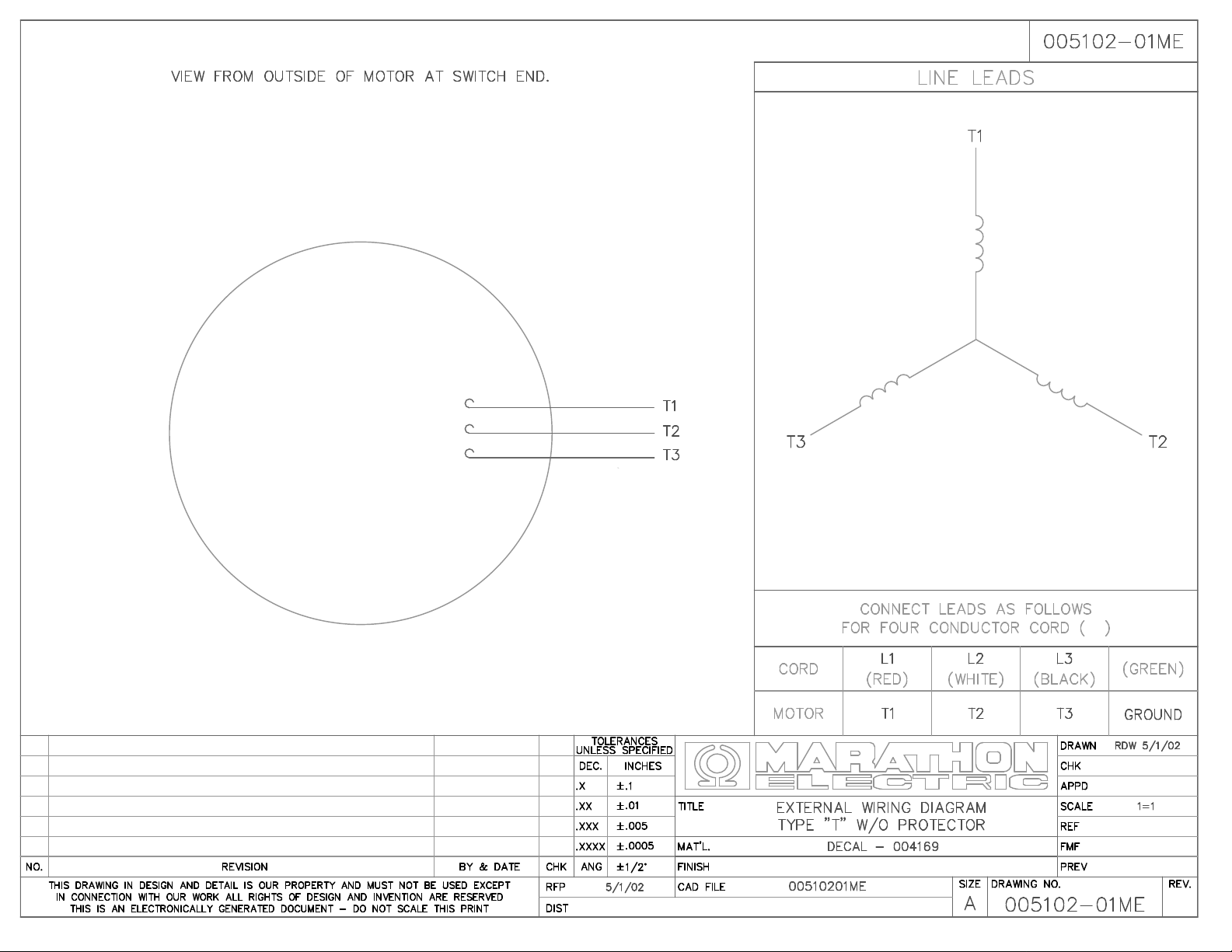

Connection Diagram
Horizontal
9.00 in
005102.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
3 of 6
8/8/2013 4:41:32 PM - Converted by Connexus
Page 4
9/25/2008 5:13:26 PM
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 182TTDW16029 AA WINDING#: T84173 DR 7
CONN. DIAGRAM: 005102.01ME ASSEMBLY: F1 ONLY
OUTLINE: 035530-900
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3 2.24 1800 1760 182T DP K B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 575 3.2 LINE OR
INVERTER
CONTINUOUSB4 1.15 40 3300
FULL LOAD EFF: 89.5 3/4 LOAD EFF: 89.4 1/2 LOAD EFF: 87.8 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 79 3/4 LOAD PF: 71.9 1/2 LOAD PF: 59.7 88.5 SQ CAGE INV RATED 1.6
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
9 LB-FT 27.4 21 LB-FT 233 36.4 LB-FT 404 0
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
51 dBA 61 dBA 0.357 LB-FT^2 55 LB-FT^2 15 SEC. 2 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1045 (C-240) ROLLED STEEL
6206 6205
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 4:1
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 01:43:07 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Speed (RPM)
Current (Amps)
P
E
10.0
0.0
5.0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
15.0
TORQU
20.0
25.0
30.0
35.0
40.0
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
27.4 26.8 17.6 3.2 1.60 3.0
22.0 14.8 35.8 8.9 0.00 1800
0 330 1500 1760 1800
P.F. (%)
Submitted by:
Customer:
Attention:
Date:
1800 1790 1779 1767 1760 1,752 1745 0
0.00 2.19 4.4 6.6 8.9 10.3 11.2 22.0
6.9 38.8 61.1 73.2 79.3 80.9 81.7 50.5
LR Pull-Up BD Rated Idle
FAREEDA DUDEKULA
1.60 1.76 2.08 2.56 3.2 3.6 3.8 27.4
6/20/2017 182TTDW16029
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
82.0 88.2 89.5 89.5 90.0 89.6
Data Sheet
Torque Amps
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
A
M
P
S
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 035530-900
Conn. Diag 005102.01ME
0
0
Additional Specifications:
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
Information Block
T84173 DR
CONSTANT 4:1
51 dBA
0.0
5.0
10.0
15.0
P
S
20.0
A
M
25.0
30.0
CONT
1,000
0.36
feet
Lb-Ft²
1.15
31
40
°
C
B
K
°
C
TDW
575
182
60
Hz
DP
V
Submittal
Data @
575
v
Uncontrolled Copy
6 of 6
