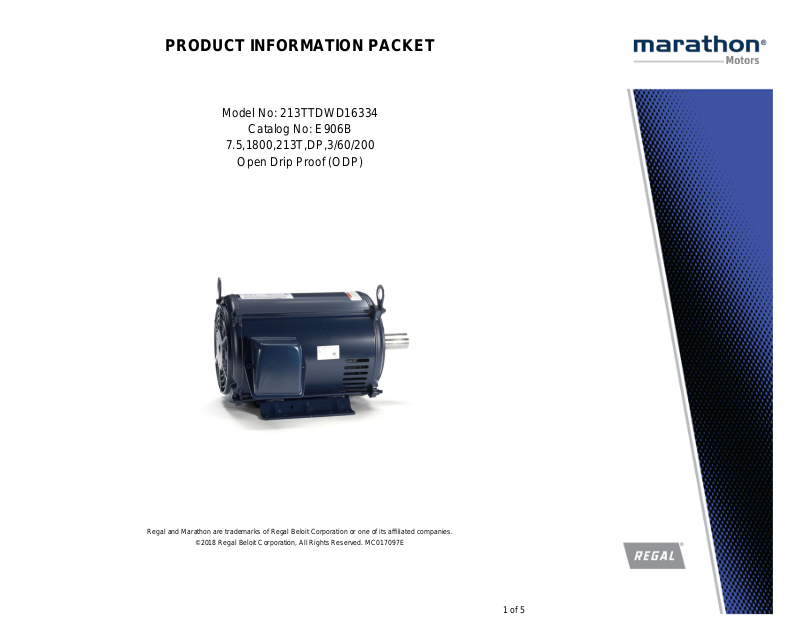

Page 1
PRODUCT INFORMATION PACKET
Model No: 213TTDWD16334
Catalog No: E906B
7.5,1800,213T,DP,3/60/200
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 213TTDWD16334, Catalog No:E906B 7.5,1800,213T,DP,3/60/200
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 200 V
Current
Service Factor
Efficiency 91 % Duty Continous
Insulation Class
KVA Code H Frame 213T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6206 UL Recognized
CSA
IP Code
7.50 Hp
23.0 A
1.15
B
40 °C
Y
12
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
5.6 kW
1765 rpm
3
B
6307
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Extension 3.47 in Assembly/Box Mounting F1/F2 Capable

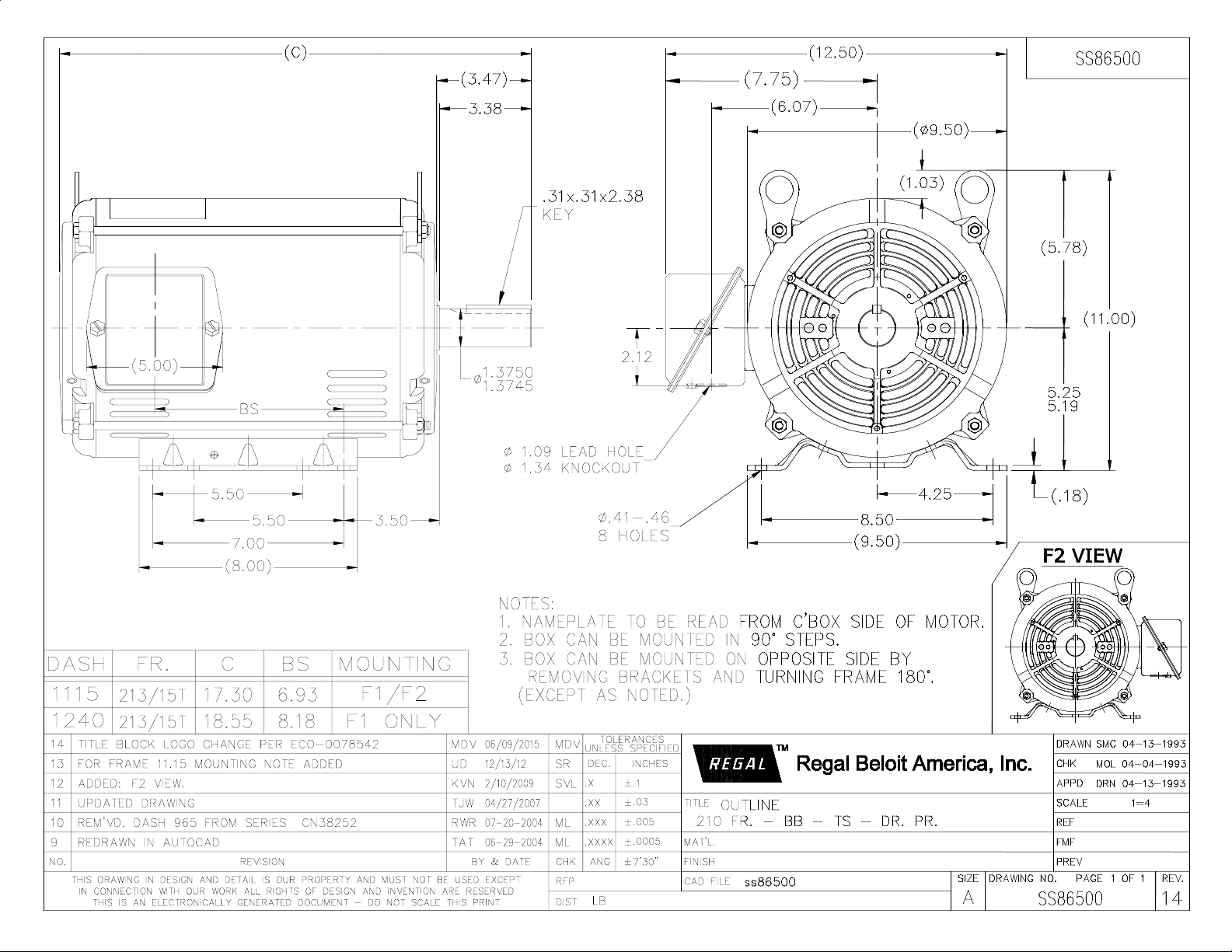

Outline Drawing
Rigid base
17.3 in
SS86500-1115
Motor Orientation
Shaft Diameter

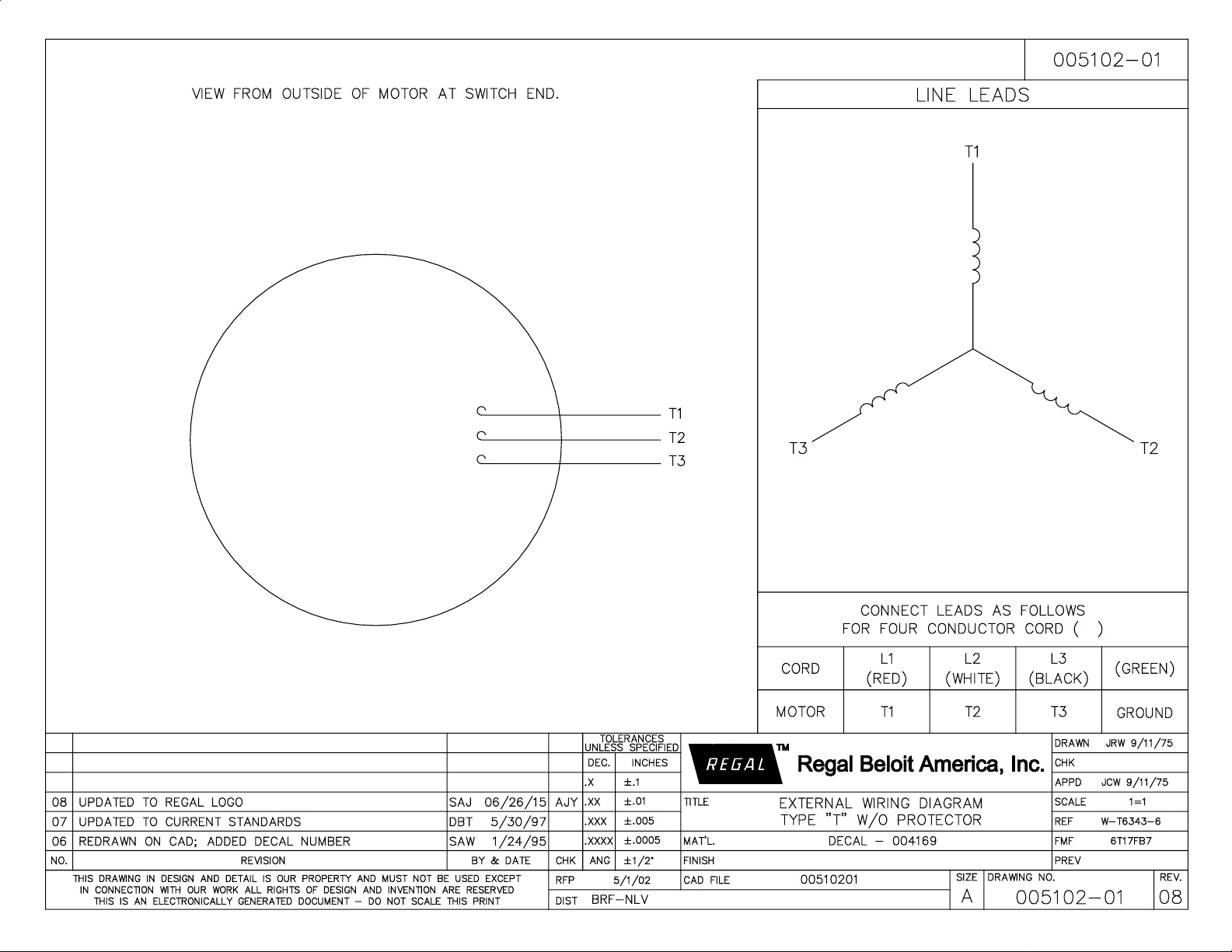

Connection Diagram
Horizontal
1.375 in
005102.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 5
Page 3
Uncontrolled Copy
3 of 5
Page 4
Uncontrolled Copy
4 of 5
Page 5
CERTIFICATION DATA SHEET
Model#: 213TTDWD16334 AA WINDING#: K2134278 NONE 6
CONN. DIAGRAM: 005102.01 ASSEMBLY: F1/F2 CAPABLE
OUTLINE: SS86500-1115
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
7 1/2 5.60 1800 1765 213T DP H B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 200 23 ACROSS THE
LINE
CONTINUOUSB4 1.15 40 3300
FULL LOAD EFF: 91 3/4 LOAD EFF: 91 1/2 LOAD EFF: 89.9 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 77.1 3/4 LOAD PF: 71.3 1/2 LOAD PF: 58.1 89.5 SQ CAGE IND RUN 12.2
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
22.3 LB-FT 140.3 45.3 LB-FT 203 66.1 LB-FT 296 35
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
66 dBA 76 dBA 0.85 LB-FT^2 50 LB-FT^2 20 SEC. 2 125 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1045 (C-240) ROLLED STEEL
6307 6206
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/22/2017 05:06:41 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
