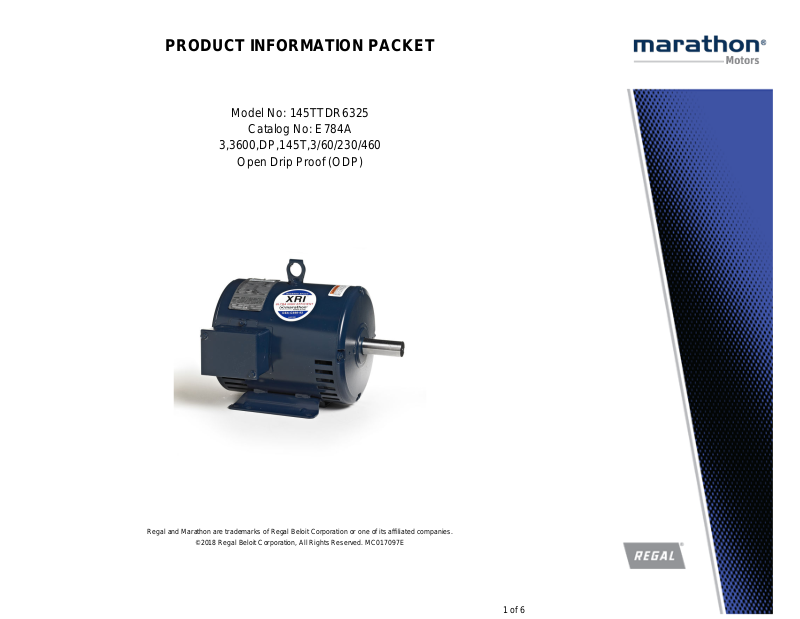

Page 1
PRODUCT INFORMATION PACKET
Model No: 145TTDR6325
Catalog No: E784A
3,3600,DP,145T,3/60/230/460
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 145TTDR6325, Catalog No:E784A 3,3600,DP,145T,3/60/230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 86.5 % Duty Continous
Insulation Class
KVA Code K Frame 145T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
3 Hp
7.2/3.6 A
1.15
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
2.2 kW
3490 rpm
3
B
6205
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 0.875 in Shaft Extension 2.38 in
Assembly/Box Mounting
Outline Drawing
Rigid base
12.69 in
F1 Only
028859ME-750
Motor Orientation
Frame Length

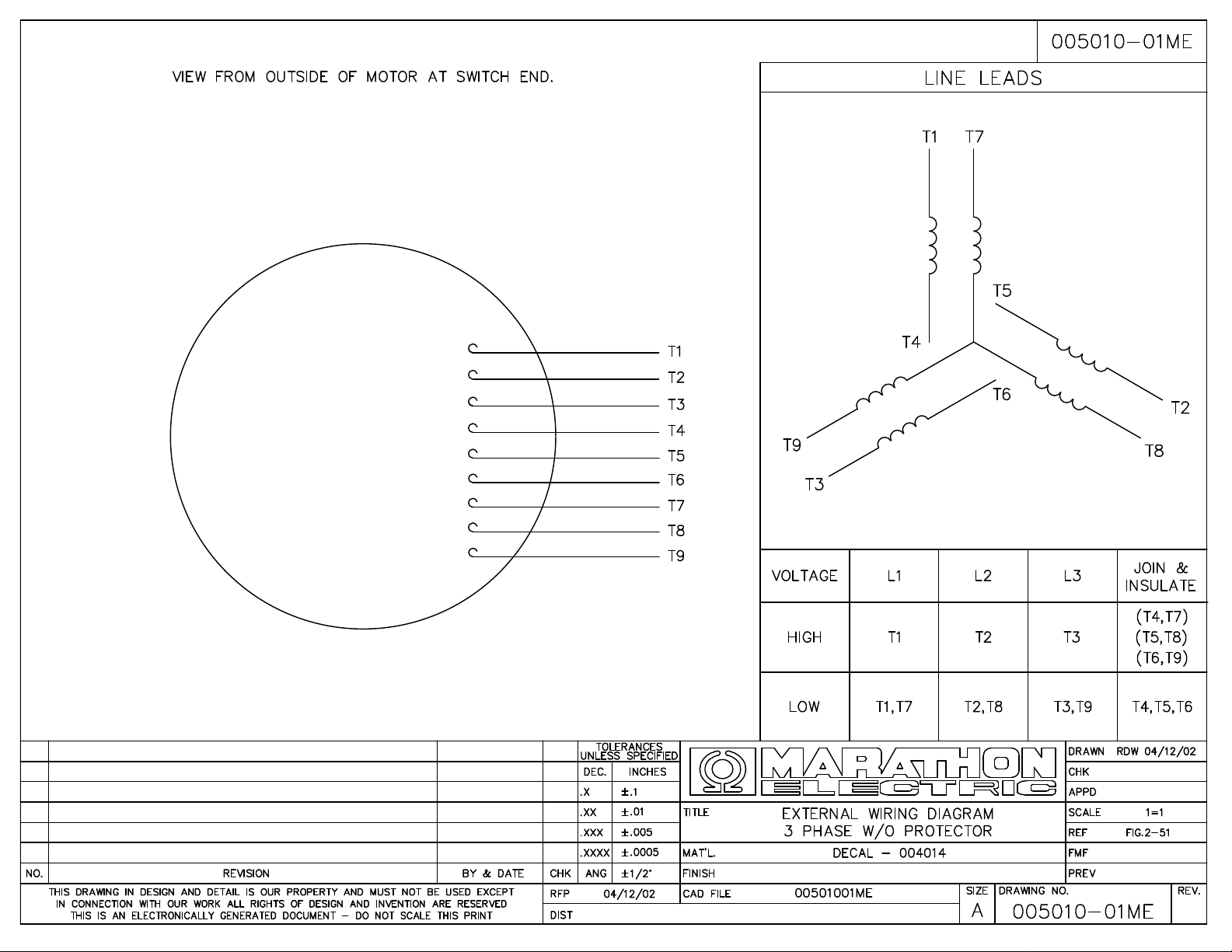

Connection Diagram
Horizontal
7.50 in
005010.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 07/02/2018
2 of 6
Page 3
5.39
4.32
(3) .88 KNOCKOUTS
"C" .06
2.38
2.250
1.41
FULL
DEPTH
.75 .63
NAMEPLATE
"AD"
.13
.19 SQ. x 1.38 KEY
WARNING
DECAL
CSA LABEL
CE
6.74
3.50
.8750
.8745
3.44
(2) 1.13 KNOCKOUTS(2) 1.13 KNOCKOUTS
6.50
2.25 .09
6.50
.119
5.00
3.00
.34
2.44
4.88
.88
(6) .34 HOLES
11/10/2011 12:22:55 AM - Converted by Connexus
5.50
2.75
4.00
5.00
01 REMOVED WATTSAVER DECAL VS 11/10/2011
REVISIONNO
THIRD ANGLE
PROJECTION
BY & DATE
TOLERANCES
UNLESS SPECIFIED
INCHES
DEC
±.1
.X
.XX
±.03
.XXX
±.005
.XXXX
±.0005
CHK
ANG
RFP
NETWORK FILE NAME
±1/2°
3 of 6
TITLE
OUTLINE - 140T/56HZ FRAME
OPEN DRIP PROOF - RIGID
MAT'L
FINISH
PREV
028859ME
DASH
NO. "C" "AD"
600 11.19 3.69
650 11.69 4.16
700 12.19 4.69
750 12.69 5.19
800 13.19 5.69
850 13.69 6.19
900 14.19 6.69
DRAWN
CHK
APPR
SCALE
REF
FMF
PAGE
B
028859ME 01
VS 7/21/2010
VS 7/21/2010
3:8
028859
OF
1 1
REVSIZE DRAWING NO
Page 4
4 of 6
7/20/2012 2:29:41 PM - Converted by Connexus
Page 5
CERTIFICATION DATA SHEET
Model#: 145TTDR6325 BD WINDING#: T632175 NONE 3
CONN. DIAGRAM: 005010.01ME ASSEMBLY: F1 ONLY
OUTLINE: 028859ME-750
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3&2 2.24&1.49 3600 3490&2880 145T DP K B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
7.2/3.6&6.2/3.1ACROSS THE
LINE
CONTINUOUSB4 1.15/1.15 40 3300
FULL LOAD EFF:
86.5&89.4
3/4 LOAD EFF: 88.6 1/2 LOAD EFF: 87.4 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF:
88&84.4
3/4 LOAD PF: 83 1/2 LOAD PF: 74.6 0 SQ CAGE IND RUN 2.7 / 1.4
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
4.5 LB-FT / - LB-FT - - LB-FT - -
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
0 dBA 10 dBA 0.084 LB-FT^2 0 LB-FT^2 0 SEC. 0 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6205 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/23/2017 06:56:45 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Uncontrolled Copy
6 of 6
