Datasheet E783A Datasheet (Marathon Electric)

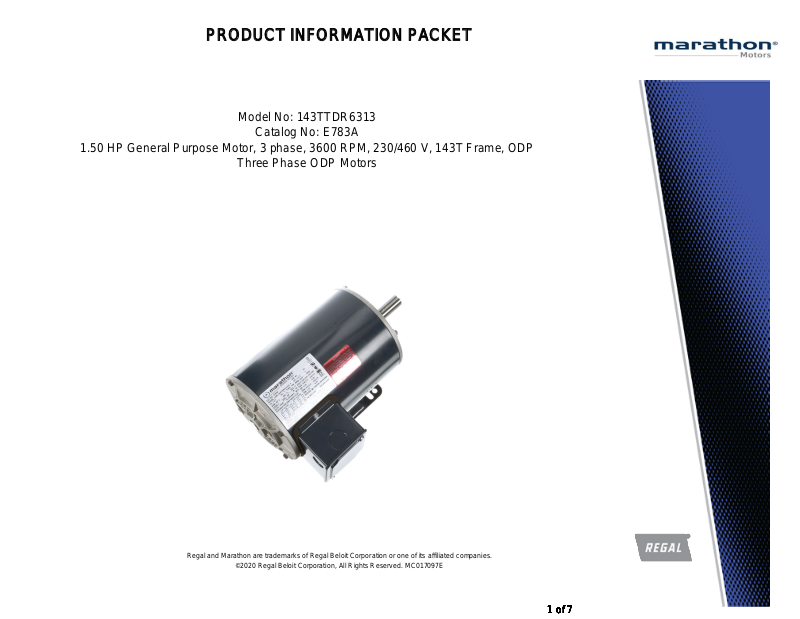

PRODUCT INFORMATION PACKET

Model No: 143TTDR6313

Catalog No: E783A

1.50 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 143T Frame, ODP Three Phase ODP Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 7

Product Information Packet: Model No: 143TTDR6313, Catalog No:E783A 1.50 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 143T Frame, ODP

Nameplate Specifications

Output HP 1.50 Hp Output KW 1.1 kW Frequency 60 Hz Voltage 230/460 V Current 3.8/1.9 A Speed 3515 rpm Service Factor 1.15 Phase 3 Efficiency 86.5 % Power Factor 84 Duty Continuous Insulation Class F Design Code B KVA Code L Frame 143T Enclosure Drip Proof Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE Y IP Code 22

Technical Specifications

Electrical Type Squirrel Cage Induction Run Starting Method Across The Line Poles 2 Rotation Reversible Resistance Main 9.08 Ohms Mounting Rigid base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Rolled Steel Shaft Type T Overall Length 12.49 in Frame Length 8.56 in Shaft Diameter 0.875 in Shaft Extension 2.28 in Assembly/Box Mounting F1 ONLY Outline Drawing A-100085-856 Connection Drawing A-EE7308

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:18/06/2020

2 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 7

Regal Beloit America, Inc.

TM

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED: DEC.

INCH mm ANGLE .X 0.1 [ 2.5] 7' 30" .XX 0.03 [ 0.76] .XXX 0.005 [ 0.127] .XXXX 0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] X 45 CORNER FILLETS: R.02 [.51] MACHINED SURFACES:

200 5.1

INCH mm mm SHOWN IN [BRACKETS]

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

100085

GK

02-04-1988

FG

02-04-1998

E A. KEETHA 01-09-2018

ECO-0143026 PST 04/11/2018

OUTLINE CONVERSION PROJECT

OUTLINE

100085

140T & 56HZ - DR.PR.

1.CONDUIT BOX CAN BE ROTATED 180°.

NOTES:

DASH

NO.

"C" "BS"

706 10.99[279.14] 3.87[98.29] 756 11.49[291.84] 4.37[110.99] 806 11.99[304.54] 4.87[123.69] 856 12.49[317.24] 5.37[136.39] 906 12.99[329.94] 5.87[149.09] 956 13.49[342.64] 6.37[161.79]

2.28

57.90

(C)

BS

2.25

57.14

2.25

57.15

3.00

76.20

4.00

101.60

5.00

127.00

5.00

127.00

6.50

165.10

2.75

69.84

1.00

25.40

.8750 .8745

22.2237

22.2110

3.14

79.76

.50

12.70

.19[4.82]X.19[4.82]X1.38[35.05]

KEYWAY

NAMEPLATE READ FROM CONDUIT BOX SIDE

6.50

165.10

5.50

139.70

2.75

69.85

.12

3.04

3.50

3.44

88.98

87.45

6.72

170.59

5.28

134.14

4.44

112.78

8.52

216.51

6.49

164.74

.82

20.83

1.81

45.97

.88

22.35

.44

11.18 .18

4.45

2-Ø1.09[27.68] KNOCKOUTS

3-Ø.88[22.35] KNOCKOUTS

Ø.34[8.63]-.35[8.89] 6 HOLES (140T MTG.)

Regal Beloit America, Inc.

TM

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED: DEC.

INCH mm ANGLE .X 0.1 [ 2.5] 7' 30" .XX 0.03 [ 0.76] .XXX 0.005 [ 0.127] .XXXX 0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] X 45 CORNER FILLETS: R.02 [.51] MACHINED SURFACES:

200 5.1

INCH mm mm SHOWN IN [BRACKETS]

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

100085

GK

02-04-1988

FG

02-04-1998

E A. KEETHA 01-09-2018

ECO-0143026 PST 04/11/2018

OUTLINE CONVERSION PROJECT

OUTLINE

100085

140T & 56HZ - DR.PR.

1.CONDUIT BOX CAN BE ROTATED 180°.

NOTES:

DASH

NO.

"C" "BS"

706 10.99[279.14] 3.87[98.29] 756 11.49[291.84] 4.37[110.99] 806 11.99[304.54] 4.87[123.69] 856 12.49[317.24] 5.37[136.39] 906 12.99[329.94] 5.87[149.09] 956 13.49[342.64] 6.37[161.79]

Uncontrolled Copy

3 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 7

Uncontrolled Copy

4 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 7

CERTIFICATION DATA SHEET

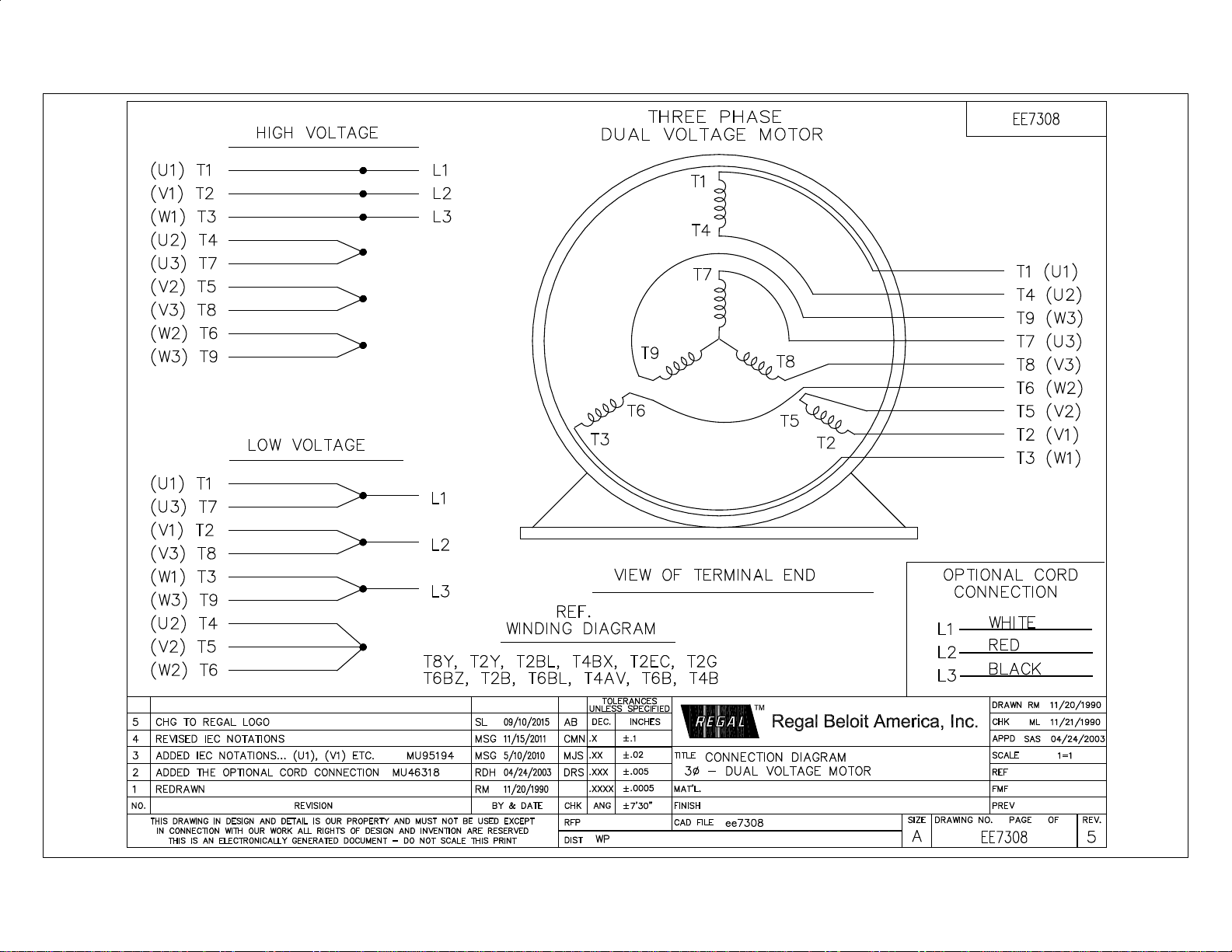

Model#: 143TTDR6313 AA WINDING#: ZT2168 DR 1 CONN. DIAGRAM: A-EE7308 ASSEMBLY: F1 ONLY OUTLINE: A-100085-856

TYPICAL MOTOR PERFORMANCE DATA

HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN

1 1/2&1 1.12&.75 3600 3515&2920 143T DP L B

PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION

3 60/50 230/460#190/

380

3.8/1.9&3.4/1.7ACROSS THE LINE

CONTINUOUSF3 1.15/1.15 40 3300

FULL LOAD EFF:

86.5&86.5

3/4 LOAD EFF: 88.3 1/2 LOAD EFF: 86.6 GTD. EFF ELEC. TYPE NO LOAD AMPS

FULL LOAD PF:

84&80.5

3/4 LOAD PF: 78.7 1/2 LOAD PF: 67.6 84 SQ CAGE IND RUN 1.6 / .8

F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C

2.25 LB-FT 37.2 / 18.6 6.8 LB-FT 302 10 LB-FT 444 20

SOUND PRESSURE

@ 3 FT.

SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS

/HOUR

APPROX. MOTOR

WGT

68 dBA 78 dBA 0 LB-FT^2 0 LB-FT^2 10 SEC. 0 0 LBS.

*** SUPPLEMENTAL INFORMATION ***

DE BRACKET

TYPE

ODE BRACKET

TYPE

MOUNT

TYPE

ORIENTATION SEVERE

DUTY

HAZARDOUS

LOCATION

DRIP

COVER

SCREENS PAINT

STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE

(POWDER)

BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT

MATERIAL

FRAME

MATERIAL

DE OPE

BALL BALL POLYREX EM T NONE NONE 1144

STRESSPROOF

(C-223)

ROLLED STEEL

6205 6203

THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS

THERMOSTATS PROTECTORS WDG RTDs BRG RTDs

NONE NOT NONE NONE NONE FALSE NONE VOLTS

If Inverter equals NONE, contact factory for further

information

* N O T E S *

INVERTER TORQUE: NONE INV. HP SPEED RANGE: NONE

ENCODER: NONE NONE NONE NONE NONE PPR

BRAKE: NONE NONE NONE P/N NONE NONE NONE

- FT-LB NONE V NONE Hz

DATE: 06/22/2017 07:46:33 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.

Uncontrolled Copy

5 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 7

Uncontrolled Copy

6 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 7

Date:

Customer:

Attention:

Submitted by:

Data @

460

v

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps)

0.82 0.90 1.20 1.50 1.90 2.20 2.30 18.6

Torque (ft-lb)

0.00 0.55 1.10 1.68 2.25 2.60 2.80 6.8

RPM

3600 3580 3560 3540 3515 3,505 3495 0

Efficiency (%)

79.6 86.6 88.3 86.5 86.6 86.5

P.F. (%)

14.3 47.2 67.6 78.7 84.0 86.5 87.5 62.5

LR Pull-Up BD Rated Idle

Speed (RPM)

0 215 2700 3515 3600

Information Block

Current (Amps)

18.6 18.7 11.7 1.90 0.82 1.5

Torque (ft-lb)

6.8 5.7 10.0 2.25 0.00 3600

143 DP

TDR

V

60

Hz

A

L

1.15

20

°

C

CONT

40

°

C

1,000

feet

0.00

Lb-Ft²

ZT2168 DR

68 dBA

Additional Specifications:

R1 R2 X1 X2 Xm

5.2950 3.7820 9.2660 9.4550 359.2900

NONE

0 365THFS8036

EQUIV CKT (OHMS / PHASE)

Ref Wdg

Sound Pressure @ 1M

VFD Rating

Outline Dwg A-100085-856 Conn. Diag A-EE7308

Rotor/Shaft wk²

Voltage

Frequency

Design

LR Code letter

Service Factor

Temp Rise @ FL

Duty

Ambient

Elevation

Construction

Motor Speed Data

HP Sync. RPM

Frame Enclosure

Motor Load Data

Submittal

FAREEDA DUDEKULA

Data Sheet

16-06-2017 143TTDR6313

0.0

0.5

1.0

1.5

2.0

2.5

30.0

40.0

50.0

60.0

70.0

80.0

90.0

100.0

0% 20% 40% 60% 80% 10 0% 120% 140%

Efficiency (%) P.F. (%) Cu rrent (Amps)

LOAD

A M P S

E F F

P F

0.0

5.0

10.0

15.0

20.0

25.0

0.0

2.0

4.0

6.0

8.0

10.0

12.0

-500 0 500 1000 1500 2000 2500 3000 3500 4000

Speed -Torque Curve

Torque Amps

RPM

T O R Q U E

A M P S

Uncontrolled Copy
