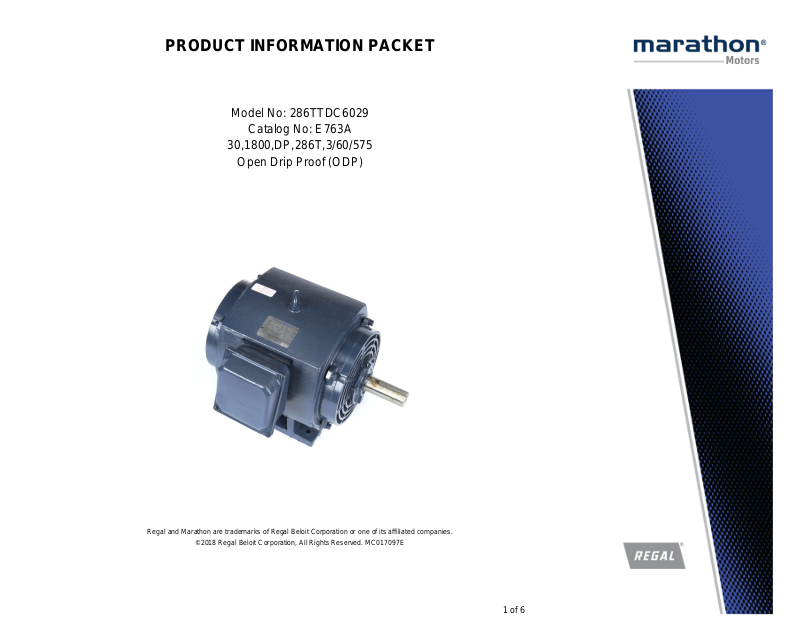

PRODUCT INFORMATION PACKET
Model No: 286TTDC6029
Catalog No: E763A
30,1800,DP,286T,3/60/575
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 286TTDC6029, Catalog No:E763A 30,1800,DP,286T,3/60/575
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 575 V
Current
Service Factor
Efficiency 94.1 % Duty Continous
Insulation Class
KVA Code H Frame 286T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6309 UL Recognized
CSA
IP Code
30 Hp
28.4 A
1.15
F
40 °C
Y
12
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
22.4 kW
1780 rpm
3
B
6311
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Cast Iron Shaft Type T
Overall Length
Shaft Extension 4.62 in Assembly/Box Mounting F1/F2 Capable
Outline Drawing
Rigid base
25 in
16955260ME
Motor Orientation
Shaft Diameter

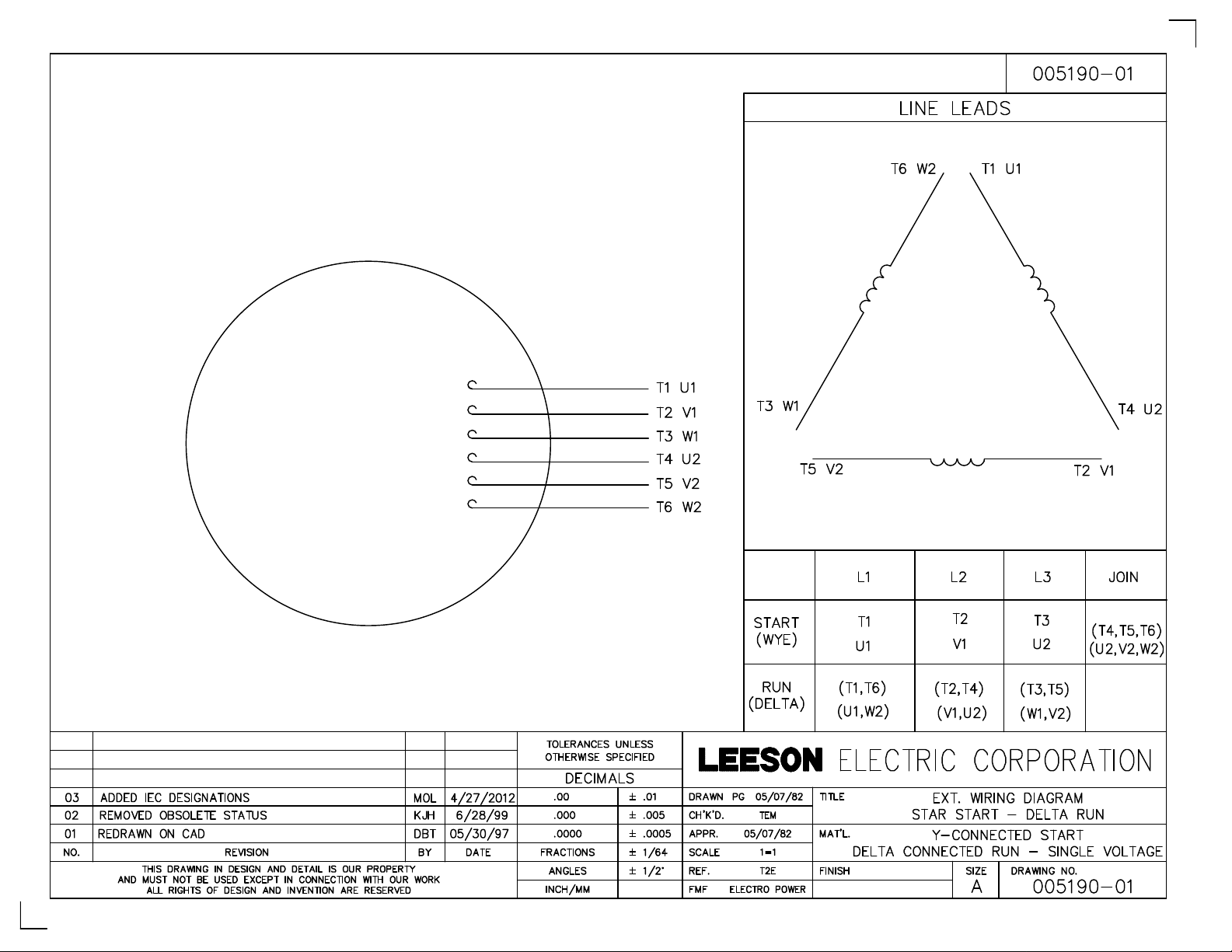

Connection Diagram
Horizontal
1.875 in
00519001
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
3 of 6
9/14/2012 1:10:00 PM - Converted by Connexus
Page 4
4 of 6
4/27/2012 9:19:39 AM - Converted by Connexus
Page 5
CERTIFICATION DATA SHEET
Model#: 286TTDC6029 AA WINDING#: T14504018 NONE 4
CONN. DIAGRAM: 00519001 ASSEMBLY: F1/F2 CAPABLE
OUTLINE: 16955260ME
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
30 22.4 1800 1780 286T DP H B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 575 28.4 LINE OR
INVERTER
CONTINUOUSF2 1.15/1.0 40 3300
FULL LOAD EFF: 94.1 3/4 LOAD EFF: 94.5 1/2 LOAD EFF: 94.1 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 83 3/4 LOAD PF: 80 1/2 LOAD PF: 71 93.6 SQ CAGE INV RATED 10
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
88.5 LB-FT 209.6 161 LB-FT 182 225 LB-FT 255 45
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
75 dBA 85 dBA - LB-FT^2 - LB-FT^2 15 SEC. 2 472 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1045 HOT
ROLLED (C-204)
CAST IRON
6311 6309
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 10:1
INV. HP SPEED RANGE: 1.5 X BASE SPEED
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 02:35:02 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
575
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
10.0 12.4 16.8 23.0 28.4 32.6 34.8 210
Torque (ft-lb)
0.00 22.0 44.3 66.3 88.5 102 0.00 161
RPM
1800 1795 1790 1785 1780 1,778 1775 0
Efficiency (%)
91.0 94.1 94.5 94.1 93.6 93.6
P.F. (%)
5.0 50.0 71.0 80.0 83.5 84.5 85.0 0.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 900 1700 1780 1800
Information Block
Current (Amps)
210 192 120 28.4 10.0 30.0
Torque (ft-lb)
161 145 225 88.5 0.00 1800
286
DP
TDC
575
V
60
Hz
A
H
1.15
45
°
C
CONT
40
°
C
1,000
feet
0.00
Lb-Ft²
T14504018 NONE
75 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
CONSTANT 10:1
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 16955260ME
Conn. Diag 00519001
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
29-06-2017 286TTDC6029
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Current (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
50.0
100.0
150.0
200.0
250.0
0.0
50.0
100.0
150.0
200.0
250.0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
