Datasheet E618A Datasheet (Marathon Electric)

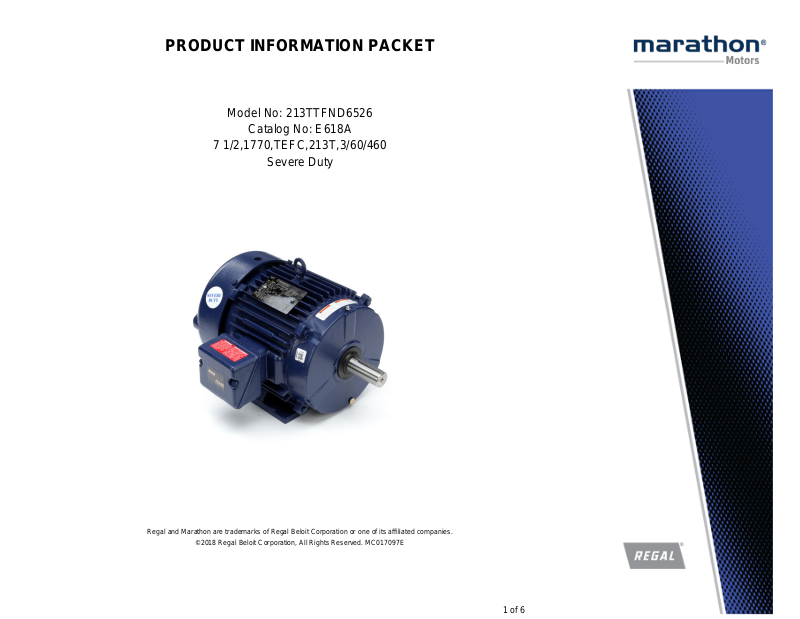

PRODUCT INFORMATION PACKET

Model No: 213TTFND6526

Catalog No: E618A

7 1/2,1770,TEFC,213T,3/60/460

Severe Duty

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 6

Product Information Packet: Model No: 213TTFND6526, Catalog No:E618A 7 1/2,1770,TEFC,213T,3/60/460

Nameplate Specifications

Output HP
Frequency 60 Hz Voltage 460 V
Current
Service Factor
Efficiency 91.7 % Duty Continuous
Insulation Class
KVA Code H Frame 213T
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6208 UL Recognized
CSA
IP Code

7.50 Hp

9.6 A

1.15

F

40 °C

Y
54

Output KW

Speed
Phase

Design Code

Drive End Bearing Size

CE

5.6 kW

1765 rpm
3

B

6307

Y

Technical Specifications

Electrical Type
Poles 4 Rotation Reversible

Squirrel Cage Inverter Rated

Starting Method

Line Or Inverter

Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Cast Iron Shaft Type T
Overall Length
Shaft Diameter 1.375 in Shaft Extension 3.38 in
Assembly/Box Mounting
Outline Drawing

Rigid base

19.63 in

F1/F2 CAPABLE
037657-912

Motor Orientation

Frame Length

Connection Diagram

HORIZONTAL

9.12 in

A-EE7300

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/30/2018

2 of 6

Uncontrolled Copy

Regal Beloit America, Inc.

TM

COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING IT IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS
OTHERWISE SPECIFIED:

DEC.

INCH

mm

ANGLE

.X

0.1 [ 2.5]

0.5

.XX

0.01 [

0.25]

XXX

0.005 [ 0.127]

.XXXX

0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381]
CORNER FILLETS: .02 [.51]
MACHINED SURFACES:

125

3.2

INCH mm
mm SHOWN IN [BRACKETS]

1

2

4

3

A

B

2

4

3

1

A

B

ECO DESCRIPTION

DATE

APPROVED BY

DATE

REVISION BY

ECO

DRAWING REVISION

PROCESS/FINISH

MATERIAL

SHEET

DRAWING NUMBER

SIZE

DESCRIPTION

THIRD ANGLE
PROJECTION

DRAWN BY

DATE

DATE

APPROVED BY

B

1 OF 1

037657

AK

09/09/2009

E

UD

02/13/14

ECO-0044824

SR

02/13/14

ADDED F2 VIEW

OUTLINE

C

1.74

44.07

5.00

127.00

3.38

85.73

3.48

88.39

1.3750

1.3745

34.93

34.91

3.50

88.90

BS

B

2F

2FF

2FF

TERM.
END

.31x.31x2.38
KEY

2.12

53.85

7.66

194.45

9.20

233.80

8.50

215.90

9.88

250.95

4.25

107.95

1.56

39.62

.62

15.62

5.25

5.19

133.22

131.70

11.77

299.04

15.05

382.39

12.83

325.76

.40

8 HOLES

3/4"NPT
LEAD HOLE

F2 VIEW

NOTES:

CONDUIT BOX CAN BE ROTATED IN 90

STEPS.

1.
CONDUIT BOX CAN BE MOUNTED IN OPPOSITE SIDE BY REMOVING

2.

BRACKETS AND TURNING FRAME 180

.

NAMEPLATE TO BE READ FROM CONDUIT BOX SIDE OF MOTOR.

3.

3 of 6

THREE PHASE - SINGLE VOLTAGE

THREE PHASE - SINGLE VOLTAGE
MOTOR - CONDUIT BOX @ 'A'

MOTOR - CONDUIT BOX @ 'A'

TO REVERSE ROTATION:

TO REVERSE ROTATION:
INTERCHANGE ANY TWO

INTERCHANGE ANY TWO
LINE LEAD CONNECTIONS.

LINE LEAD CONNECTIONS.

IF MOTOR HAS

IF MOTOR HAS

6 LEADS

6 LEADS

C

C

Uncontrolled Copy

T3

T3

T1

T1

B

B

T2

T2

TERMI NAL BLOCK WHEN SPECIFIED

TERMI NAL BLOCK WHEN SPECIFIED

L1

L1

L2

L2

L3

L3

A

A

T1

T1

T2

T2

T3

T3

T1 (U1)

T1 (U1)

T2 (V1)

T2 (V1)

T3 (W1)

T3 (W1)

T1(U1)

T1(U1)
T1(U1)

T1(U1)

T2(V1)

T2(V1)
T2(V1)

T2(V1)

T3(W1)

T3(W1)
T3(W1)

T3(W1)

A-9806 DECAL

A-9806 DECAL

REVISION BY DATE

DRAWING REVISION

DRAWING REVISION

ECO

ECO

ECO DESCRIPTION

ECO DESCRIPTION

AB

AB

ECO-0125361

ECO-0125361

UPDATED TO CURRENT STANDARDS

UPDATED TO CURRENT STANDARDS

COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.

COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

REVISION BY DATE

APPROVED BY DATE

APPROVED BY DATE

JJB

JJB

TB

TB

L1

L1

L2

L2

L3

L3

06-27-2017

06-27-2017
06-27-2017

06-27-2017

D

D

VIEW OF TERMINAL END

VIEW OF TERMINAL END

DRAWN BY

DRAWN BY

DATE

DATE

APPROVED BY

APPROVED BY

DATE

DATE

REFERENCE

REFERENCE

THIRD ANGLE

THIRD ANGLE
PROJECTION

PROJECTION

DA

DA

03-26-1993

03-26-1993

TB

TB

03-26-1993

03-26-1993

DESCRIPTION

DESCRIPTION

CONNECTION DIA GRAM

CONNECTION DIA GRAM

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

MATERIAL

MATERIAL

SIZE DRAWING NUMBER

SIZE DRAWING NUMBER

A

A

4 of 6

OPTIONAL CORD

OPTIONAL CORD

CONNECTION

CONNECTION

WHITE

L1

L1

L2

L2

L3

L3

TM

TM

Regal Beloit America , Inc.

Regal Beloit America , Inc.

EE7300

EE7300

WHITE

RED

RED

BLACK

BLACK

PROCESS/FINISH

PROCESS/FINISH

SHEET

SHEET

1 OF 1

1 OF 1

²

²

MOUNT

SEVERE

DRIP

PREMIUM SEVERE DUTY

ODE BRACKET

MOTOR

WINDING: K2134279

HAZARDOUS

CONN. DIAGRAM: A-EE7300

FORM: 3531 REV_4 2/27/06

O

N

E

S

PREPARED BY: FAREEDA DUDEKULA

DATE: FT-LB:

9/12/2018

T

* NONE PPR

*

1.108 2.4580.76

THERMOSTATS PROTECTORS

R1 (ohms/ph) R2 (ohms/ph) X1 (ohms/ph)

NONE NOT

BALL BALL

6307 6208

DE ODE

POLYREX EM

DE BRACKET TYPE

STANDARD

BEARINGS

STANDARD

GREASE

TYPE

22.3 LB-FT 52.9 LB-FT 237% 75.0 LB-FT 336% 50

62 dBA 71 dBA 0.85

@ 3 FT. MAX. LOAD WK²ROTOR WK²POWER

F.L. PF

79.2 72.9 61.1 91.0

67.5

PH HZ INSL S.F. AMB ELEV.

3 60 F 1.15 40 3300

F.L. EFF

91.7 92.2 91.6 GTD EFF

460 LINE OR INVERTER

7.5 5.6 TFN B

VOLTS

1800 1765 213T TEFC

SPEED:

HP KW TYPE DESIGN

SYNC RPM FL RPM

ORDER #: REFERENCE MODEL #: 213TTFND6526

CUSTOMER: CUSTOMER P.O. #:

RIGID

WDG RTD's BRG RTD's

NONE NONE NONE FALSE

X2 (ohms/ph) FLOAT

3.173

THERMISTORS CONTROL

UL:

V-INS, CONST UL REC

VOLTAGE: HZ:

NONE

NA

NONE

NONE

ENCODER:

BRAKE:

NONE NONE

NONE

INV. HP SPEED RANGE:

INVERTER TORQUE:

NONE

1.5 X BASE SPEED

CONSTANT 20:1

Xm (ohms/ph)

50.414

VIBRATION (in/sec)

0.080 ODE

HEATERS

SPACE

NA

SHAFT TYPE

T

HORIZONTAL

SPECIAL DE

NONE NONE

DIVISION 2 T2B

SPECIAL ODE

1045 HOT ROLLED (C-204)

SHAFT MATERIAL

NO NONE

FRAME MATERIAL

CAST IRON

BLUE (EPOXY)

`

TYPE

LB-FT

*** SUPPLEMENTAL INFORMATION ***

ORIENTATION

45

DUTY

LOCATION

COVER SCREENS

PAINT

LB-FT

25 SEC. 140 LB.

2

460 V

3/4 LD EFF

AMPS

9.6

NONE 1

TYPICAL MOTOR PERFORMANCE DATA

CERTIFICATION DATA SHEET

L.R. TORQUEF.L. TORQUE LR AMPS @

START TYPE

1/2 LD EFF

1/2 LD PF3/4 LD PF

CONT

B.D. TORQUE

STARTS/HOURSAFE STALL TIME

SQ CAGE INV RATED

F.L. RISE (

°

C)

MOTOR WGT

DUTY

ELECT. TYPE

FRAME ENCLOSURE

CUSTOMER PART #: OUTLINE: 037657-912

MOUNTING: F1/F2 CAPABLE

CAT #:

P.O. BOX 8003

WAUSAU, WI 54401-8003

PH. 715-675-3311

E618

KVA CODE

H

DATA VOLTS: 460

Uncontrolled Copy

5 of 6

Date:

Customer:

Attention:

Submitted by:

v

Speed (RPM)

Current (Amps)

P

E

10.0

20.0

0.0

0 200 400 600 800 1000 1200 1400 1600 1800 2000

30.0

TORQU

40.0

50.0

60.0

70.0

80.0

30.0

40.0

50.0

0% 20% 40% 60% 80% 100% 120% 140%

F

60.0

70.0

EFF

80.0

100.0

90.0

Torque (ft-lb)

Efficiency (%) P.F. (%) Cur rent (Amps)

67.5 57.0 41.0 9.6 4.9 7.5

52.9 49.0 75.0 22.3 0.00 1800
0 900 1600 1765 1800

P.F. (%)

1800 1792 1784 1775 1765 1,765 1756 0

0.00 5.5 11.0 16.6 22.3 25.5 28.0 52.9

4.7 38.8 61.1 72.9 79.2 77.3 82.0 42.6

LR Pull-Up BD Rated Idle

FAREEDA DUDEKULA

4.9 5.2 6.3 7.8 9.6 11.4 11.8 67.5

9/12/2018 213TTFND6526

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps)

Torque (ft-lb)

RPM

Efficiency (%)

Motor Speed Data

LOAD

87.4 91.6 92.2 91.7 91.1 91.0

Data Sheet

Torque Amps

Uncontrolled Copy

Speed -Torque Curve

Motor Load Data

RPM

0.0

2.0

4.0

6.0

8.0

10.0

12.0

14.0

AMP

S

0

0

Additional Specifications:

0.7600 1.1080 2.4580 3.1730 50.4140

R1 R2 X1 X2 Xm

EQUIV CKT (OHMS / PHASE)

VFD Rating

Outline Dwg 037657-912

Conn. Diag A-EE7300

Rotor/Shaft wk²

Duty

Ambient

Elevation

Ref Wdg

Sound Pressure @ 1M

Design

LR Code letter

Service Factor

Temp Rise @ FL

Construction

Voltage

Frequency

HP

Sync. RPM

Frame

Enclosure

Information Block

K2134279 NONE

CONSTANT 20:1

62 dBA

0.0

10.0

20.0

30.0

40.0

50.0

60.0

70.0

80.0

AMP

S

CONT

1,000

0.85

feet

Lb-Ft²

1.15

40

50

°

°

C

C

60

H

A

Hz

213182TTFC6080

TEFC

TFN

460

V

Submittal

Data @

460
