Datasheet E617A Datasheet (Marathon Electric)

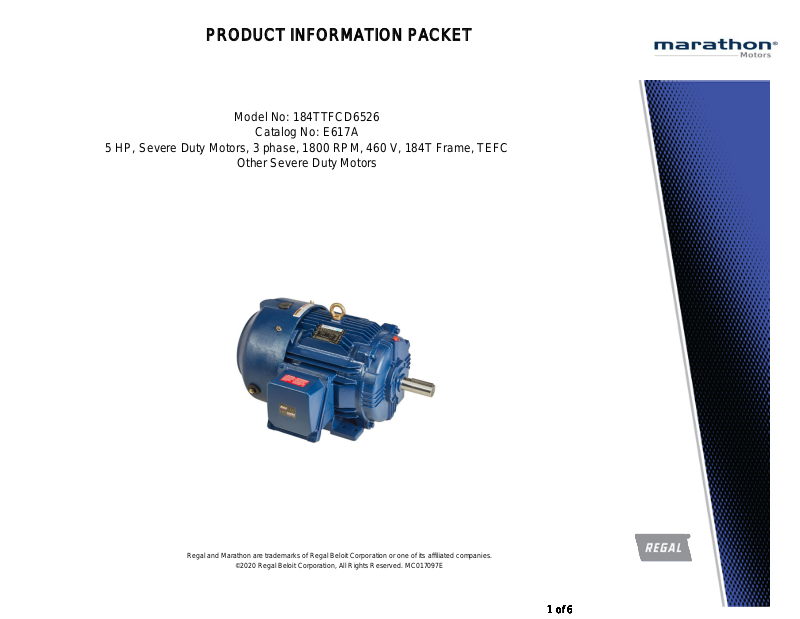

PRODUCT INFORMATION PACKET

Model No: 184TTFCD6526

Catalog No: E617A

5 HP, Severe Duty Motors, 3 phase, 1800 RPM, 460 V, 184T Frame, TEFC

Other Severe Duty Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6

Product Information Packet: Model No: 184TTFCD6526, Catalog No:E617A 5 HP, Severe Duty Motors, 3 phase, 1800 RPM, 460 V, 184T Frame, TEFC

Nameplate Specifications

Output HP 5 Hp Output KW 3.7 kW Frequency 60 Hz Voltage 460 V Current 6.5 A Speed 1755 rpm Service Factor 1.15 Phase 3 Efficiency 89.5 % Power Factor 80 Duty Continuous Insulation Class H Design Code B KVA Code J Frame 184T Enclosure Totally Enclosed Fan Cooled Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6206 Opp Drive End Bearing Size 6205 UL Listed CSA Y CE Y IP Code 55 Hazardous Location DIVISION 2 T2B

Technical Specifications

Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter Poles 4 Rotation Selective Clockwise Resistance Main 2.69 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Cast Iron Shaft Type T Shaft Diameter 1.125 in Assembly/Box Mounting F1/F2 CAPABLE Connection Drawing EE7300 Outline Drawing SS600210-184T

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020

2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6

Regal Beloit America, Inc.

TM

PROPRIETARY AND CONFIDENTIAL INFORMATI ON - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHE R FIRM RECEIVING IT IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTI TY, DUPLICATED, AND/OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

SS600210

BISWA

24/12/2018

SBD

24/12/2018

B BISWA 25/01/2019

ECO-0160791 SBD 25/01/2019

DRAWING UPDATED

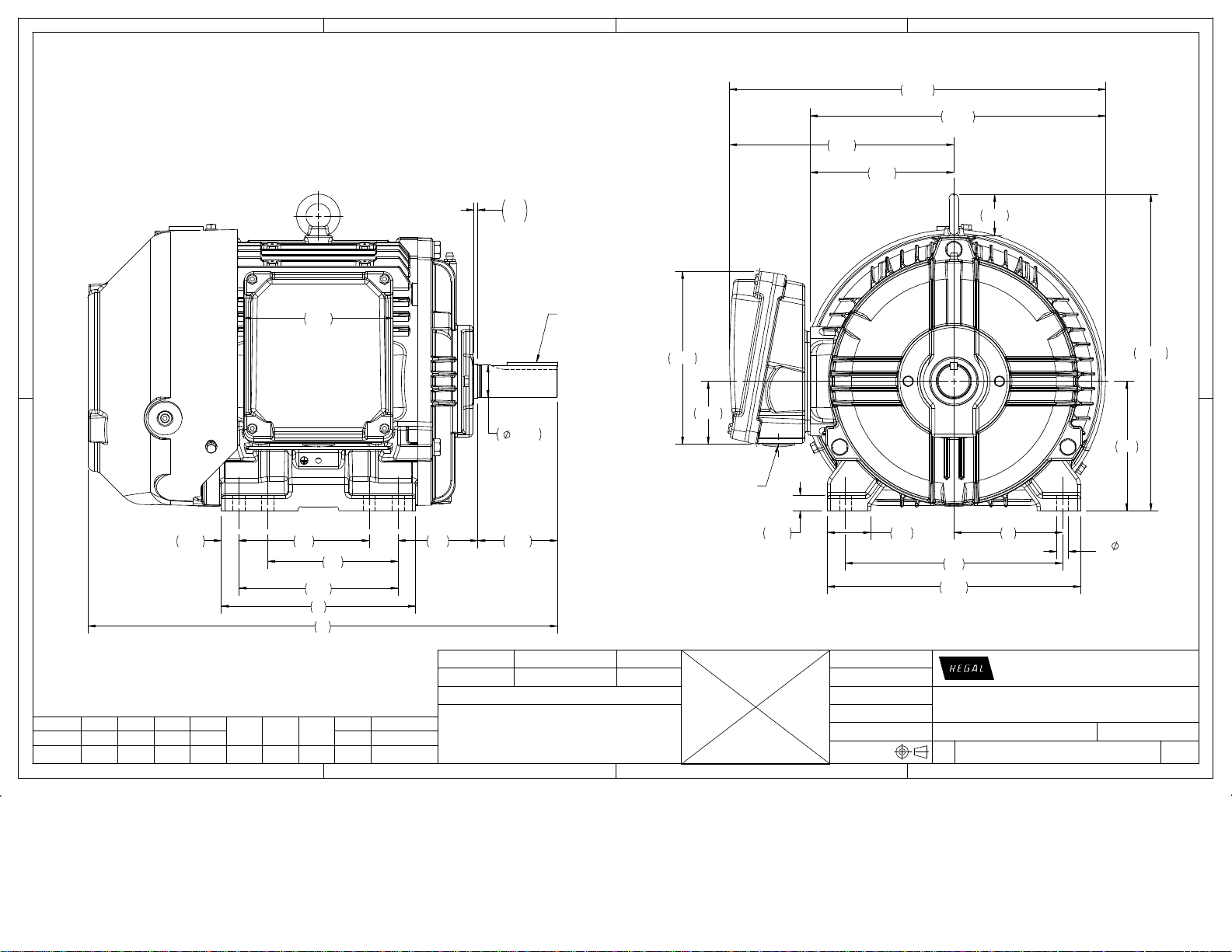

OUTLINE

182/184T FR-NEMA-SD & IEEE841

OUTLINE

182/184T 6.69 16.20 5.50 4.50

2.75 3.75 7.50

8F1 OR F2

182T 5.67 15.20 4.50 - 4 F1 OR F2

FRAME B C 2FF 2F BA E 2E N MOUNTING

1.5

2E

8.74

4.5

4.96

7.74

E

10.20

12.98

0.53

5.96

1.42

NX 0.41 THRU

HOLES

10.93

2.16

3/4 NPT LEAD HOLE

BA

5.16

0.60 2F

2FF

B

2F

1.125

2.75

0.14 MIN

C

1/4X1/4X1.75 KEY

Regal Beloit America, Inc.

TM

PROPRIETARY AND CONFIDENTIAL INFORMATI ON - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHE R FIRM RECEIVING IT IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTI TY, DUPLICATED, AND/OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

SS600210

BISWA

24/12/2018

SBD

24/12/2018

B BISWA 25/01/2019

ECO-0160791 SBD 25/01/2019

DRAWING UPDATED

OUTLINE

182/184T FR-NEMA-SD & IEEE841

OUTLINE

182/184T 6.69 16.20 5.50 4.50

2.75 3.75 7.50

8F1 OR F2

182T 5.67 15.20 4.50 - 4 F1 OR F2

FRAME B C 2FF 2F BA E 2E N MOUNTING

Uncontrolled Copy

3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6

THREE PHASE - SINGLE VOLTAGE

THREE PHASE - SINGLE VOLTAGE MOTOR - CONDUIT BOX @ 'A'

MOTOR - CONDUIT BOX @ 'A'

TO REVERSE ROTATION:

TO REVERSE ROTATION: INTERCHANGE ANY TWO

INTERCHANGE ANY TWO LINE LEAD CONNECTIONS.

LINE LEAD CONNECTIONS.

IF MOTOR HAS

6 LEADS

C

Uncontrolled Copy

T3

T1

B

T2

TERMI NAL BLOCK WHEN SPECIFIED

L1

L2

L3

A

T1

T2

T3

T1 (U1)

T2 (V1)

T3 (W1)

T1(U1)

T1(U1) T1(U1)

T1(U1)

T2(V1)

T2(V1) T2(V1)

T2(V1)

T3(W1)

T3(W1) T3(W1)

T3(W1)

A-9806 DECAL

REVISION BY DATE

DRAWING REVISION

AB

ECO

ECO-0125361

ECO DESCRIPTION

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

UPDATED TO CURRENT STANDARDS

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

REVISION BY DATE

APPROVED BY DATE

JJB

TB

L1

L2

L3

06-27-2017

06-27-2017 06-27-2017

06-27-2017

D

VIEW OF TERMINAL END

DRAWN BY

DATE

APPROVED BY

DATE

REFERENCE

THIRD ANGLE

THIRD ANGLE PROJECTION

PROJECTION

DA

03-26-1993

TB

03-26-1993

TM

Regal Beloit America , Inc.

DESCRIPTION

CONNECTION DIA GRAM

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

MATERIAL

SIZE DRAWING NUMBER

A

4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6

L1

L2

L3

EE7300

OPTIONAL CORD

CONNECTION

WHITE

RED

BLACK

PROCESS/FINISH

SHEET

1 OF 1

DATA VOLTS: 460

CAT #:

NONE 1

HP KW TYPE DESIGN

5 3.7 TFC B

PH HZ INSL S.F. AMB (° C) ELEV. (Ft)

3 60 H 1.15 40 3300

89.5 89.5 88.5 GTD EFF

80.0 75.0 64.0 88.5

15.0 LB-FT 33.0 LB-FT 220% 42.0 LB-FT 280% 60

62 dBA 71 dBA 0.40

LB-FT

²

45

LB-FT

²

15 SEC. 118 LB.

`

MOUNT

TYPE SEVERE DUTY DRIP COVER SCREENS

RIGID PREMIUM SEVERE DUTY NO NONE

DE ODE

BALL BALL 6307 6205

* If Inverter equals NONE, contact factory for furt her information N O T

E S * NONE PPR

DATE: FT-LB:

VOLTAGE: HZ:

** Subject to change without notic e.

0.080

NONE

NONE NONE

NA

PAINT

CONT

0.964 3.6861.531

NONE

INV. HP SPEED RANGE:

88.849

ENCODER:

3.969

NONE

NONE NONE

NA

5/13/2020

BRAKE:

ELECT. TYPE

SQ CAGE INV RATED

MOUNTING: F1/F2 CAPABLE

1/2 LD EFF

AMPS

6.5

DUTY

WDG RTD's BRG RTD's

BEARINGS

GREASE

POLYREX EM

SHAFT TYPE

T

DE BRACKET TYPE

FORM: 3531 REV_4 2/27/06

CERTIFICATION DATA SHEET

TYPICAL MOTOR PERFORMANCE DATA

*** SUPPLEMENTAL INFORMATION ***

PREPARED BY:

NONE

INVERTER TORQUE:

CONSTANT 20:1/VARIABLE 10:1

THERMISTORS CONTROL

NONE NOT

R1 (ohms/ph) R2 (ohms/ph) X1 (ohms/ph)

NONE NONE NONE FALSE

STANDARD

ODE BRACKET

TYPE

STANDARD

THERMOSTATS PROTECTORS

L.R. TORQUEF.L. TORQUE LR AMPS

1/2 LD PF3/4 LD PF

SOUND PRESSURE MAX. LOAD WK²ROTOR WK²

SOUND

49.5

MOTOR

ORIENTATION

HORIZONTAL

SPECIAL DE

F.L. EFF

F.L. PF

3/4 LD EFF

VOLTS

460 LINE OR INVERTER

OUTLINE: SS600210-184T

E617A

REFERENCE MODEL #: 184TTFCD6526

WINDING: HE31124020

SYNC RPM FL RPM

CONN. DIAGRAM: EE7300

FRAME ENCLOSURE

1800 1755 184T TEFC

F.L. RISE (° C)

Xm (ohms/ph)

NONE NONE

STARTS/HOURSAFE STALL TIME

2

VIBRATION (in/sec)

BLUE (EPOXY)

FRAME MATERIAL

START TYPE

CAST IRON

HAZARDOUS

LOCATION

DIVISION 2 T2B

SPECIAL ODE

X2 (ohms/ph)

SHAFT MATERIAL

1144 STRESSPROOF (C-223)

SPACE

HEATERS

KVA CODE

J

APROX.

B.D. TORQUE

Uncontrolled Copy

5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6

Date:

Customer:

Attention:

Submitted by:

Data @ 460

v

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps) 3.0 3.3 4.2 5.2 6.5 7.3 7.8 49.5

Torque (ft-lb) 0.00 3.7 7.5 11.1 15.0 17.2 18.8 33.0

RPM 1800 1790 1780 1768 1755 1,750 1745 0

Efficiency (%) 84.0 88.5 89.5 89.5 89.5 88.5 P.F. (%) 7.0 42.0 64.0 75.0 80.0 81.0 82.0 48.0

LR Pull-Up BD Rated Idle

Speed (RPM) 0 900 1675 1755 1800 Information Block

Current (Amps) 49.5 44.0 29.0 6.5 3.0 5.0 Torque (ft-lb) 33.0 27.0 42.0 15.0 0.00 1800

184

TEFC

TFC 460 V

60

Hz

B

J

1.15

60

°

C

CONT

40

°

C

3,300

feet

0.40

Lb-Ft²

HE31124020 NONE

62 dBA

Additional Specifications:

R1 R2 X1 X2 Xm

1.5310 0.9640 3.6860 3.9690 88.8490

CONSTANT 20:1/VARIABLE 10:1

0 0

EQUIV CKT (OHMS / PHASE)

Ref Wdg

Sound Pressure @ 1M

VFD Rating

Outline Dwg SS600210-184T Conn. Diag EE7300

Rotor/Shaft wk²

Voltage

Frequency

Design

LR Code letter

Service Factor

Temp Rise @ FL

Duty

Ambient

Elevation

Construction

Motor Speed Data

HP Sync. RPM

Frame Enclosure

Motor Load Data

Submittal

Data Sheet

5/6/2020 184TTFCD6526

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0

30.0

40.0

50.0

60.0

70.0

80.0

90.0

100.0

0% 20% 40% 60% 80% 100% 120% 140%

Efficiency (%) P.F. (%) Current (Amps)

LOAD

A M P S

E F F

P F

0.0

10.0

20.0

30.0

40.0

50.0

60.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

0 200 400 600 800 1000 1200 1400 1600 1800 2000

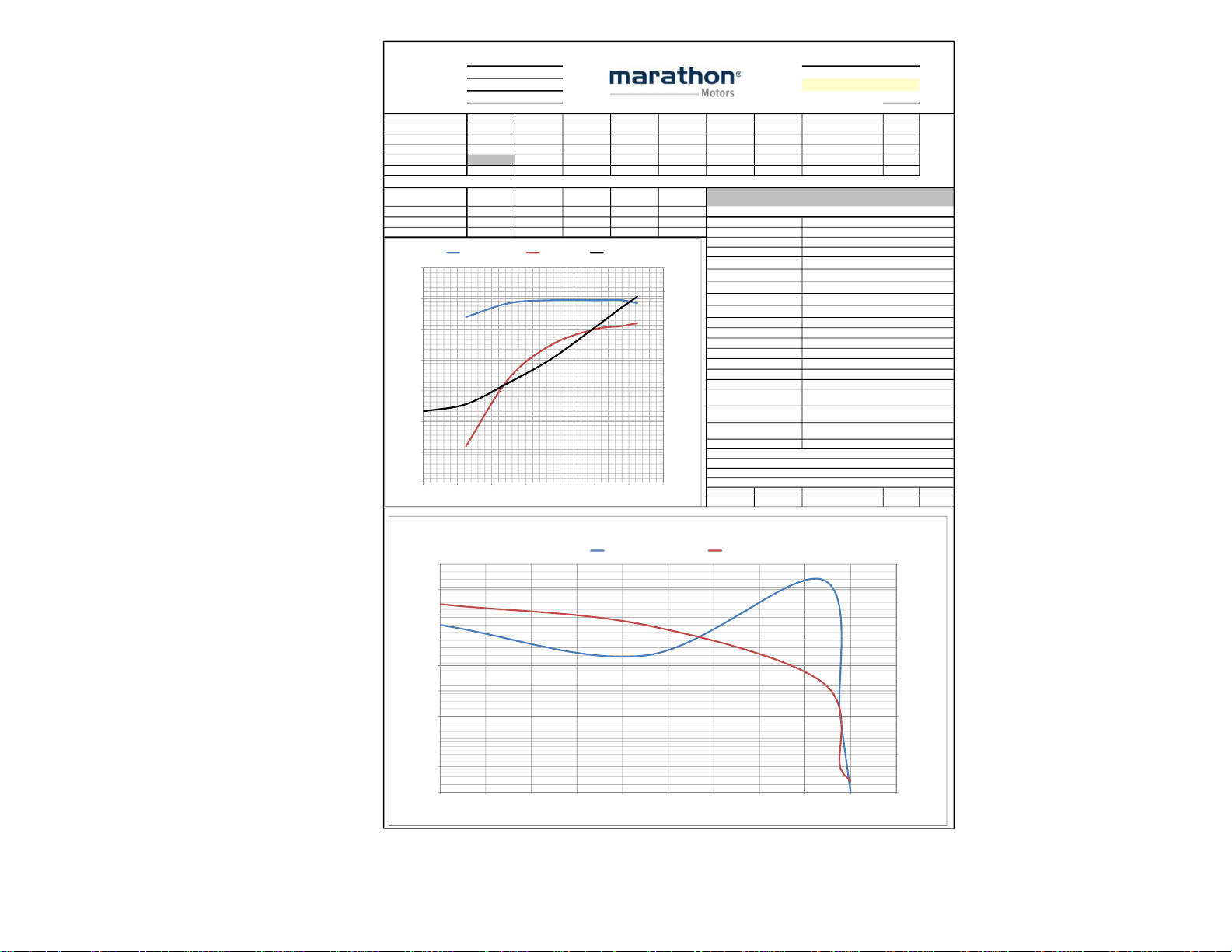

Speed -Torque Curve

Torque Amps

RPM

T O R Q U E

A M P S

Uncontrolled Copy
