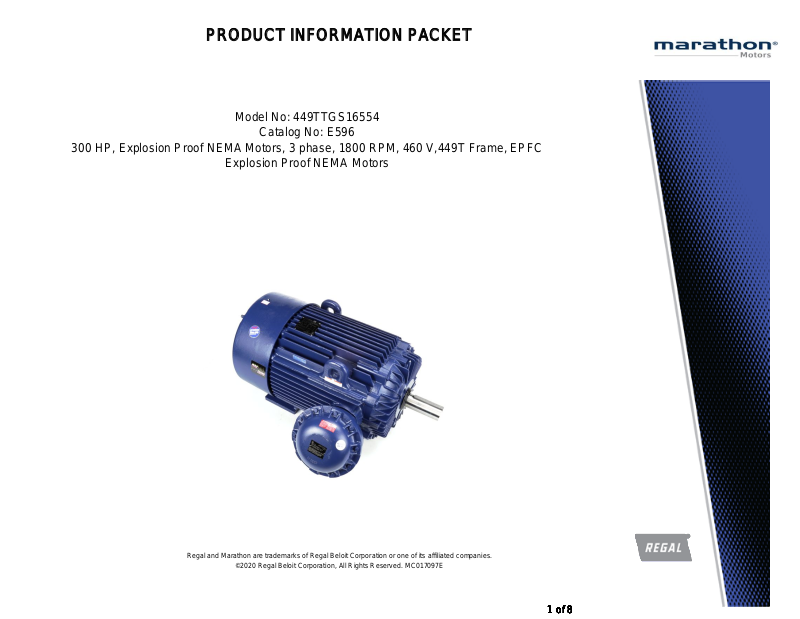

PRODUCT INFORMATION PACKET
Model No: 449TTGS16554
Catalog No: E596
300 HP, Explosion Proof NEMA Motors, 3 phase, 1800 RPM, 460 V,449T Frame, EPFC
Explosion Proof NEMA Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 81 of 8
Page 2
Product Information Packet: Model No: 449TTGS16554, Catalog No:E596 300 HP, Explosion Proof NEMA Motors, 3 phase, 1800 RPM, 460 V,449T
Frame, EPFC
Nameplate Specifications
Output HP 300 Hp Output KW 224.0 kW
Frequency 60 Hz Voltage 460 V
Current 339.0 A Speed 1785 rpm
Service Factor 1 Phase 3
Efficiency 96.5 % Power Factor 86
Duty Continuous Insulation Class F
Design Code B KVA Code G
Frame 449T Enclosure Explosion Proof Fan cooled
Thermal Protection Thermostats (N/C) Ambient Temperature 40 °C
Drive End Bearing Size NU319 Opp Drive End Bearing Size 6318
UL UL Listed; also, UL Certified for Canada CSA N
CE N IP Code 54
Hazardous Location
EXP PROOF CL I GR C&D CL II GR
F&G T3B
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method
Poles 4 Rotation Reversible
Resistance Main .0085 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Roller
Opp Drive End Bearing Ball Frame Material Cast Iron
Shaft Type T Overall Length 51.85 in
Frame Length 28.75 in Shaft Diameter 3.375 in
Shaft Extension 8.76 in Assembly/Box Mounting F1 ONLY

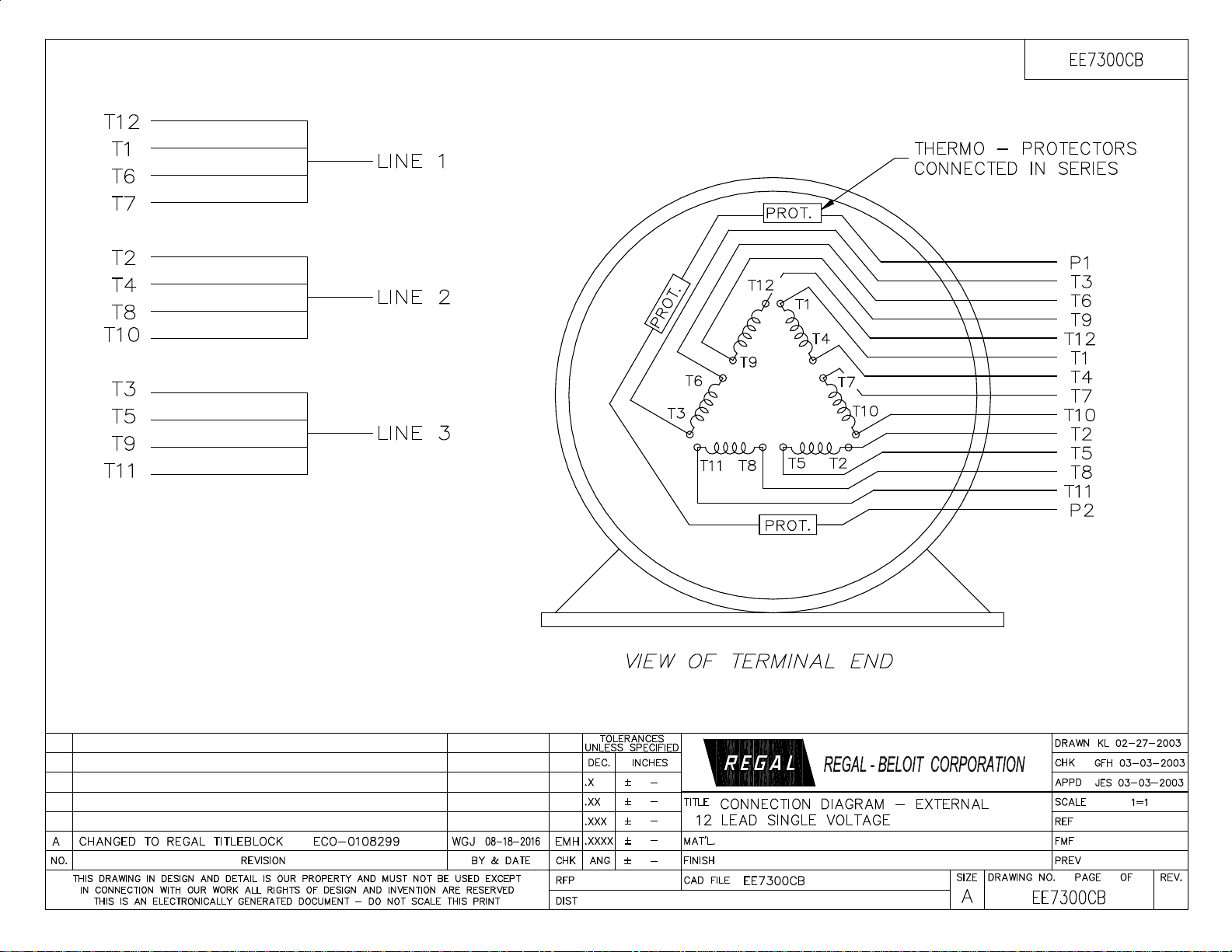

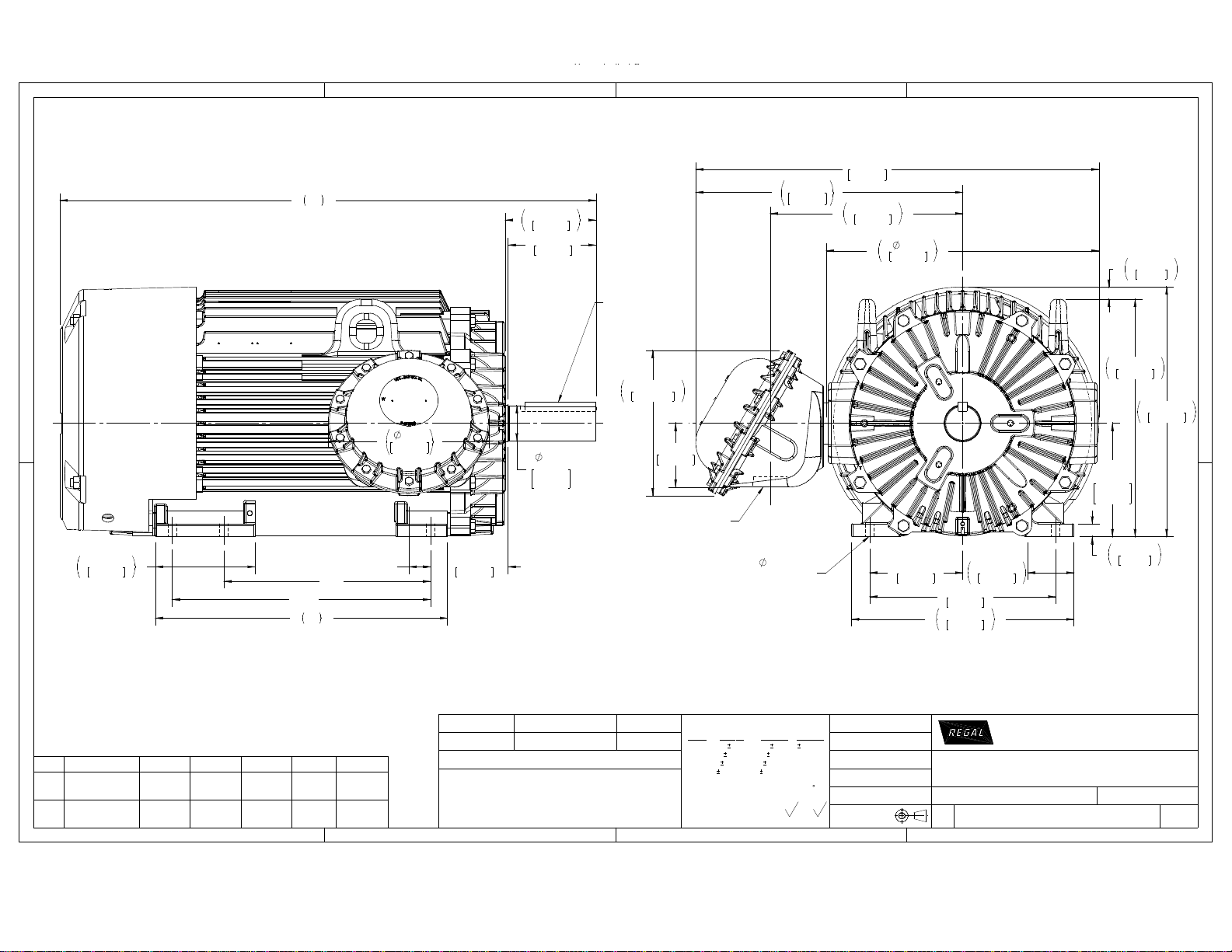

Outline Drawing B-SS515578-2875 Connection Drawing A-EE7300CB
Part Wdg Start & Wye Start Delta Run Or
Inverter
2 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 82 of 8
Page 3
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:06/11/2020
3 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 83 of 8
Page 4
Uncontrolled Copy
81.6
79.651
26.81
59.274
00.11
49.01
04.972
88.772
79.22
44.385
32.1
42.13
05.12
01.645
00.81
02.754
00.9
06.822
84.4
57.311
50.41
418.653
83.62
60.076
61.42
76.316
91.1
32.03
10.93
19.099
28.52
88.556
TPN"3
ELOHDAEL
68.-18.
]48.12-75.02[
SELOH6
05.8
39.512
67.8
83.222
C
05.7
16.091
B
SB
F2
FF2
36.9
06.442
85.51
37.593
573.3
473.3
527.58
007.58
88.6x578.x578.
x522.22x522.22[
YEK]57.471
:SETON
ESIWKCOLCDETATOREBYLNONACXOBTIUDNOC.1
.NOITISOPLANIGIROSTIMORF°072OTPU
XOBTIUDNOCMORFDAEREBOTSETALPEMAN.2
.ROTOMFOEDIS
HSAD EMARF B C F2 FF2 SB
5782 T744
52.82
]55.717[
58.15
]99.6131[
00.02
]00.805[
------
90.2
]90.35[
5782 T944
52.82
]55.717[
58.15
]99.6131[
------
00.52
]00.536[
90.2
]90.35[
MT
B
HSINIF/SSECORP
1FO1
CMS
6991-51-40
NPJ
6991-91-40
C WJA 5102-13-30
0374700-OCE BDT 5102-10-40
SDRADNATSTNERRUCOTDETADPU
.DTS-.RP.PXE-.RFT944/744
875515SS
ENILTUO
12
4
3
A
B
2
4
3
1
A
B
.CED HCNI mm
EL
GNA
.DEVRESERSTHGIRLLA.CNI,ACIREMATIOLEBLAGERTHGIRYPOC
FOYTREPORPEHTSITNEMUCODSIHT-NOITAMROFNILAITNEDIFNOCDNAYRATEIRPORP
YRATEIRPORPS'RENWOSNIATNOCDNA)"RENWO"(.CNI,ACIREMATIOLEBLAGER
,DEMEEDSITIGNIVIECERMRIFREHTORONOITAROPROC,NOSREPYNA.NOITAMROFNI
DESOLCSIDEBTONLLAHS,TIFOTRAPYNARO/DNA,TITAHTEERGAOT,TIGNIVIECERYB
TPECXE,DESURO/DNA,DETACILPUD,YTITNEREHTORONOITAROPROC,NOSREPYNAOT
LLAHSTNEMUCODSIHT.RENWOYBECNAVDANIGNITIRWNIDEVORPPAYLSSERPXESA
NIATRECOTTCEJBUSEBYAMTI.TSEUQERNOPURENWOOTDENRUTEREB
.SNOITALUGERDNASWALLORTNOCTROPXEELBACILPPAREDNUSNOITCIRTSER
SSELNUSECNARELOT
:DEIFICEPSESIWREHTO
X. [1.0 ]5.2 "03'7
XX. [30.0 ]67.0
XXX [500.0 ]721.0
XXXX. [5000.0 ]7210.0
PRAHSKAERB&SRRUBEVOMER
54X]183./670.[510./300.:SEGDE
]15.[20.R:STELLIFRENROC
:SECAFRUSDENIHCAM
mmHCNI
]STEKCARB[NINWOHSmm
.cnI,aciremAtioleBlageR
002 1.5
NOITPIRCSEDOCE
ETADYBDEVORPPA
ETADYBNOISIVER
OCE
NOISIVERGNIWARD
ECNEREFER
LAIRETAM
TEEHS
REBMUNGNIWARDEZIS
NOITPIRCSED
ELGNADRIHT
NOITCEJORP
YBNWARD
ETAD
ETAD
YBDEVORPPA
4 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 84 of 8
Page 5
Uncontrolled Copy
5 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 85 of 8
Page 6
CERTIFICATION DATA SHEET
Model#: 449TTGS16554 AA WINDING#: T449445 NONE 1
CONN. DIAGRAM: A-EE7300CB ASSEMBLY: F1 ONLY
OUTLINE: B-SS515578-2875
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
300&250 224&187 1800 1785&1485 447/449T EPFC G B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 460#380 339&340 PWS &
YDRUN OR
INV
CONTINUOUSF1 1.0/1.0 40 3300
FULL LOAD EFF:
96.5&96.2
3/4 LOAD EFF: 96.5 1/2 LOAD EFF: 95.4 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 86&86 3/4 LOAD PF: 84.5 1/2 LOAD PF: 78 96.2 SQ CAGE INV RATED 98
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
883 LB-FT 2200 1775 LB-FT 201 2100 LB-FT 238 75
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
80 dBA 90 dBA 93 LB-FT^2 2500 LB-FT^2 25 SEC. 1 3000 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL TRUE EXP PROOF CL
I GR C&D CL II
GR F&G T3B
FALSE NONE BLUE (EPOXY)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
ROLLER BALL SHC-
100/POLYREX
T NONE NONE 1045 HOT
ROLLED (C-204)
CAST IRON
NU319 6318
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
TSTATS (N/C) NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 2:1
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/21/2017 07:27:38 AM
FORM 3531 REV.3 02/07/99
Uncontrolled Copy
