Page 1

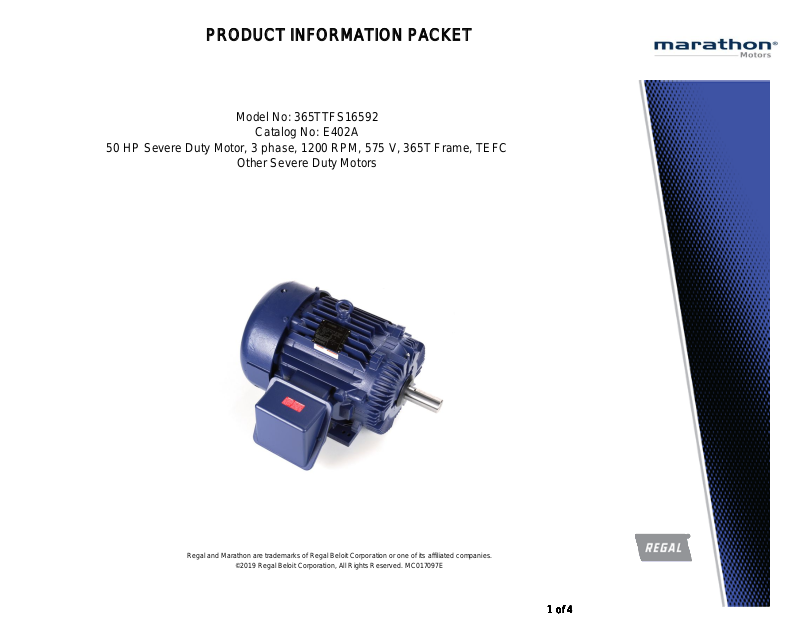

PRODUCT INFORMATION PACKET

Model No: 365TTFS16592

Catalog No: E402A

50 HP Severe Duty Motor, 3 phase, 1200 RPM, 575 V, 365T Frame, TEFC

Other Severe Duty Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4

Page 2

Product Information Packet: Model No: 365TTFS16592, Catalog No:E402A 50 HP Severe Duty Motor, 3 phase, 1200 RPM, 575 V, 365T Frame, TEFC

Nameplate Specifications

Output HP 50 Hp Output KW 37.0 kW Frequency 60 Hz Voltage 575 V Current 49.0 A Speed 1182 rpm Service Factor 1.15 Phase 3 Efficiency 94.5 % Power Factor 80.5 Duty Continuous Insulation Class F Design Code B KVA Code G Frame 365T Enclosure Totally Enclosed Fan Cooled Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6314 Opp Drive End Bearing Size 6312 UL Recognized CSA Y CE Y IP Code 54

Technical Specifications

Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter Poles 6 Rotation Reversible Resistance Main .12 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Cast Iron Shaft Type T Overall Length 32.51 in Frame Length 14.50 in Shaft Diameter 2.375 in Shaft Extension 6.12 in Assembly/Box Mounting F1/F2 Capable

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019

2 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 4

Page 3

Uncontrolled Copy

NOTES:

1. CONDUIT BOX CAN BE ROTATED IN 90° STEPS.

2. CONDUIT BOX CAN BE MOUNTED ON OPPOSITE SIDE BY REMOVING BRACKETS AND TURNING FRAME 180°.

3. NAMEPLATES TO BE READ FROM CONDUIT BOX SIDE OF MOTOR.

4. DIMENSION IN [ ] DESIGNATE MILLIMETERS.

Regal Beloit America, Inc.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING IT IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED:

DEC.

INCH

ANGLE

0.1 [ 2.5]

7' 30"

.XX

0.03 [

0.76]

XXX

0.005 [ 0.127]

.XXXX

0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] CORNER FILLETS: .02 [.51] MACHINED SURFACES:

200

5.1

INCH mm mm SHOWN IN [BRACKETS]

ECO DESCRIPTION

DATE

APPROVED BY

DATE

REVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBER

SIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

1 OF 1

SS508590

TLB

01-29-1988

JJB

09-25-2014

ECO-0061089

CORRECTED F2 VIEW DISPLAY

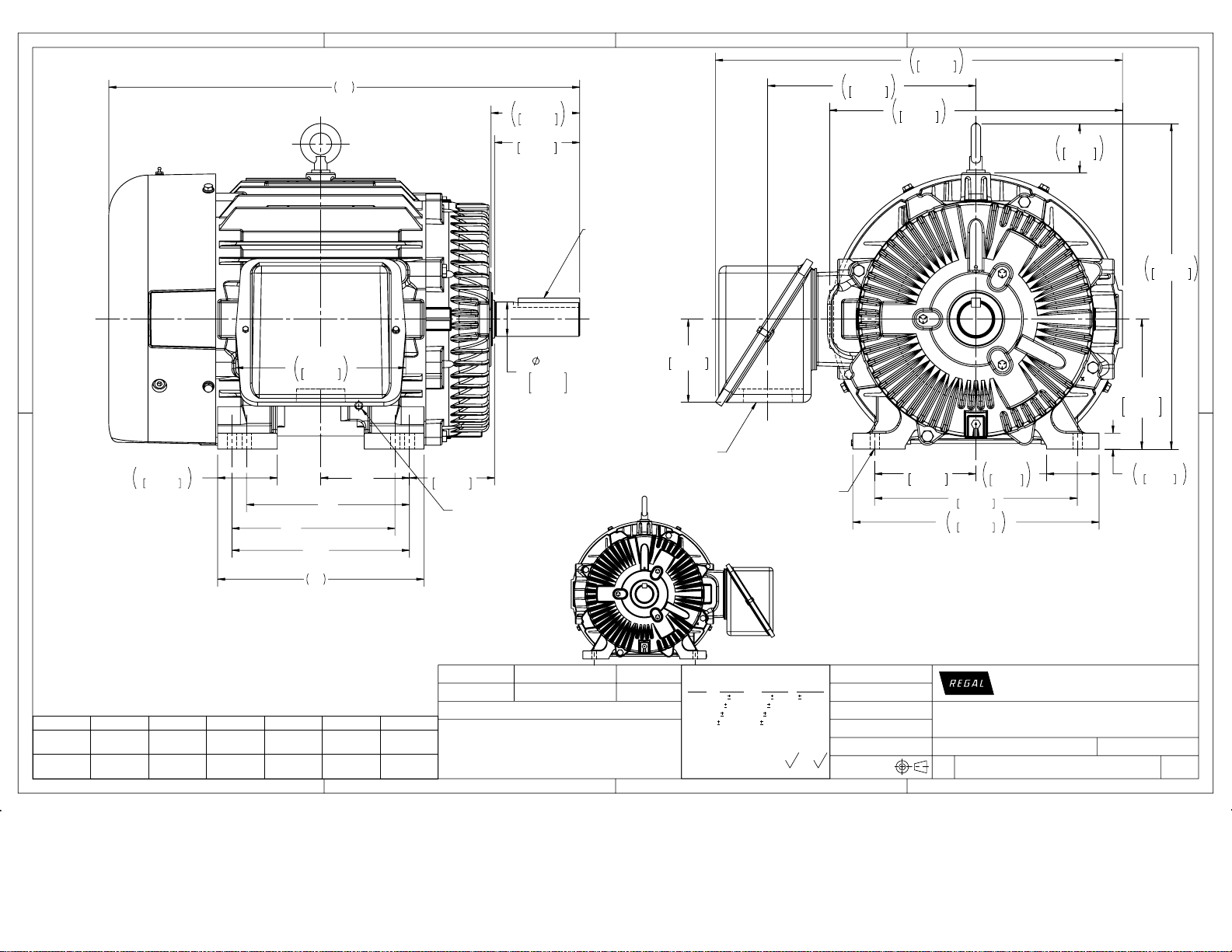

OUTLINE

360T FR. - TEFC - GROUND LUG - TAPPED LEAD HOLE

2.375

2.374

60.325

60.300

2FF

4.12

104.65

5.88

149.23

5.88

149.29

11.75

298.41

6.12

155.55

.625 X .625 X 4.25 [15.875 X 15.875 X 107.95] KEY

1/2-13UNC-2B

1.00 [25.40] FULL THD,

14.00

355.60

17.00

431.80

1.10

27.94

3.62

91.95

28.10

713.85

7.00

177.80

14.37

365.00

20.24

514.10

3.41

86.56

22.48

570.94

9.00

8.94

228.60

227.08

5.75

146.05

3" NPT

LEAD HOLE

Ø.66-.71

[16.76 - 18.03]

8 HOLES

( 364 MAY HAVE ONLY 4 HOLES )

F2 VIEW

DASH

FRAME

B C

2FF

1350

364T

13.25

[336.55]

31.51

[800.35]

11.25

[285.75]

- - -

5.62

[142.74]

1450

364/365T

14.25

[361.95]

32.51

[825.75]

11.25

[285.75]

12.25

[311.15]

6.12

[155.44]

3 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 4

Page 4

THREE PHASE - SINGLE VOLTAGE

THREE PHASE - SINGLE VOLTAGE MOTOR - CONDUIT BOX @ 'A'

MOTOR - CONDUIT BOX @ 'A'

TO REVERSE ROTATION:

TO REVERSE ROTATION: INTERCHANGE ANY TWO

INTERCHANGE ANY TWO LINE LEAD CONNECTIONS.

LINE LEAD CONNECTIONS.

IF MOTOR HAS

6 LEADS

Uncontrolled Copy

TERMI NAL BLOCK WHEN SPECIFIED

T1 (U1)

T2 (V1)

T3 (W1)

T1(U1)

T1(U1) T1(U1)

T1(U1)

T2(V1)

T2(V1) T2(V1)

T2(V1)

T3(W1)

T3(W1) T3(W1)

T3(W1)

A-9806 DECAL

REVISION BY DATE

DRAWING REVISION

ECO

ECO-0125361

ECO DESCRIPTION

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

UPDATED TO CURRENT STANDARDS

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

REVISION BY DATE

APPROVED BY DATE

JJB

06-27-2017

06-27-2017 06-27-2017

06-27-2017

VIEW OF TERMINAL END

DRAWN BY

DATE

APPROVED BY

DATE

REFERENCE

THIRD ANGLE

THIRD ANGLE PROJECTION

PROJECTION

03-26-1993

Regal Beloit America , Inc.

DESCRIPTION

CONNECTION DIA GRAM

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

MATERIAL

SIZE DRAWING NUMBER

4 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 4

EE7300

OPTIONAL CORD

CONNECTION

WHITE

RED

BLACK

PROCESS/FINISH

SHEET

1 OF 1
