Datasheet E300 Datasheet (Marathon Electric)

PRODUCT INFORMATION PACKET

Model No: 143TTTN6030

Catalog No: E300

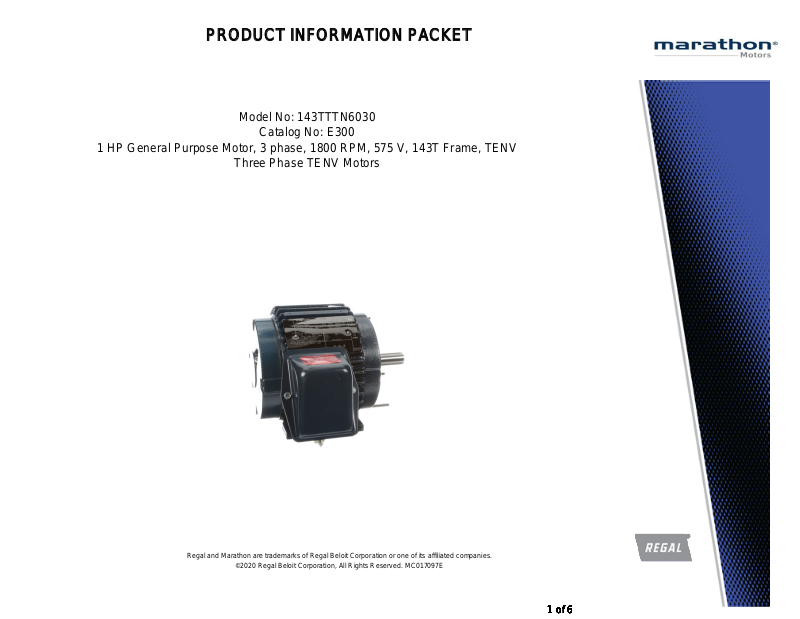

1 HP General Purpose Motor, 3 phase, 1800 RPM, 575 V, 143T Frame, TENV

Three Phase TENV Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6

Product Information Packet: Model No: 143TTTN6030, Catalog No:E300 1 HP General Purpose Motor, 3 phase, 1800 RPM, 575 V, 143T Frame, TENV

Nameplate Specifications

Output HP 1 Hp Output KW 0.75 kW Frequency 60 Hz Voltage 575 V Current 1.2 A Speed 1735 rpm Service Factor 1.15 Phase 3 Efficiency 85.5 % Power Factor 79 Duty Continuous Insulation Class F Design Code B KVA Code M Frame 143T Enclosure Totally Enclosed Non Ventilated Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE Y IP Code 43

Technical Specifications

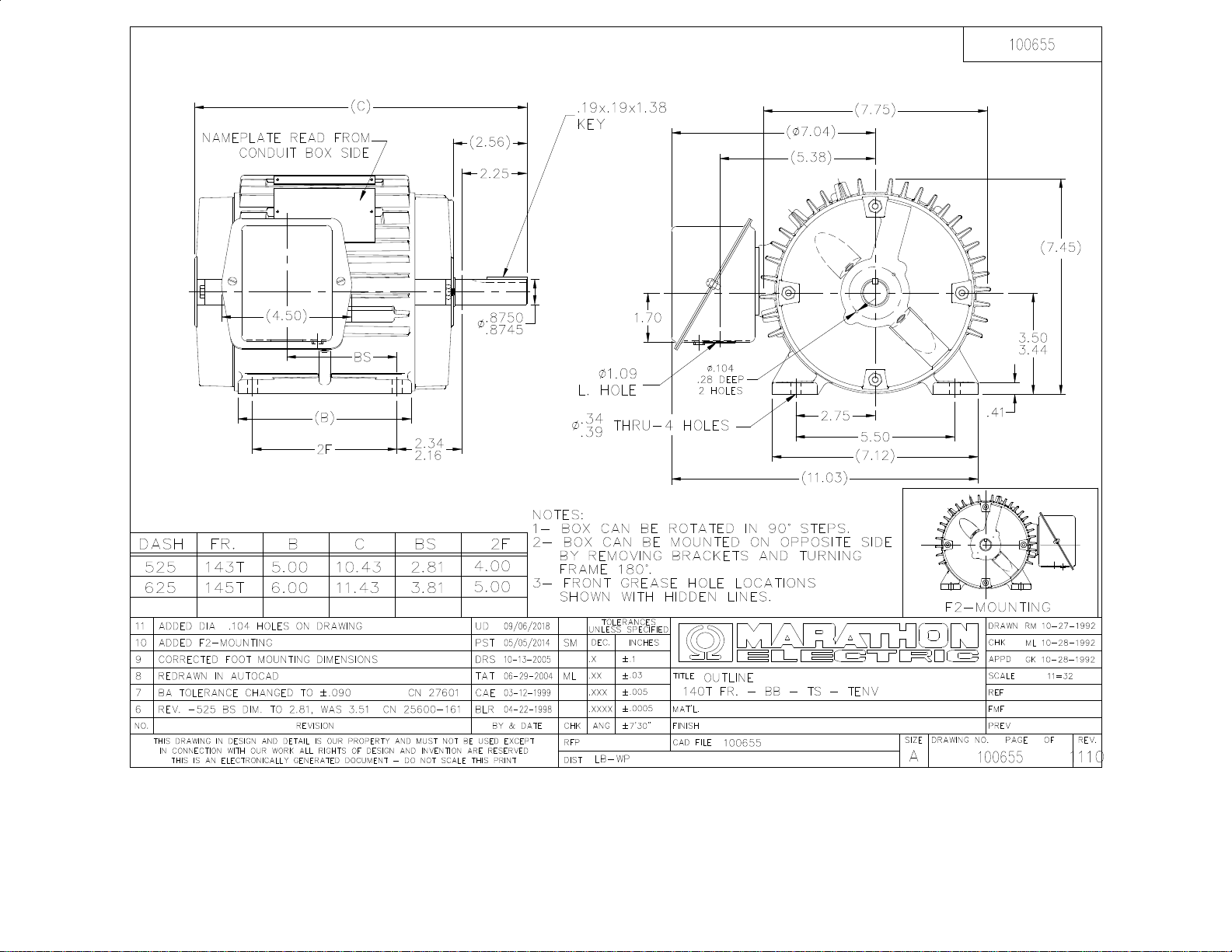

Electrical Type Squirrel Cage Induction Run Starting Method Across The Line Poles 4 Rotation Reversible Resistance Main 13.8 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Cast Iron Shaft Type T Overall Length 10.43 in Frame Length 5.25 in Shaft Diameter 0.875 in Shaft Extension 2.56 in Assembly/Box Mounting F1/F2 CAPABLE Outline Drawing 100655-525 Connection Drawing EE7300

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:18/06/2020

2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6

Uncontrolled Copy

3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6

THREE PHASE - SINGLE VOLTAGE

THREE PHASE - SINGLE VOLTAGE MOTOR - CONDUIT BOX @ 'A'

MOTOR - CONDUIT BOX @ 'A'

TO REVERSE ROTATION:

TO REVERSE ROTATION: INTERCHANGE ANY TWO

INTERCHANGE ANY TWO LINE LEAD CONNECTIONS.

LINE LEAD CONNECTIONS.

IF MOTOR HAS

6 LEADS

C

Uncontrolled Copy

T3

T1

B

T2

TERMI NAL BLOCK WHEN SPECIFIED

L1

L2

L3

A

T1

T2

T3

T1 (U1)

T2 (V1)

T3 (W1)

T1(U1)

T1(U1) T1(U1)

T1(U1)

T2(V1)

T2(V1) T2(V1)

T2(V1)

T3(W1)

T3(W1) T3(W1)

T3(W1)

A-9806 DECAL

REVISION BY DATE

DRAWING REVISION

AB

ECO

ECO-0125361

ECO DESCRIPTION

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

UPDATED TO CURRENT STANDARDS

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

REVISION BY DATE

APPROVED BY DATE

JJB

TB

L1

L2

L3

06-27-2017

06-27-2017 06-27-2017

06-27-2017

D

VIEW OF TERMINAL END

DRAWN BY

DATE

APPROVED BY

DATE

REFERENCE

THIRD ANGLE

THIRD ANGLE PROJECTION

PROJECTION

DA

03-26-1993

TB

03-26-1993

TM

Regal Beloit America , Inc.

DESCRIPTION

CONNECTION DIA GRAM

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

MATERIAL

SIZE DRAWING NUMBER

A

4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6

L1

L2

L3

EE7300

OPTIONAL CORD

CONNECTION

WHITE

RED

BLACK

PROCESS/FINISH

SHEET

1 OF 1

CERTIFICATION DATA SHEET

Model#: 143TTTN6030 BA WINDING#: ZT492 TS 2 CONN. DIAGRAM: A-EE7300 ASSEMBLY: F1/F2 CAPABLE OUTLINE: A-100655-525

TYPICAL MOTOR PERFORMANCE DATA

HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN

1 .75 1800 1735 143T TENV M B

PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION

3 60 575 1.2 ACROSS THE

LINE

CONTINUOUSF3 1.15 40 3300

FULL LOAD EFF: 85.5 3/4 LOAD EFF: 85.5 1/2 LOAD EFF: 84 GTD. EFF ELEC. TYPE NO LOAD AMPS

FULL LOAD PF: 79 3/4 LOAD PF: 67 1/2 LOAD PF: 53.5 82.5 SQ CAGE IND RUN .7

F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C

3 LB-FT 10.8 11 LB-FT 367 14 LB-FT 467 50

SOUND PRESSURE

@ 3 FT.

SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS

/HOUR

APPROX. MOTOR

WGT

62 dBA 72 dBA 0.1 LB-FT^2 7 LB-FT^2 20 SEC. 2 55 LBS.

*** SUPPLEMENTAL INFORMATION ***

DE BRACKET

TYPE

ODE BRACKET

TYPE

MOUNT

TYPE

ORIENTATION SEVERE

DUTY

HAZARDOUS

LOCATION

DRIP

COVER

SCREENS PAINT

STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE

(POWDER)

BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT

MATERIAL

FRAME

MATERIAL

DE OPE

BALL BALL POLYREX EM T NONE NONE 1144

STRESSPROOF

(C-223)

CAST IRON

6205 6203

THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS

THERMOSTATS PROTECTORS WDG RTDs BRG RTDs

NONE NOT NONE NONE NONE FALSE NONE VOLTS

If Inverter equals NONE, contact factory for further

information

* N O T E S *

INVERTER TORQUE: NONE INV. HP SPEED RANGE: NONE

ENCODER: NONE NONE NONE NONE NONE PPR

BRAKE: NONE NONE NONE P/N NONE NONE NONE NONE FT-LB NONE V NONE Hz

DATE: 06/23/2017 12:47:11 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.

Uncontrolled Copy

5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6

Date:

Customer:

Attention:

Submitted by:

Data @

575

v

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps)

0.68 0.72 0.80 0.96 1.20 1.28 1.36 10.8

Torque (ft-lb)

0.00 0.74 1.50 2.20 3.0 3.5 3.8 11.0

RPM

1800 1785 1770 1755 1735 1,730 1725 0

Efficiency (%)

75.5 84.0 85.5 85.5 85.5 84.0

P.F. (%)

10.0 33.5 53.5 67.0 72.0 79.0 80.5 67.0

LR Pull-Up BD Rated Idle

Speed (RPM)

0 900 1600 1735 1800

Information Block

Current (Amps)

10.8 9.7 7.2 1.20 0.68 1.0

Torque (ft-lb)

11.0 9.9 14.0 3.0 0.00 1800

143

TENV

TTN

575

V

60

Hz

A

M

1.15

55

°

C

CONT

40

°

C

1,000

feet

0.10

Lb-Ft²

ZT492 TS

62 dBA

Additional Specifications:

R1 R2 X1 X2 Xm

12.2830 8.5580 18.1810 16.1850 470.0440

NONE

0 365THFS8036

EQUIV CKT (OHMS / PHASE)

Ref Wdg

Sound Pressure @ 1M

VFD Rating

Outline Dwg A-100655-525 Conn. Diag A-EE7300

Rotor/Shaft wk²

Voltage

Frequency

Design

LR Code letter

Service Factor

Temp Rise @ FL

Duty

Ambient

Elevation

Construction

Motor Speed Data

HP Sync. RPM

Frame Enclosure

Motor Load Data

Submittal

FAREEDA DUDEKULA

Data Sheet

19-06-2017 143TTTN6030

0.0

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

30.0

40.0

50.0

60.0

70.0

80.0

90.0

100.0

0% 20% 40% 60% 80% 100% 120% 14 0%

Efficiency (%) P.F. (%) Cu rrent (Amps)

LOAD

A M P S

E F F

P F

0.0

2.0

4.0

6.0

8.0

10.0

12.0

0.0

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

0 200 400 600 800 1000 1200 1400 1600 1800 2000

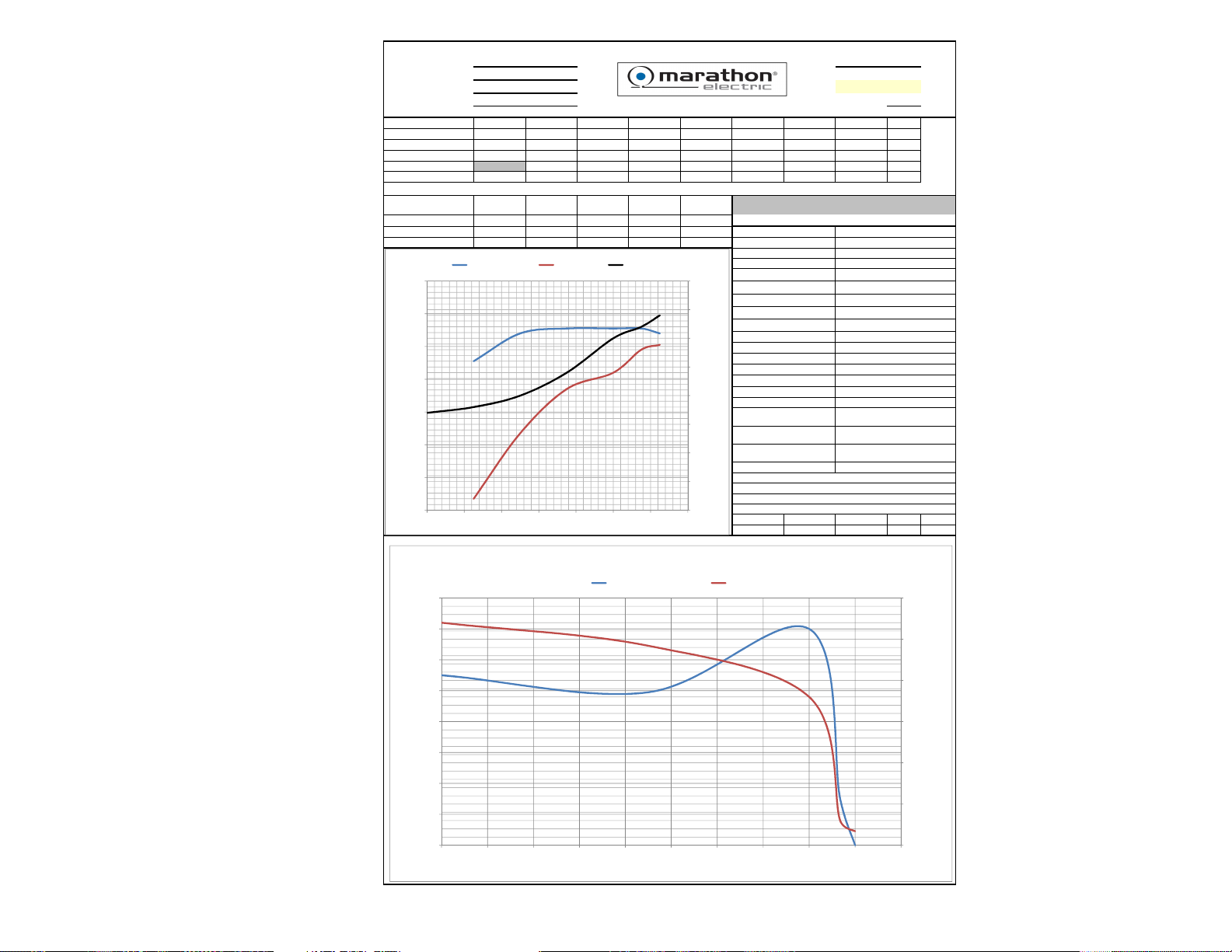

Speed -Torque Curve

Torque Amps

RPM

T O R Q U E

A M P S

Uncontrolled Copy
