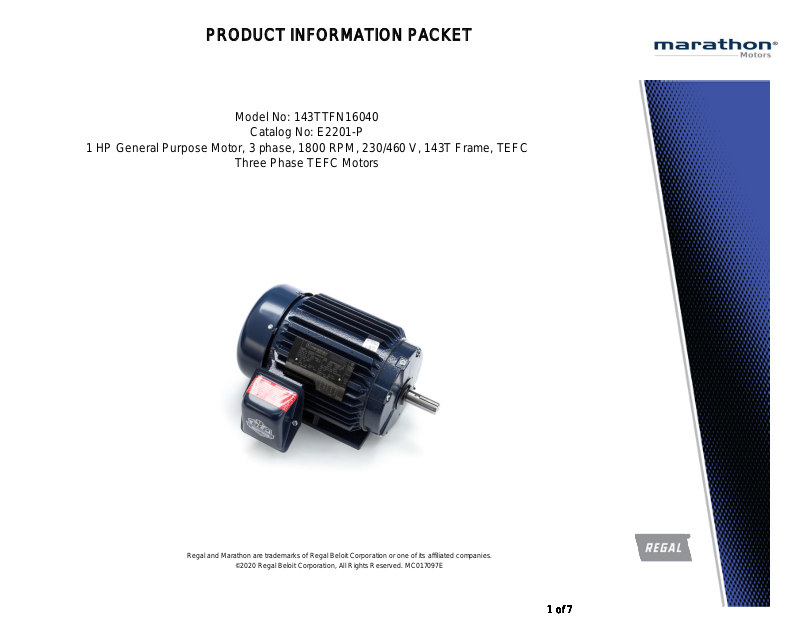

PRODUCT INFORMATION PACKET

Model No: 143TTFN16040

Catalog No: E2201-P

1 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 143T Frame, TEFC

Three Phase TEFC Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 7

Product Information Packet: Model No: 143TTFN16040, Catalog No:E2201-P 1 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 143T Frame, TEFC

Nameplate Specifications

Output HP 1 Hp Output KW 0.75 kW Frequency 60 Hz Voltage 230/460 V Current 3.0/1.5 A Speed 1735 rpm Service Factor 1.15 Phase 3 Efficiency 85.5 % Power Factor 72 Duty Continuous Insulation Class F Design Code B KVA Code M Frame 143T Enclosure Totally Enclosed Fan Cooled Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE Y IP Code 43

Technical Specifications

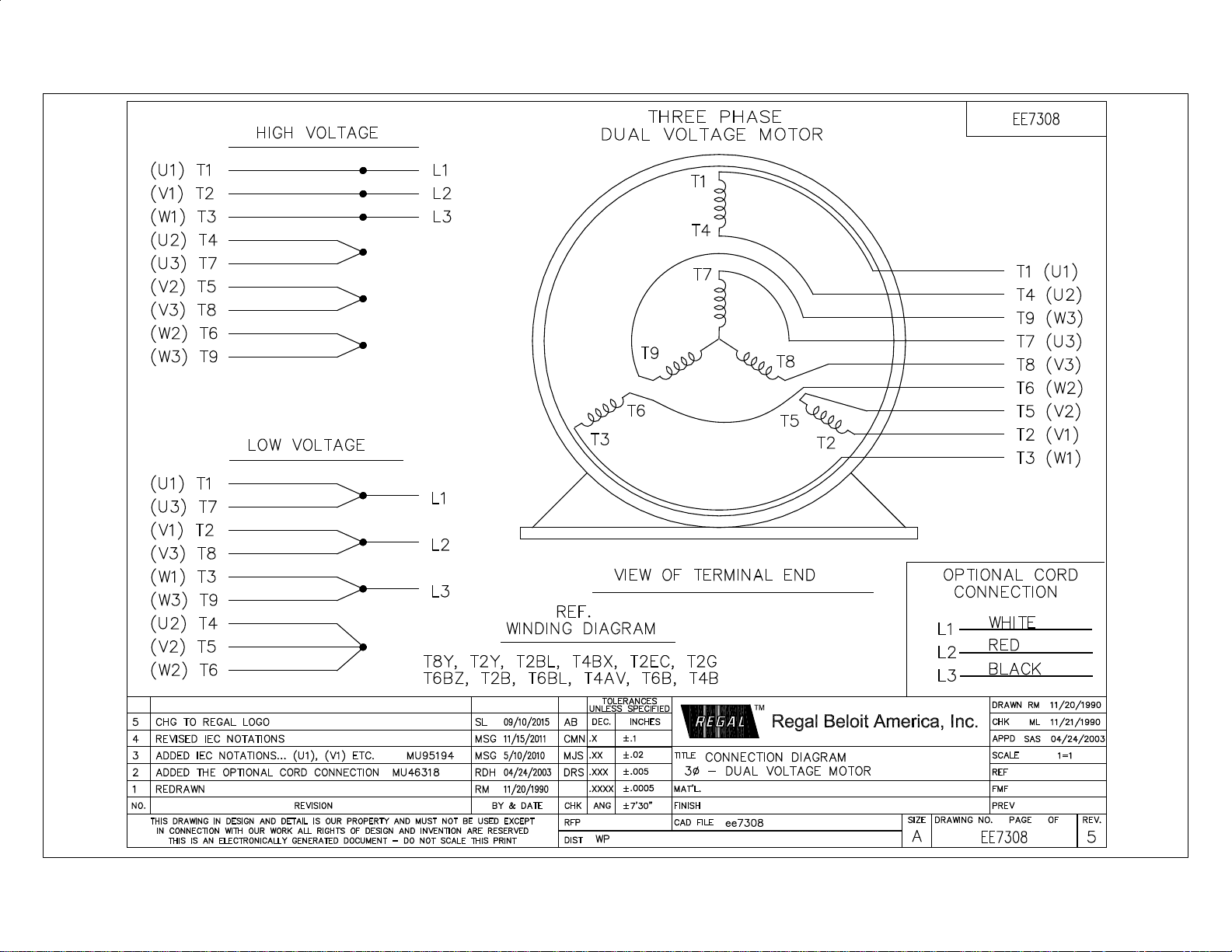

Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter Poles 4 Rotation Reversible Resistance Main 13.8 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Cast Iron Shaft Type T Overall Length 13.99 in Frame Length 7.50 in Shaft Diameter 0.875 in Shaft Extension 2.56 in Assembly/Box Mounting F1/F2 CAPABLE Outline Drawing 104719-750 Connection Drawing EE7308

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:18/06/2020

2 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 7

Uncontrolled Copy

Regal Beloit America, Inc.

TM

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING IT IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED:

DEC.

INCH

mm

ANGLE

.X

0.1 [ 2.5]

0.5

.XX

0.03 [

0.76]

XXX

0.005 [ 0.127]

.XXXX

0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] CORNER FILLETS: .02 [.51] MACHINED SURFACES:

125

3.2

INCH mm mm SHOWN IN [BRACKETS]

1

2

4

3

A

B

2

4

3

1

A

B

ECO DESCRIPTION

DATE

APPROVED BY

DATE

REVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBER

SIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

104719

DRS

05/25/2000

ET

05/25/2000

D

KR

10/17/2014

ECO-0062803

SM

10/17/2014

ADDED F2-VIEW

OUTLINE

140 FR. - BB - TS - TEFC

C

2.56

65.01

2F

2FF

2F

2FF

2FFF

B

BS

4.50

114.30

.8750 .8745

22.2237

22.2110

2.25

57.15

2.25

57.15

.19x.19x1.38 KEY

10.97

278.73

8.03

203.93

6.99

177.42

5.39

136.78

7.44

189.00

3.50

3.44

89.01

87.49

.46

11.72

1.68

42.61

2.75

69.85

5.50

139.70

7.12

180.85

1.85

47.089

.34-.39 THRU

12 HOLES

1.09

L. HOLE

F2 VIEW

NOTES

1. BOX CAN BE ROTATED IN 90

STEPS

2. BOX CAN MOUNTED ON OPPOSITE SIDE BY REMOVING BRACKETS AND TURNING FRAME 180

3. NAMEPLATE READ FROM CONDUIT SIDE OS MOTOR

DASH

FR.

B C

BS

2F

2FF

2FFF

750

143/5T

7.25 13.99 5.06 4.00 5.00 6.25

3 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 7

Uncontrolled Copy

4 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 7

CERTIFICATION DATA SHEET

Model#: 143TTFN16040 AA WINDING#: ZT492 R16 3 CONN. DIAGRAM: A-EE7308 ASSEMBLY: F1/F2 CAPABLE OUTLINE: A-104719-750

TYPICAL MOTOR PERFORMANCE DATA

HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN

1&1 .75&.75 1800 1735&1445 143T TEFC M B

PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION

3 60/50 230/460#190/

380

3/1.5&3.4/1.7 LINE OR

INVERTER

CONTINUOUSF3 1.15/1.15 40 3300

FULL LOAD EFF:

85.5&84.5

3/4 LOAD EFF: 85.5 1/2 LOAD EFF: 84 GTD. EFF ELEC. TYPE NO LOAD AMPS

FULL LOAD PF:

72&77.5

3/4 LOAD PF: 67 1/2 LOAD PF: 53.5 82.5 SQ CAGE INV RATED 1.7 / .9

F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C

3 LB-FT 27 / 13.5 11 LB-FT 367 14 LB-FT 467 21

SOUND PRESSURE

@ 3 FT.

SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS

/HOUR

APPROX. MOTOR

WGT

60 dBA 70 dBA 0.1 LB-FT^2 7 LB-FT^2 20 SEC. 2 55 LBS.

*** SUPPLEMENTAL INFORMATION ***

DE BRACKET

TYPE

ODE BRACKET

TYPE

MOUNT

TYPE

ORIENTATION SEVERE

DUTY

HAZARDOUS

LOCATION

DRIP

COVER

SCREENS PAINT

STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE

(POWDER)

BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT

MATERIAL

FRAME

MATERIAL

DE OPE

BALL BALL POLYREX EM T NONE NONE 1144

STRESSPROOF

(C-223)

CAST IRON

6205 6203

THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS

THERMOSTATS PROTECTORS WDG RTDs BRG RTDs

NONE NOT NONE NONE NONE FALSE NONE VOLTS

If Inverter equals NONE, contact factory for further

information

* N O T E S *

INVERTER TORQUE: CONSTANT 20:1 INV. HP SPEED RANGE: NONE

ENCODER: NONE NONE NONE NONE NONE PPR

BRAKE: NONE NONE NONE P/N NONE NONE NONE NONE FT-LB NONE V NONE Hz

DATE: 06/22/2017 07:47:23 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.

Uncontrolled Copy

5 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 7

Uncontrolled Copy

6 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 7

Date:

Customer:

Attention:

Submitted by:

Data @

460

v

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps)

0.85 0.90 1.00 1.20 1.50 1.60 1.70 13.5

Torque (ft-lb)

0.00 0.74 1.50 2.20 3.0 3.5 3.8 11.0

RPM

1800 1785 1770 1755 1735 1,730 1725 0

Efficiency (%)

75.5 84.0 85.5 85.5 85.5 84.0

P.F. (%)

10.0 33.5 53.5 67.0 72.0 79.0 80.5 67.0

LR Pull-Up BD Rated Idle

Speed (RPM)

0 900 1600 1735 1800

Information Block

Current (Amps)

13.5 12.1 9.0 1.50 0.85 1.0

Torque (ft-lb)

11.0 9.9 14.0 3.0 0.00 1800

143

TEFC

TFN

V

60

Hz

A

M

1.15

21

°

C

CONT

40

°

C

1,000

feet

0.10

Lb-Ft²

ZT492 R16

60 dBA

Additional Specifications:

R1 R2 X1 X2 Xm

7.8610 5.4770 11.6360 10.3590 300.8280

CONSTANT 20:1

0 365THFS8036

EQUIV CKT (OHMS / PHASE)

Ref Wdg

Sound Pressure @ 1M

VFD Rating

Outline Dwg A-104719-750 Conn. Diag A-EE7308

Rotor/Shaft wk²

Voltage

Frequency

Design

LR Code letter

Service Factor

Temp Rise @ FL

Duty

Ambient

Elevation

Construction

Motor Speed Data

HP Sync. RPM

Frame Enclosure

Motor Load Data

Submittal

FAREEDA DUDEKULA

Data Sheet

15-06-2017 143TTFN16040

0.0

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

30.0

40.0

50.0

60.0

70.0

80.0

90.0

100.0

0% 20% 40% 60% 80% 1 00% 120% 140%

Efficiency (%) P.F. (%) Cu rrent (Amps)

LOAD

A M P S

E F F

P F

0.0

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

0.0

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

0 200 400 600 800 1000 1200 1400 1600 1800 2000

Speed -Torque Curve

Torque Amps

RPM

T O R Q U E

A M P S
