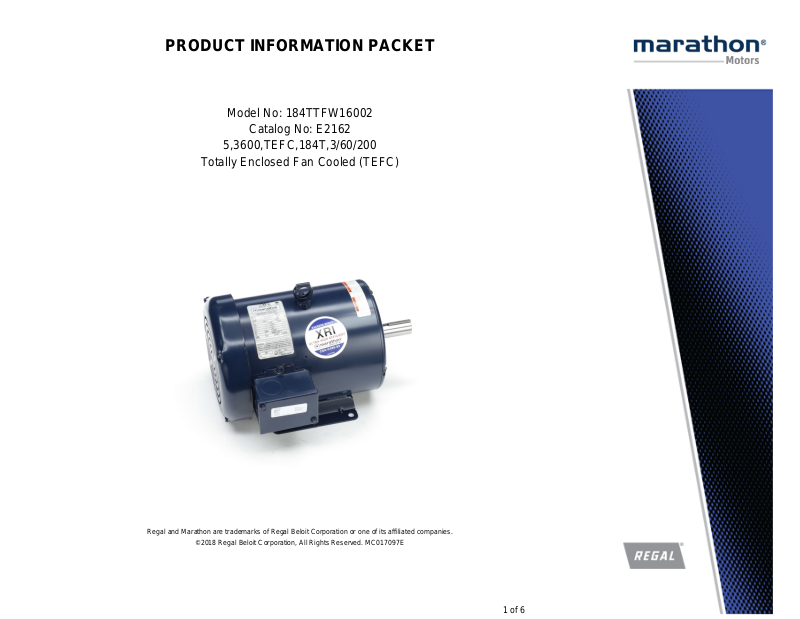

Page 1
PRODUCT INFORMATION PACKET
Model No: 184TTFW16002
Catalog No: E2162
5,3600,TEFC,184T,3/60/200
Totally Enclosed Fan Cooled (TEFC)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 184TTFW16002, Catalog No:E2162 5,3600,TEFC,184T,3/60/200
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 200 V
Current
Service Factor
Efficiency 88.5 % Duty Continous
Insulation Class
KVA Code J Frame 184T
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code
5 Hp
13.8 A
1.15
F
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
3.7 kW
3495 rpm
3
B
6206
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 1.125 in Shaft Extension 2.81 in
Assembly/Box Mounting
Outline Drawing
Rigid base
14.97 in
F1 Only
035536-950
Motor Orientation
Frame Length
Connection Diagram
Horizontal
9.50 in
005102.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
Uncontrolled Copy
3 of 6
Page 4
9/25/2008 5:13:26 PM
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 184TTFW16002 AA WINDING#: T82103 R1 5
CONN. DIAGRAM: 005102.01ME ASSEMBLY: F1 ONLY
OUTLINE: 035536-950
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
5 3.7 3600 3495 184T TEFC J B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 200 13.8 LINE OR
INVERTER
CONTINUOUSF4 1.15 40 3300
FULL LOAD EFF: 88.5 3/4 LOAD EFF: 89.1 1/2 LOAD EFF: 87.9 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 89.5 3/4 LOAD PF: 87.5 1/2 LOAD PF: 81.1 86.2 SQ CAGE INV RATED 3.9
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
7.5 LB-FT 105.8 16 LB-FT 213 26 LB-FT 347 55
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
75 dBA 85 dBA 0.3 LB-FT^2 13 LB-FT^2 15 SEC. 2 125 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1045 (C-240) ROLLED STEEL
6206 6205
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 10:1
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 07:29:21 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
200
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
3.9 5.3 7.6 10.4 13.8 15.6 17.0 106
Torque (ft-lb)
0.00 1.80 3.7 5.6 7.5 8.7 9.5 16.0
RPM
3600 3576 3551 3526 3495 3,477 3463 0
Efficiency (%)
81.9 87.9 89.1 88.5 88.3 87.6
P.F. (%)
12.5 62.9 81.1 87.5 89.5 90.5 90.8 45.5
LR Pull-Up BD Rated Idle
Speed (RPM)
0 170 2850 3495 3600
Information Block
Current (Amps)
106 108 69.0 13.8 3.9 5.0
Torque (ft-lb)
16.0 15.5 26.0 7.5 0.00 3600
180
TEFC
TFW
200
V
60
Hz
B
J
1.15
55
°
C
CONT
40
°
C
1,000
feet
0.30
Lb-Ft²
T82103 R1
75 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.2630 0.2140 0.9090 0.3490 23.6220
CONSTANT 10:1
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 035536-950
Conn. Diag 005102.01ME
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
16-06-2017 184TTFW16002
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
20.0
40.0
60.0
80.0
100.0
120.0
0.0
5.0
10.0
15.0
20.0
25.0
30.0
-500 0 500 1000 1500 2000 2500 3000 3500 4000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 6
