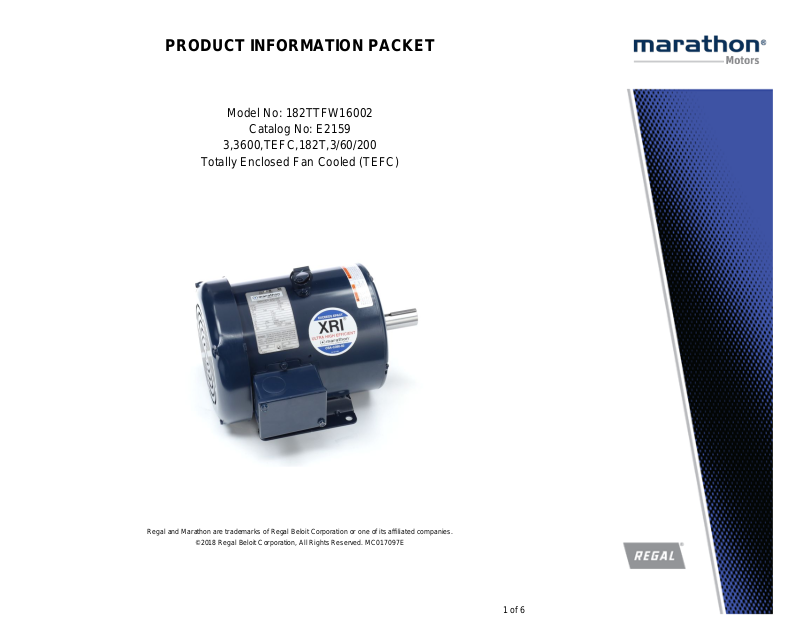

PRODUCT INFORMATION PACKET
Model No: 182TTFW16002
Catalog No: E2159
3,3600,TEFC,182T,3/60/200
Totally Enclosed Fan Cooled (TEFC)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 182TTFW16002, Catalog No:E2159 3,3600,TEFC,182T,3/60/200
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 200 V
Current
Service Factor
Efficiency 86.5 % Duty Continous
Insulation Class
KVA Code K Frame 182T
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code
3 Hp
8.5 A
1.15
F
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
2.2 kW
3521 rpm
3
B
6206
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 1.125 in Shaft Extension 2.81 in
Assembly/Box Mounting
Outline Drawing
Rigid base
13.97 in
F1 Only

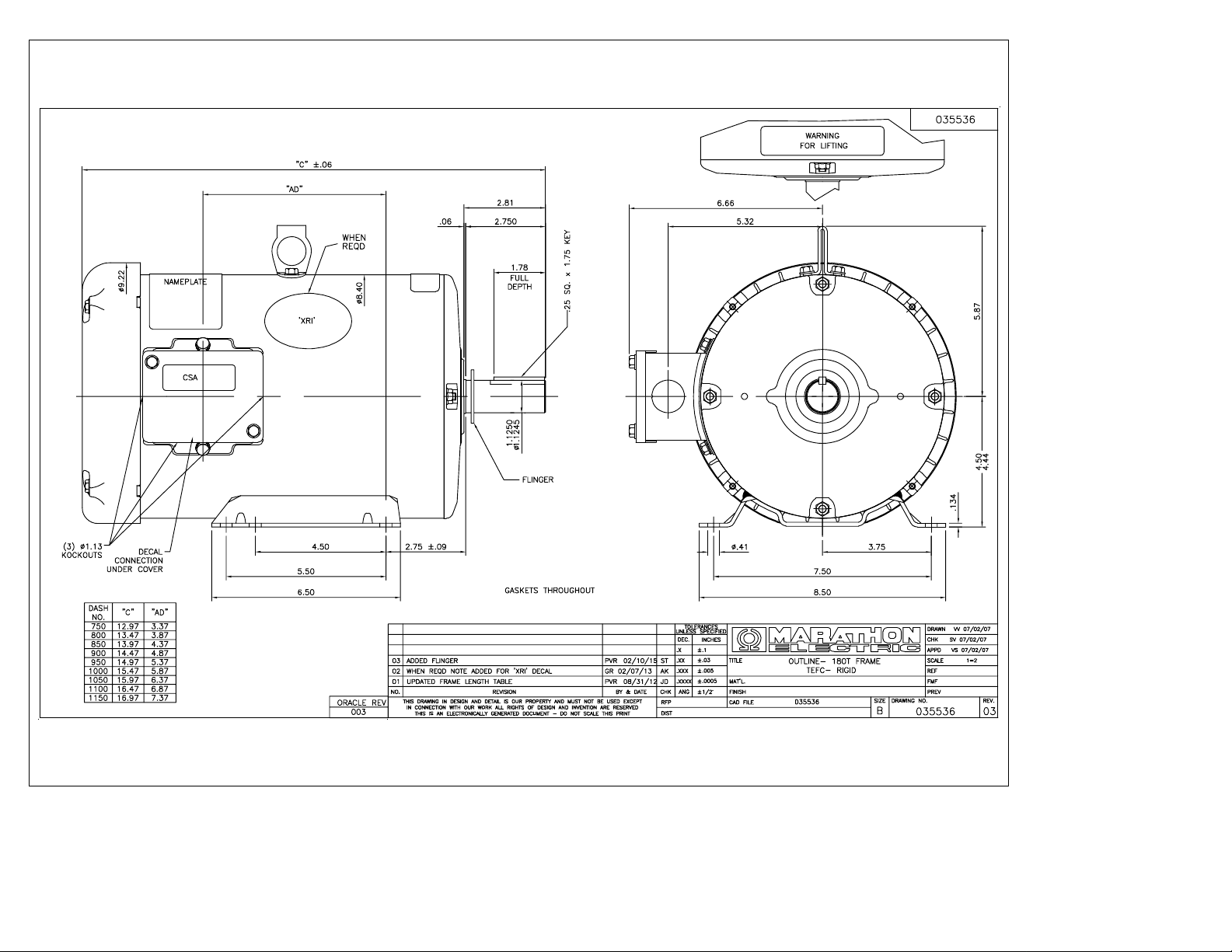

035536-850
Motor Orientation
Frame Length
Connection Diagram
Horizontal
8.50 in

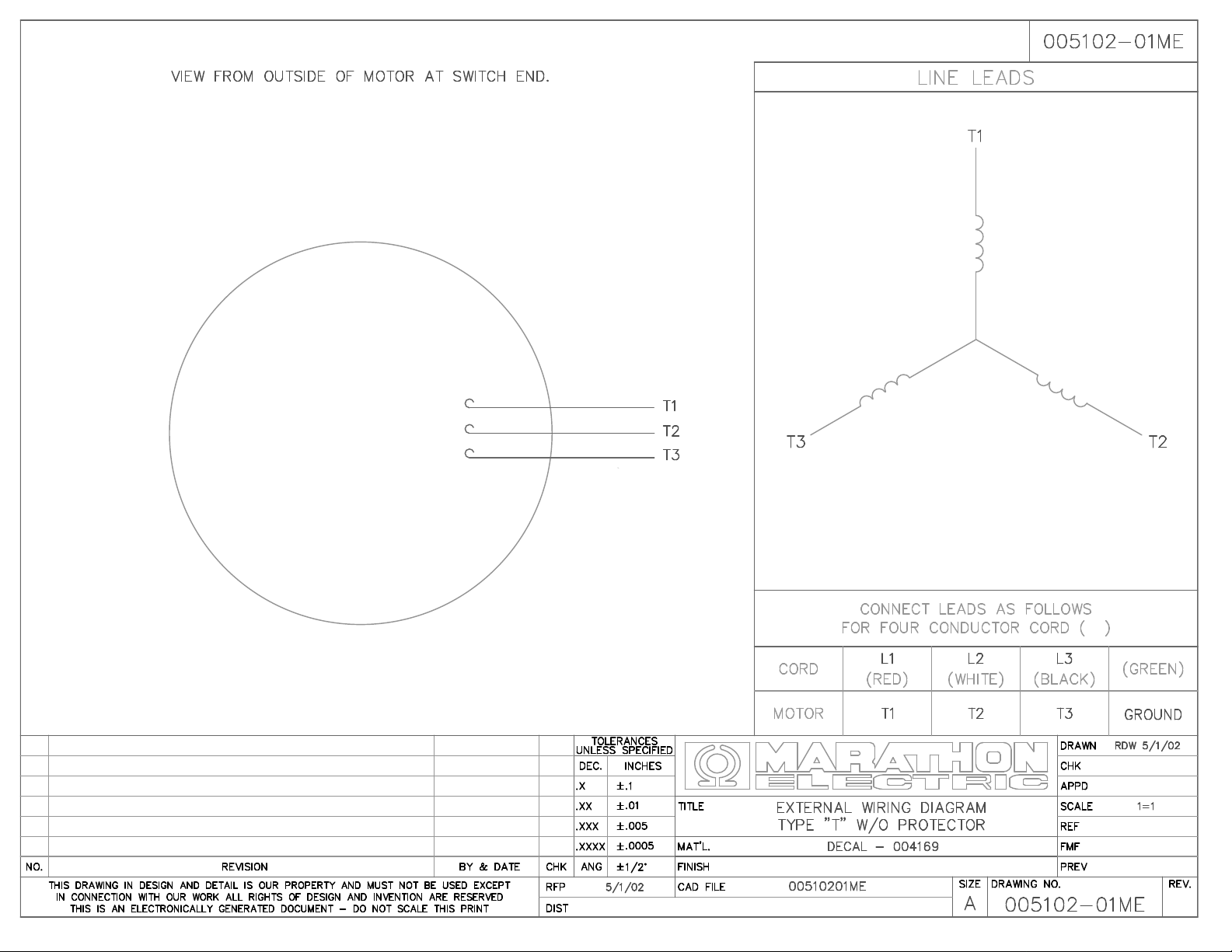

005102.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
Uncontrolled Copy
3 of 6
Page 4
9/25/2008 5:13:26 PM
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 182TTFW16002 AA WINDING#: T8290 FR 5
CONN. DIAGRAM: 005102.01ME ASSEMBLY: F1 ONLY
OUTLINE: 035536-850
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3 2.24 3600 3521 182T TEFC K B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 200 8.5 LINE OR
INVERTER
CONTINUOUSF4 1.15 40 3300
FULL LOAD EFF: 86.5 3/4 LOAD EFF: - 1/2 LOAD EFF: - GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 88 3/4 LOAD PF: - 1/2 LOAD PF: - 0 SQ CAGE INV RATED -
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
0 LB-FT - - LB-FT - - LB-FT - 45
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA 0.33 LB-FT^2 - LB-FT^2 10 SEC. - 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1045 (C-240) ROLLED STEEL
6206 6205
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 10:1
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 03:26:53 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
200
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
3.2 4.0 5.1 6.7 8.5 9.7 10.1 78.2
Torque (ft-lb)
0.00 1.20 2.30 3.4 4.5 5.2 5.6 12.0
RPM
3600 3580 3562 3542 3521 3,510 3498 0
Efficiency (%)
79.0 85.8 86.1 86.5 86.6 86.7
P.F. (%)
17.3 56.1 76.4 86.3 88.0 90.0 91.4 0.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 600 2700 3521 3600
Information Block
Current (Amps)
78.2 71.9 46.9 8.5 3.2 3.0
Torque (ft-lb)
12.0 11.5 16.5 4.5 0.00 3600
180
TEFC
TFW
200
V
60
Hz
A
K
1.15
45
°
C
CONT
40
°
C
1,000
feet
0.33
Lb-Ft²
T8290 FR
79 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
CONSTANT 10:1
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 035536-850
Conn. Diag 005102.01ME
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
20-06-2017 182TTFW16002
0.0
2.0
4.0
6.0
8.0
10.0
12.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 10 0% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
0 500 1000 1500 2000 2500 3000 3500 4000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 6
